ECU Power Source Circuit

ECU Power Source Circuit

DESCRIPTION
This is the power source for the tire pressure warning ECU. It also supplies the power to the tire pressure warning antenna and receiver via the ECU.

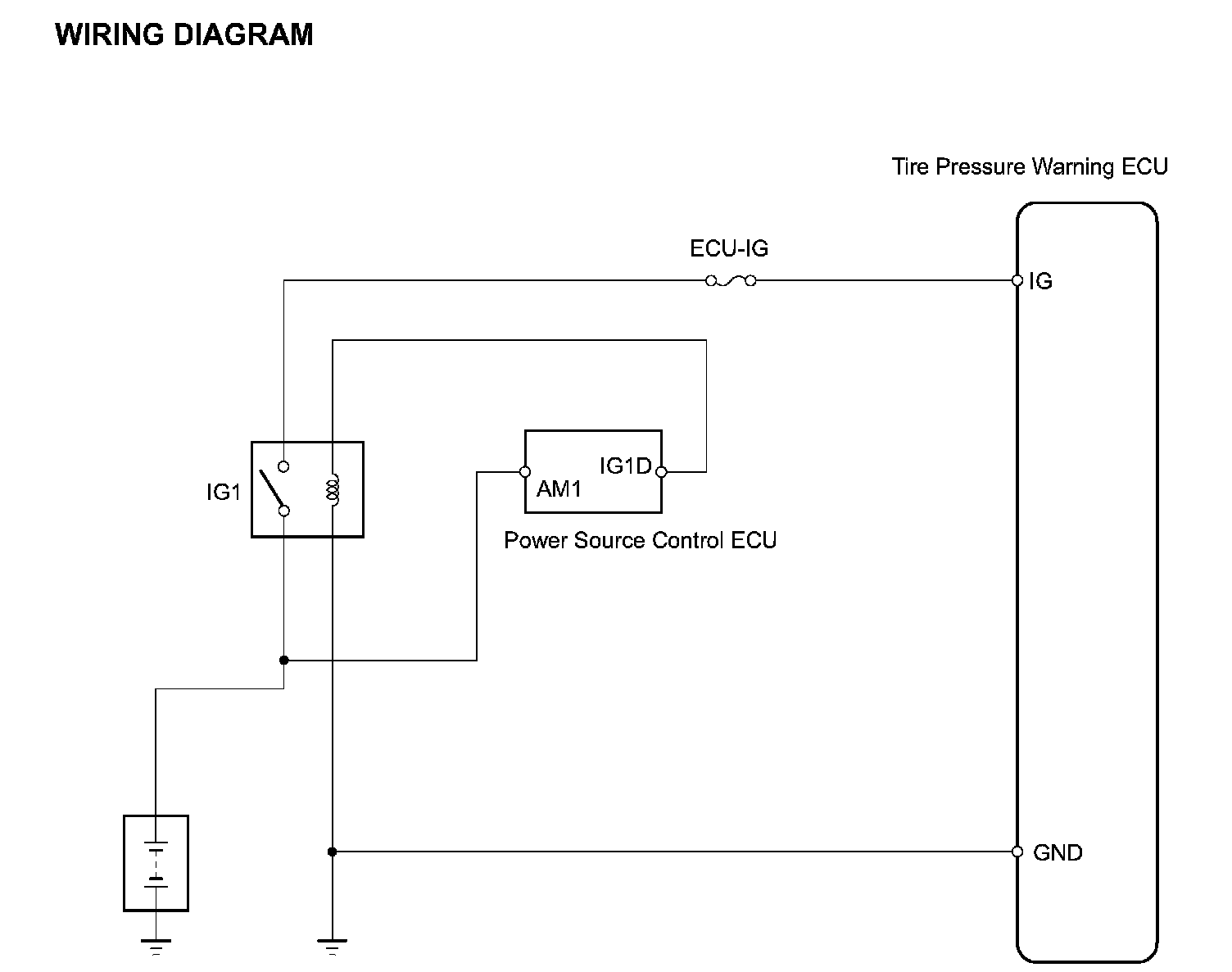

WIRING DIAGRAM:





INSPECTION PROCEDURE

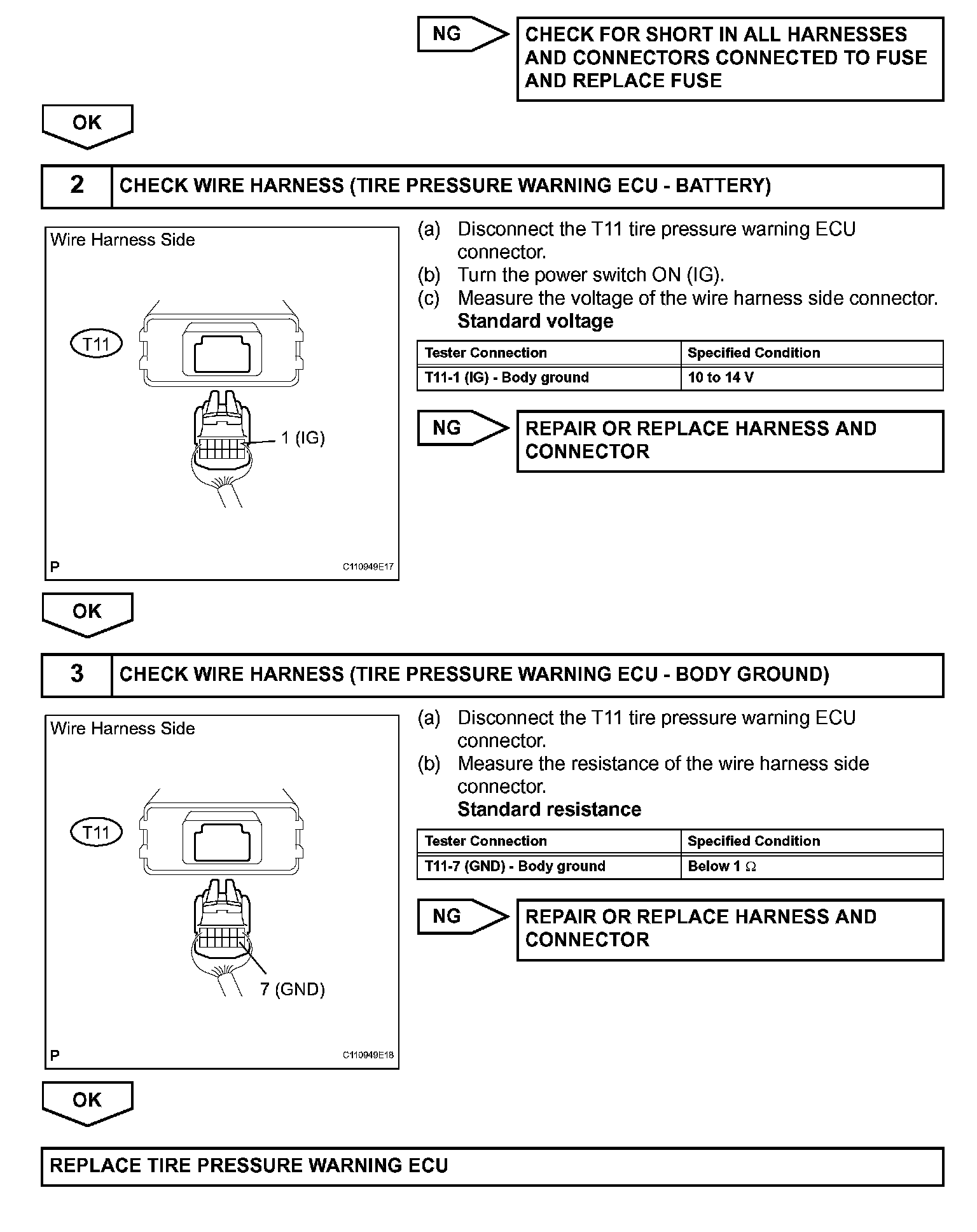

Step 1(Part 1):




Steps 1(Part 2)-3:
