Warning Light Circuit

Warning Light Circuit

DESCRIPTION
Headlight beam level control ECU sends the warning signal to the combination meter.

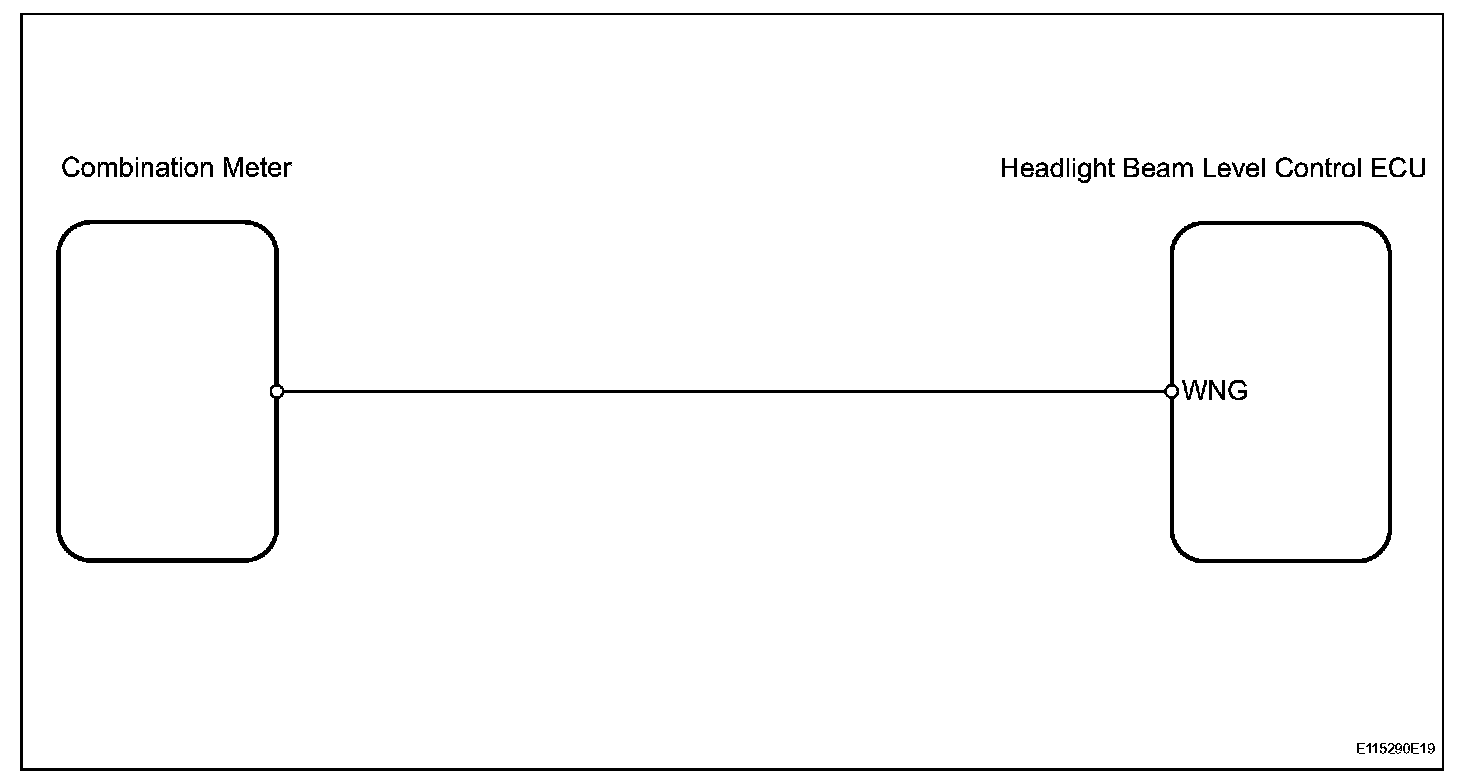

Wiring Diagram:

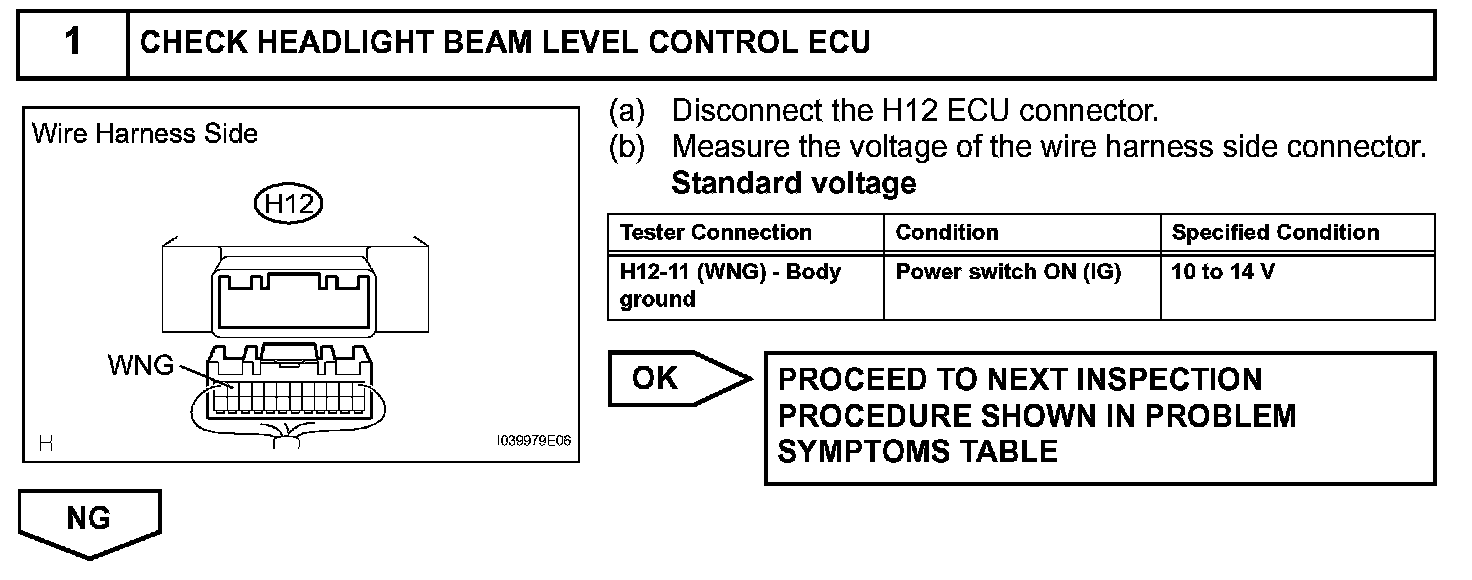

Step 1:

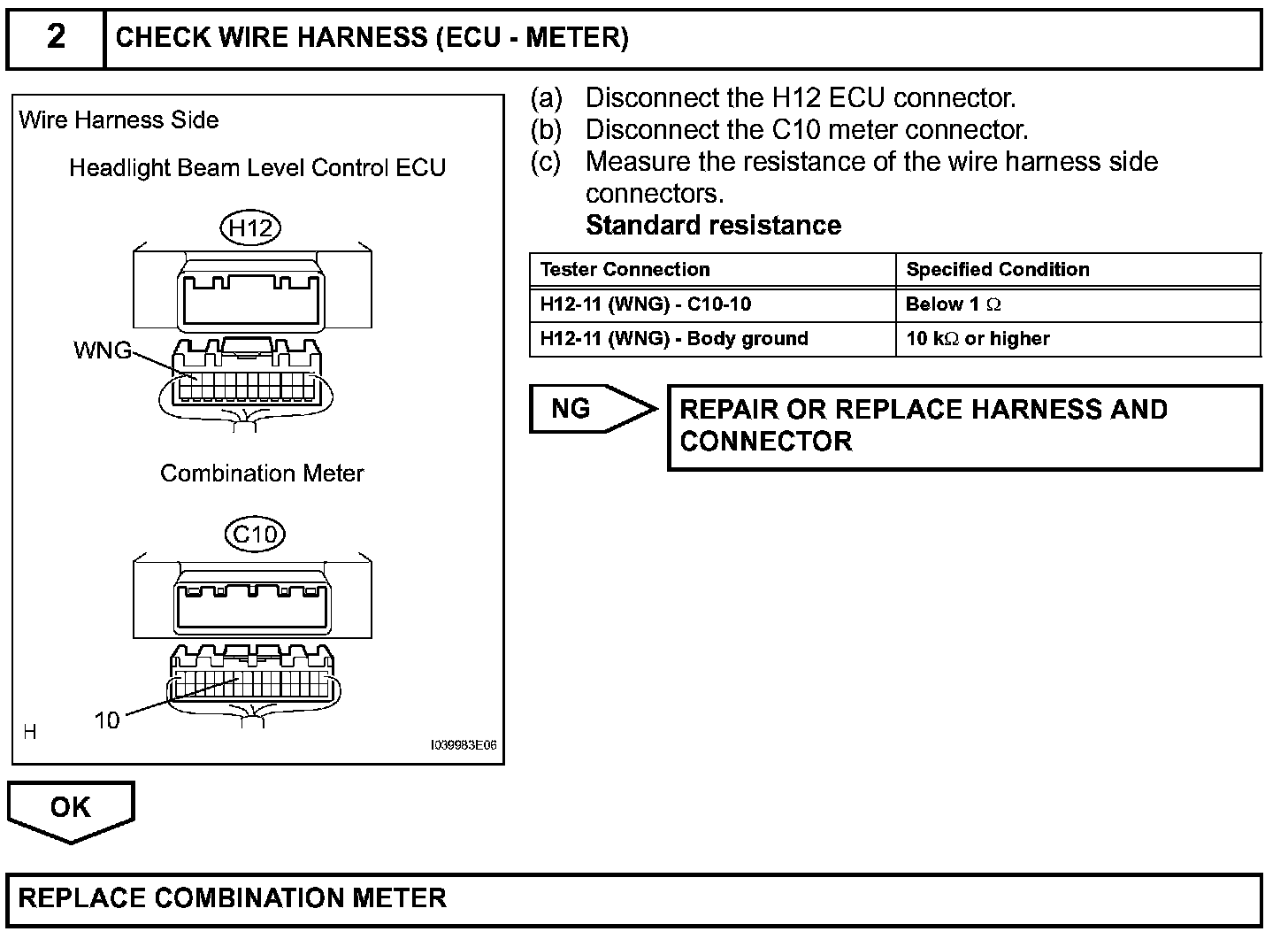

Step 2:




INSPECTION PROCEDURE

HINT: Check if the combination meter operation is normal before performing the given procedure.
