Vehicle Speed Signal Circuit
Vehicle Speed Signal CircuitDESCRIPTION
Headlight beam level control ECU receives the vehicle speed signal from the combination meter.

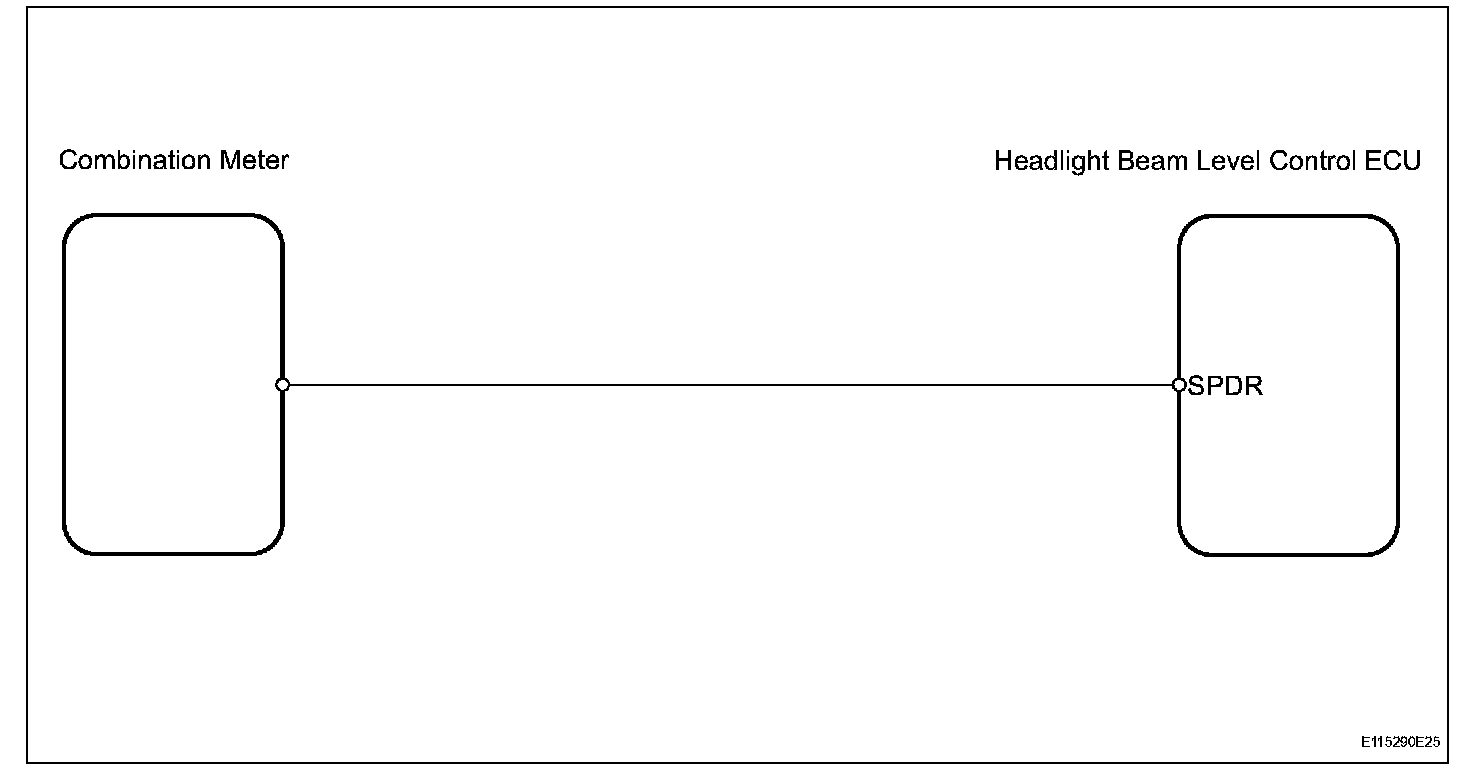

Wiring Diagram:

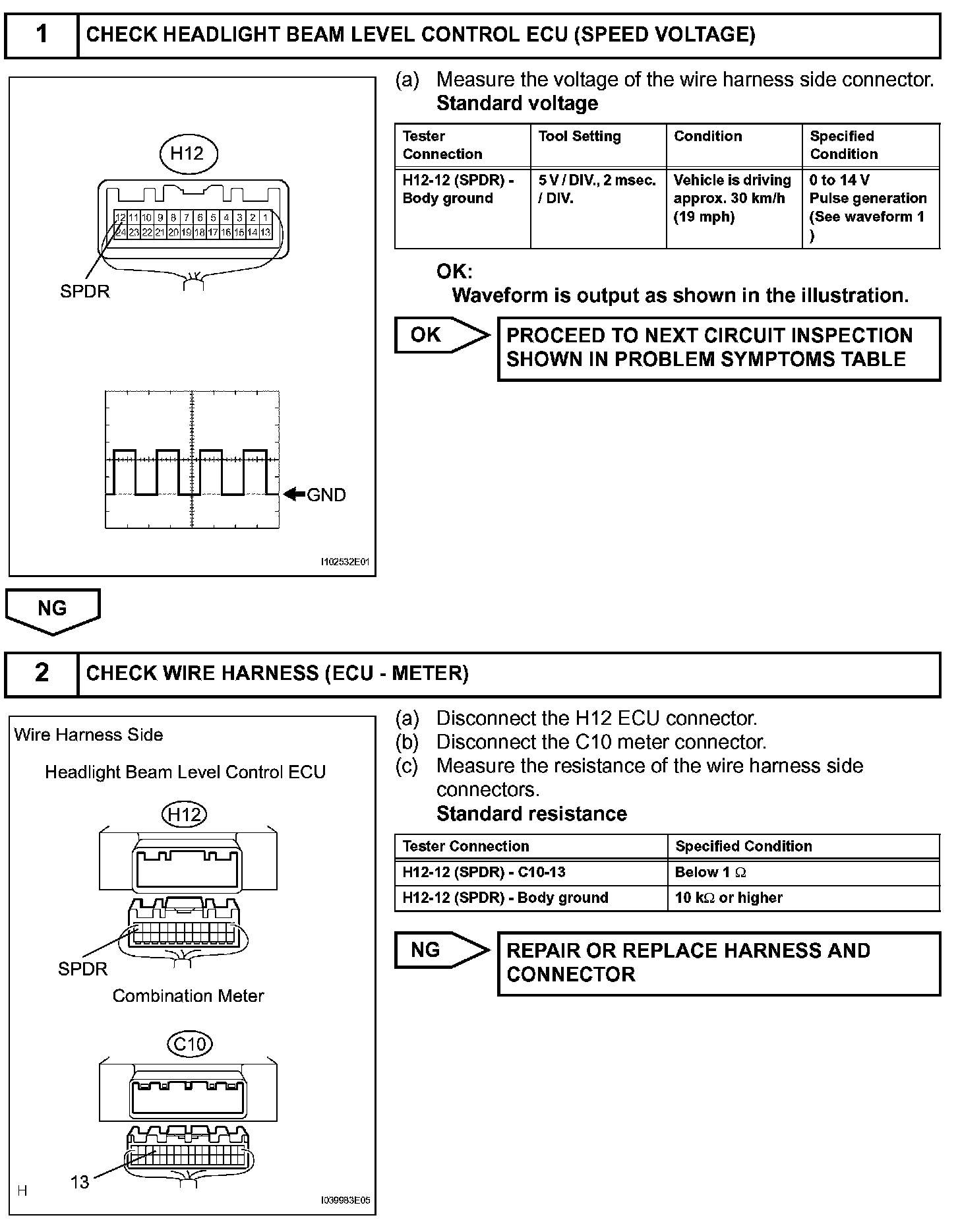

Step 1-2:

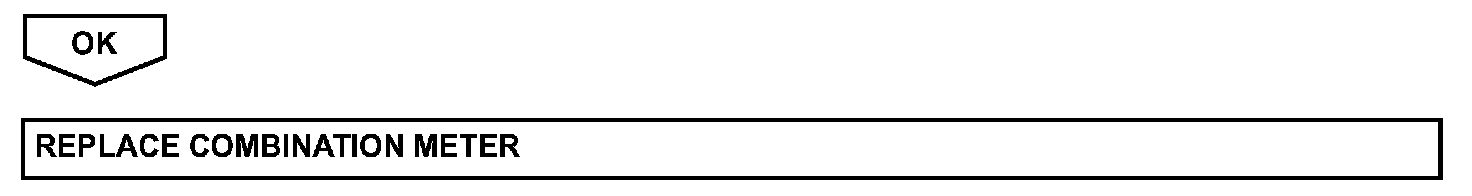

Step 2 (Continued):
INSPECTION PROCEDURE
HINT: Check if the combination meter operation is normal before performing the given procedure.
