Power Source Circuit
Power Source CircuitDESCRIPTION
This circuit detects the state of the power switch and sends it to the main body ECU.

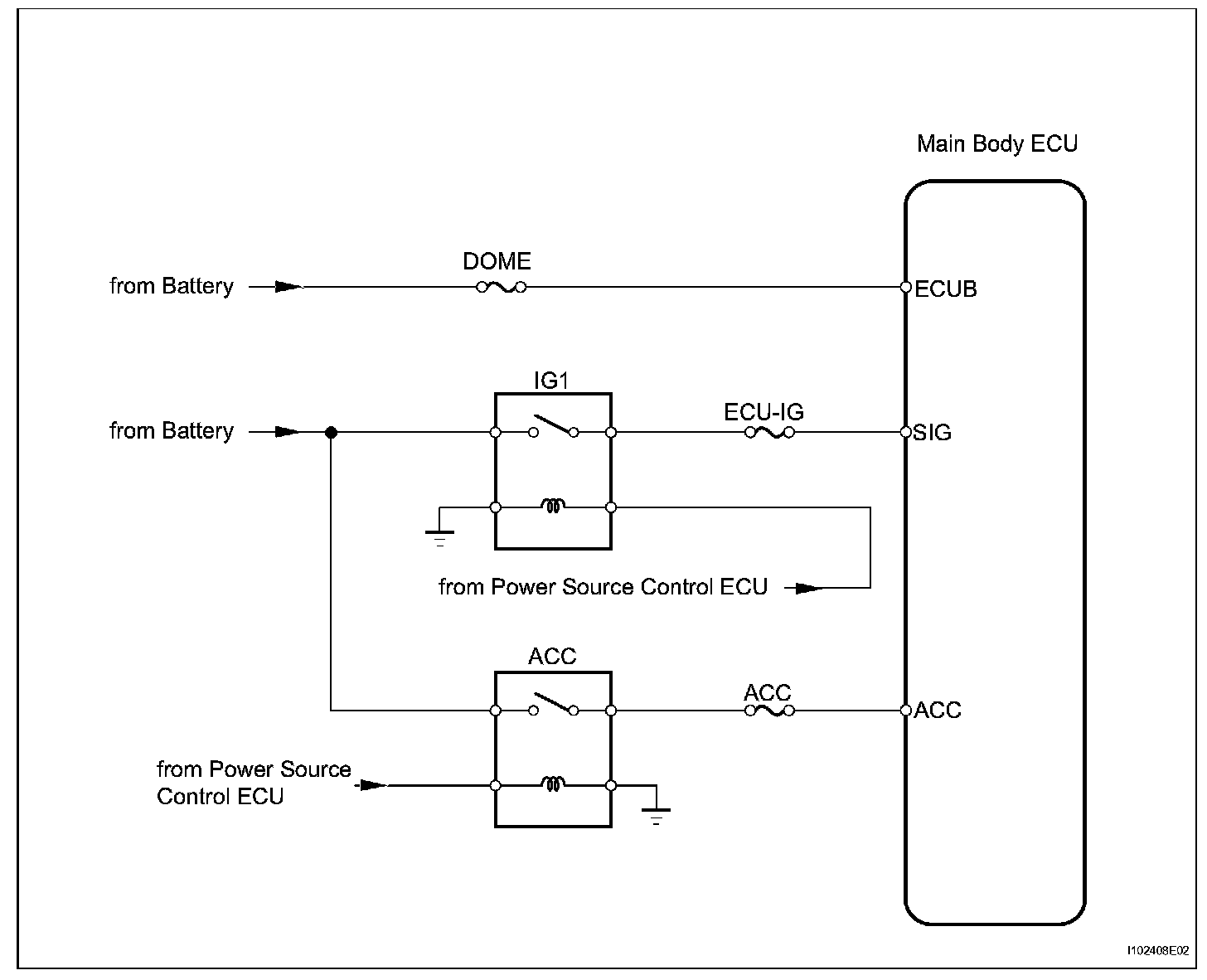

Wiring Diagram:

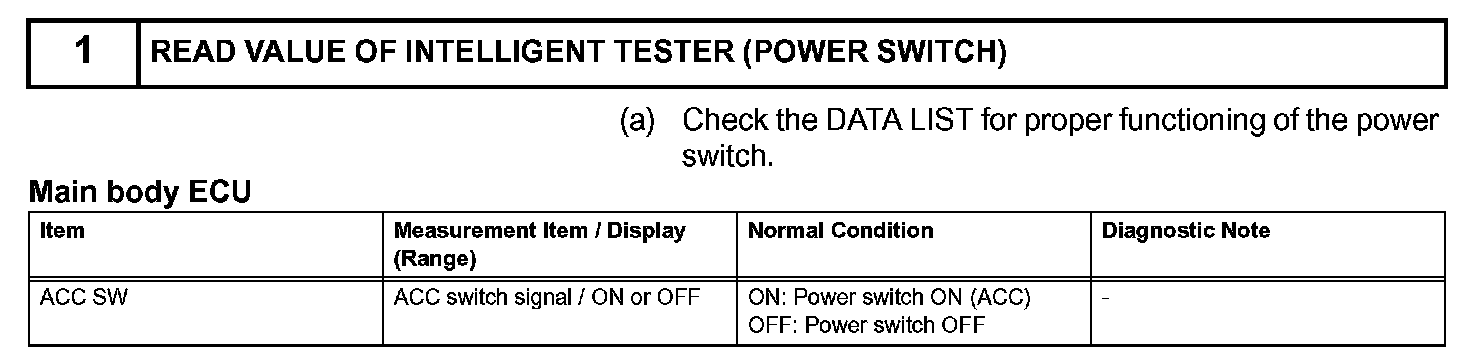

Step 1:

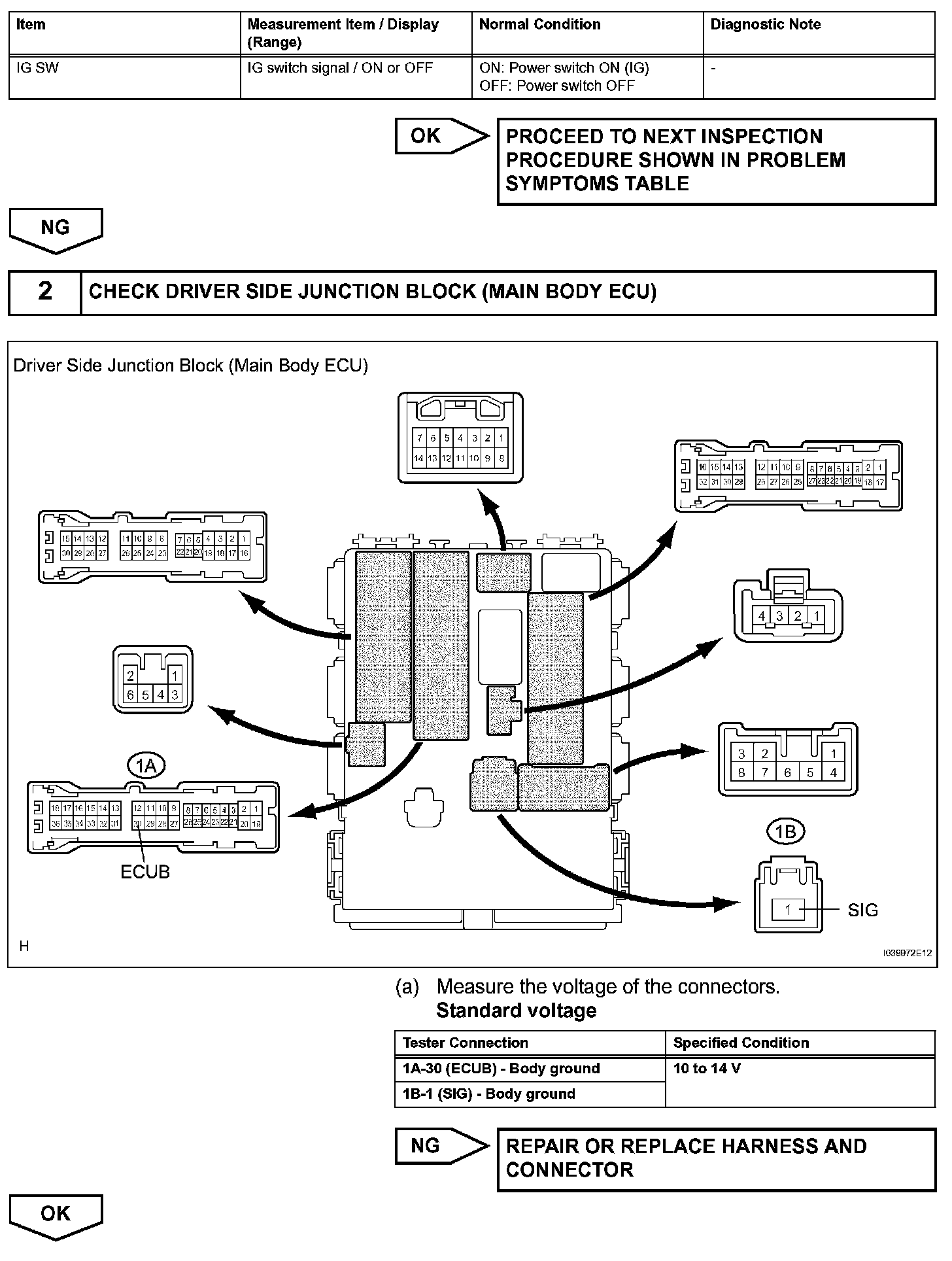

Step 1 (Continued)-2:

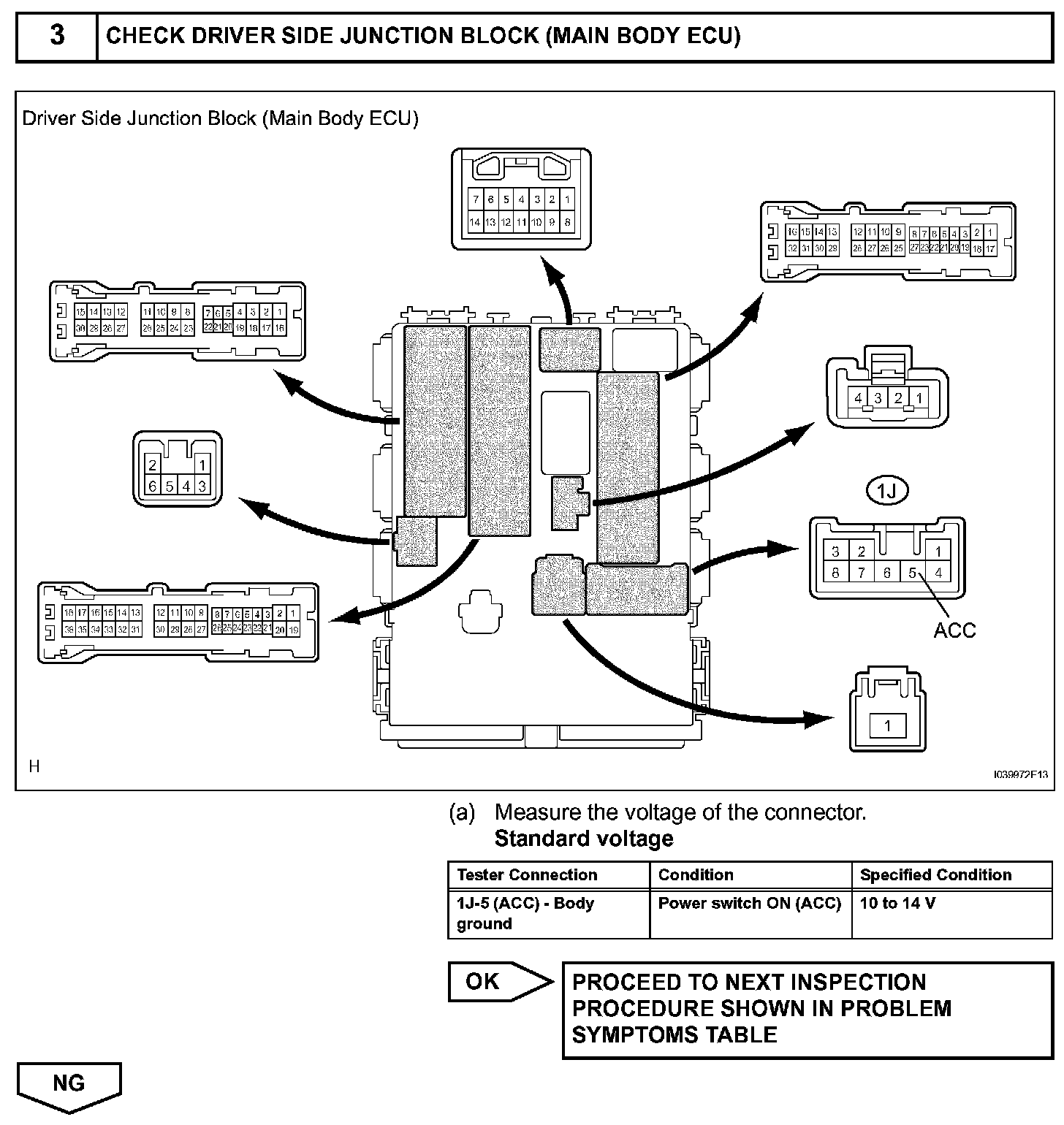

Step 3:

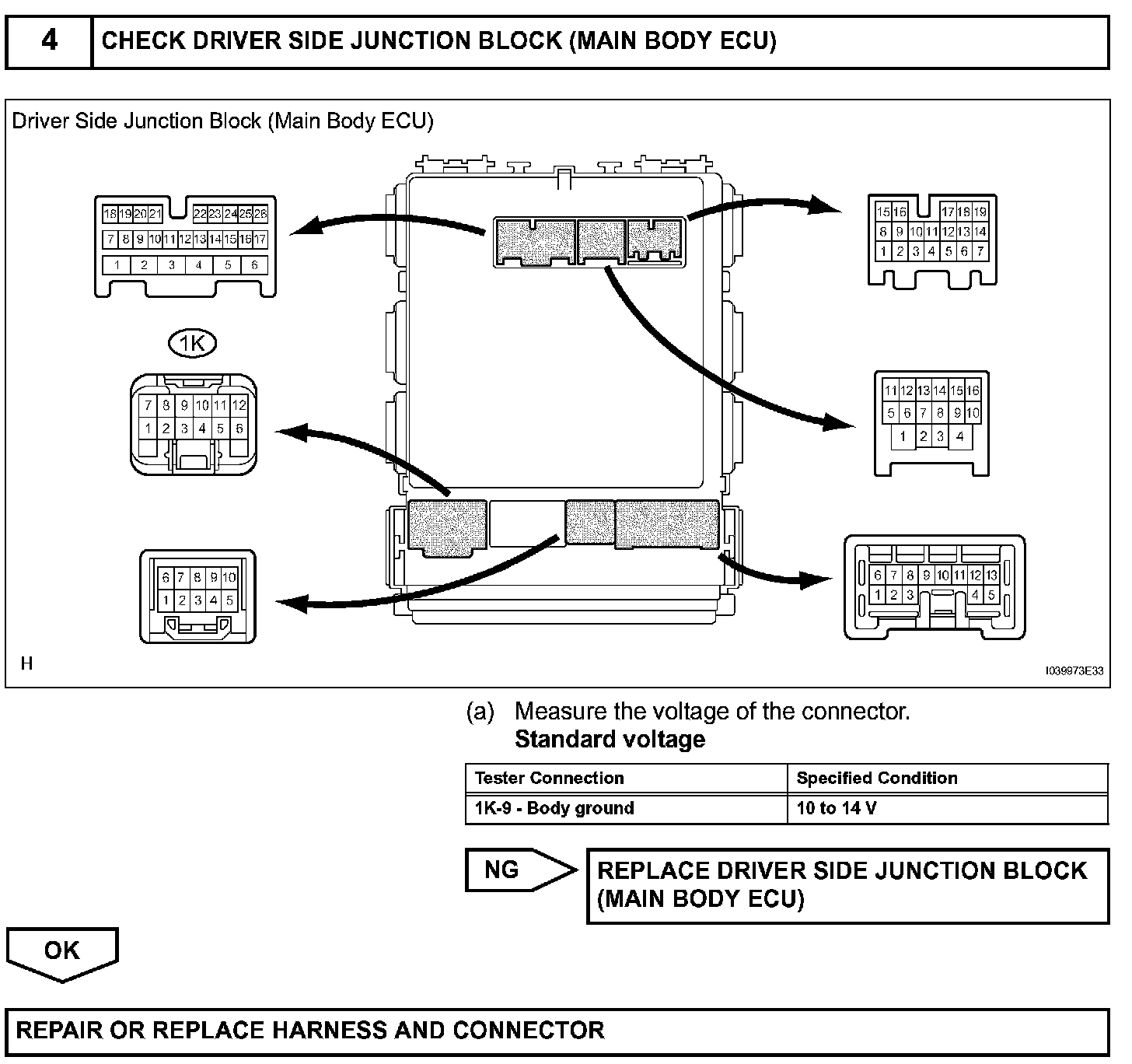

Step 4:
INSPECTION PROCEDURE
HINT: Check if the power source control ECU operation is normal before performing the given procedure.
