Headlight Signal Circuit
Headlight Signal CircuitDESCRIPTION
Headlight beam level control ECU receives the H-LP relay operation signal from HEAD signal.

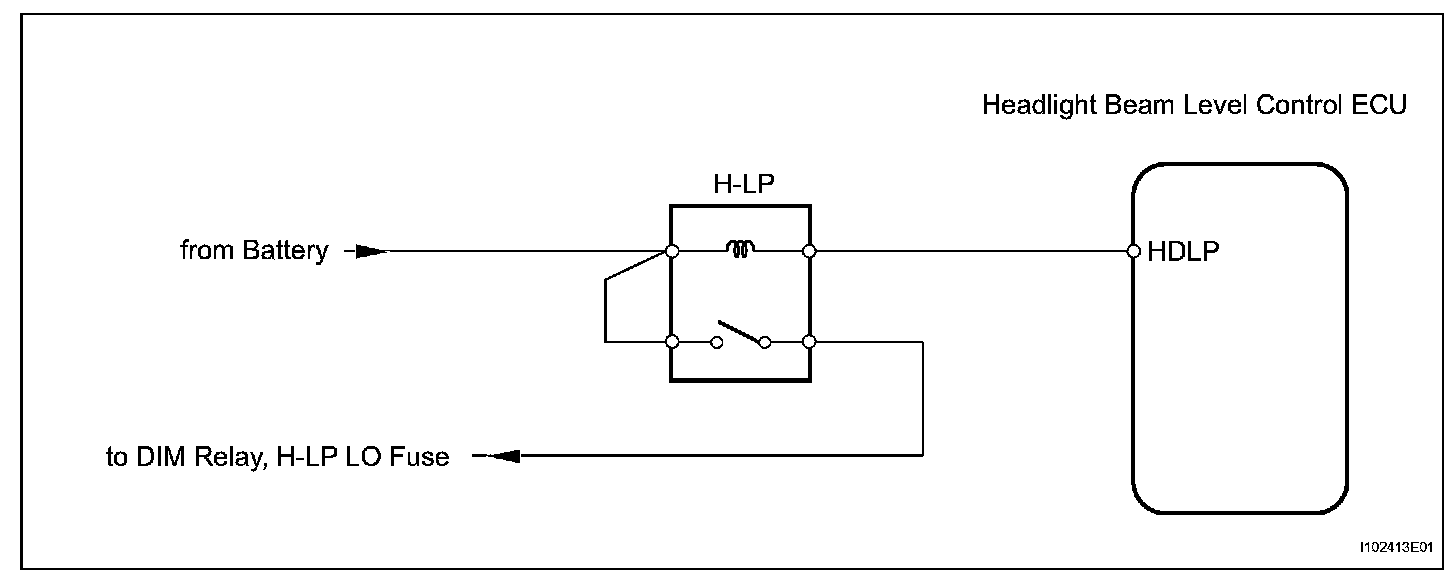

Wiring Diagram:

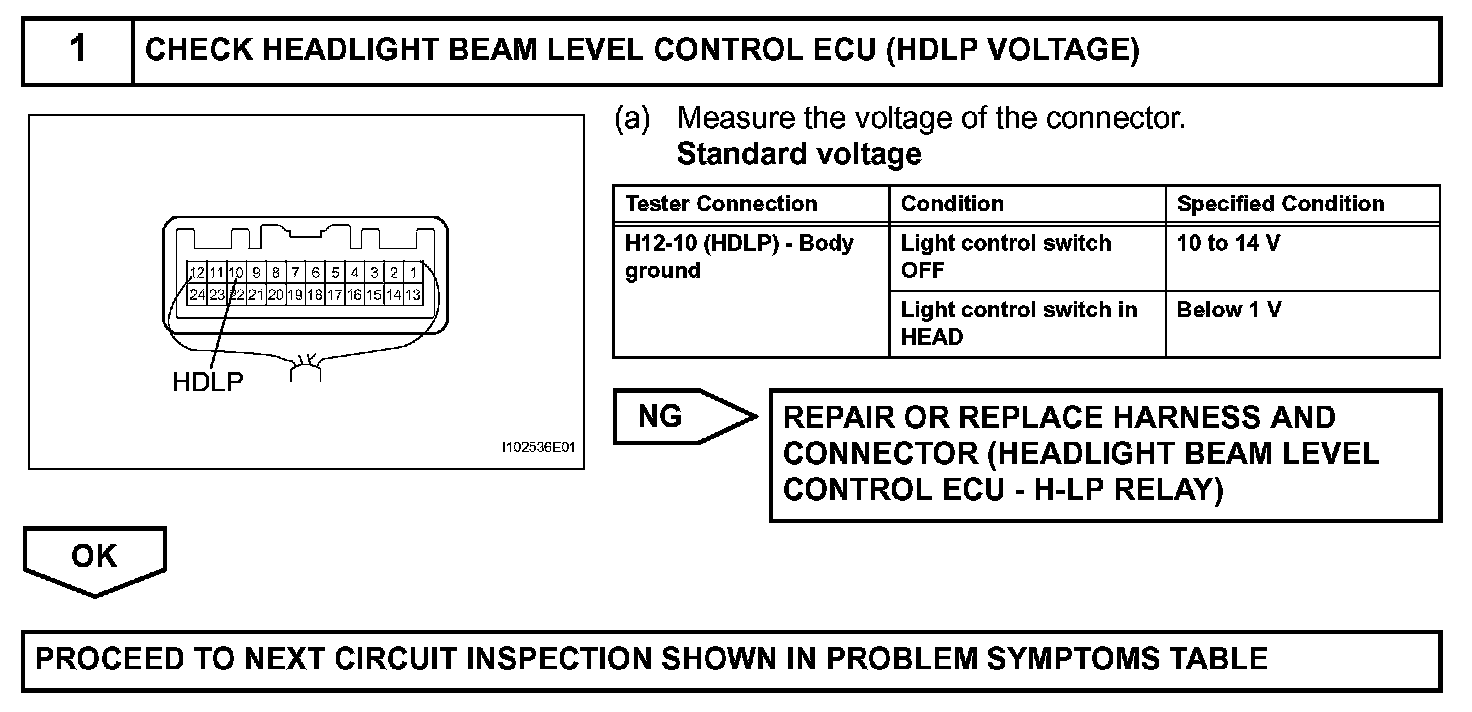

Step 1:
INSPECTION PROCEDURE
HINT: First, check if the headlight operation is normal before performing the given procedure.
