Headlight Relay Circuit
Headlight Relay CircuitDESCRIPTION
The main body ECU controls H-LP relay and DIM relay when signals are received from the combination switch.

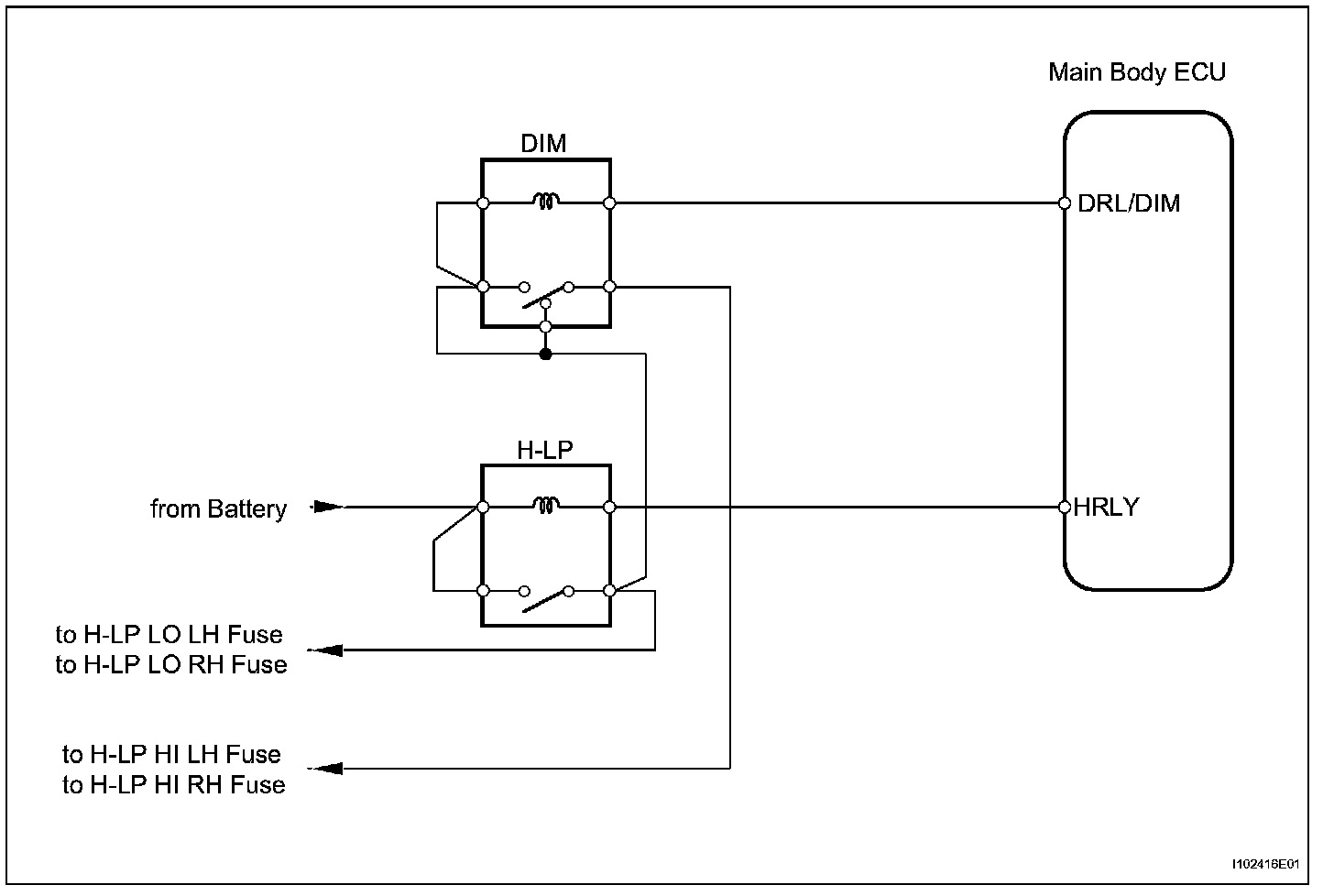

Wiring Diagram:

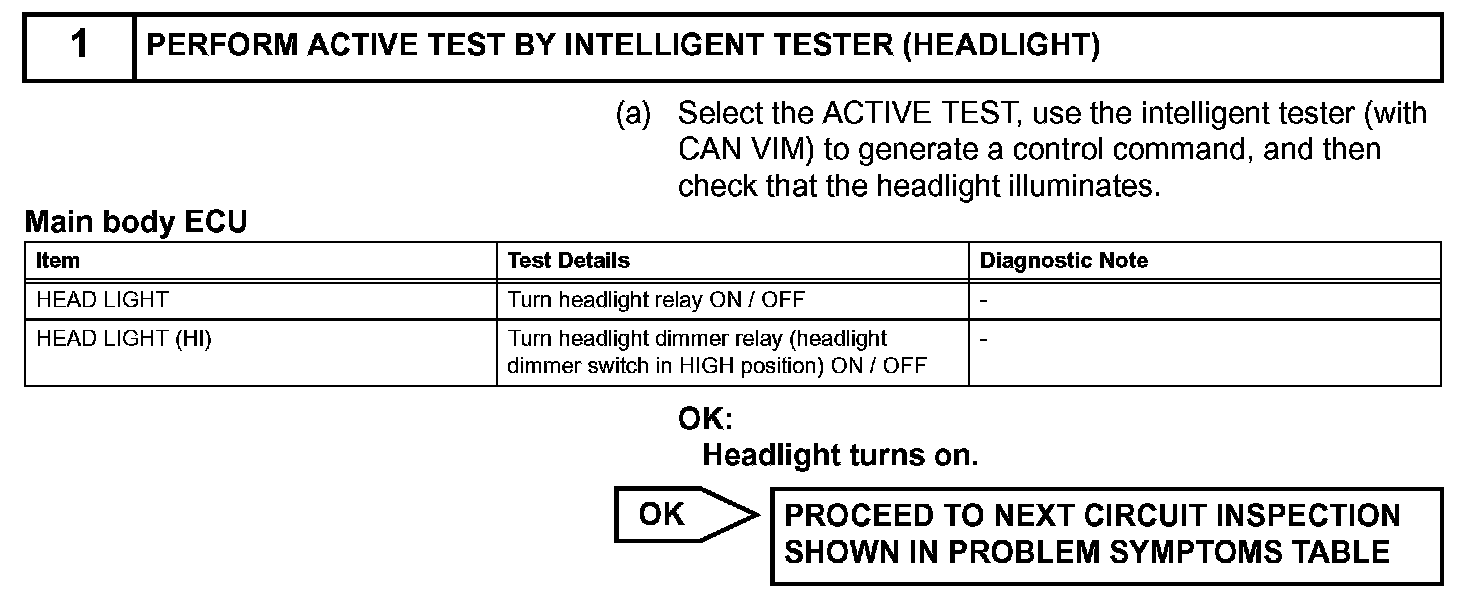

Step 1:

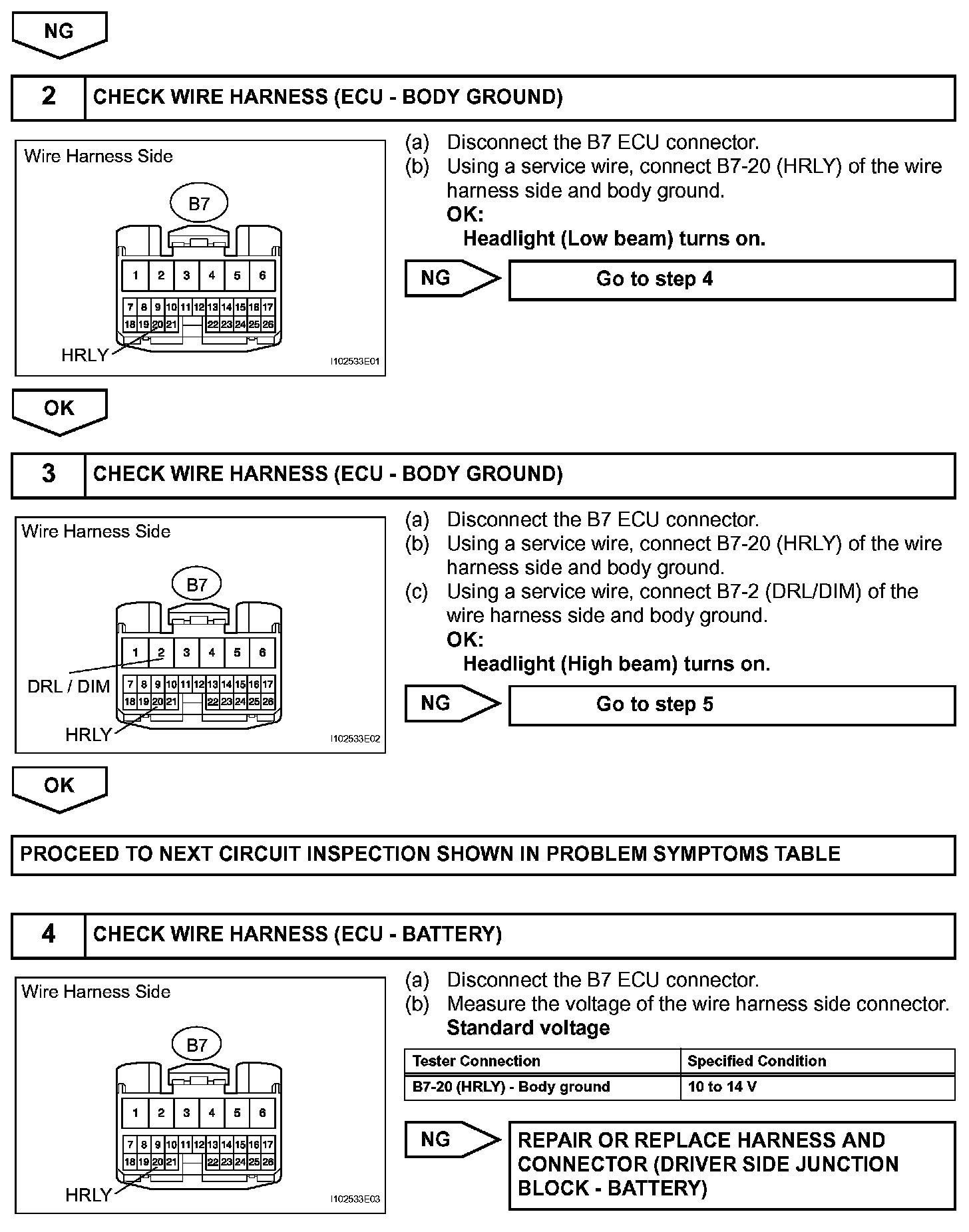

Step 1 (Continued)-4:

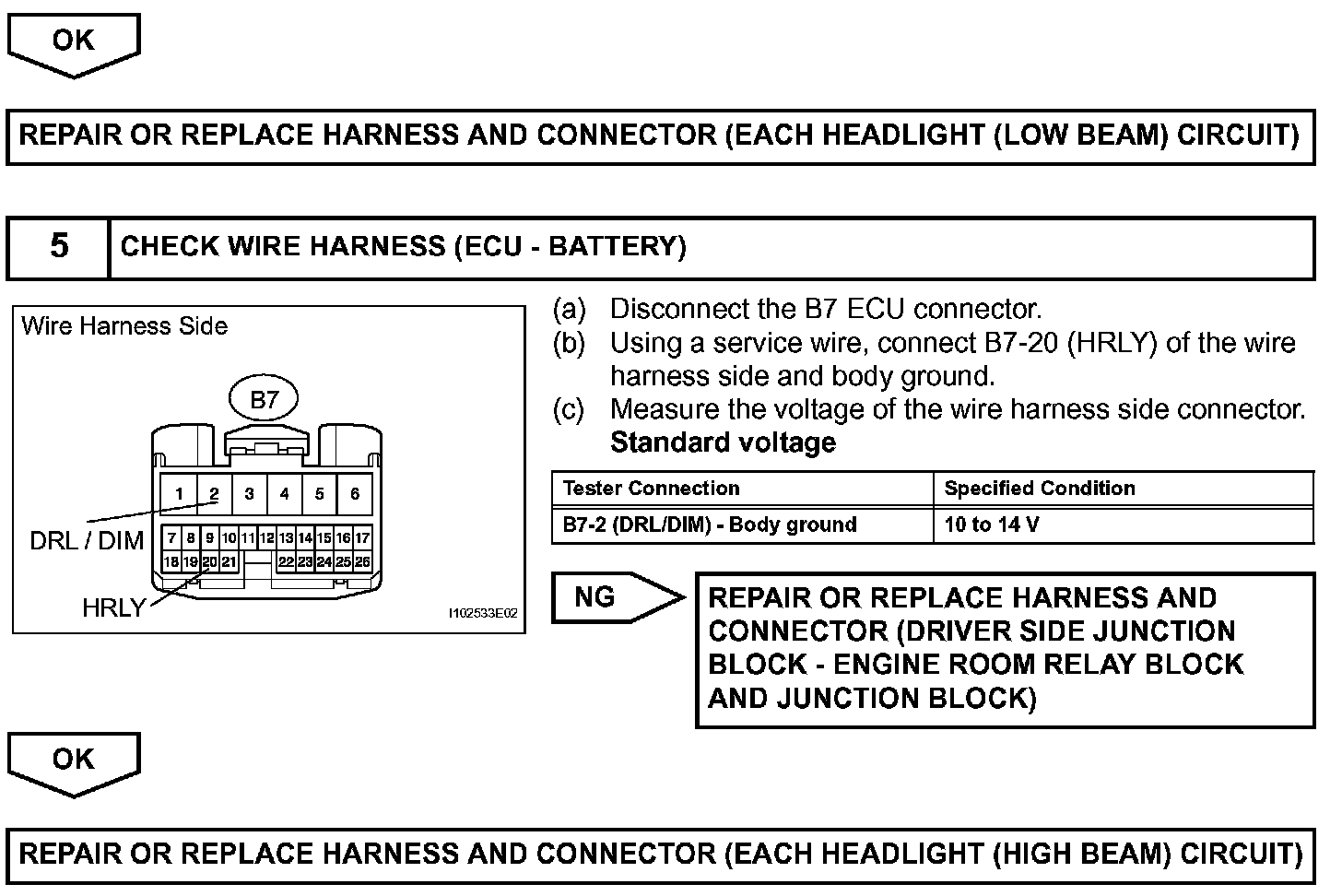

Step 4 (Continued)-5:
INSPECTION PROCEDURE
