Headlight Beam Level Control Actuator Circuit
Headlight Beam Level Control Actuator CircuitDESCRIPTION
When the actuator receives signals from the headlight beam level control ECU, the step motor is activated and the angle of the reflector in the headlight will be adjusted.

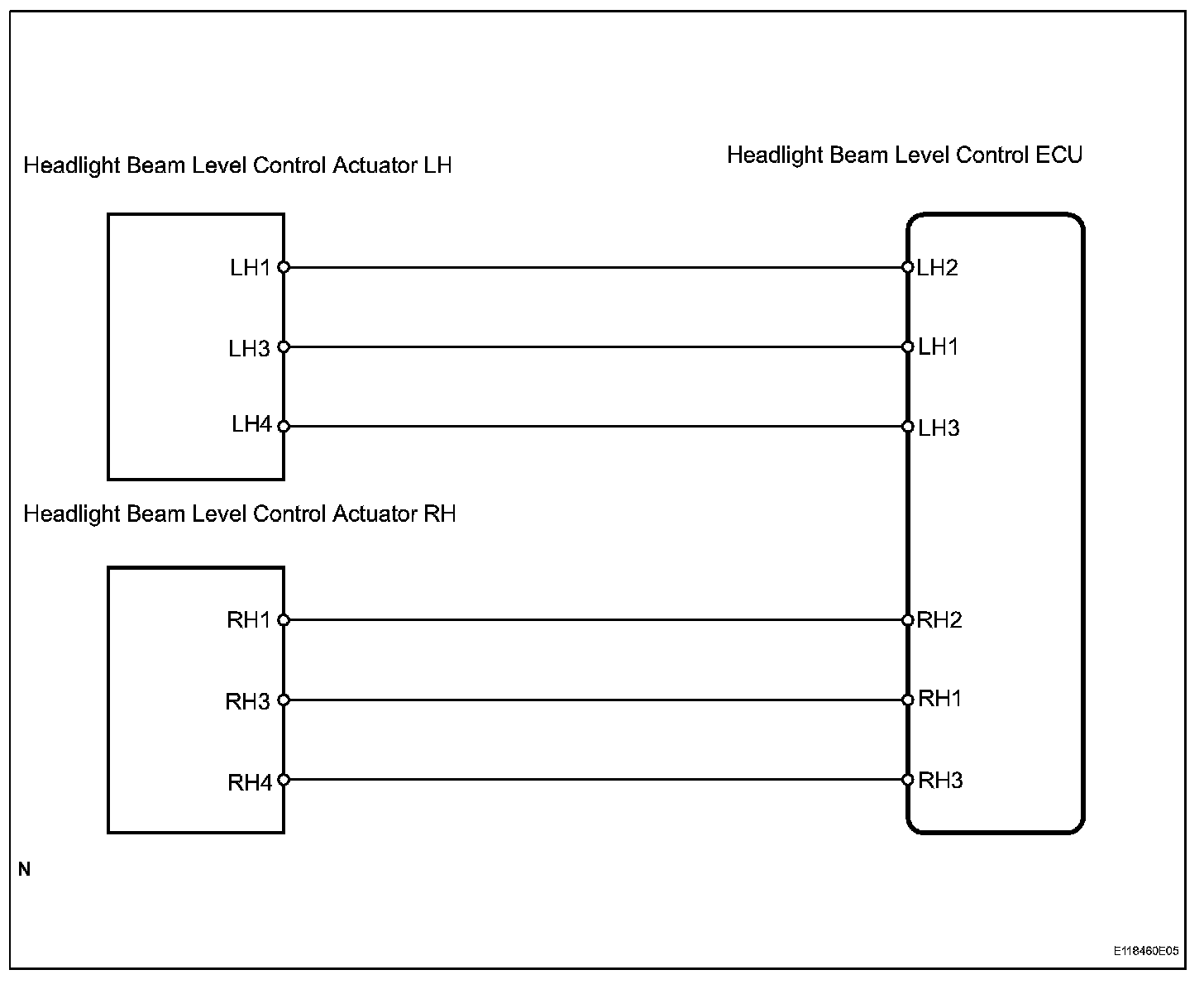

Wiring Diagram:

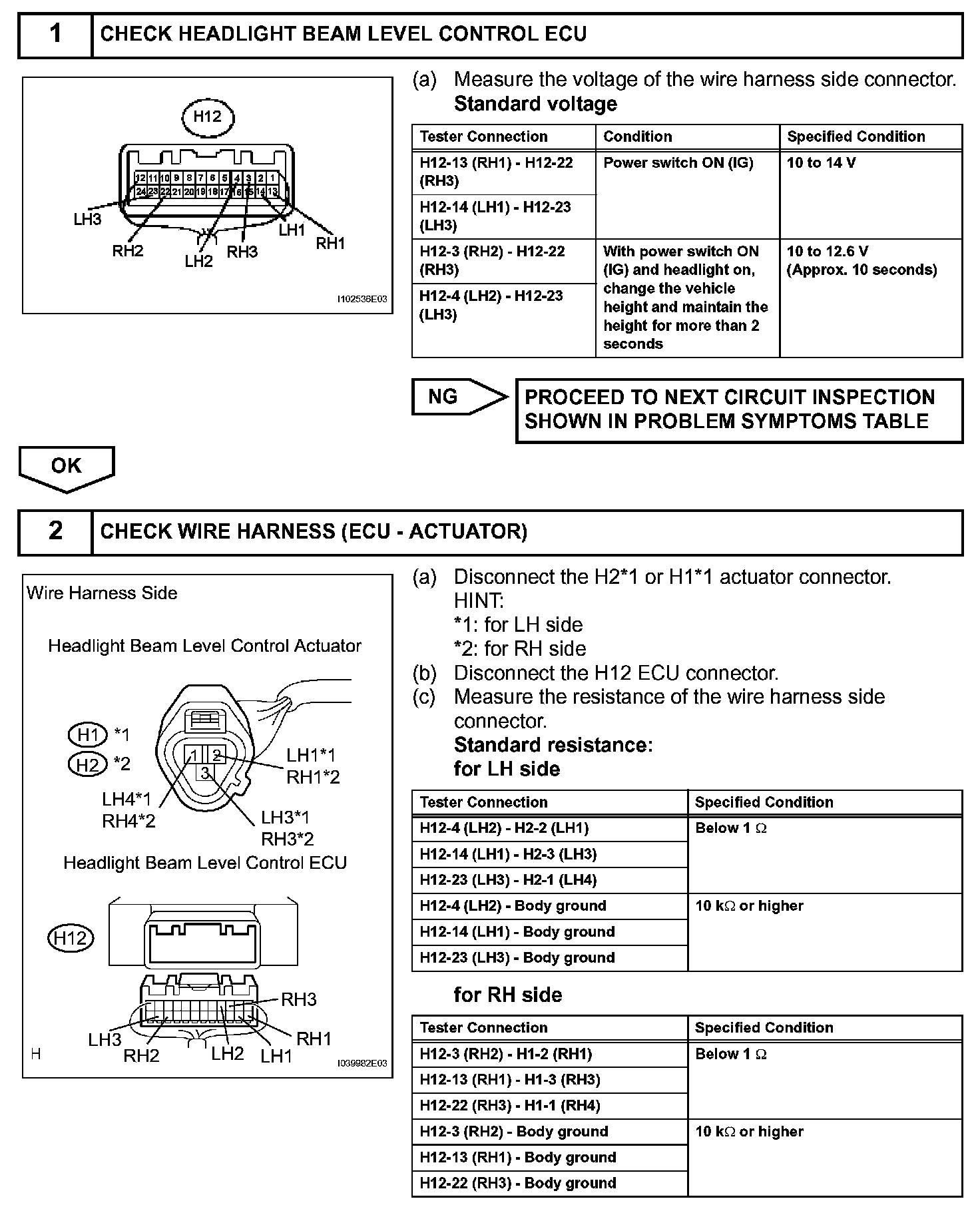

Step 1-2:

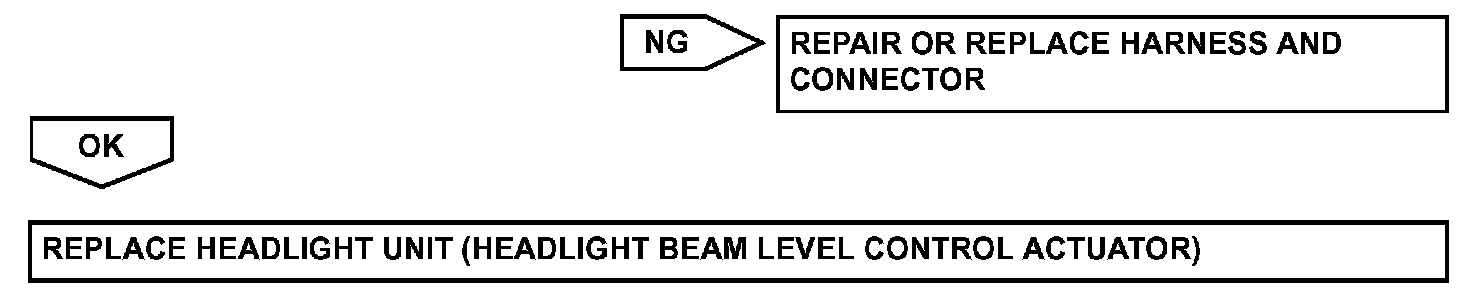

Step 2 (Continued):
INSPECTION PROCEDURE
