License Plate Lamp: Service and Repair

License Plate Light Assembly:

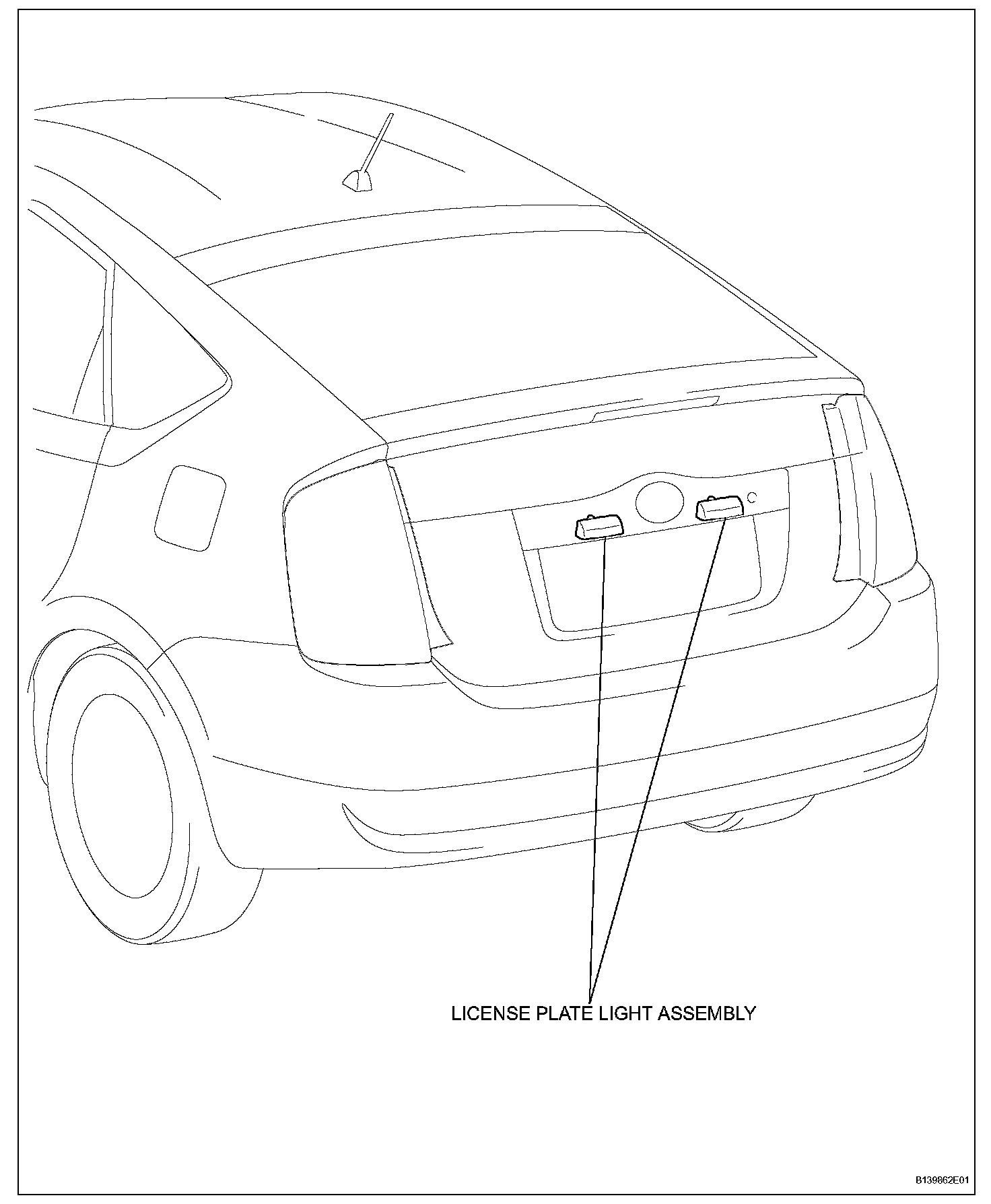

LICENSE PLATE LIGHT ASSEMBLY

REMOVAL

HINT:
- Use the same procedures for the RH and LH sides.
- The procedures listed below are for the LH side.

1. REMOVE BACK DOOR TRIM BOARD ASSEMBLY
2. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

3. REMOVE LICENSE PLATE LIGHT ASSEMBLY

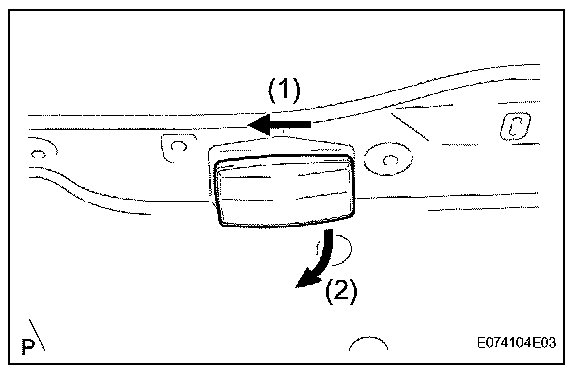

a. Remove the light as shown in the illustration.
b. Disconnect the connector.
c. Remove the bulb/socket unit from the light.
d. Remove the bulb from the socket.

INSTALLATION

HINT:
- Use the same procedures for the RH and LH sides.
- The procedures listed below are for the LH side.

1. INSTALL LICENSE PLATE LIGHT LENS




a. Install the bulb to the socket.
b. Install the bulb/socket unit to light.
c. Connect the connector.

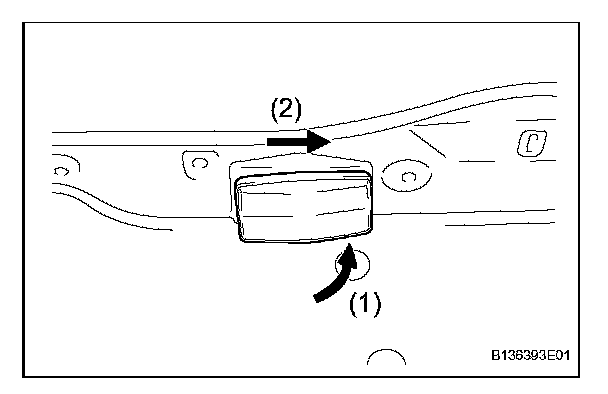

d. Install the light as shown in the illustration.

2. INSTALL BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
3. INSTALL BACK DOOR TRIM BOARD ASSEMBLY
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

5. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
