Headlamp Alignment Sensor: Testing and Inspection

INSPECTION

1. INSPECT HEIGHT CONTROL SENSOR SUB-ASSEMBLY




a. Connect 3 dry cell batteries (1.5 V) in a series.
b. Connect the positive (+) lead from the batteries to terminal 3 and negative (-) lead to terminal 1.

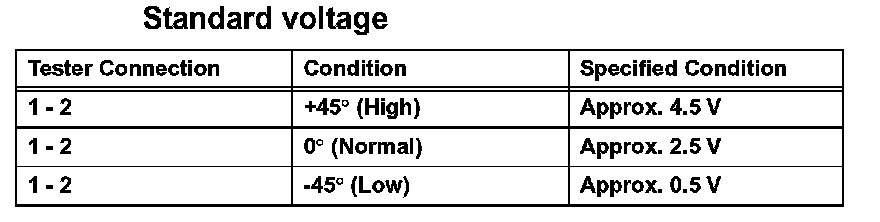

c. Measure the voltage between the terminal 1 and 2 when slowly move the link up and down.




If the result is not as specified, replace the sensor sub-assembly.
