Headlamp Alignment Sensor: Service and Repair

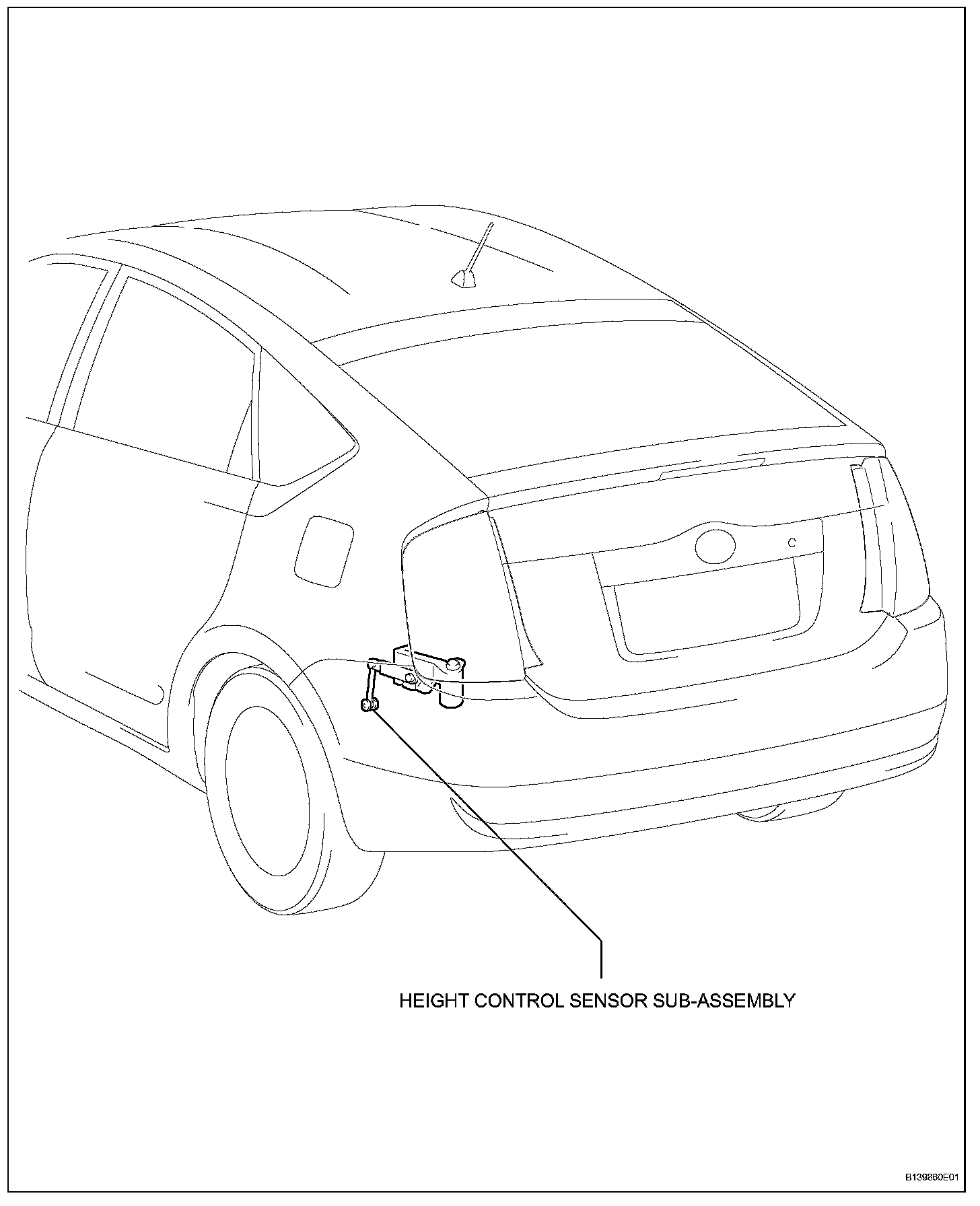

Height Control Sensor:

HEIGHT CONTROL SENSOR

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE HEIGHT CONTROL SENSOR SUB-ASSEMBLY




a. Disconnect the connector.

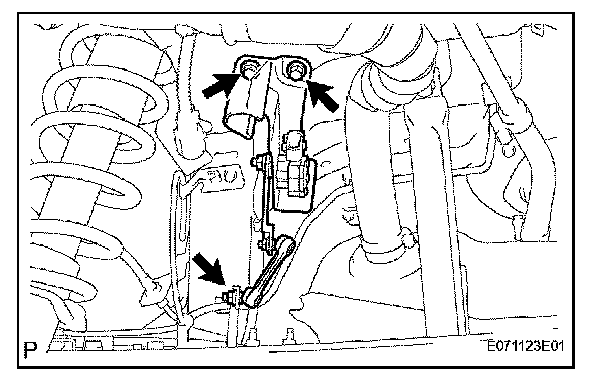

b. Remove the nut and disconnect the height control sensor link from the rear axle beam.
c. Remove the 2 bolts and height control sensor.

INSTALLATION

1. INSTALL HEIGHT CONTROL SENSOR SUB-ASSEMBLY




a. Connect the connector.

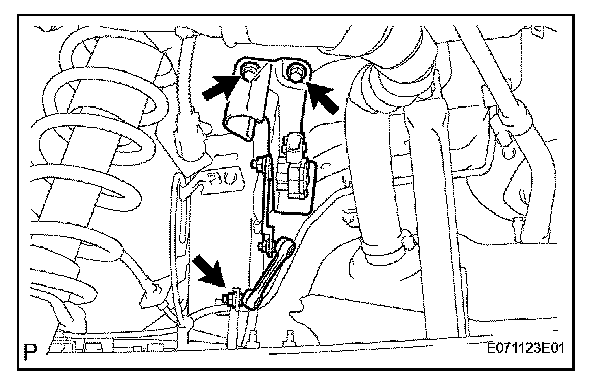

b. Connect the height control sensor link to the rear axle beam with the nut.
c. Install the height control sensor with the 2 bolts.

2. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

3. ADJUST HEADLIGHT AIM ONLY
