Fog/Driving Lamp: Service and Repair

Foglight Assembly:

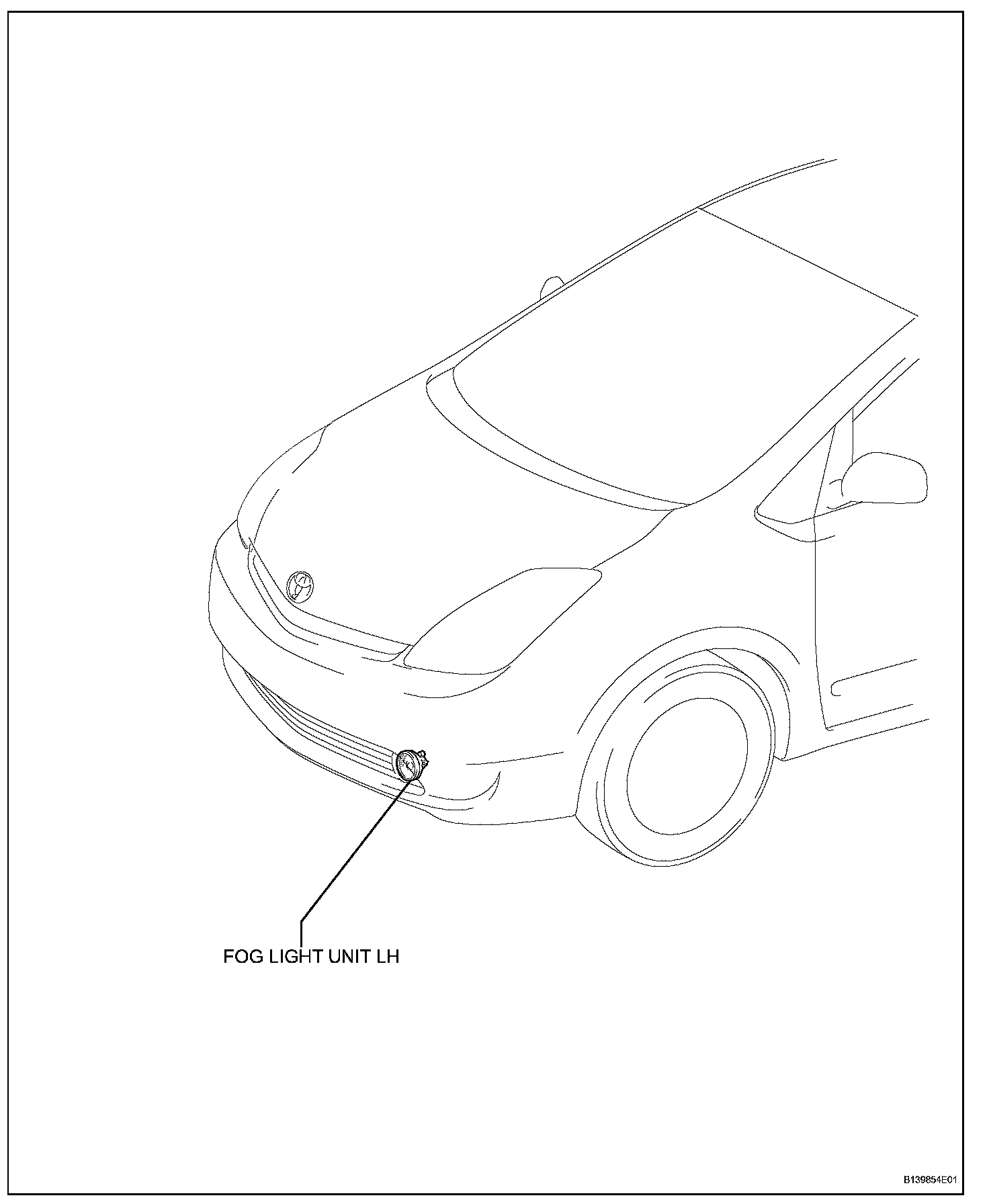

FOG LIGHT ASSEMBLY

REMOVAL

HINT:
- Use the same procedures for the RH and LH sides.
- The procedures listed below are for the LH side.

1. REMOVE FRONT FENDER LINER LH
2. REMOVE FRONT FENDER LINER RH
3. REMOVE FRONT BUMPER COVER
4. REMOVE RADIATOR GRILLE LOWER LH

5. REMOVE FOG LIGHT UNIT LH

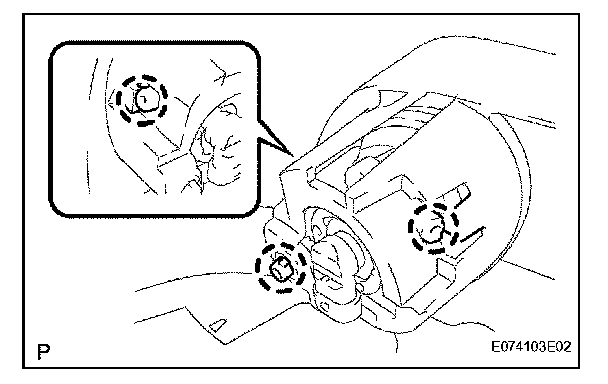

a. Detach the 3 claws and push the fog light unit towards the front of the vehicle.
b. Remove the fog light bulb from the fog light unit.

INSTALLATION

HINT:
- Use the same procedures for the RH and LH sides.
- The procedures listed below are for the LH side.

1. INSTALL FOG LIGHT UNIT LH




a. Install the fog light bulb to the fog light unit.
b. Attach the 3 claws to install the light unit.

2. INSTALL RADIATOR GRILLE LOWER LH
3. INSTALL FRONT BUMPER COVER
4. INSTALL FRONT FENDER LINER RH
5. INSTALL FRONT FENDER LINER LH
6. ADJUST FOG LIGHT AIMING
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

8. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
