Front Door Courtesy Switch
INSPECTION1. INSPECT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY

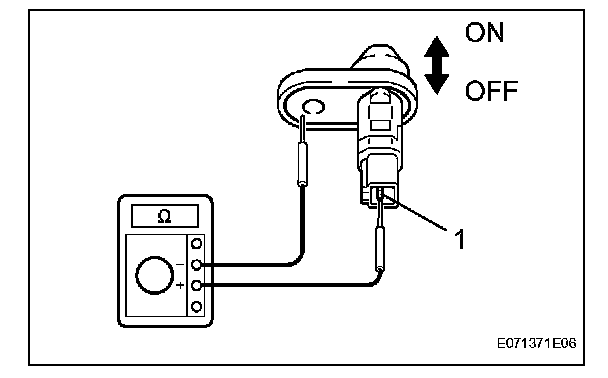

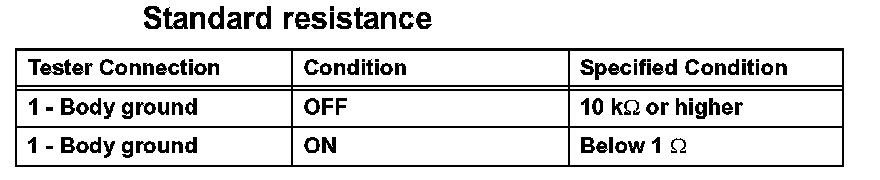

a. Measure the resistance according to the value(s) in the table.
If the result is not as specified, replace the switch assembly.
1. INSPECT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY
a. Measure the resistance according to the value(s) in the table.
If the result is not as specified, replace the switch assembly.
