Dome Lamp: Testing and Inspection
INSPECTION1. INSPECT ROOM NO. 1 LIGHT ASSEMBLY

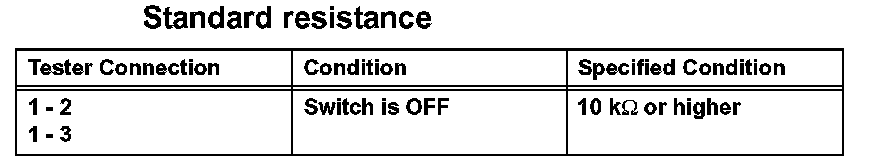

a. Measure the resistance according to the value(s) in the table.
If the result is not as specified, replace the light assembly.
b. Connect the battery positive (+) lead from the battery to terminal 1 and battery negative (-) lead to terminal 2, then check that the illumination comes on when the switch is in the DOOR position.
OK: Illumination comes on.
If the result is not as specified, replace the light assembly.
c. Connect the battery positive (+) lead from the battery to terminal 1 and battery negative (-) lead to terminal 3, then check that the illumination comes on when the switch is in the ON position.
OK: Illumination comes on.
If the result is not as specified, replace the light assembly.
