Dome Lamp: Service and Repair

Room Light Assembly:

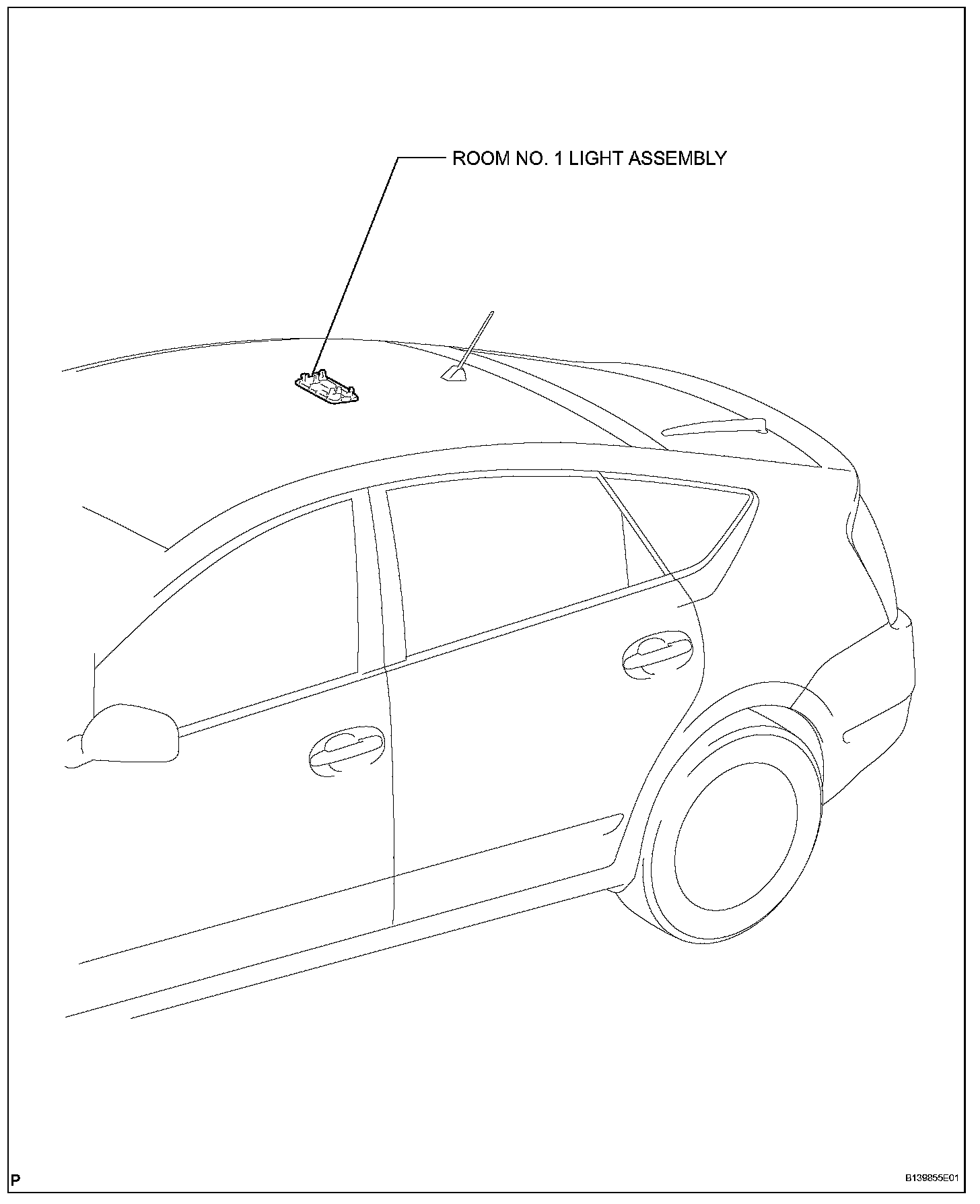

ROOM LIGHT ASSEMBLY

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE ROOM NO. 1 LIGHT ASSEMBLY

3. REMOVE ROOM NO. 1 LIGHT BULB
a. Remove the bulb from the room No. 1 light assembly.

INSTALLATION

1. INSTALL ROOM NO. 1 LIGHT BULB
a. Install the bulb to the room No. 1 light.

2. INSTALL ROOM NO. 1 LIGHT ASSEMBLY
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

4. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
