Brake Light Switch: Testing and Inspection

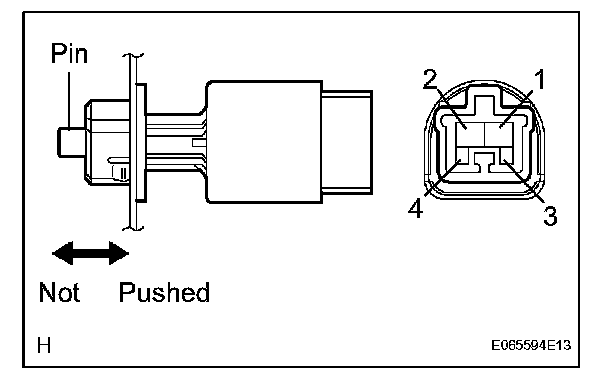

INSPECTION1. INSPECT STOP LIGHT SWITCH ASSEMBLY

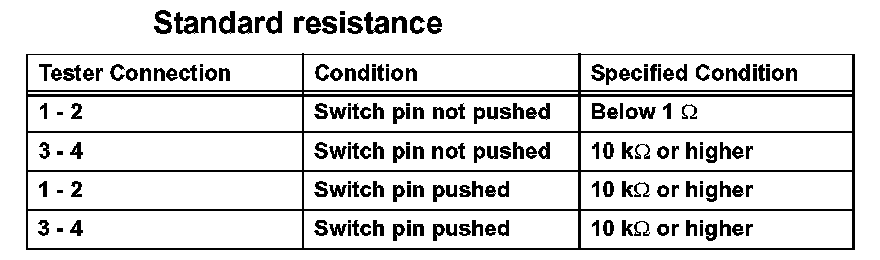

a. Measure the resistance according to the value(s) in the table.
If the result is not as specified, replace the switch assembly.
1. INSPECT STOP LIGHT SWITCH ASSEMBLY
a. Measure the resistance according to the value(s) in the table.
If the result is not as specified, replace the switch assembly.
