Data List

DATA LIST

NOTE:
- The DATA LIST values may vary significantly if there are slight differences in measurement, differences in the environment in which the measurements are obtained, or the aging of the vehicle. Thus, definite standards or judgment values are unavailable. There may be a malfunction even if a measured value is within the reference range.
- In the event of intricate symptoms, collect sample data from another vehicle of the same model operating under identical conditions, in order to reach an overall judgment by comparing all the items of the DATA LIST.

HINT: Using the intelligent tester's DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST as the first step of troubleshooting is one method to shorten diagnostic time.

Part 1:

Part 2:

a. Connect the intelligent tester to the DLC3.
b. Turn the power switch ON (IG) and the tester ON.
c. Enter the following menus: DIAGNOSIS / OBD/ MOBD / HV BATTERY / DATA LIST.

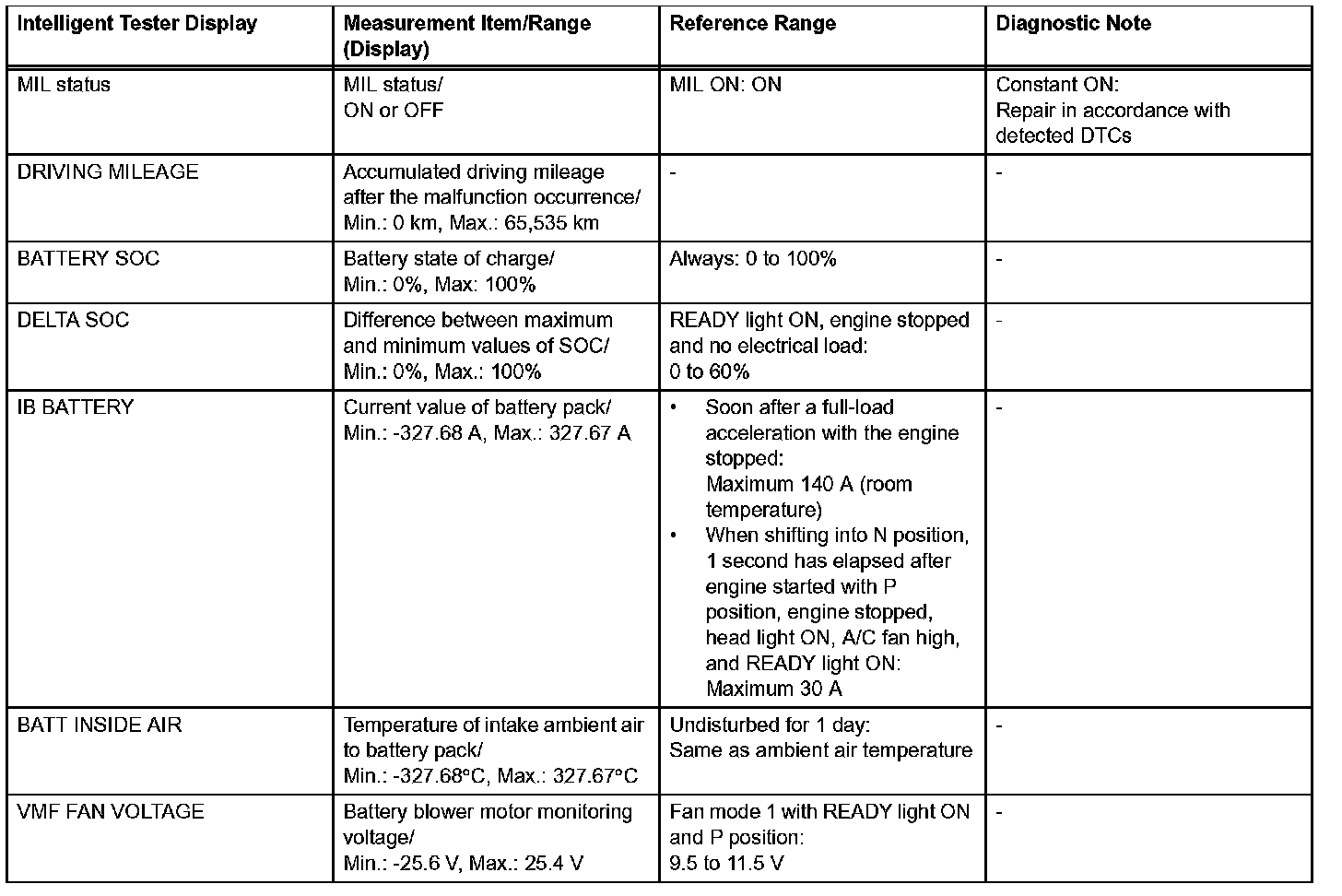

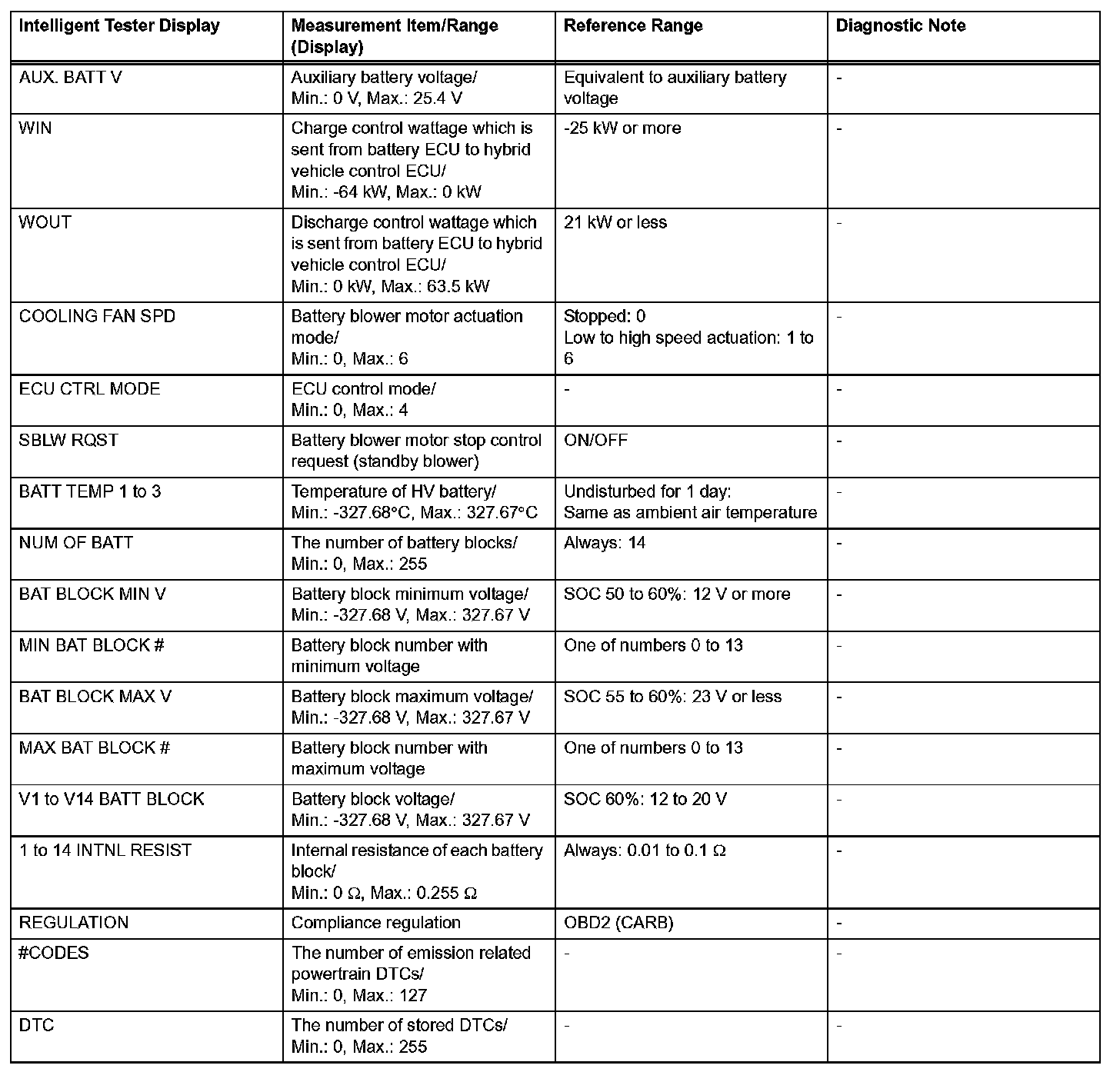

d. Check the results by referring to the table.
