Fail-Safe Chart

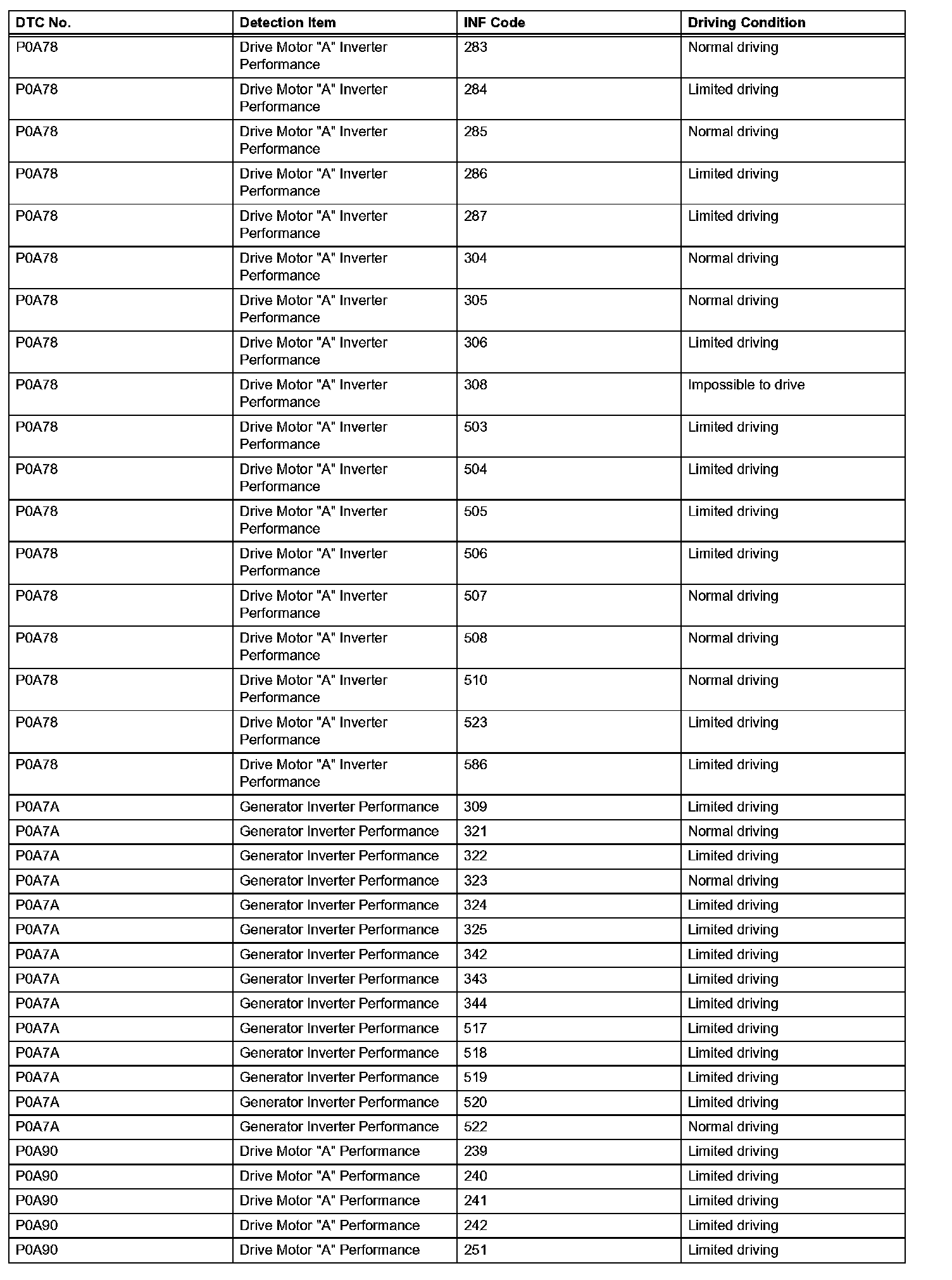

Fail-Safe Chart (Part 1):

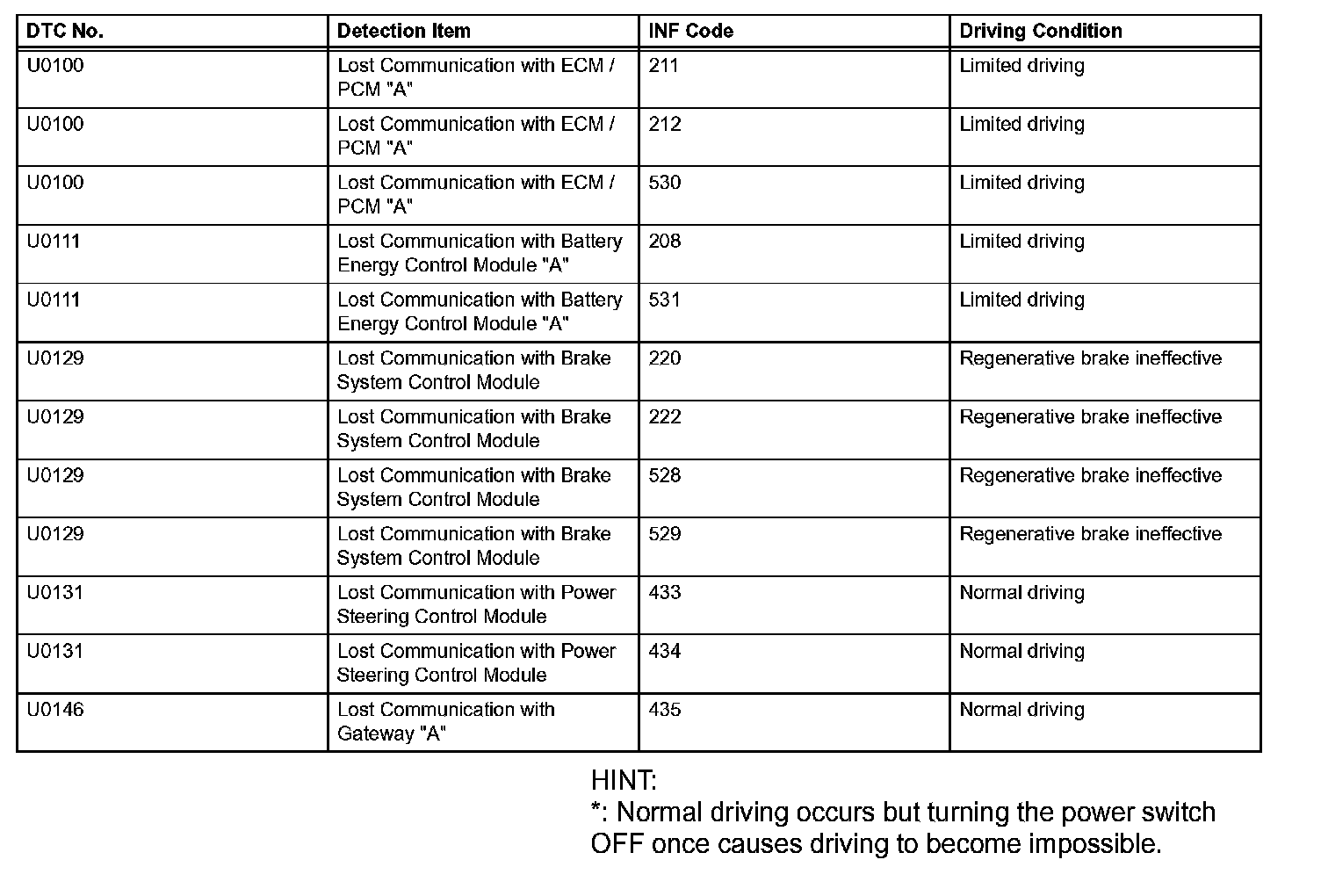

Fail-Safe Chart (Part 2):

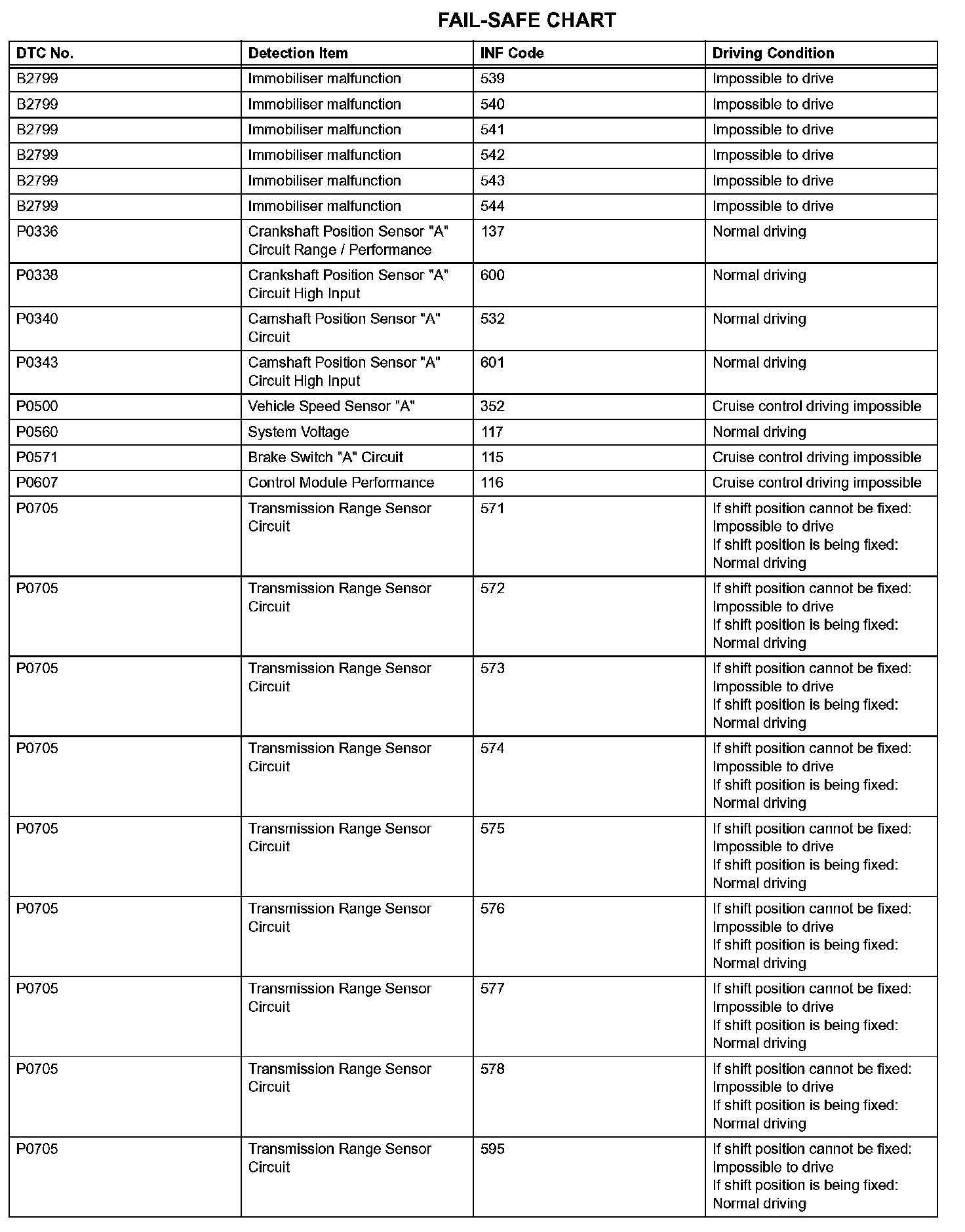

Fail-Safe Chart (Part 3):

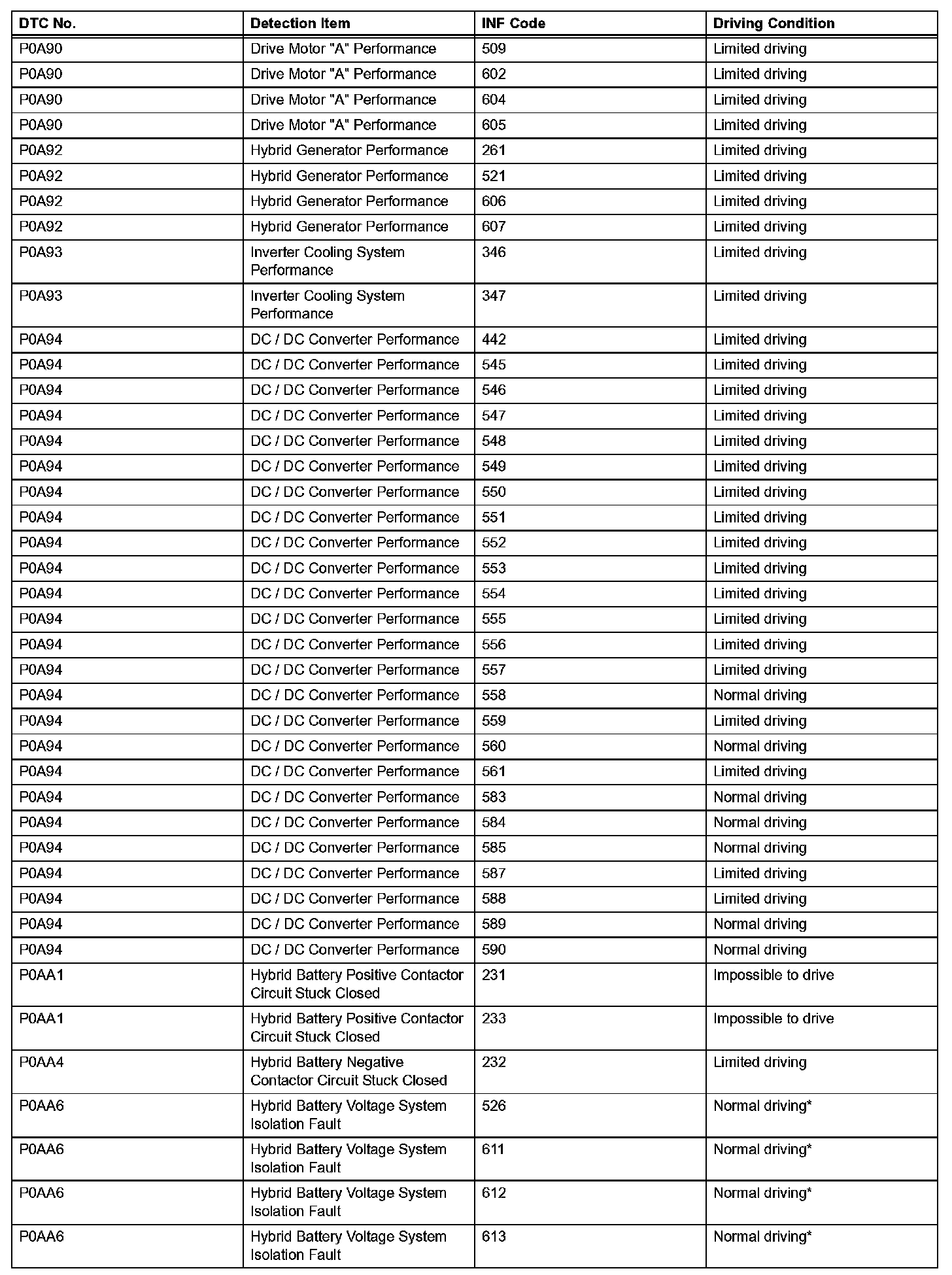

Fail-Safe Chart (Part 4):

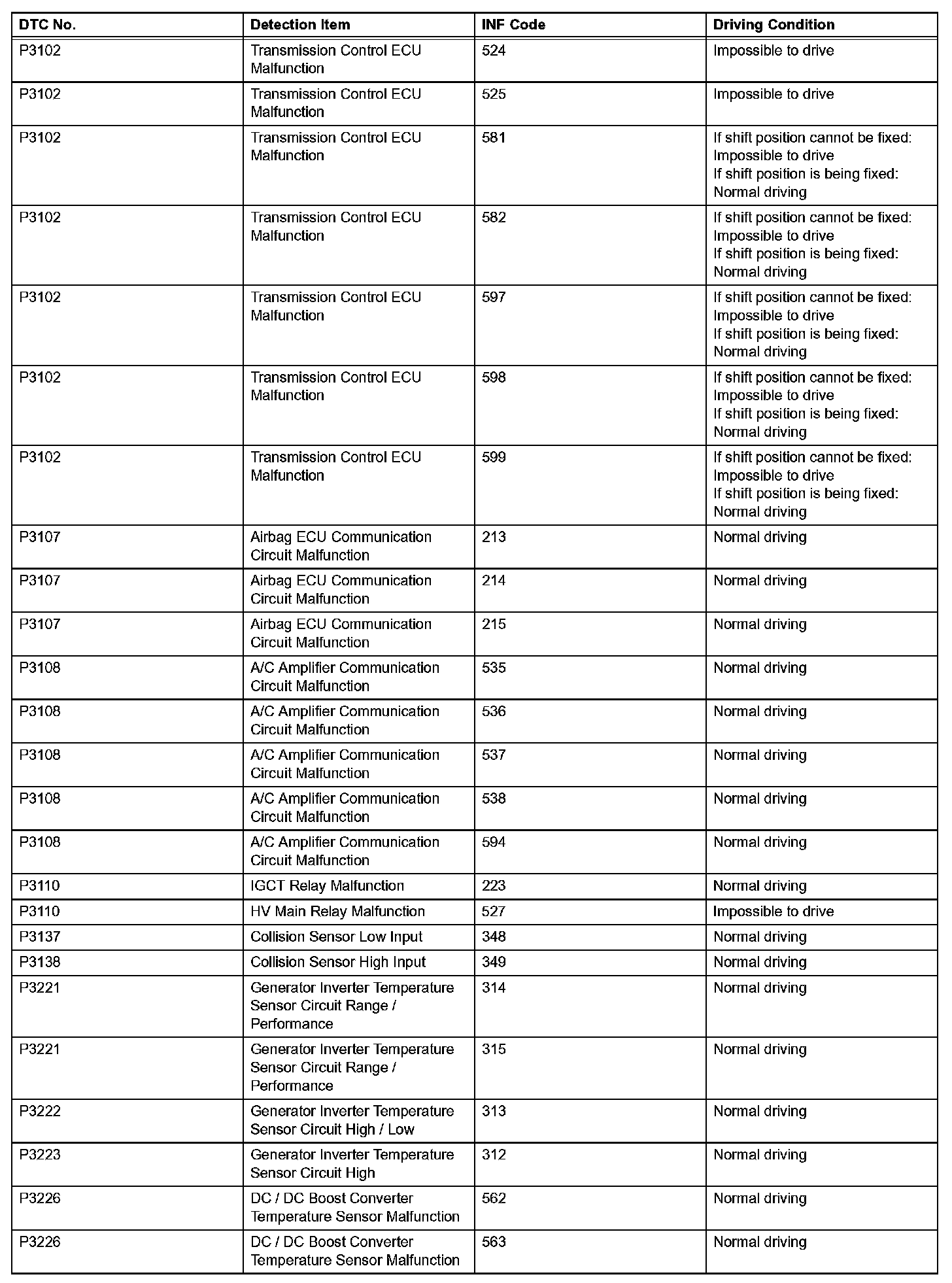

Fail-Safe Chart (Part 5):

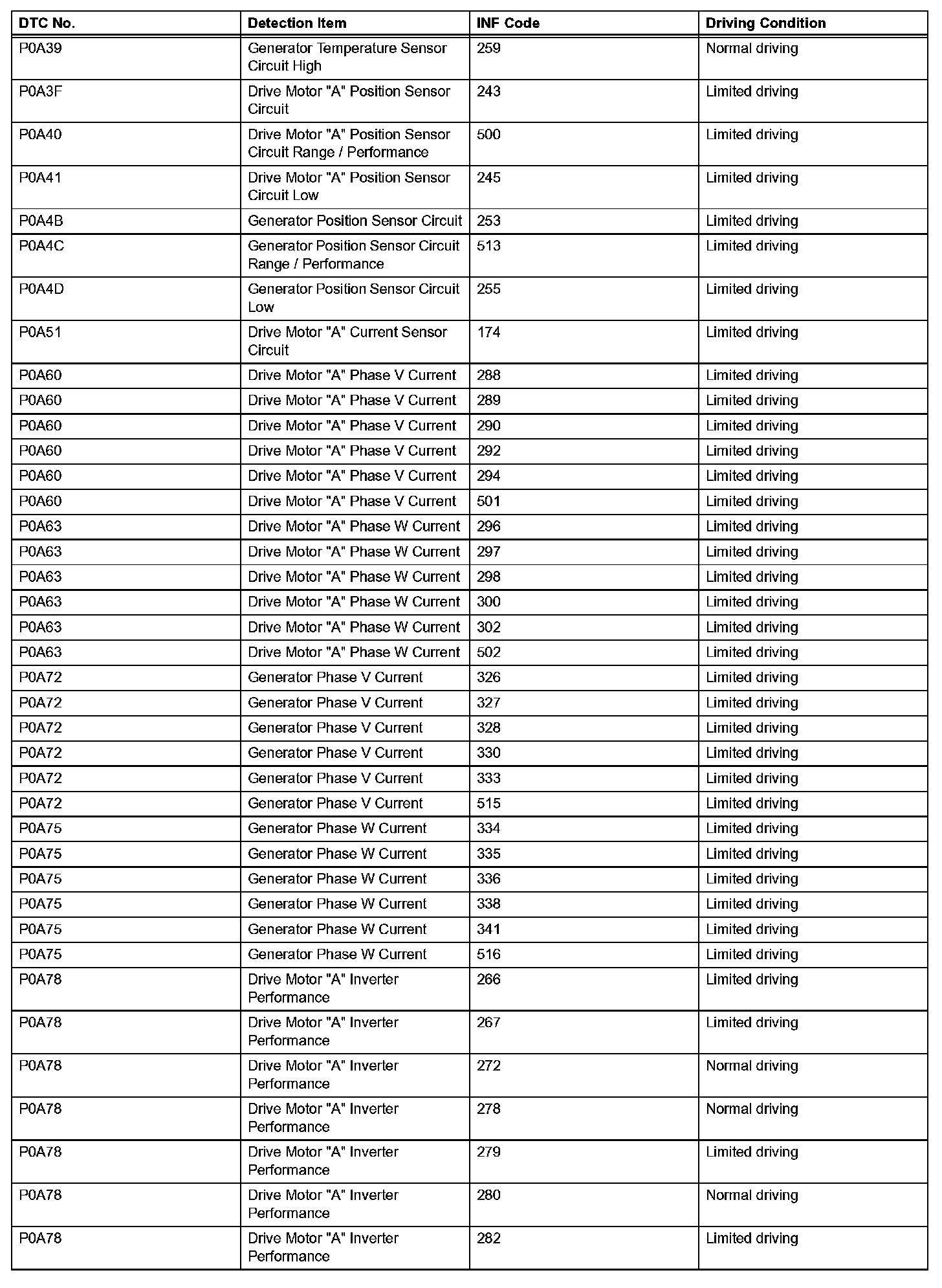

Fail-Safe Chart (Part 6):

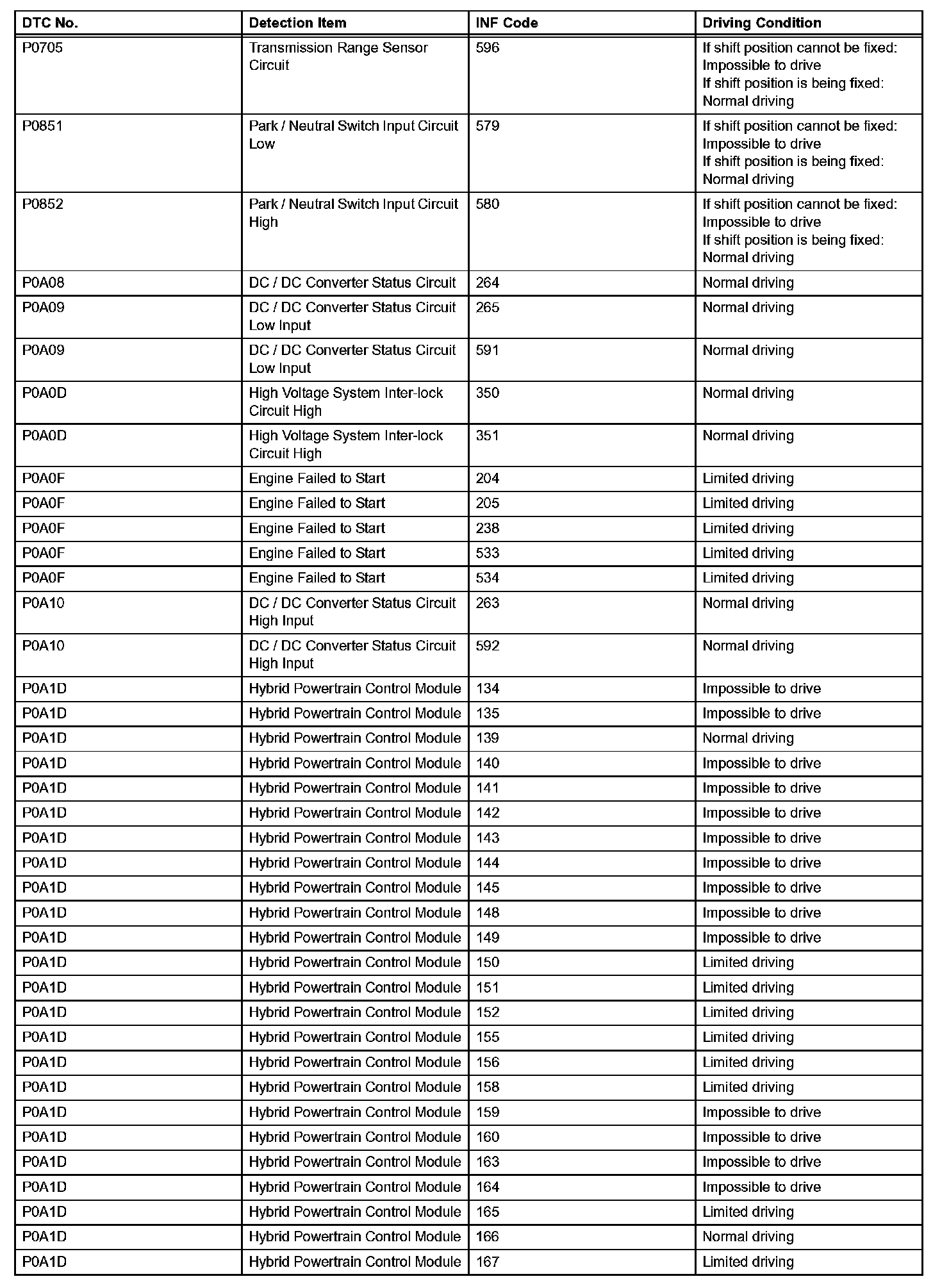

Fail-Safe Chart (Part 7):

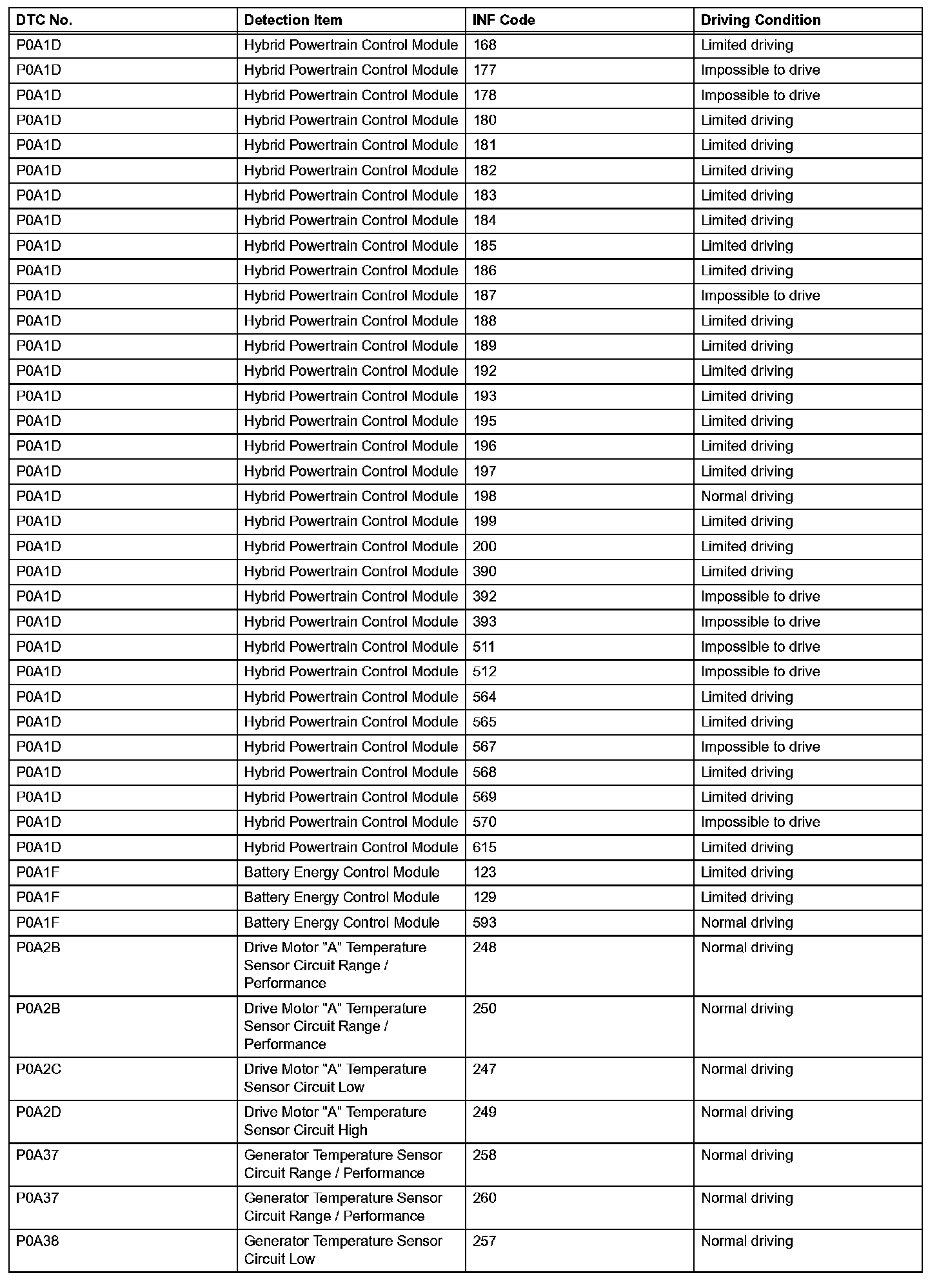

Fail-Safe Chart (Part 8):



Fail-Safe Chart (Part 9):
