Water Pump With Motor

INSPECTION

INSPECT WATER PUMP WITH MOTOR

Check the operation.

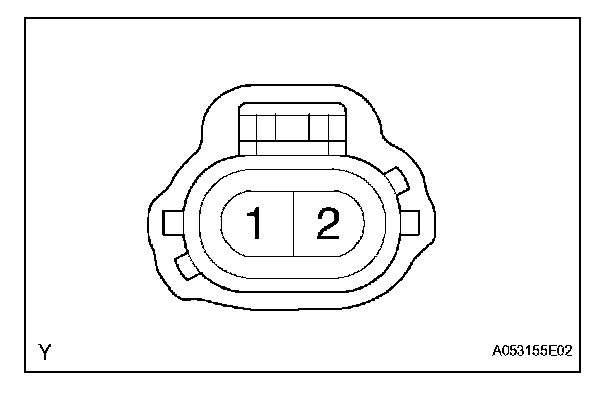

Connect the battery positive terminal to terminal 1 and the battery negative terminal to terminal 2.

Specified condition: Pump motor operates properly

NOTE:
- Do not connect the positive and negative terminals of the battery to the wrong water pump terminals.
- Complete the check within 10 seconds of the connection.

If the pump motor does not operate properly, replace the water pump with motor assembly.
