Battery Plug

INSPECTION

1. INSPECT BATTERY PLUG
a. Check the resistance.

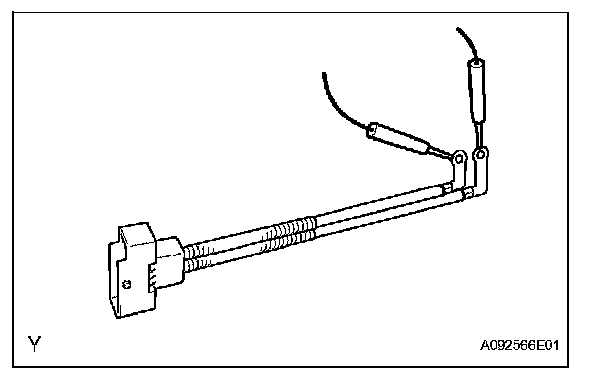

1. Measure the resistance between the terminals.

Standard resistance: 10 kOhm or higher

If the result is not as specified, replace the battery plug.




2. Install the service plug grip to the socket.
3. Measure the resistance between the terminals.

Standard resistance: Below 1 Ohm

If the result is not as specified, replace the battery plug.
