Drive Motor Power Relay Resistor: Testing and Inspection

INSPECTION

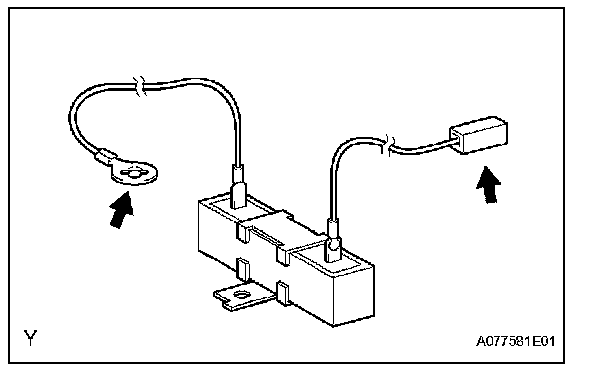

1. INSPECT SYSTEM MAIN RESISTOR
a. Measure the resistance between the terminals.

Standard resistance: 18 to 22 Ohms

If the result is not as specified, replace the system main resistor.
