Heater Main Relay Circuit

Heater Relay Circuit

DESCRIPTION
The heater relay is turned on by signals from the air conditioning amplifier. It supplies power to the blower motor controller.

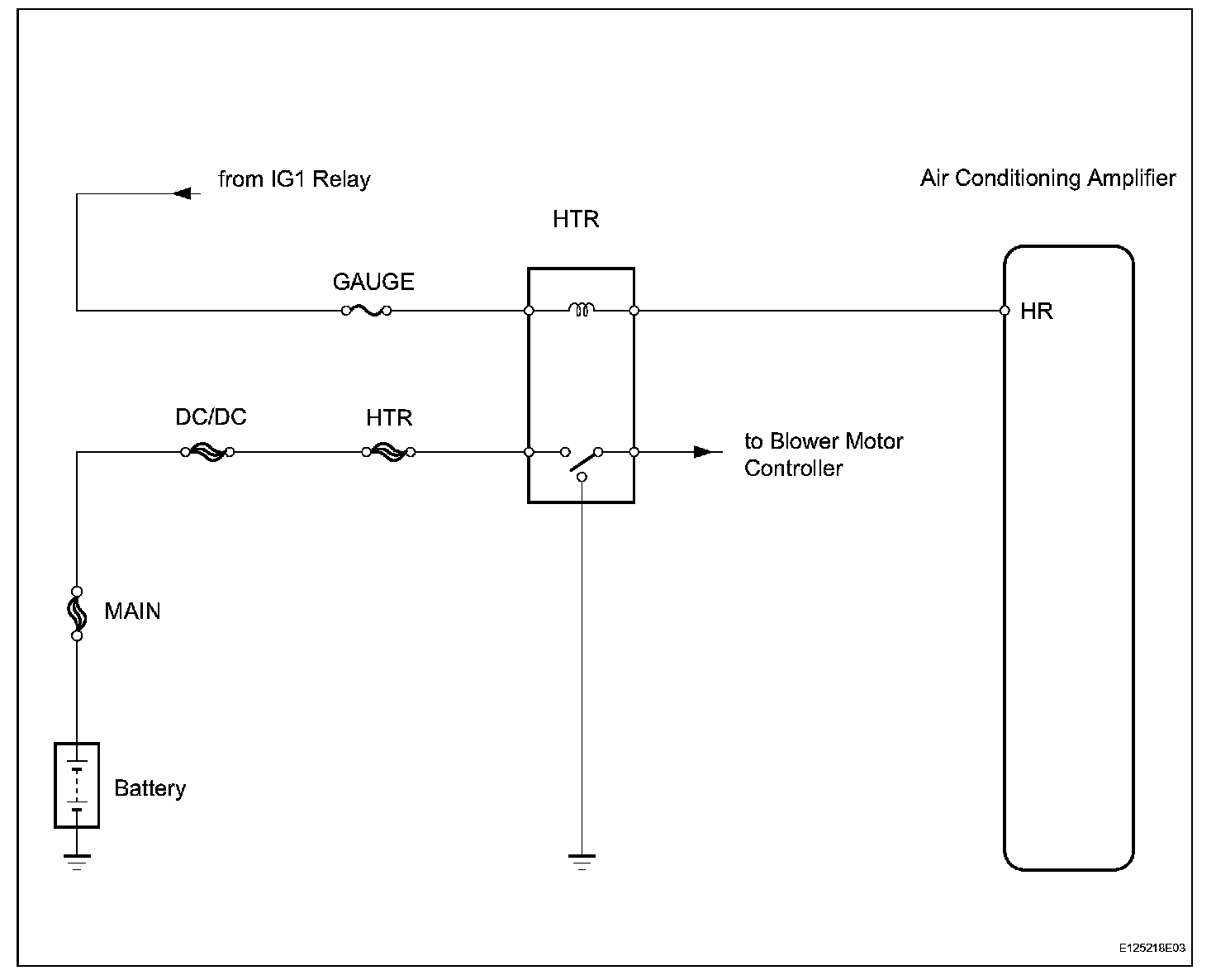

Wiring Diagram:

Step 1:

Step 1 (Continued)-4:

Step 4 (Continued):

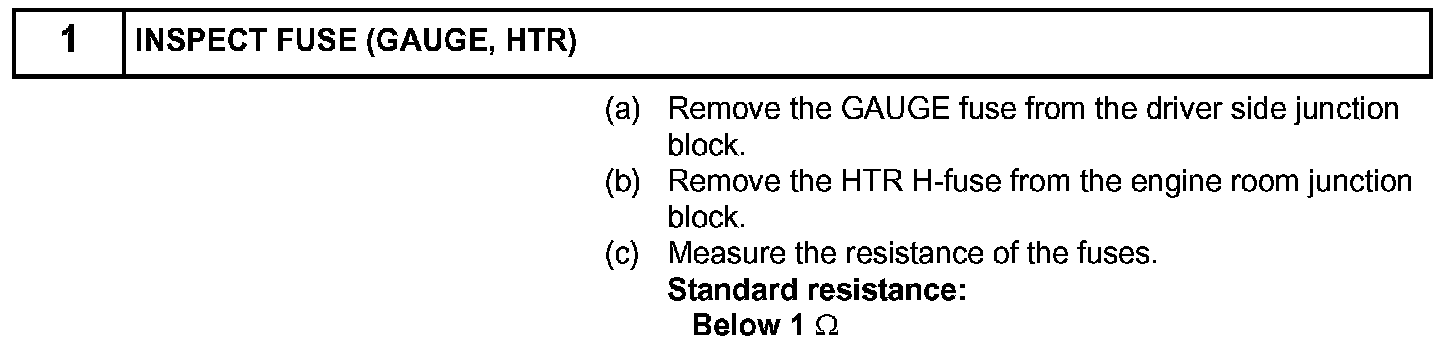

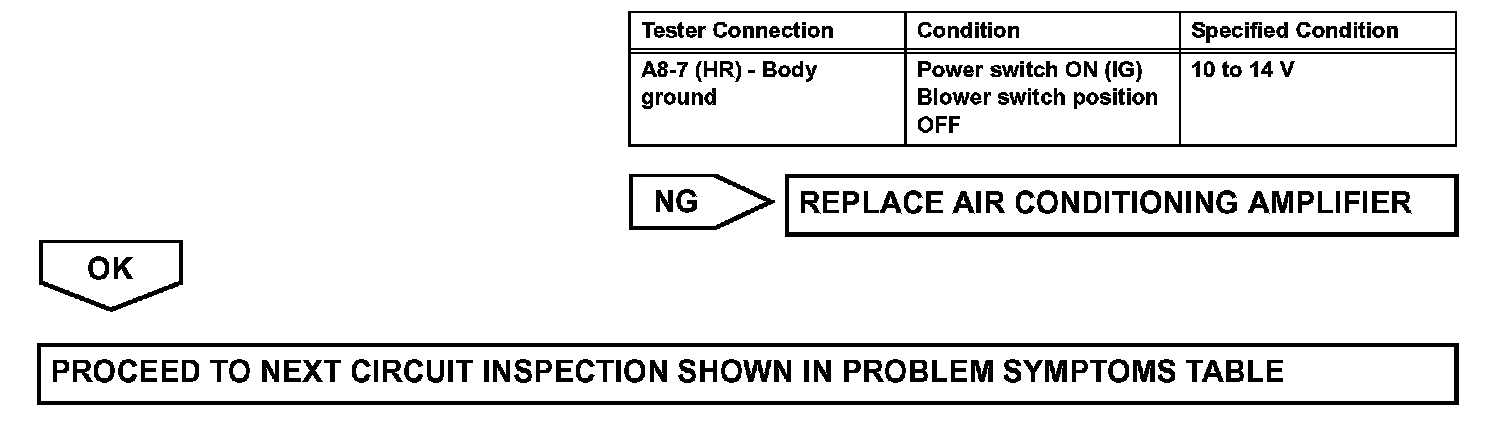

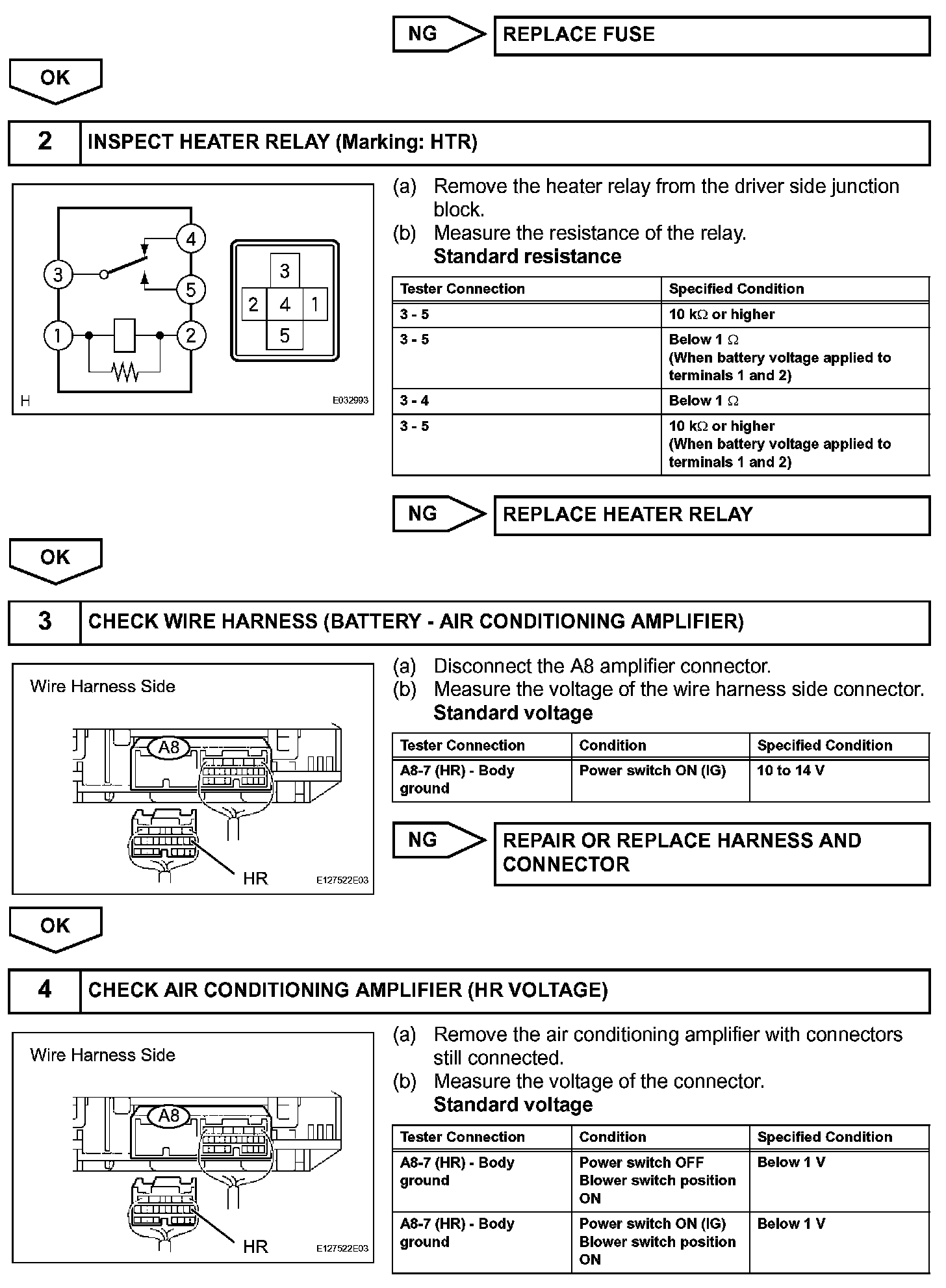

INSPECTION PROCEDURE
