System Diagram
System Diagram

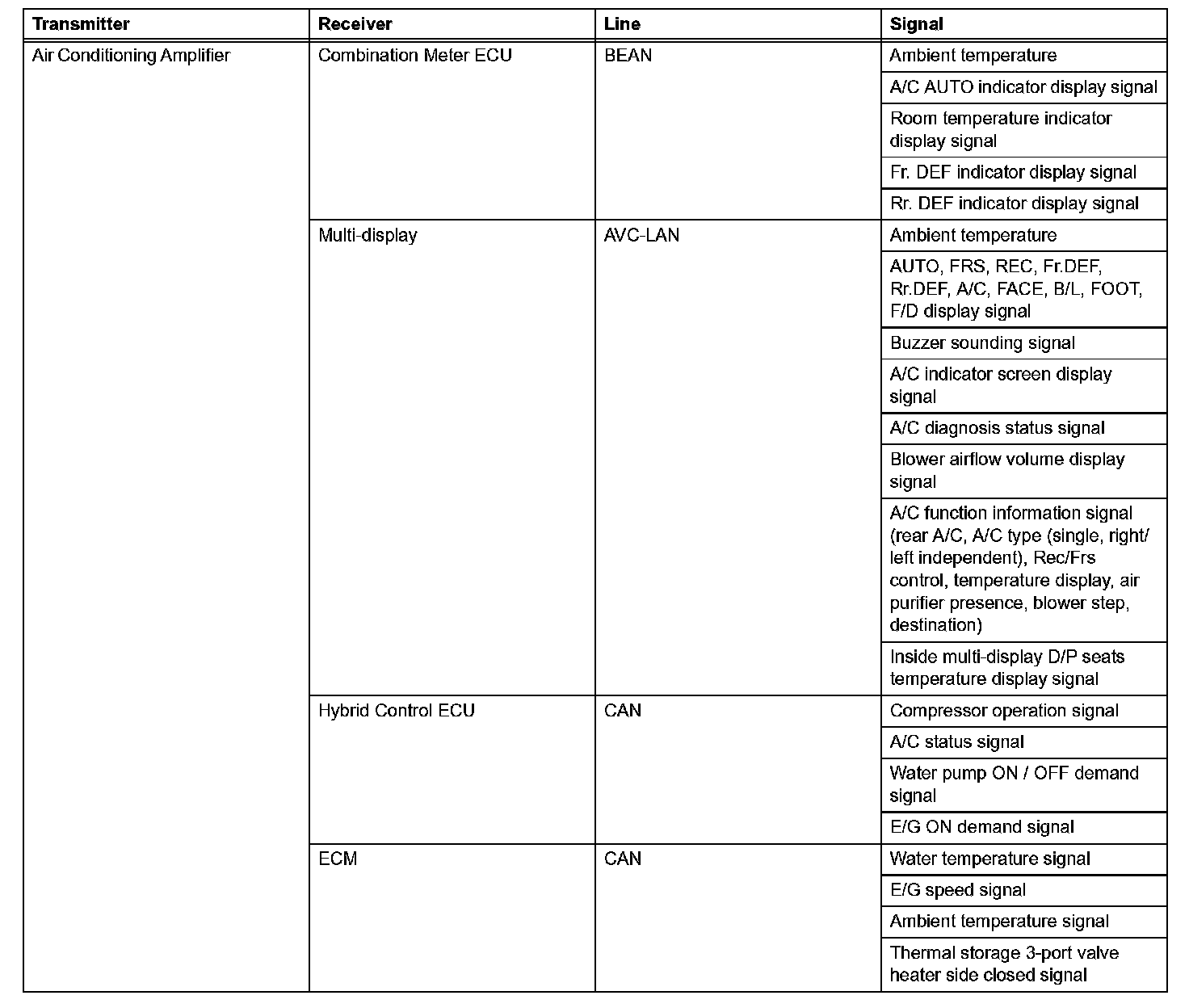

System Diagram (Part 1):

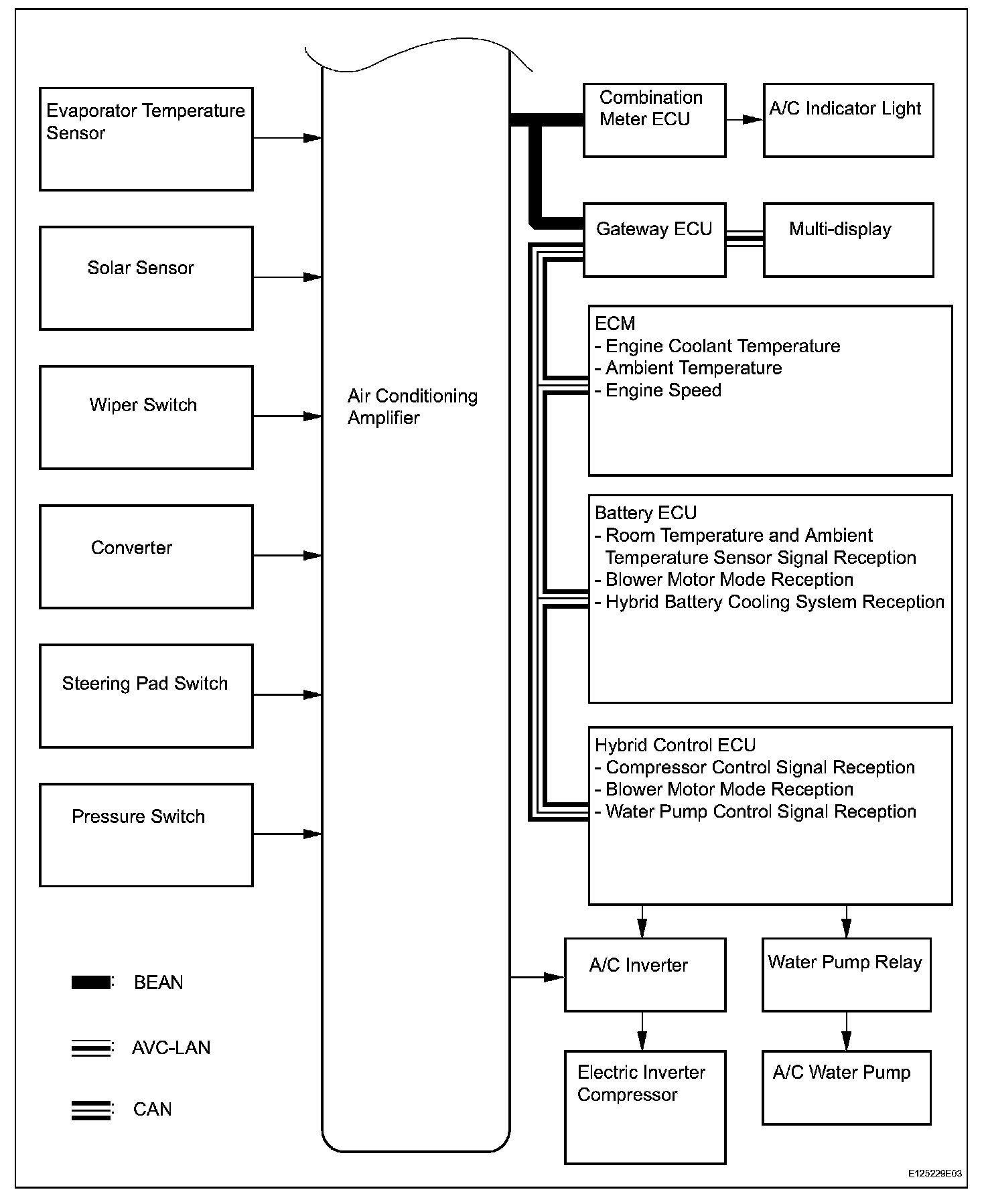

System Diagram (Part 2):

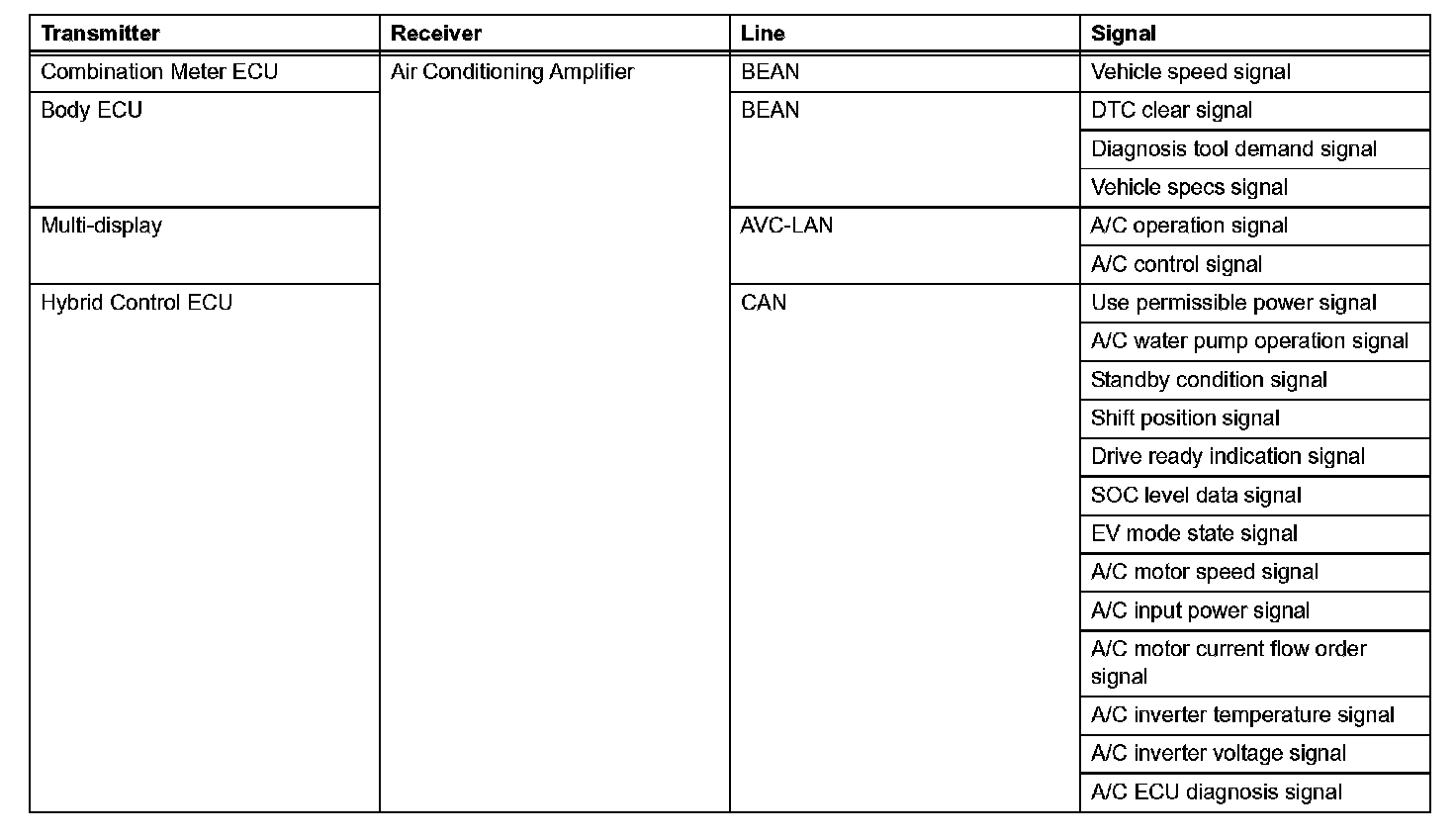

System Diagram (Part 3):

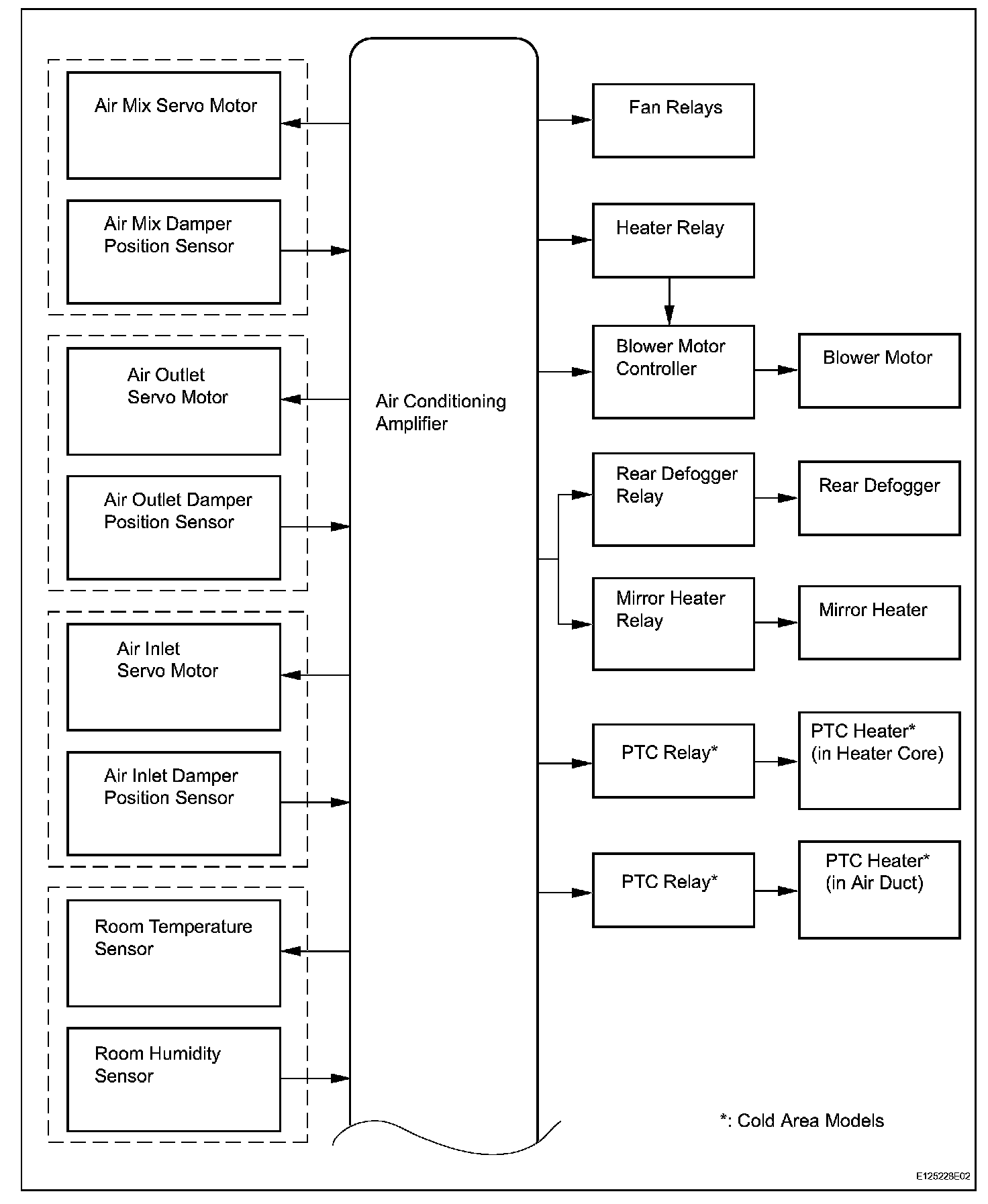

System Diagram (Part 4):
System Diagram (Part 5):
