Removal and Replacement

Condenser:

CONDENSER

REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM
2. REMOVE FRONT FENDER LINER LH
3. REMOVE FRONT FENDER LINER RH
4. REMOVE FRONT BUMPER COVER
a. Remove the front bumper cover.
5. REMOVE NO. 1 INVERTER BRACKET

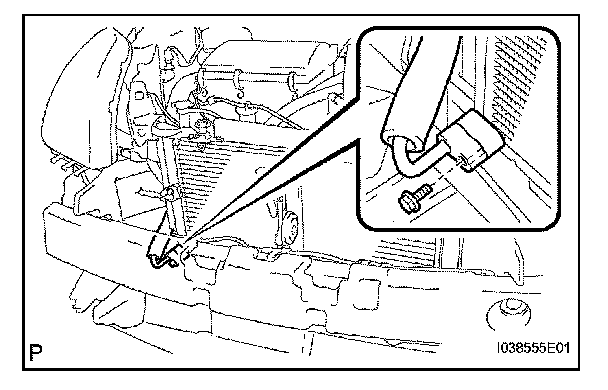

6. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY

a. Remove the bolt and disconnect the discharge hose from the condenser (with receiver).
b. Remove the O-ring from the discharge hose.

NOTE: Seal the openings of the disconnected parts of the discharge hose and the condenser using vinyl tape to prevent moisture and foreign matter from entering them.

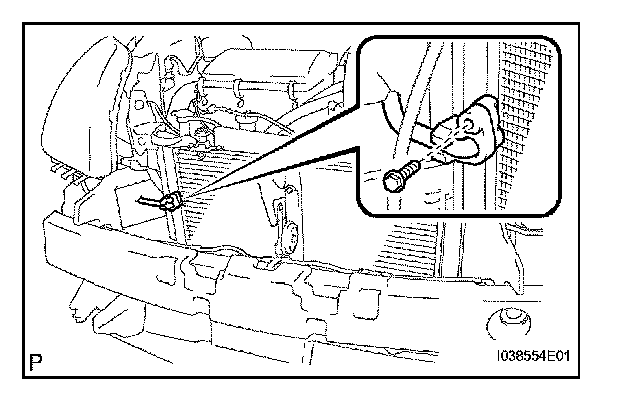

7. DISCONNECT COOLER REFRIGERANT LIQUID PIPE E (TO COOLER UNIT)

a. Remove the bolt and disconnect the cooler unit refrigerant liquid pipe E from the condenser (with receiver).
b. Remove the O-ring from the cooler refrigerant liquid pipe E.

NOTE: Seal the openings of the disconnected parts of the cooler unit refrigerant liquid pipe E and the condenser using vinyl tape to prevent moisture and foreign matter from entering them.

8. REMOVE RADIATOR SUPPORT SUB-ASSEMBLY UPPER RH

a. Remove the 4 bolts and radiator support upper.

9. REMOVE RADIATOR SUPPORT SUB-ASSEMBLY UPPER LH

a. Remove the 4 bolts and radiator support upper.

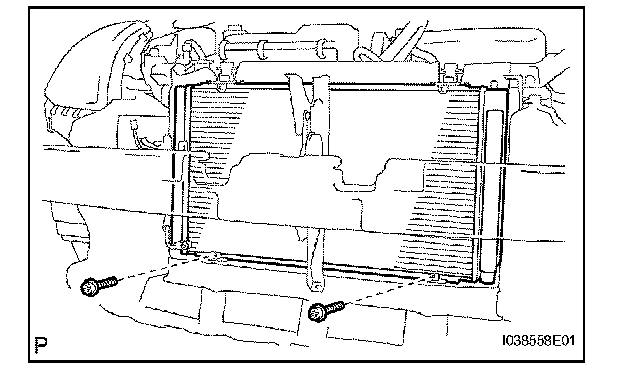

10. REMOVE CONDENSER ASSEMBLY WITH RECEIVER

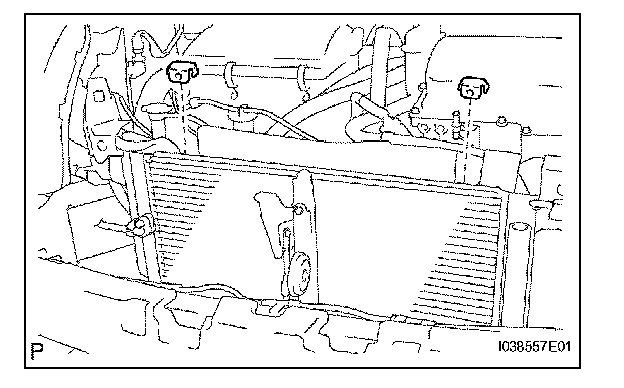

a. Remove the 2 angles.

b. Remove the 2 bolts and condenser (with receiver).

INSTALLATION

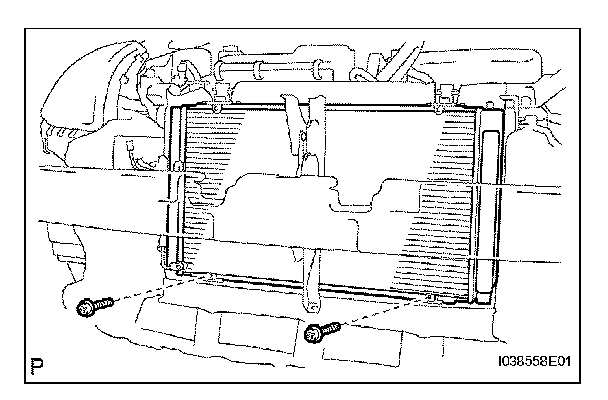

1. INSTALL CONDENSER ASSEMBLY WITH RECEIVER

a. Install the condenser (with receiver) with the 2 bolts.

Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)

HINT: If the condenser is replaced with a new one, add compressor oil to the new condenser.

Capacity: 40 cc (1.4 fl. oz.)

Compressor oil: ND-OIL 11 or equivalent

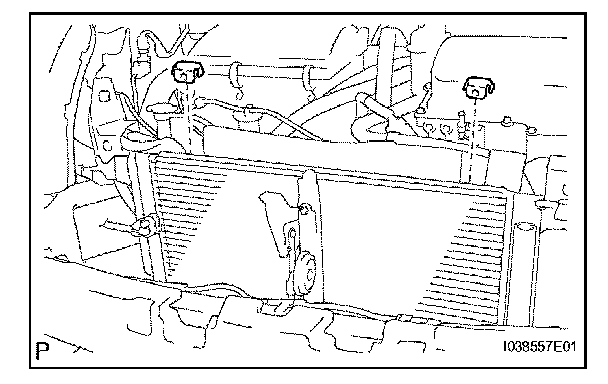

b. Install the 2 angles to the condenser (with receiver).

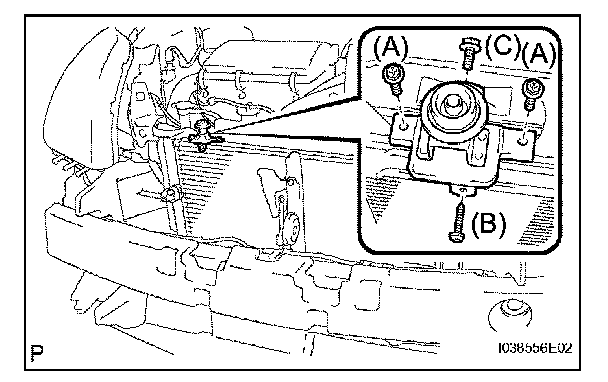

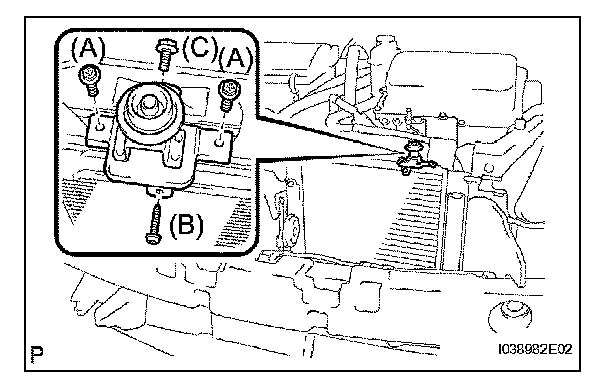

2. INSTALL RADIATOR SUPPORT SUB-ASSEMBLY UPPER RH

a. Install the radiator support upper with the 4 bolts.

Torque:
5.0 N.m (51 kgf.cm, 44 in.lbf) for bolt A
3.9 N.m (40 kgf.cm, 35 in.lbf) for bolt B
7.5 N.m (76 kgf.cm, 66 in.lbf) for bolt C

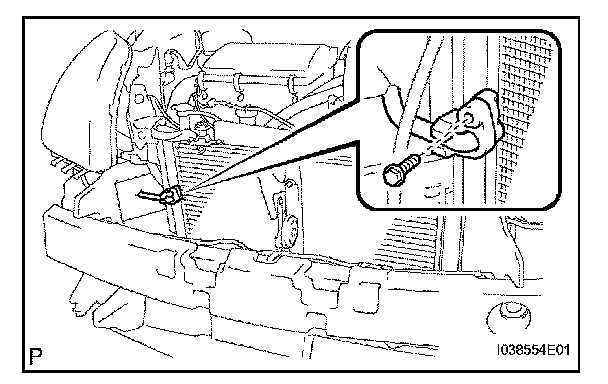

4. CONNECT COOLER REFRIGERANT LIQUID PIPE E (TO COOLER UNIT)
a. Remove the attached vinyl tape from the disconnected parts of the cooler refrigerant liquid pipe E and condenser assembly (with receiver).
b. Install a new O-ring to the cooler refrigerant liquid pipe E.
c. Sufficiently apply compressor oil (ND-OIL 11) to the O-ring and the cooler refrigerant liquid pipe E fitting surface.

Compressor oil: ND-OIL 11 or equivalent

NOTE:
- Do not use any compressor oil other than ND-OIL 11.
- If any compressor oil other than ND-OIL 11 is used, compressor motor insulation performance may decrease, resulting in a leakage of electric power.

d. Connect the cooler refrigerant liquid pipe E to the condenser (with receiver) with the bolt.

Torque: 5.4 N.m (55 kgf.cm, 47 in.lbf)

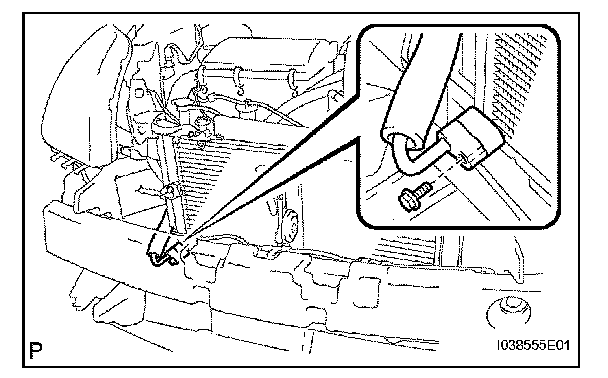

5. CONNECT DISCHARGE HOSE SUB-ASSEMBLY
a. Remove the attached vinyl tape from the disconnected parts of the discharge hose and the condenser (with receiver).
b. Install a new O-ring to the discharge hose.
c. Sufficiently apply compressor oil (ND-OIL 11) to the O-ring and the discharge hose fitting surface.

NOTE:
- Do not use any compressor oil other than ND-OIL 11.
- If any compressor oil other than ND-OIL 11 is used, compressor motor insulation performance may decrease, resulting in a leakage of electric power.

d. Connect the discharge hose to the condenser (with receiver) with the bolt.

Torque: 5.4 N.m (55 kgf.cm, 47 in.lbf)

6. INSTALL NO. 1 INVERTER BRACKET

7. INSTALL FRONT BUMPER COVER
a. Install the front bumper cover.

8. INSTALL FRONT FENDER LINER RH
9. INSTALL FRONT FENDER LINER LH
10. CHARGE REFRIGERANT
11. WARM UP COMPRESSOR
12. INSPECT FOR REFRIGERANT LEAK
