Removal and Replacement

RADIATOR

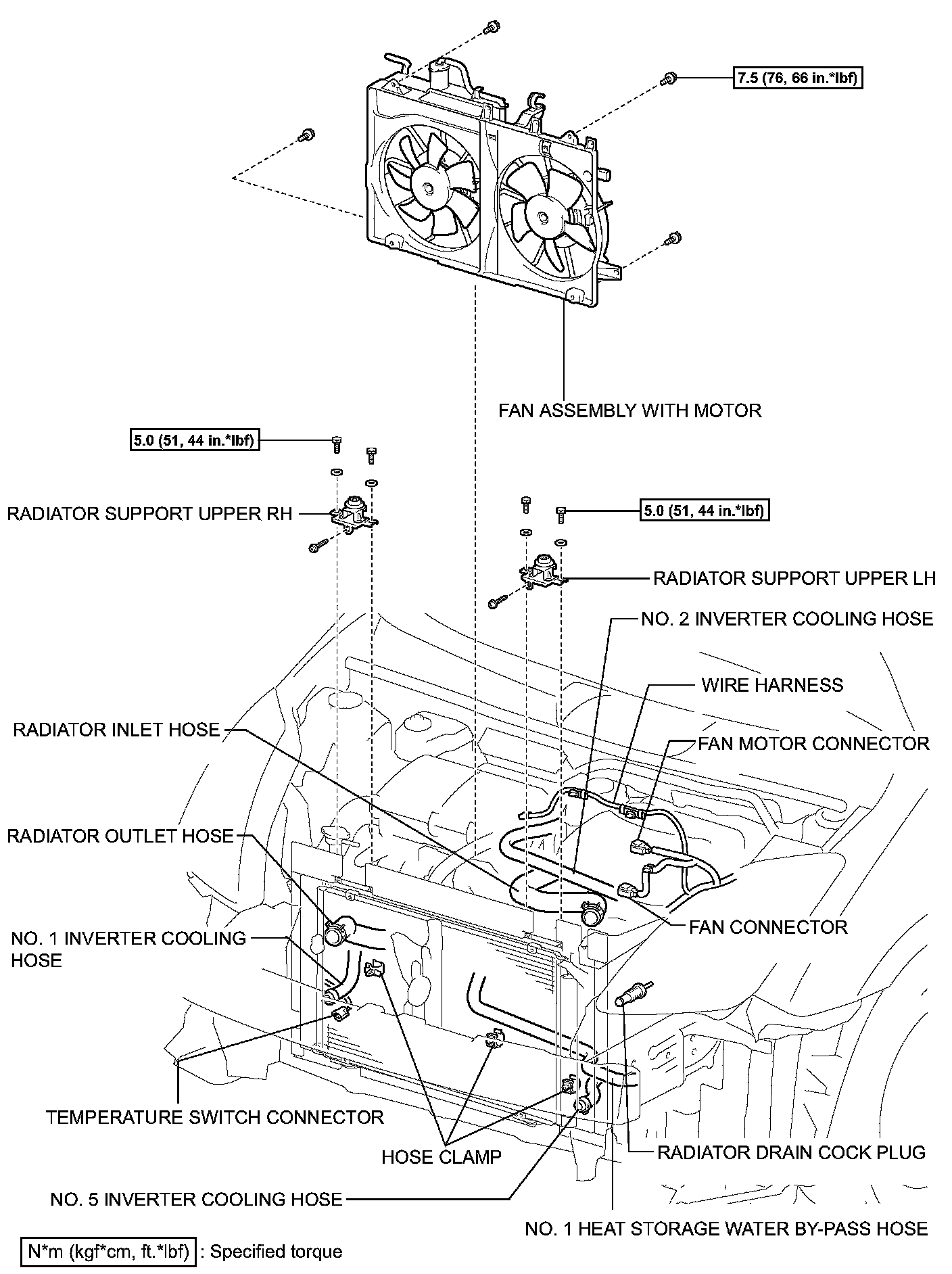

Radiator Components (Part 1):

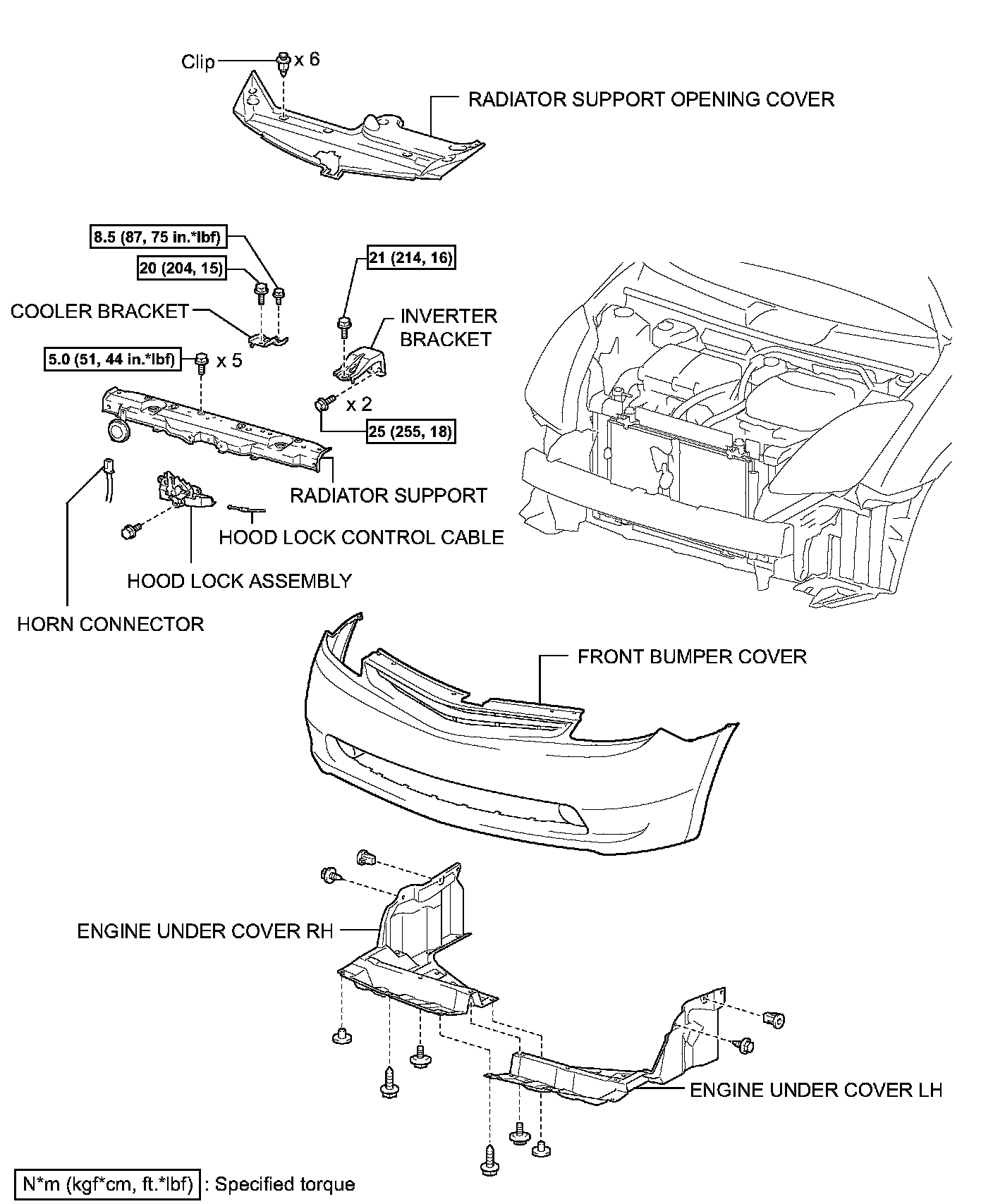

Radiator Components (Part 2):

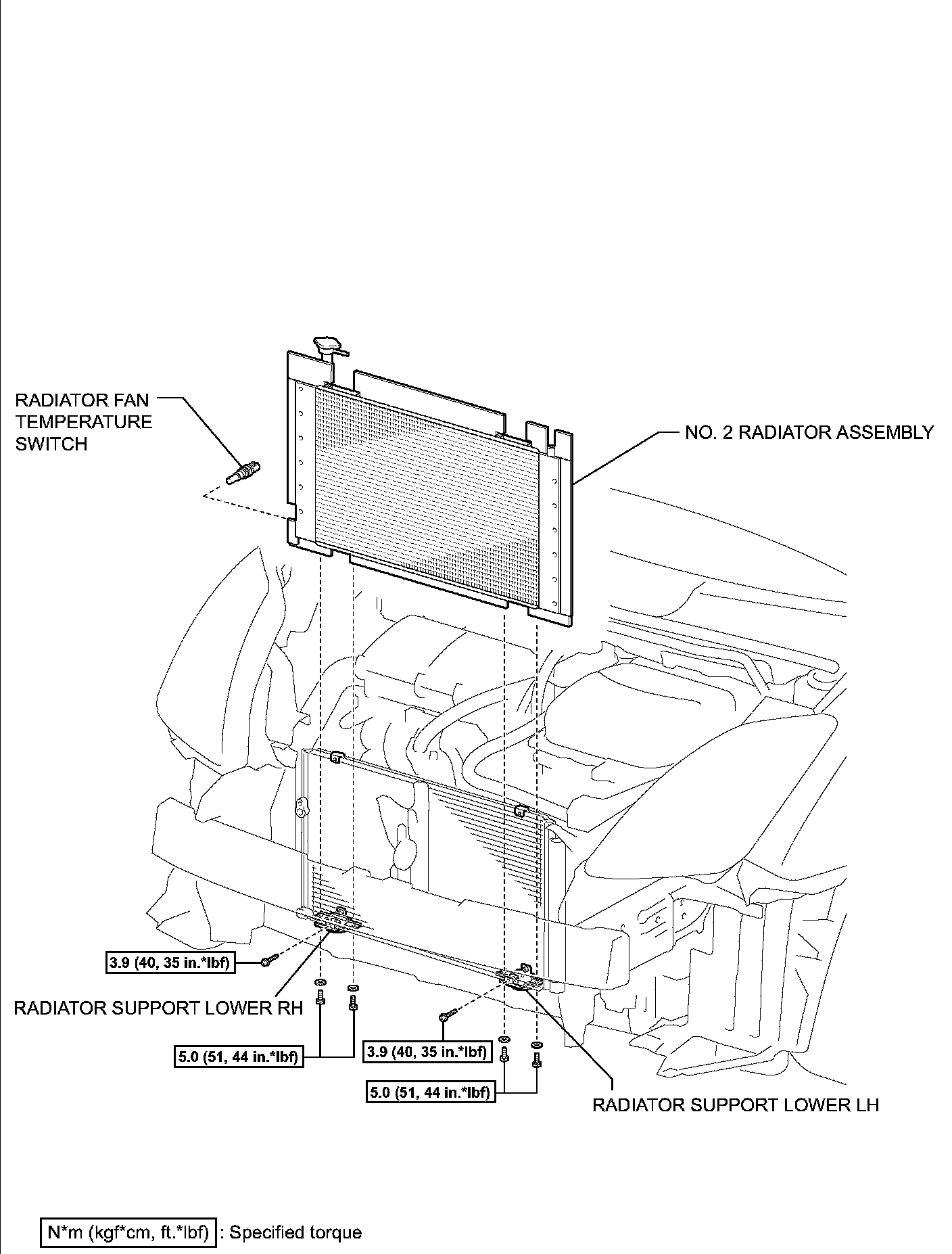

Radiator Components (Part 3):

REMOVAL

1. REMOVE FAN ASSEMBLY WITH MOTOR





2. REMOVE NO. 2 RADIATOR ASSEMBLY

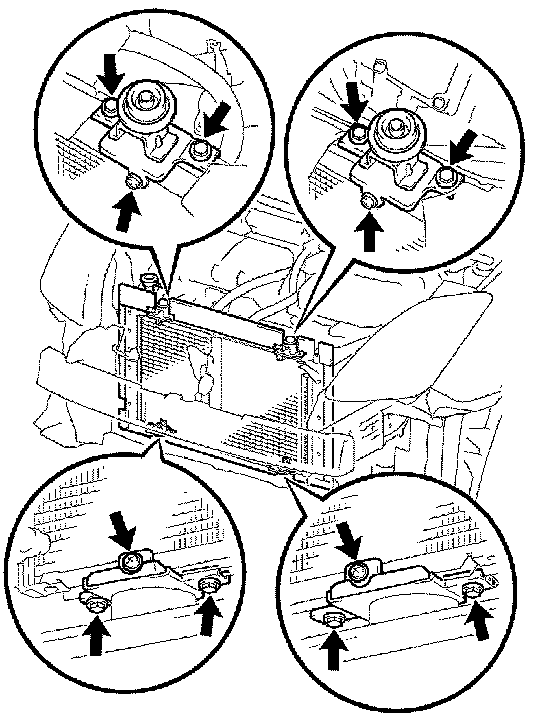

a. Remove the 3 bolts and radiator support upper RH.
b. Remove the 3 bolts and radiator support upper LH.
c. Remove the 3 bolts and radiator support lower RH.
d. Remove the 3 bolts and radiator support lower LH.
e. Remove the No. 2 radiator from the vehicle.





3. REMOVE RADIATOR FAN TEMPERATURE SWITCH

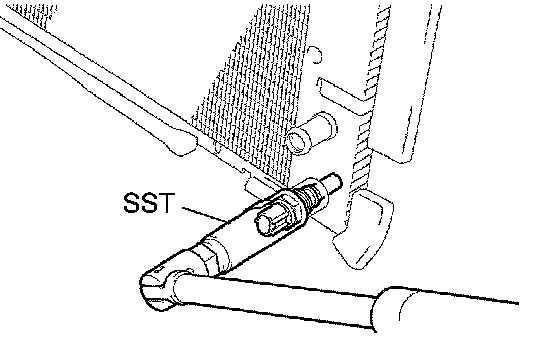

a. Using SST, remove the radiator fan temperature switch.
SST 09817-33190

INSTALLATION





1. INSTALL RADIATOR FAN TEMPERATURE SWITCH

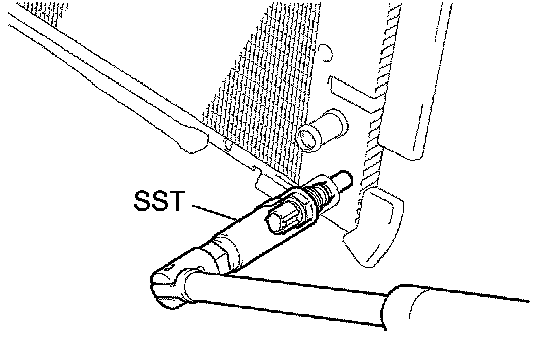

a. Using SST, install the radiator fan temperature switch.
SST 09817-33190
Torque: 7.0 Nm (71 kgf-cm, 62 inch lbs.)





2. INSTALL NO. 2 RADIATOR ASSEMBLY
a. Install the No. 2 radiator to the vehicle.

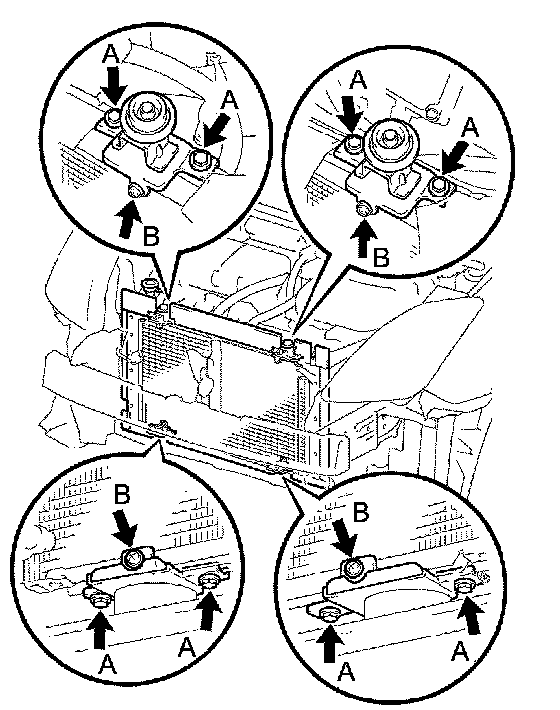

b. Install the radiator support lower LH with the 3 bolts.
Torque:
5.0 Nm (51 kgf-cm, 44 inch lbs.) for bolt A
3.9 Nm (40 kgf-cm, 35 inch lbs.) for bolt B
c. Install the radiator support lower RH with the 3 bolts.
Torque:
5.0 Nm (51 kgf-cm, 44 inch lbs.) for bolt A
3.9 Nm (40 kgf-cm, 35 inch lbs.) for bolt B
d. Install the radiator support upper LH with the 3 bolts.
Torque:
5.0 Nm (51 kgf-cm, 44 inch lbs.) for bolt A
3.9 Nm (40 kgf-cm, 35 inch lbs.) for bolt B
e. Install the radiator support upper RH with the 3 bolts.
Torque:
5.0 Nm (51 kgf-cm, 44 inch lbs.) for bolt A
3.9 Nm (40 kgf-cm, 35 inch lbs.) for bolt B

3. INSTALL FAN ASSEMBLY WITH MOTOR
