Seats

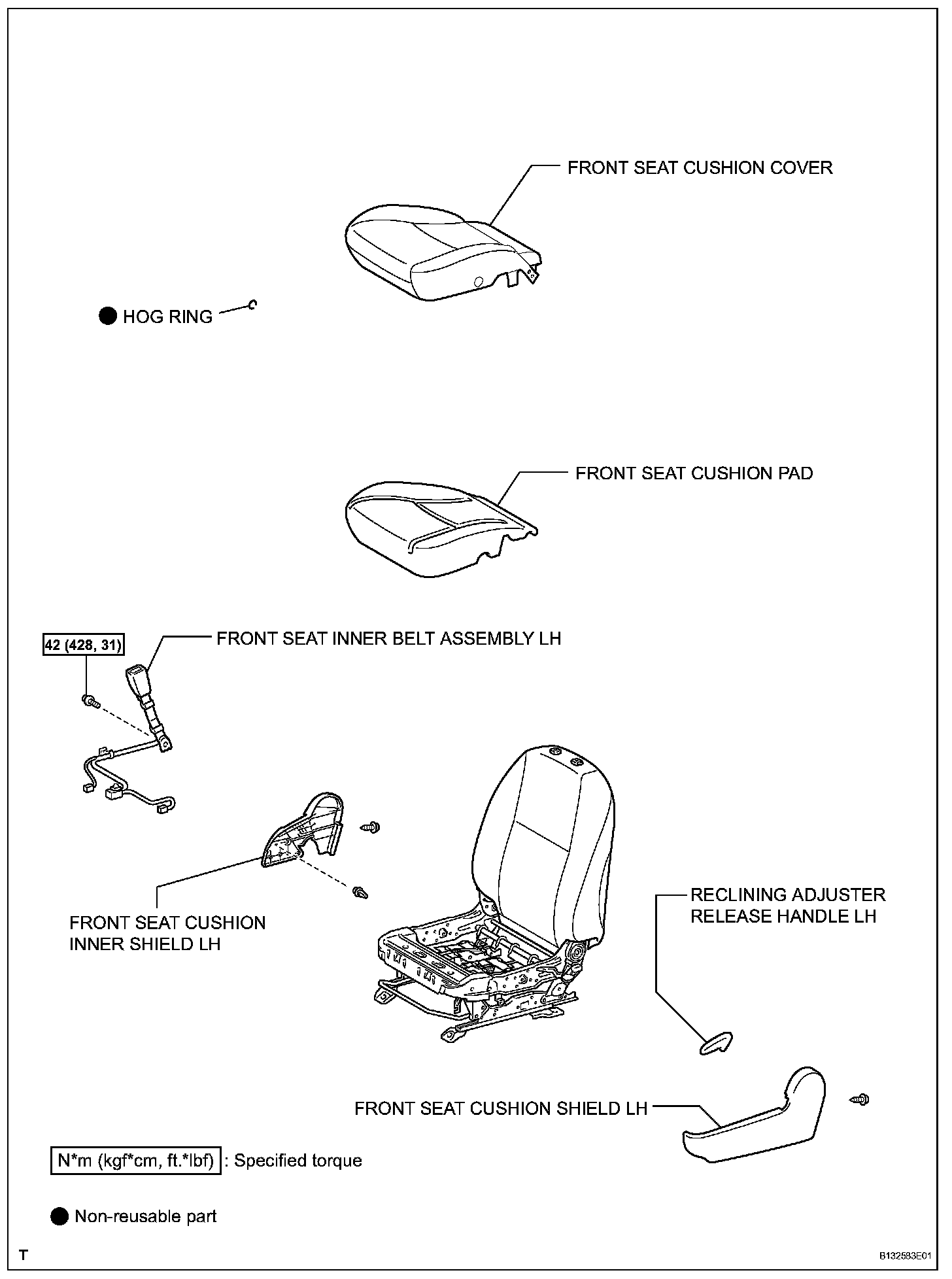

Front Seat Assembly:

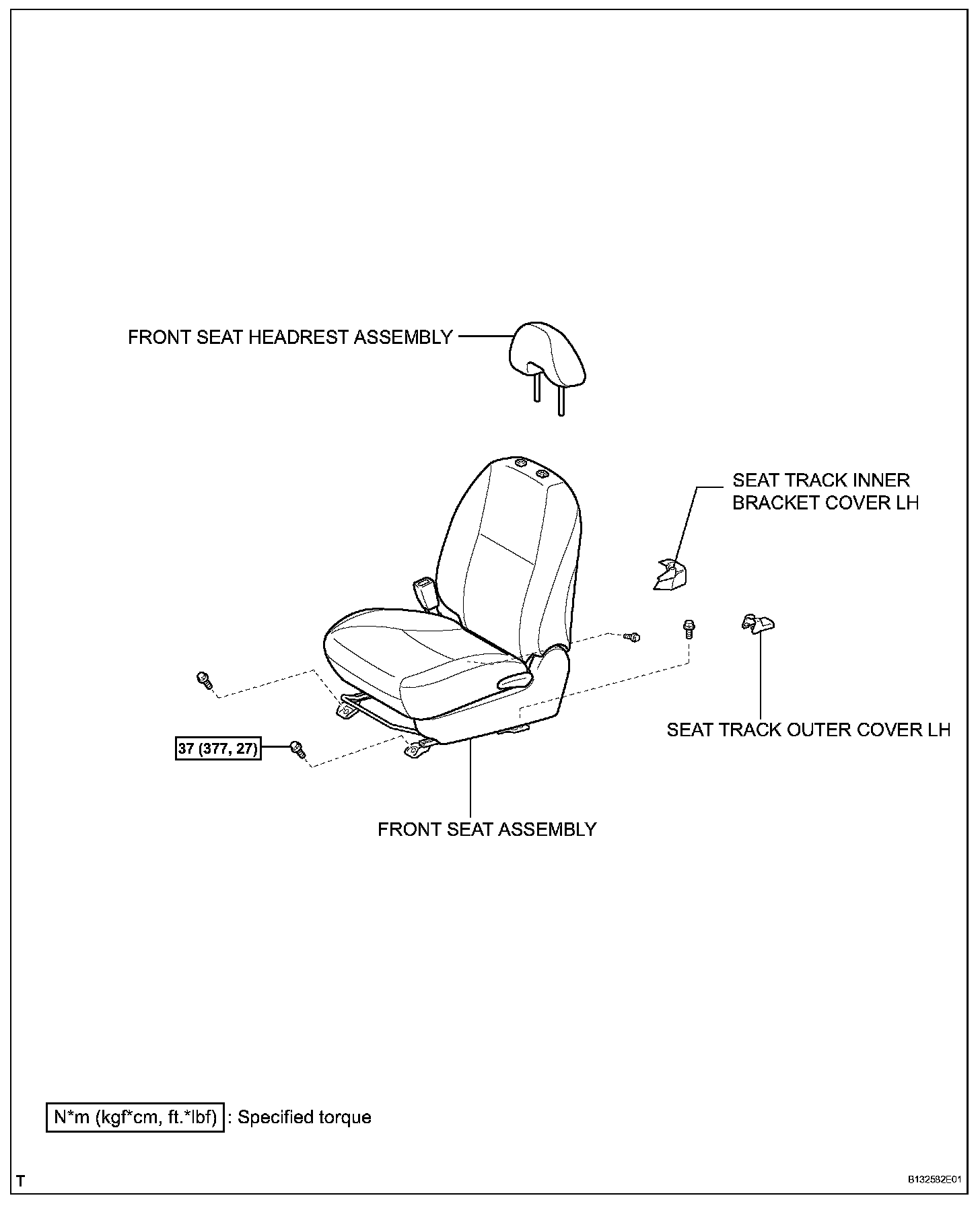

Front Seat Assembly:



Front Seat Assembly:



Rear Seat Assembly:



Rear Seat Assembly:



Rear Seat Assembly:
