Instrument Cluster / Carrier
Instrument Cluster / Carrier

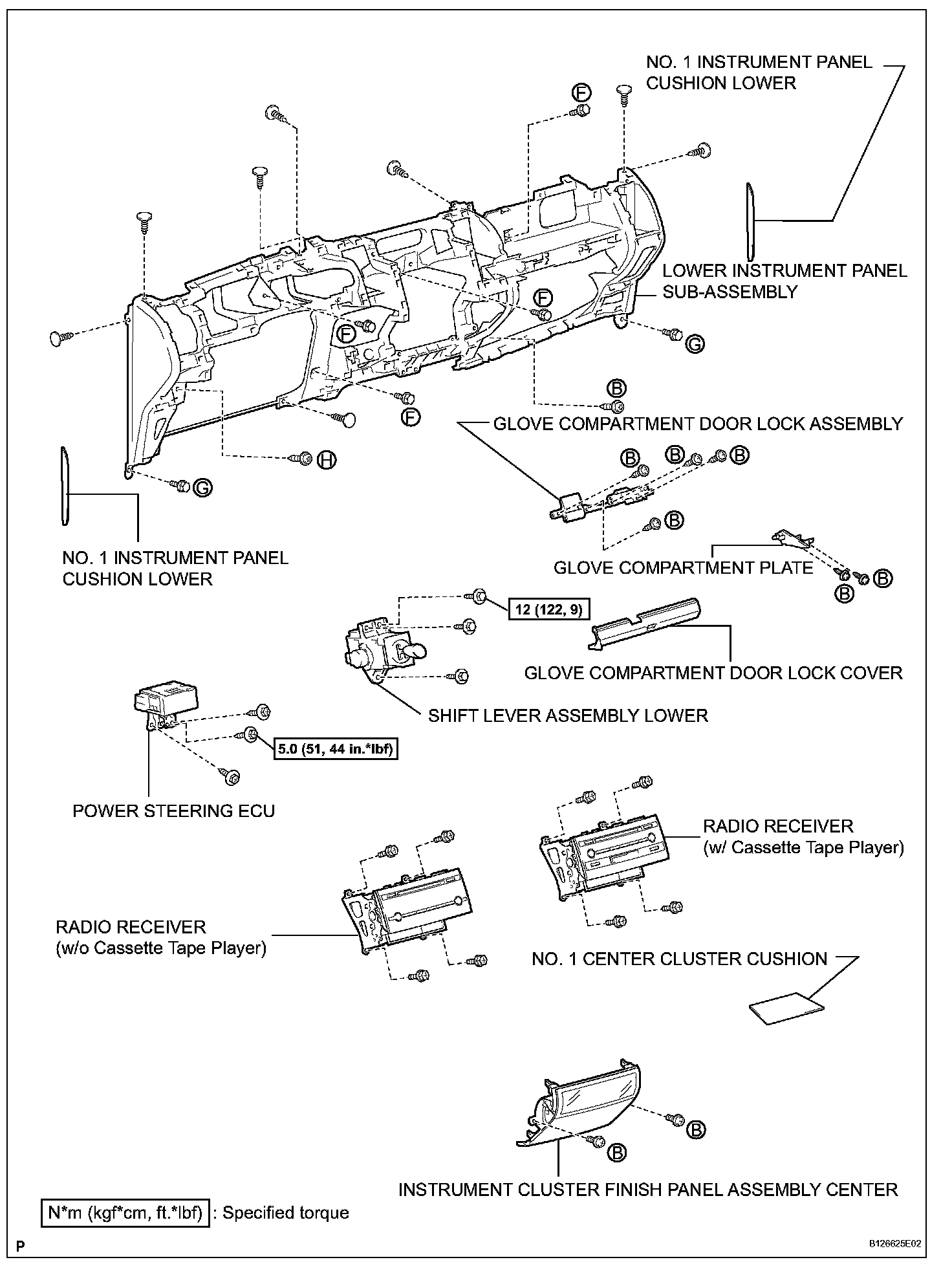

Lower Instrument Panel:
Lower Instrument Panel:
