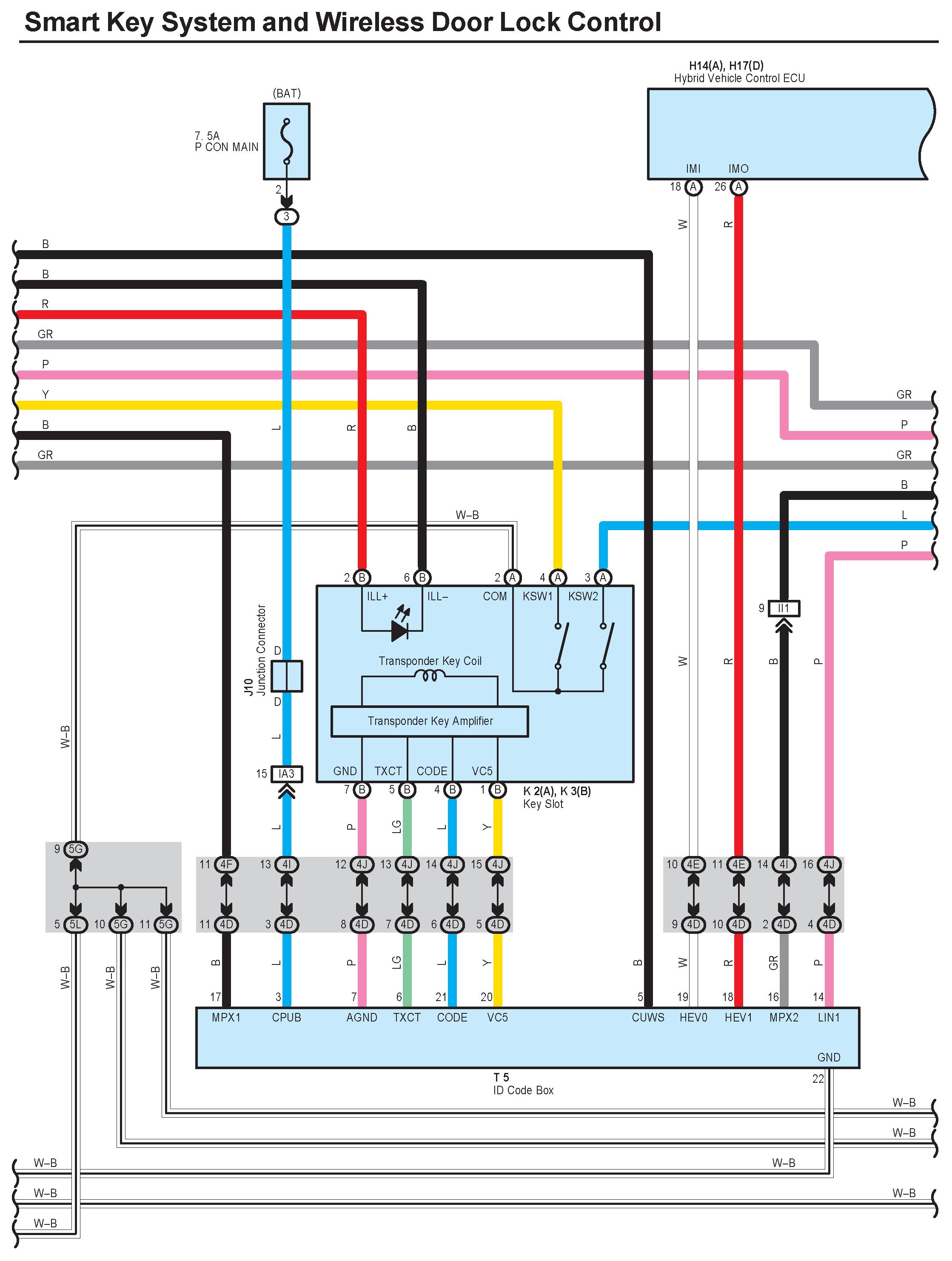

Smart Key System and Wireless Door Lock Control

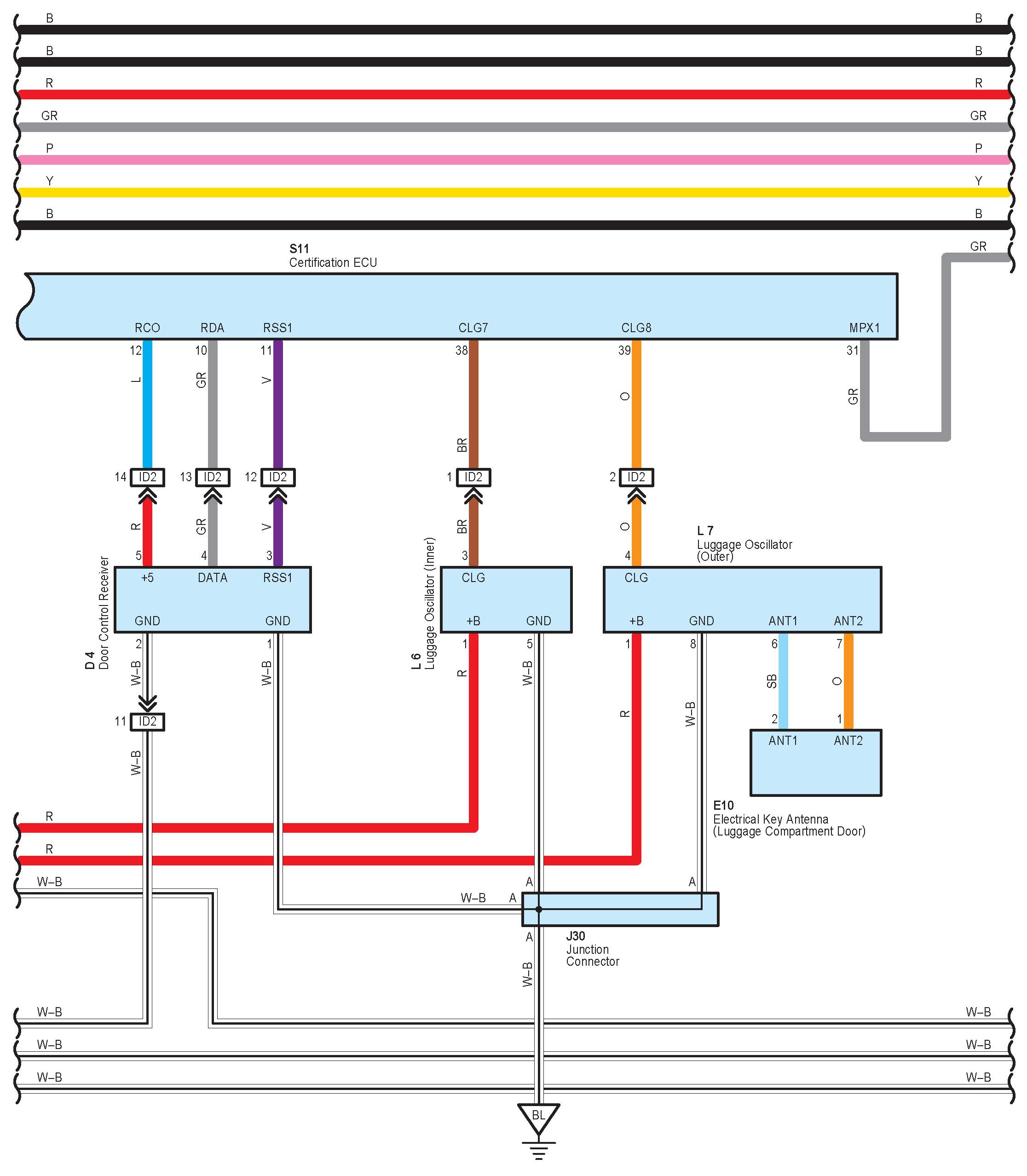

Smart Key System And Wireless Door Lock Control Part 1:

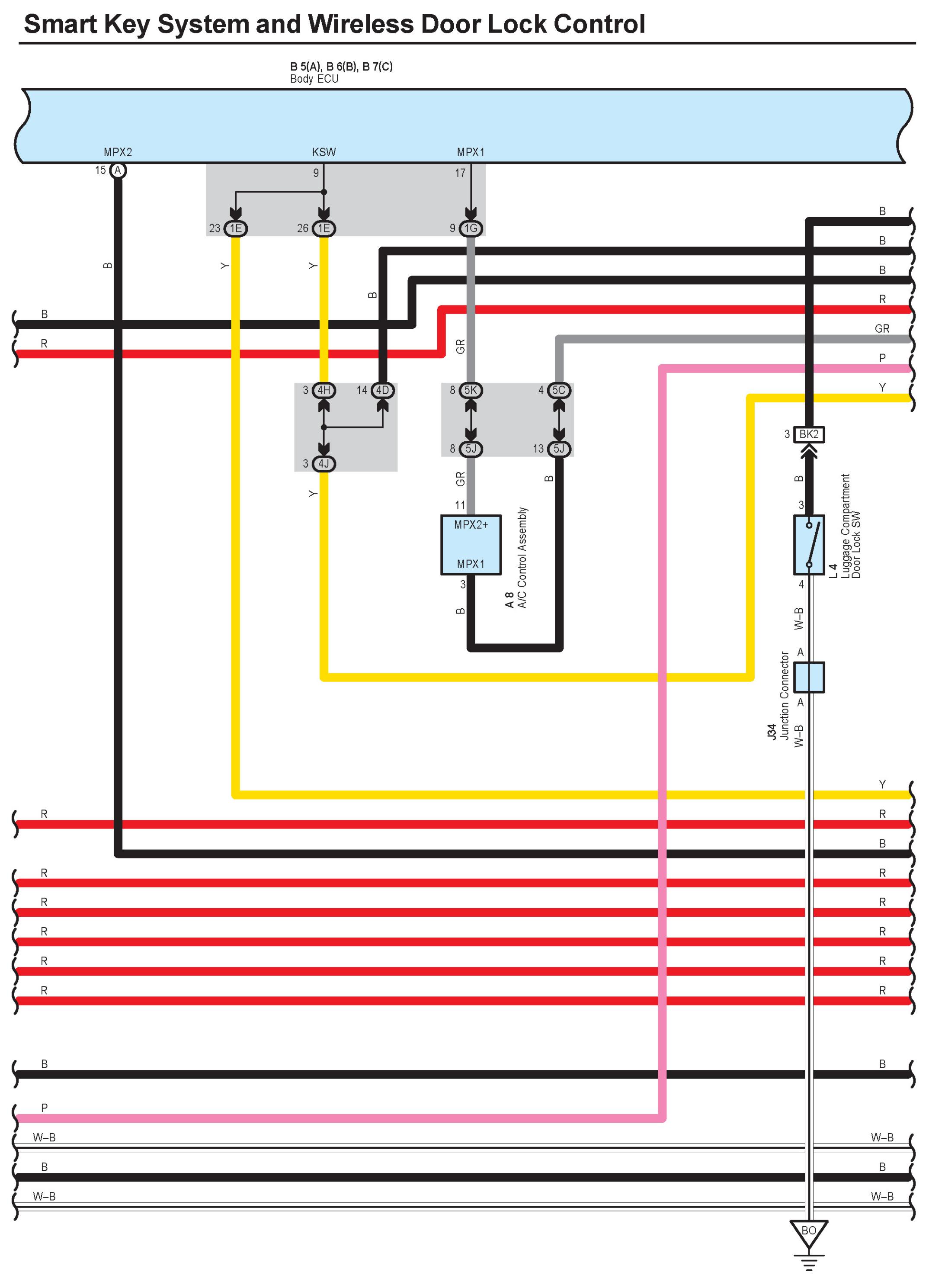

Smart Key System And Wireless Door Lock Control Part 2:

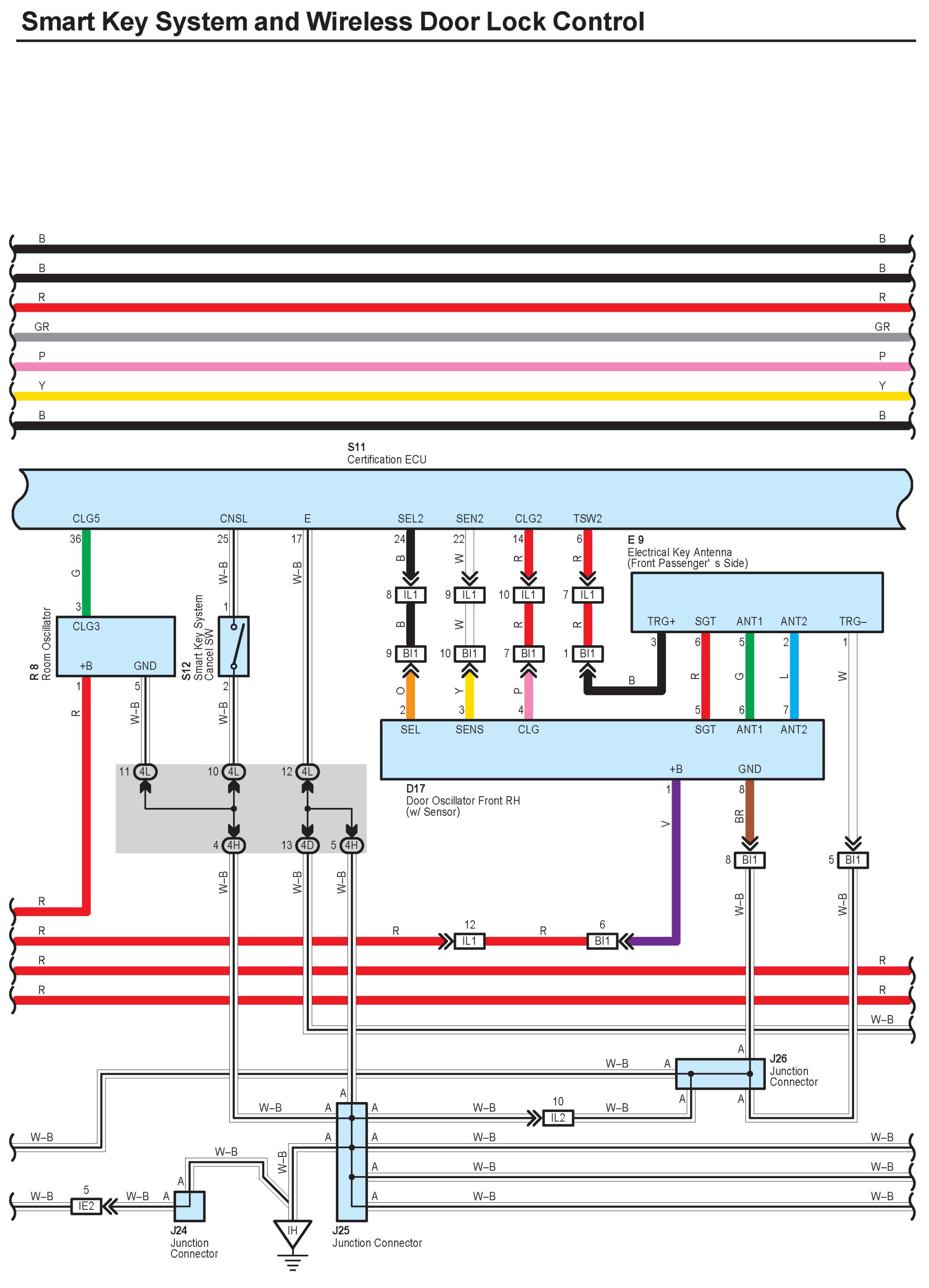

Smart Key System And Wireless Door Lock Control Part 3:

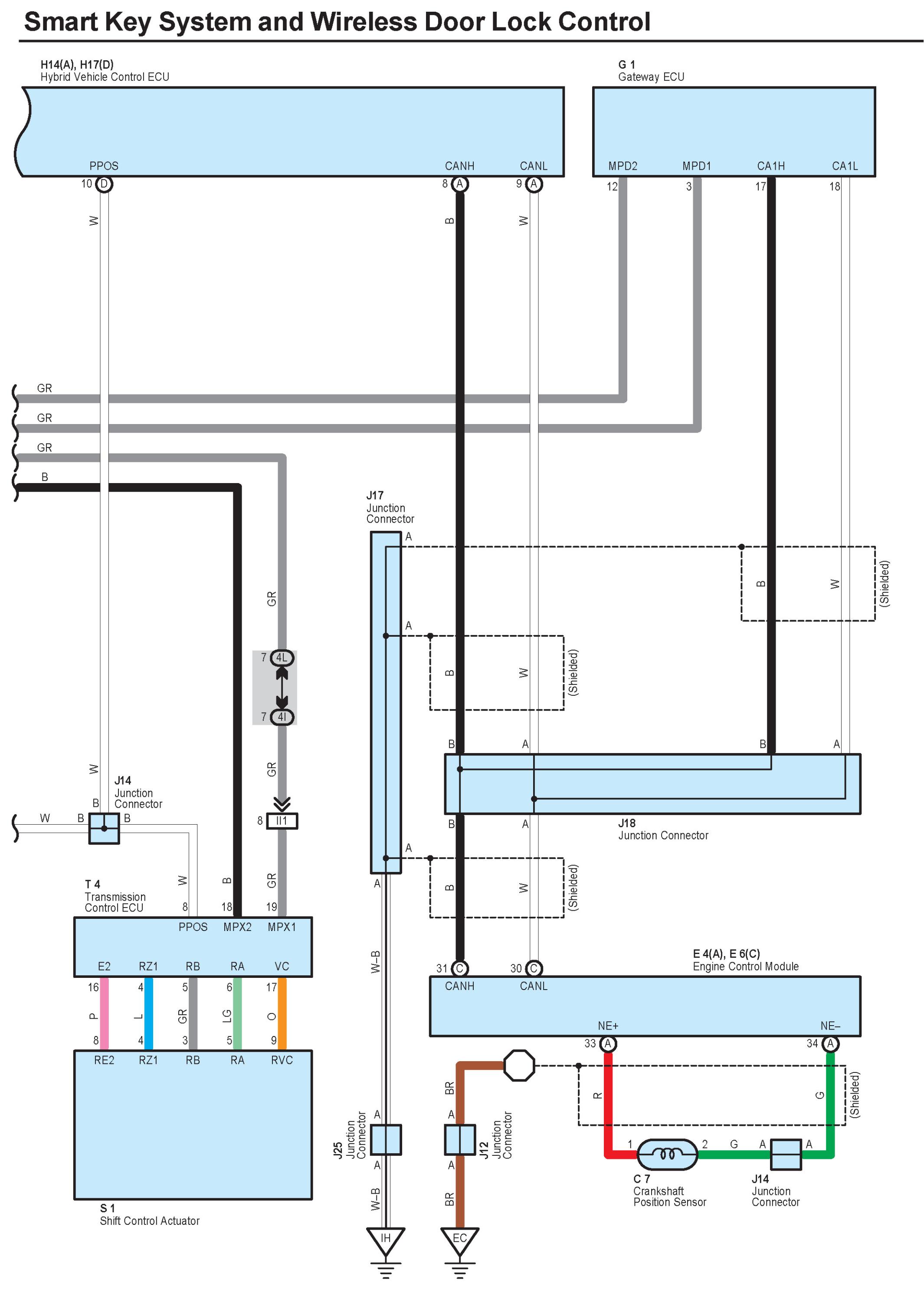

Smart Key System And Wireless Door Lock Control Part 4:

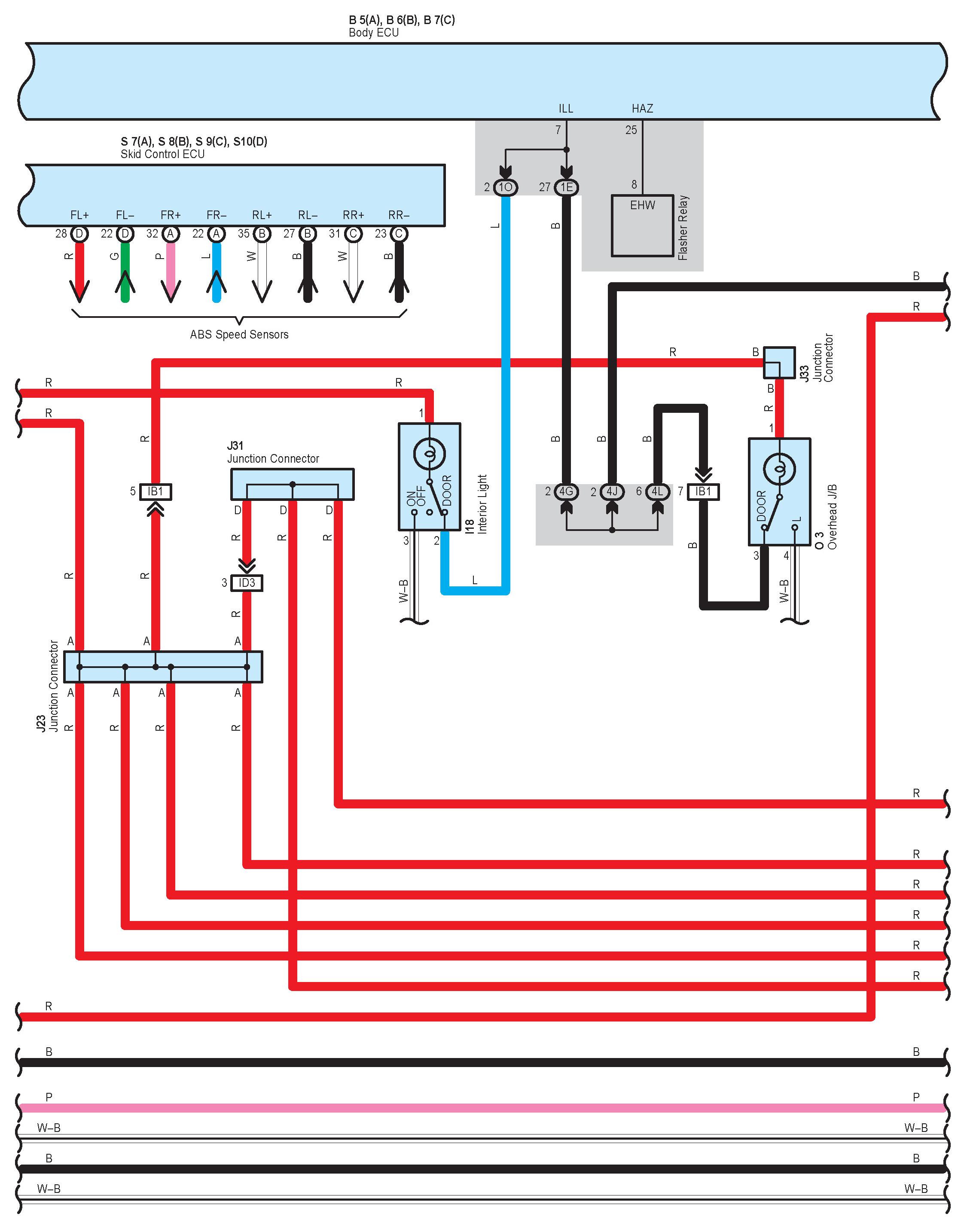

Smart Key System And Wireless Door Lock Control Part 5:

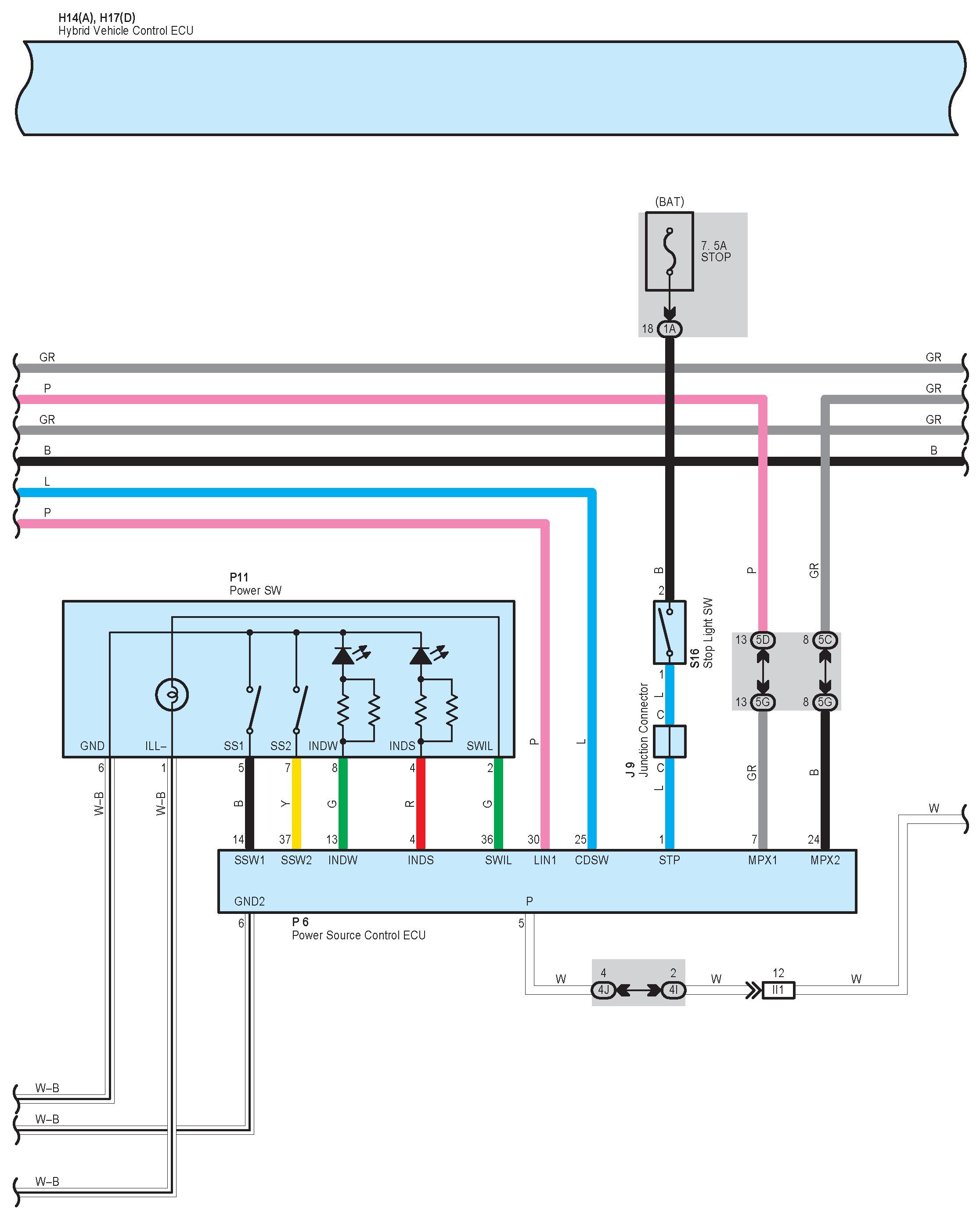

Smart Key System And Wireless Door Lock Control Part 6:

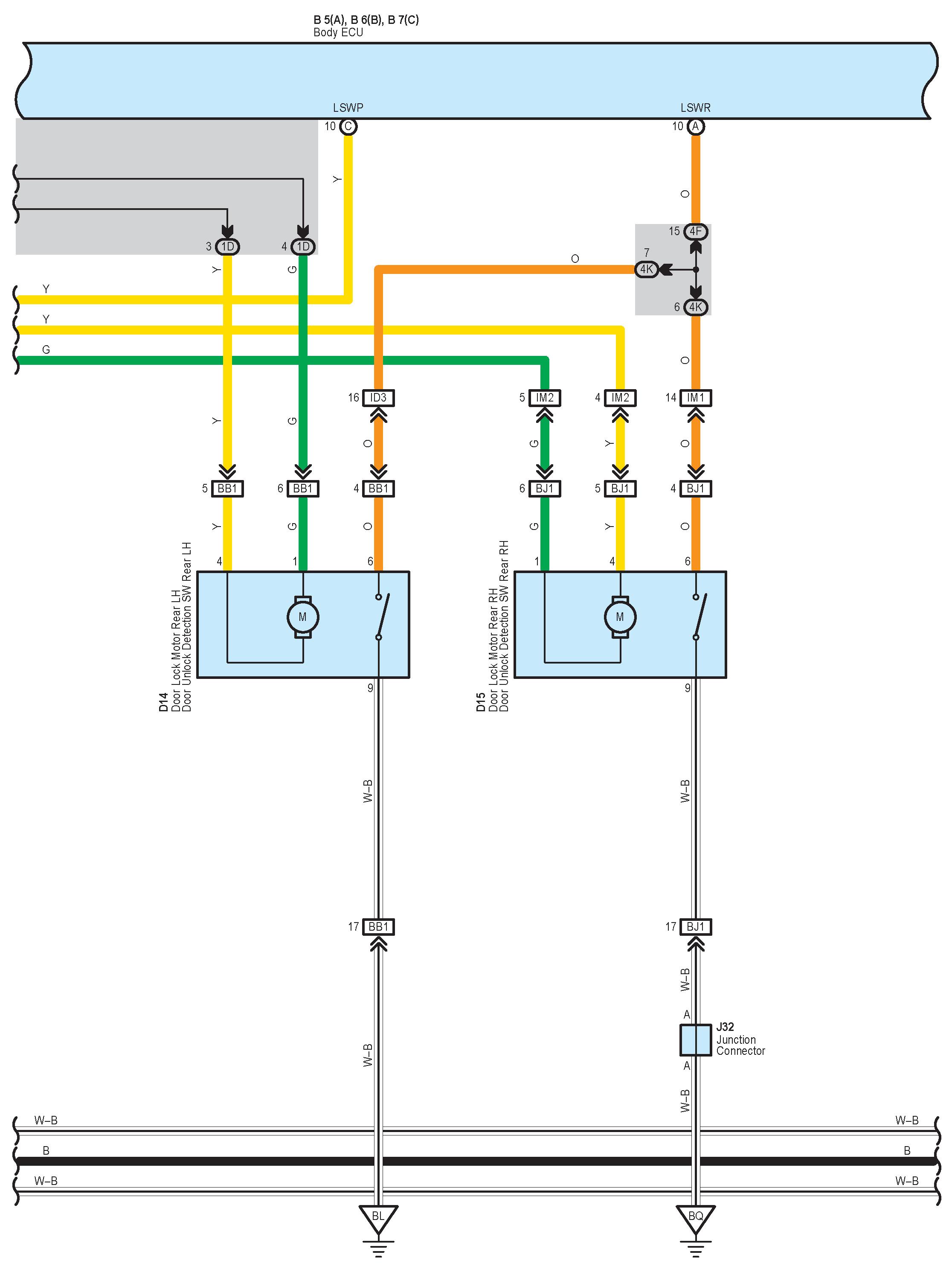

Smart Key System And Wireless Door Lock Control Part 7:

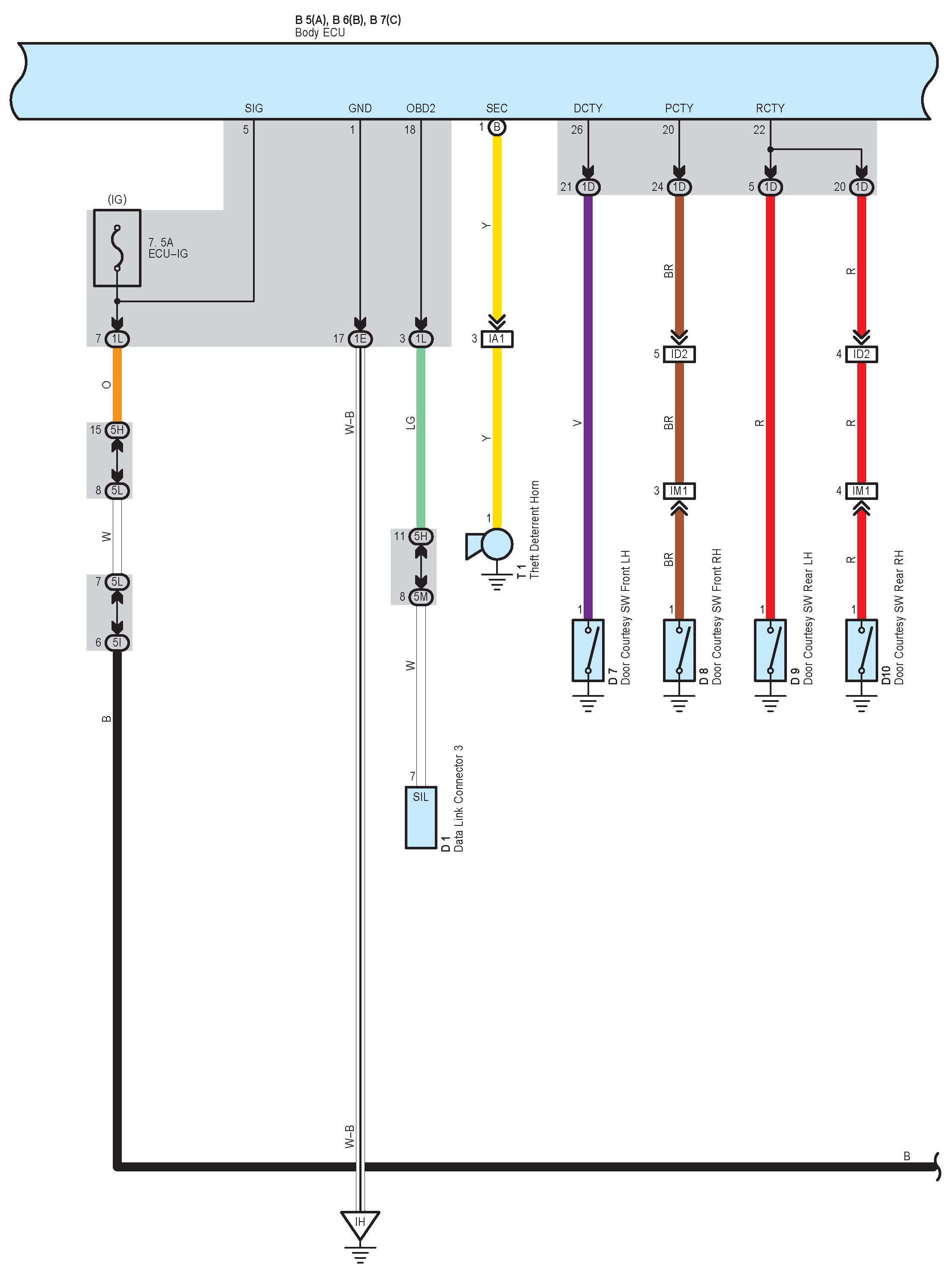

Smart Key System And Wireless Door Lock Control Part 8:

Smart Key System And Wireless Door Lock Control Part 9:

Smart Key System And Wireless Door Lock Control Part 10:

Smart Key System And Wireless Door Lock Control Part 11:

Smart Key System And Wireless Door Lock Control Part 12:

Smart Key System And Wireless Door Lock Control Part 13:

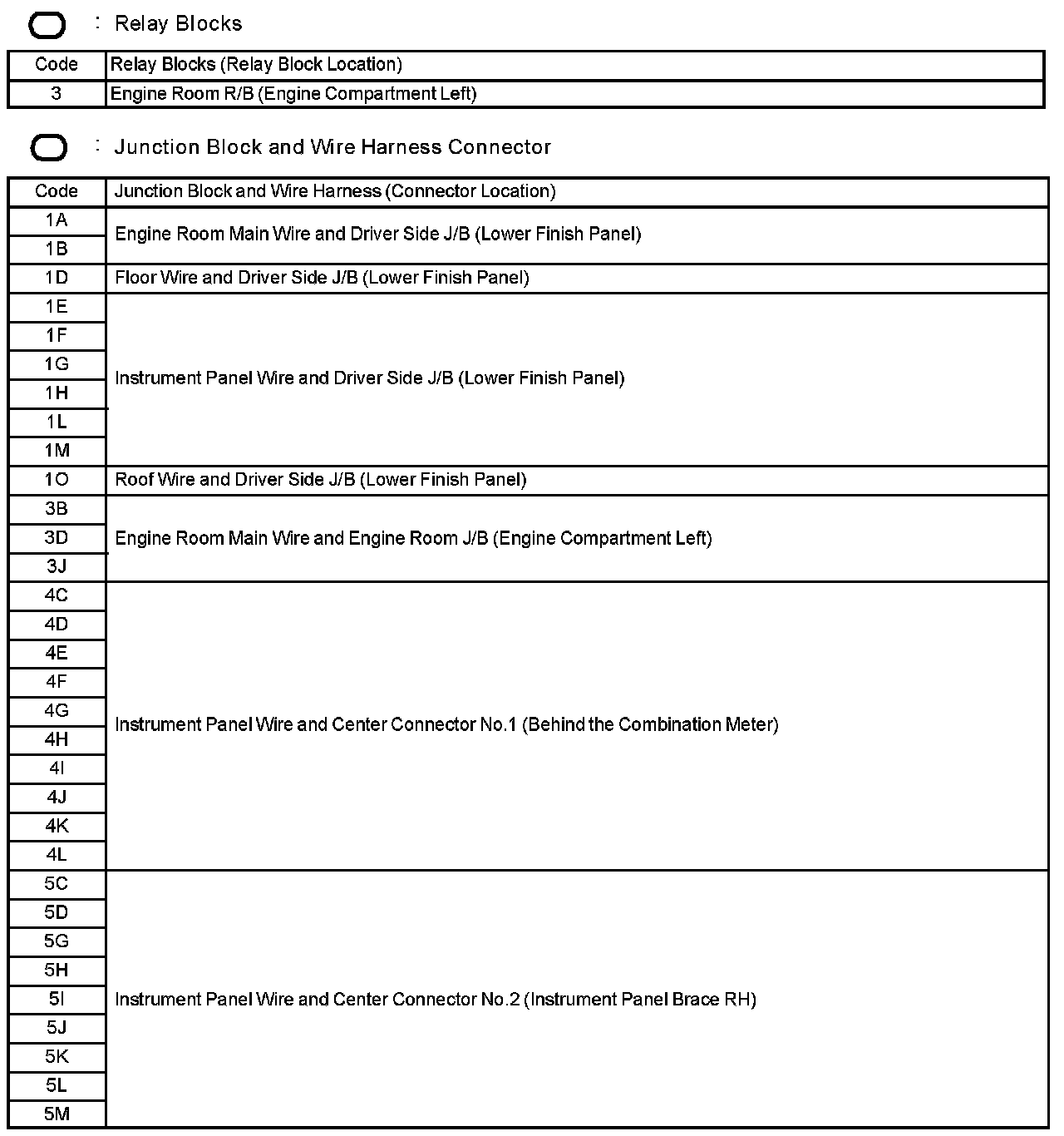

Diagram Legend Part 1:

Diagram Legend Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
