Antilock Brakes / Traction Control Systems

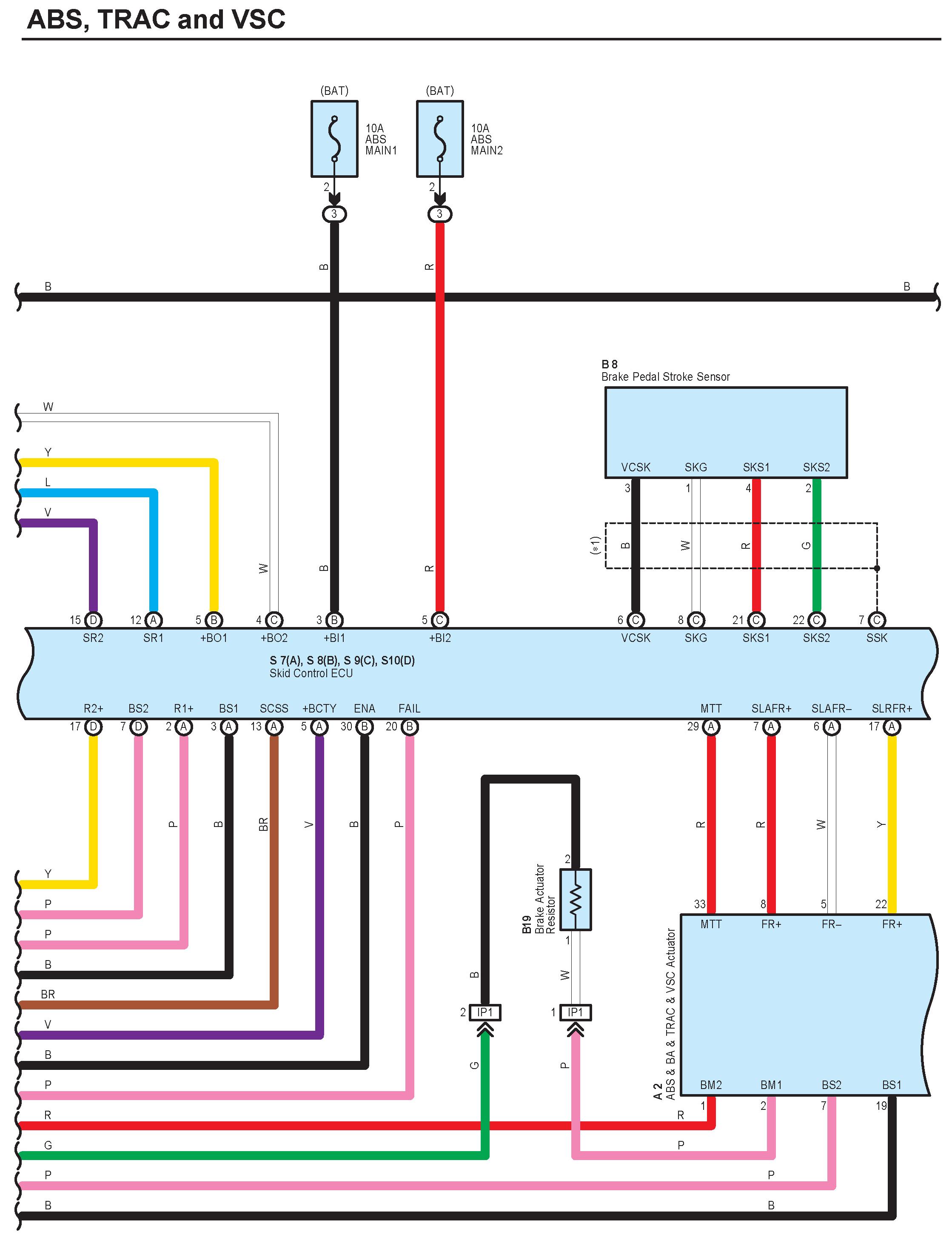

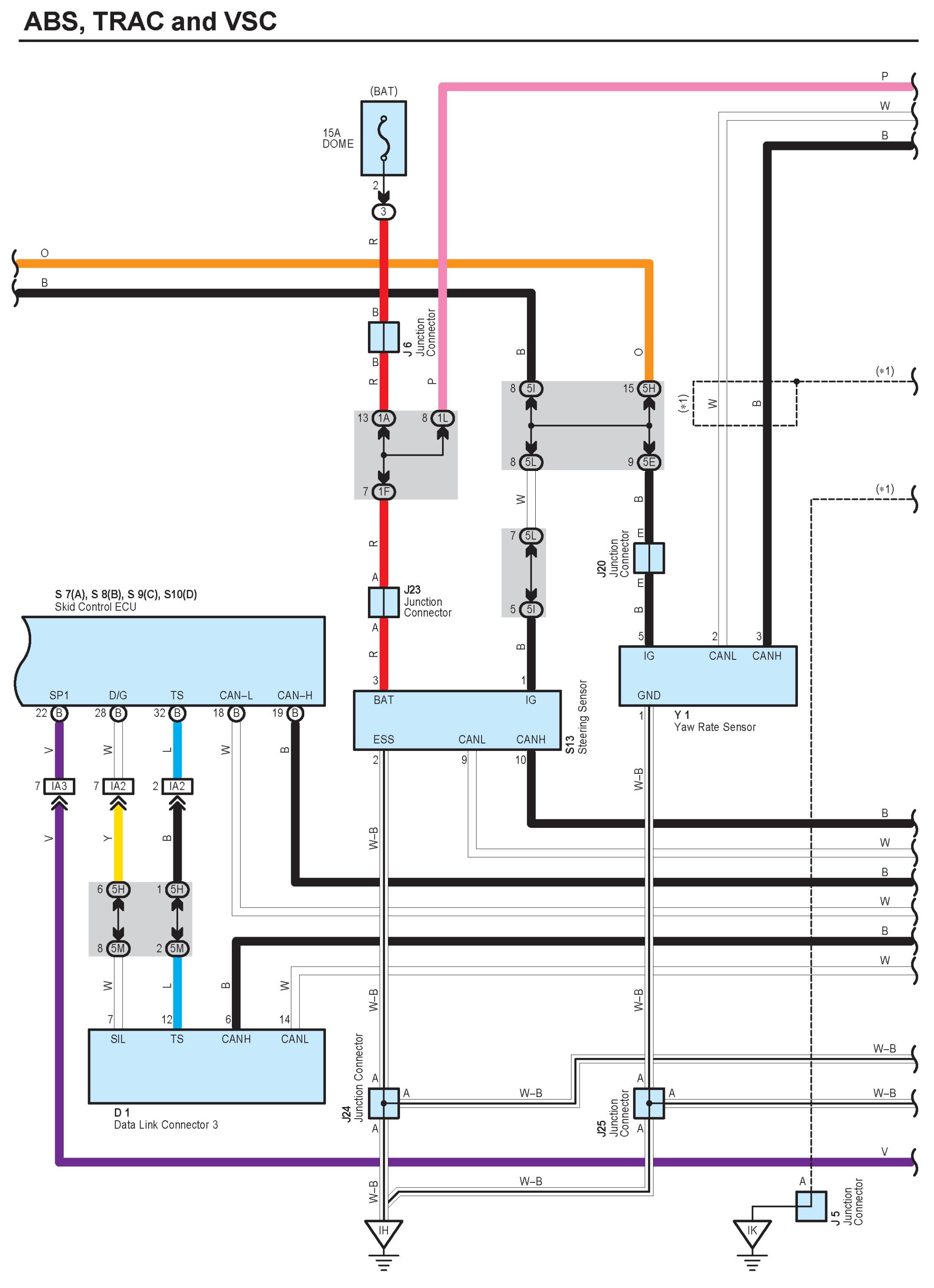

ABS, TRAC And VSC Part 1:

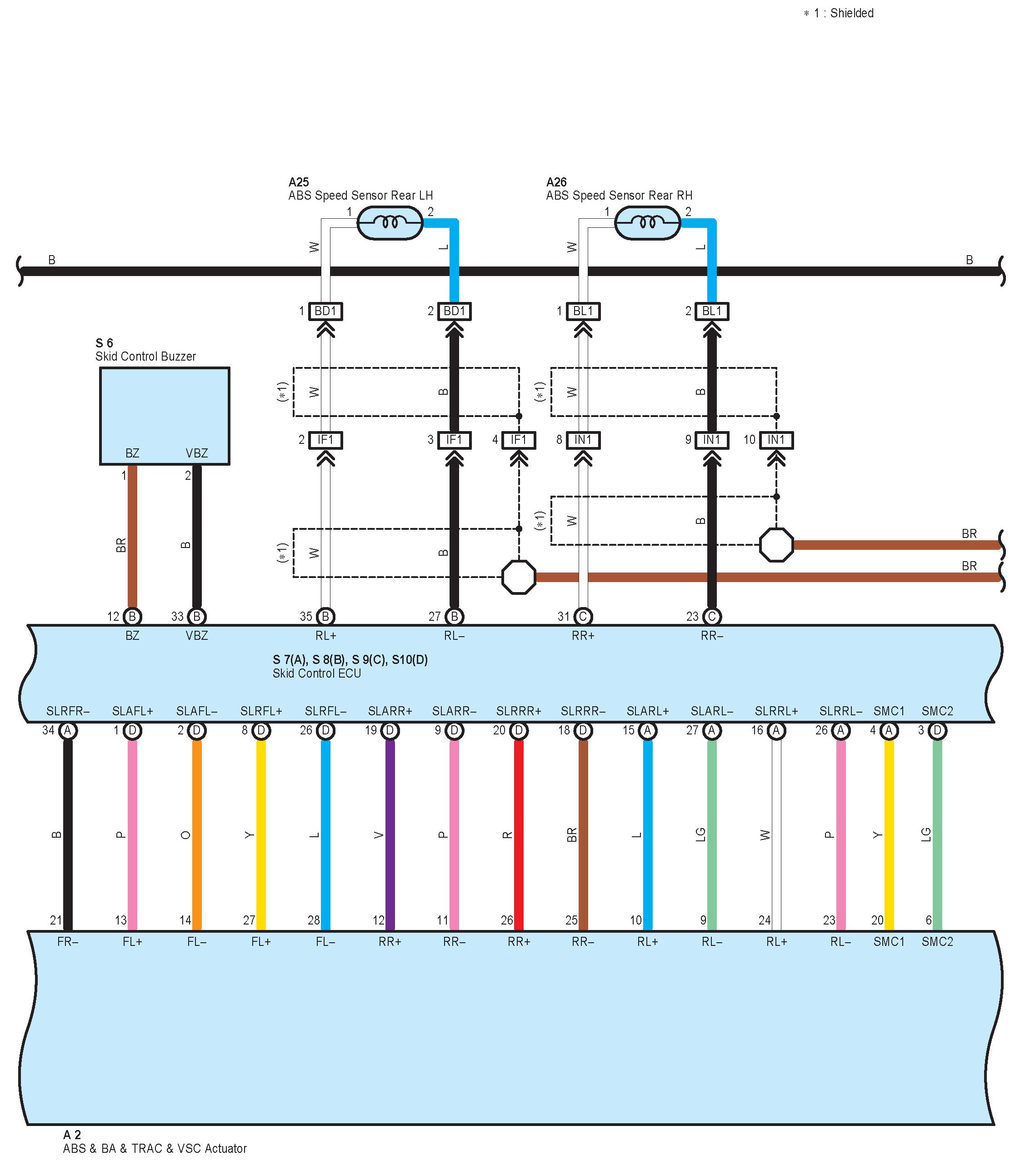

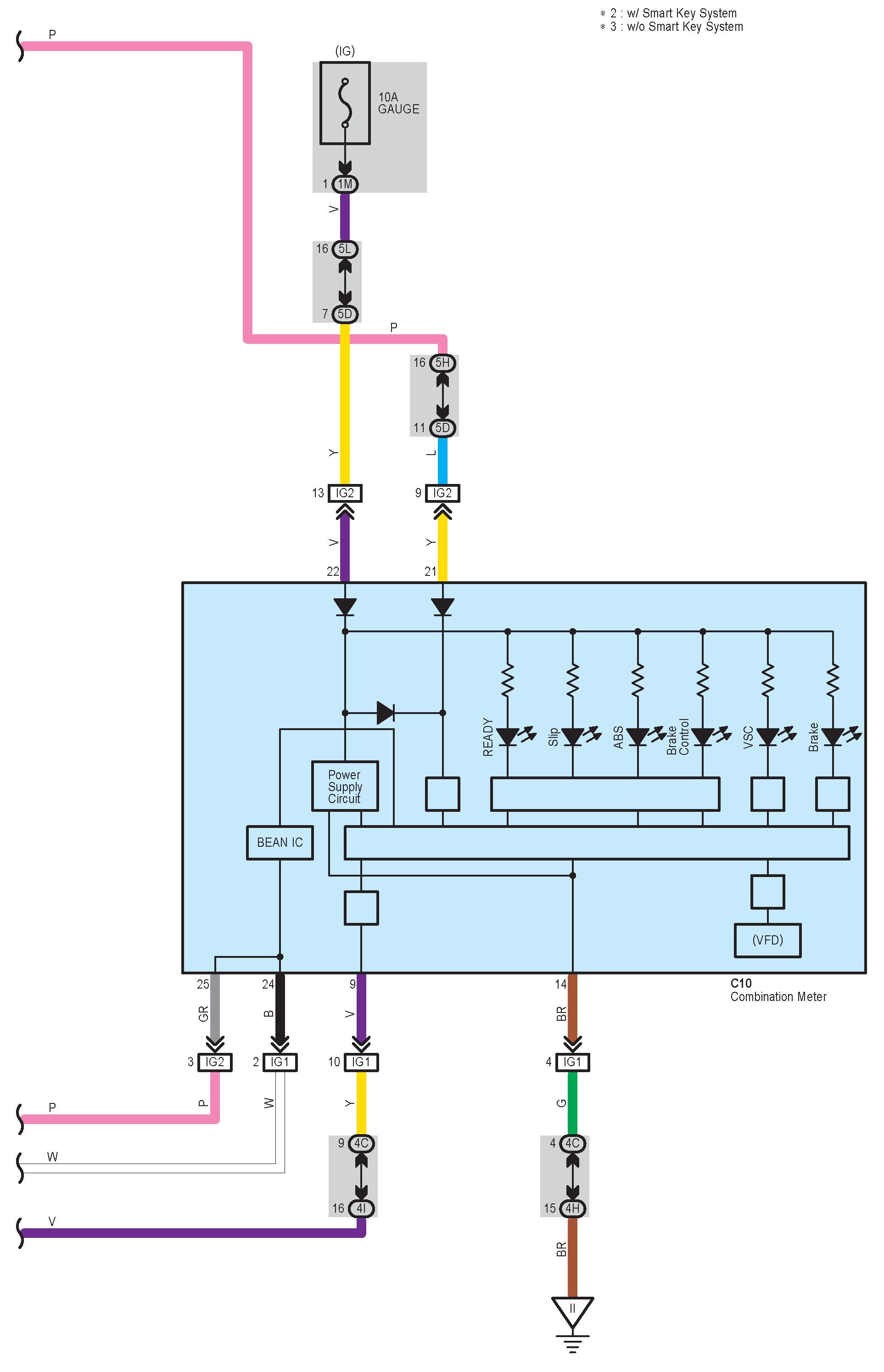

ABS, TRAC And VSC Part 2:

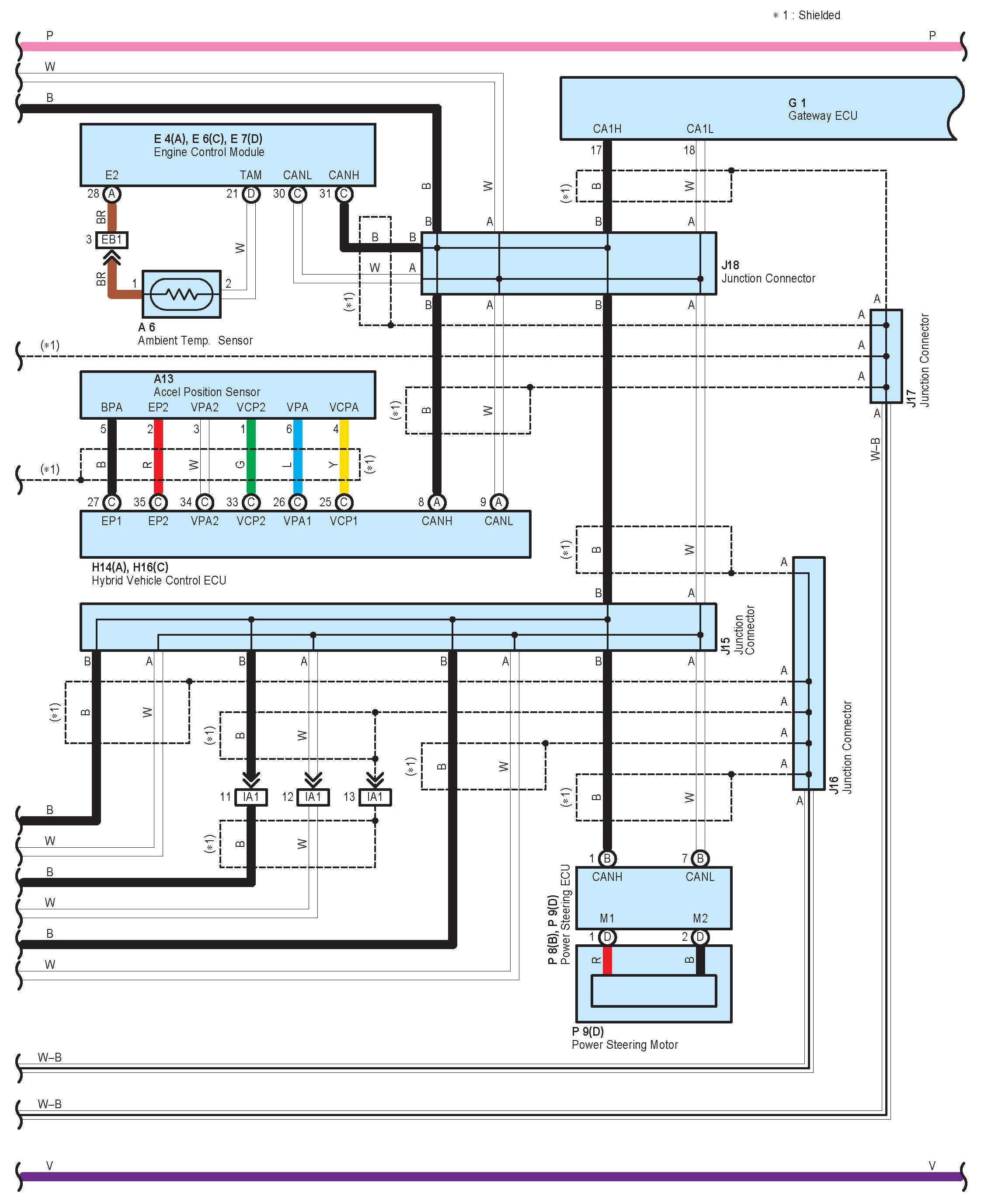

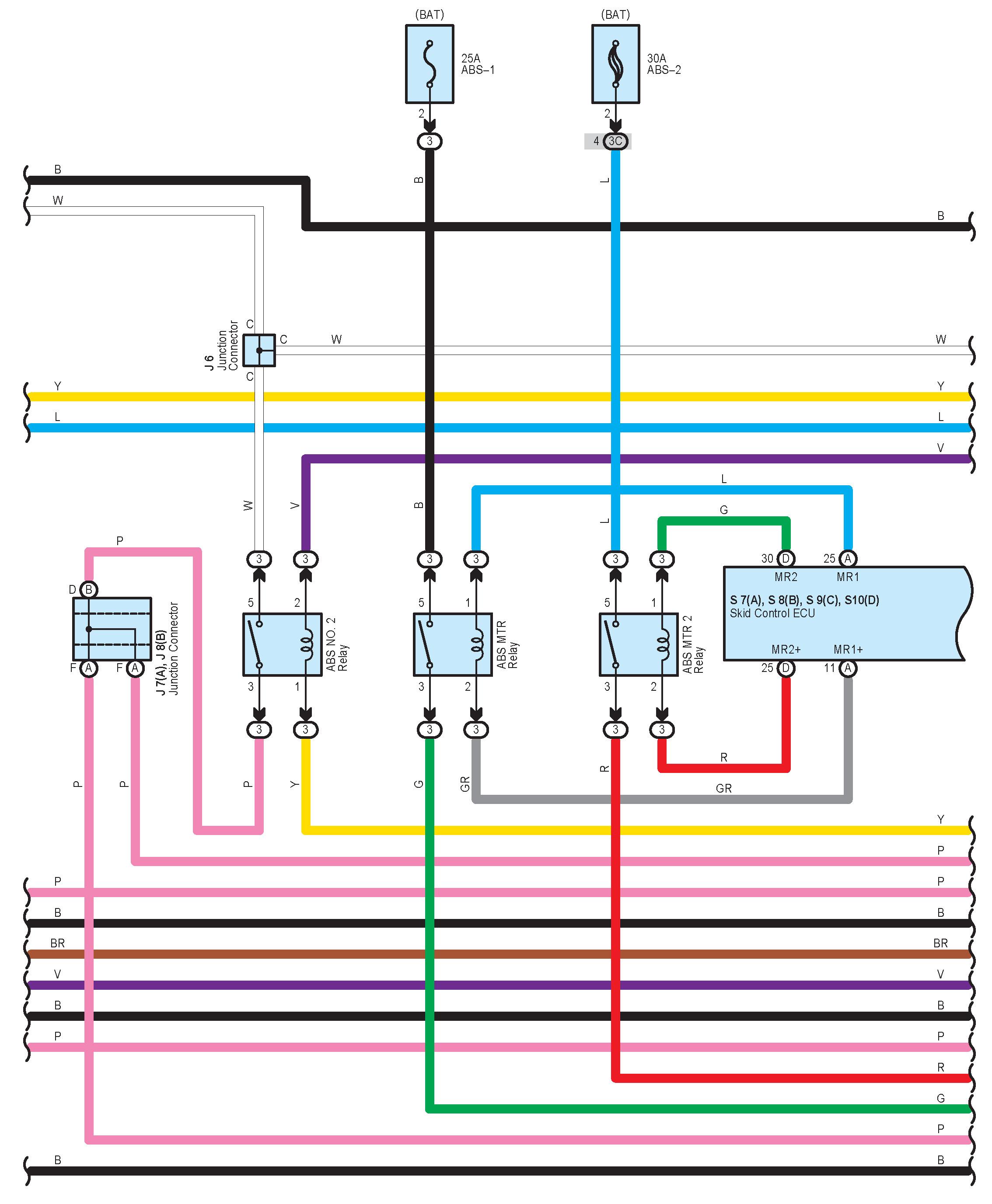

ABS, TRAC And VSC Part 3:

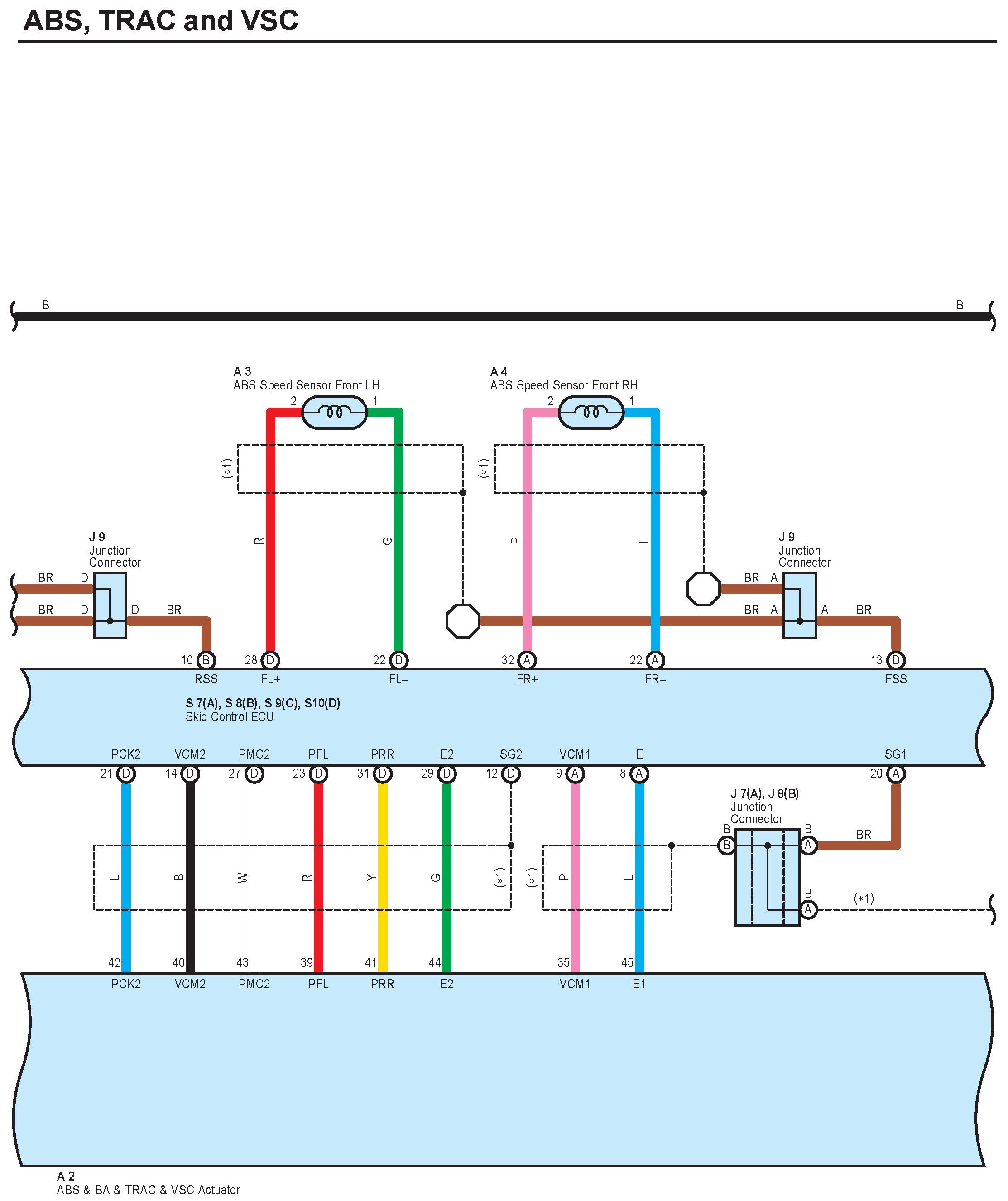

ABS, TRAC And VSC Part 4:

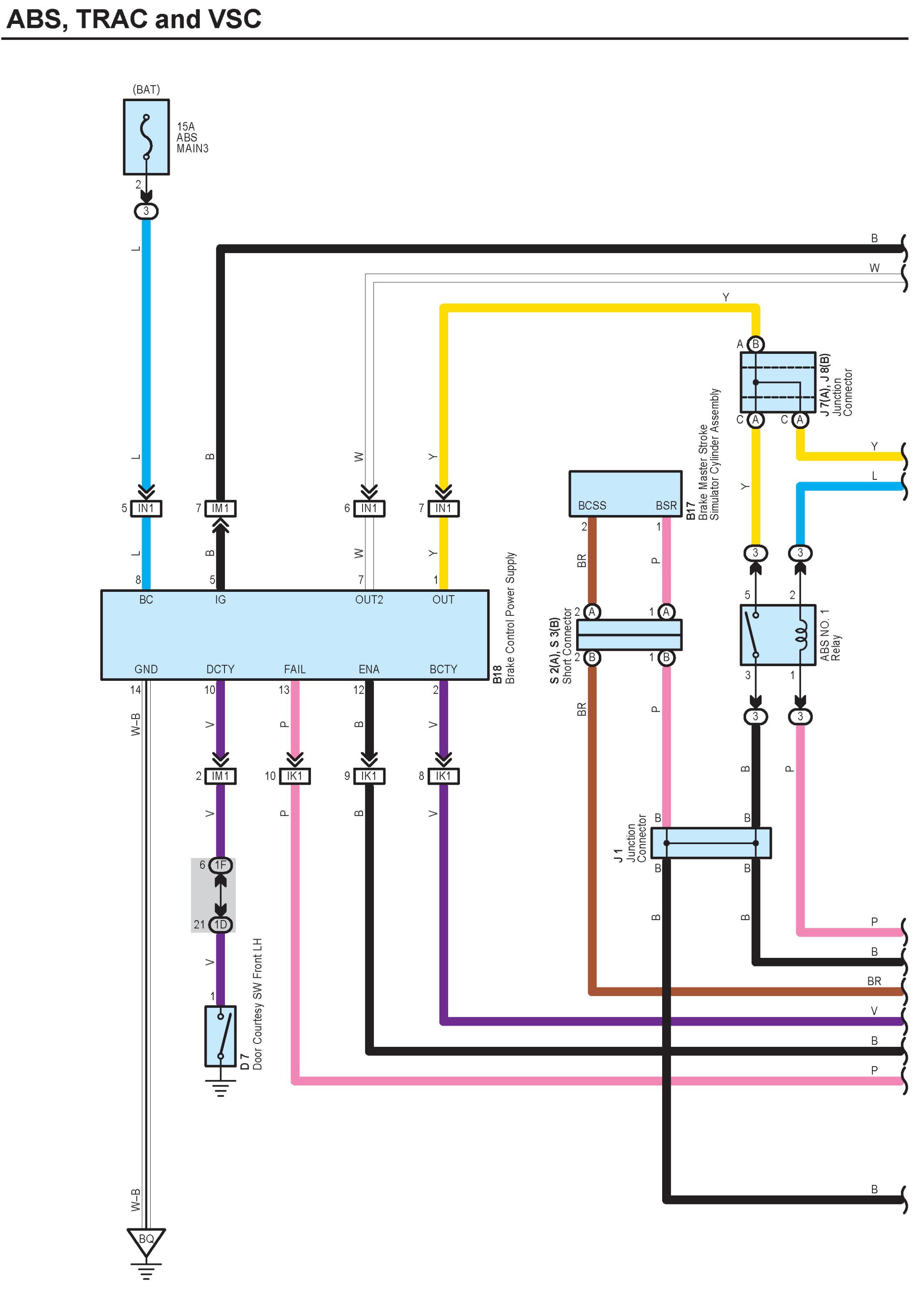

ABS, TRAC And VSC Part 5:

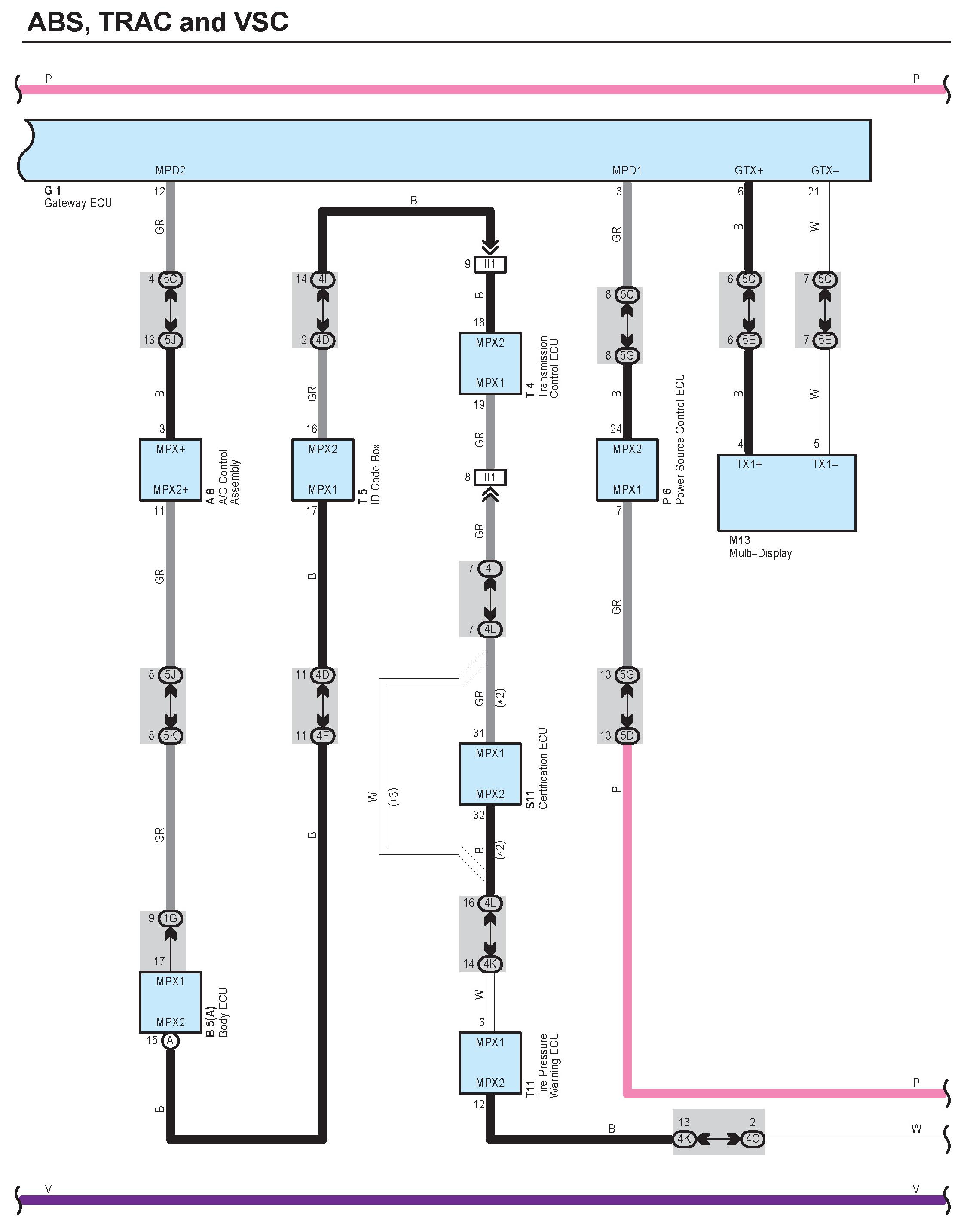

ABS, TRAC And VSC Part 6:

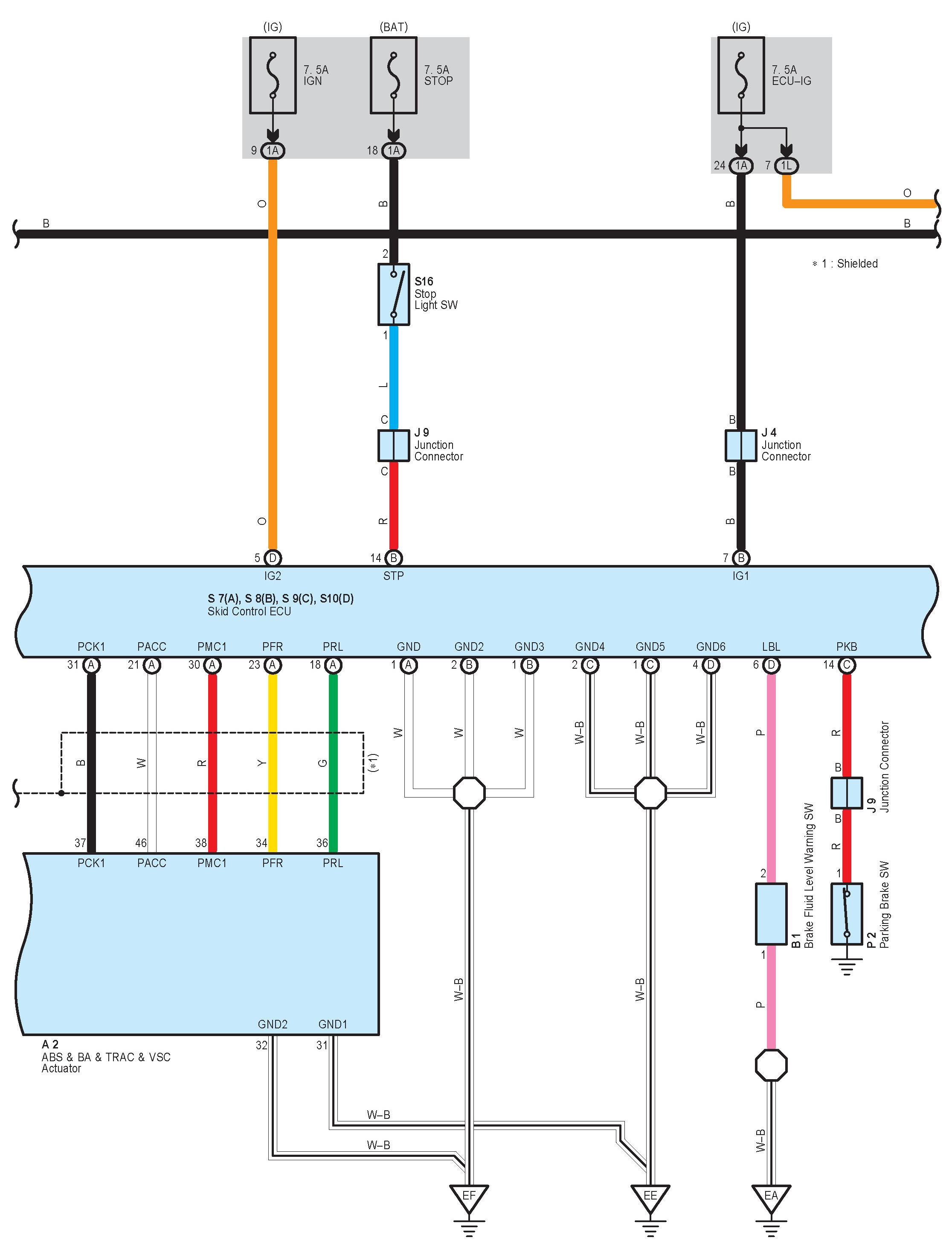

ABS, TRAC And VSC Part 7:

ABS, TRAC And VSC Part 8:

ABS, TRAC And VSC Part 9:

ABS, TRAC And VSC Part 10:

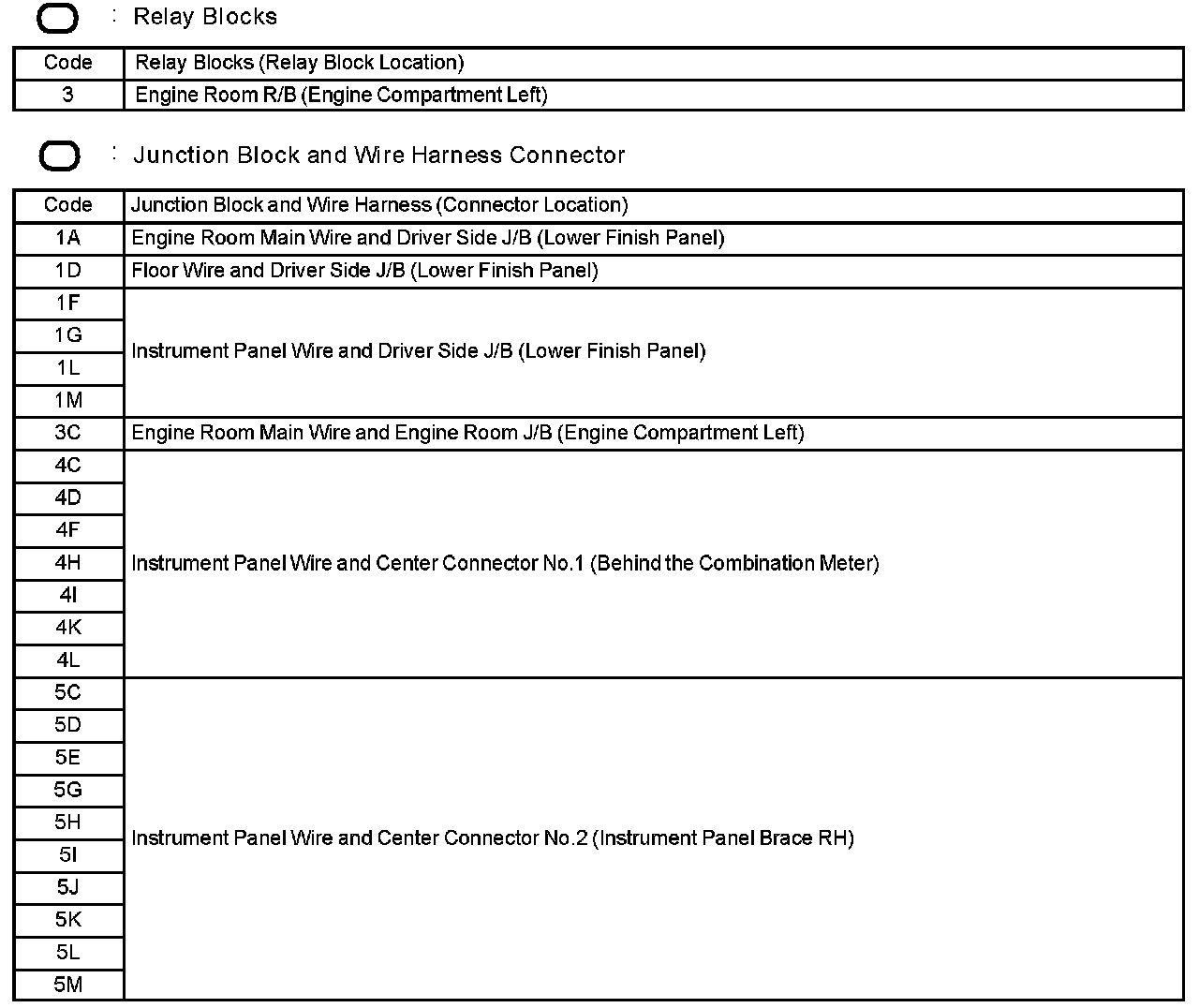

Diagram Legend Part 1:

Diagram Legend Part 2:
