Prius L4-1.5L (1NZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>
S14 - T11
S14 - T11

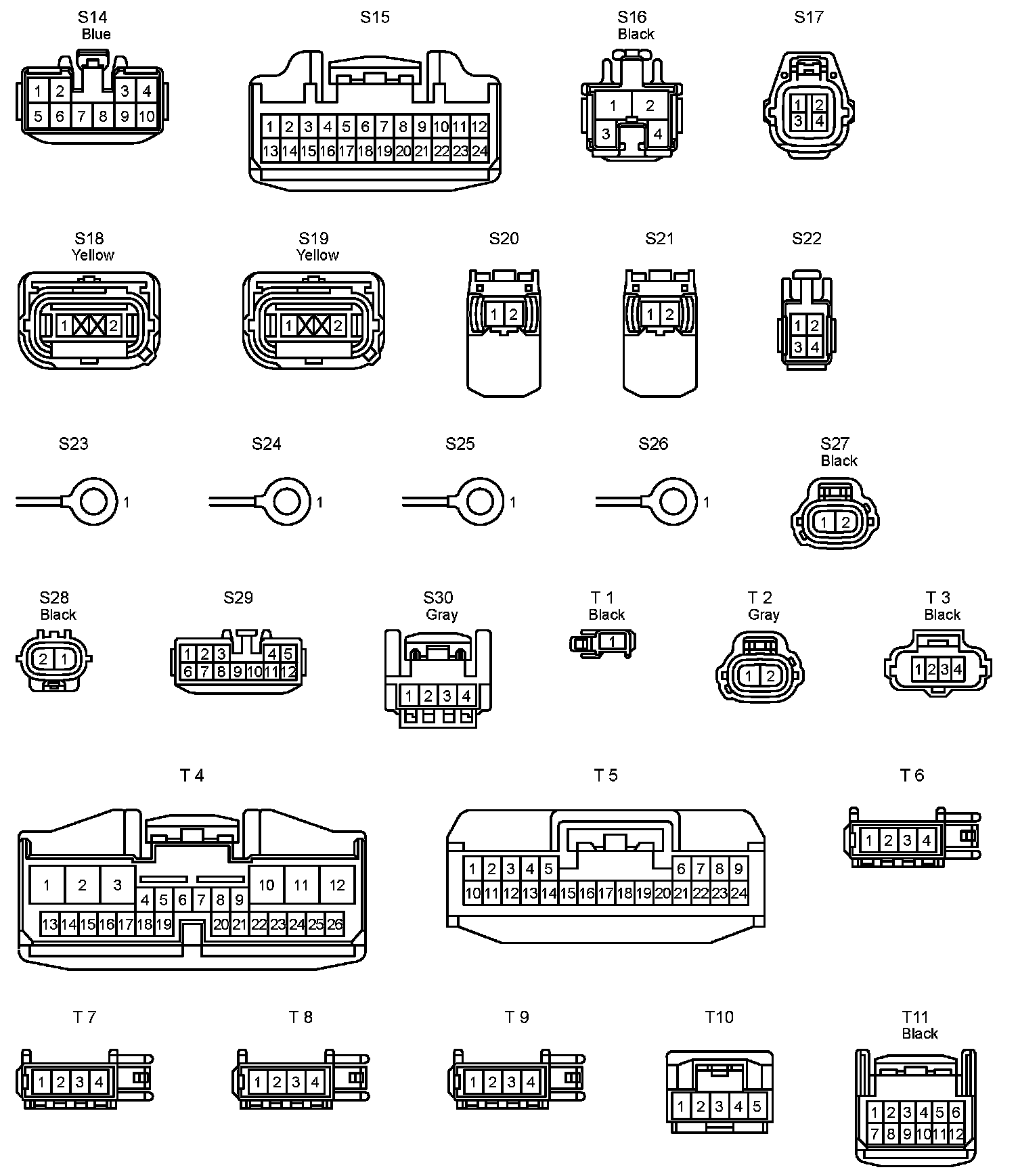

S14 - T11:
