Prius L4-1.5L (1NZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>

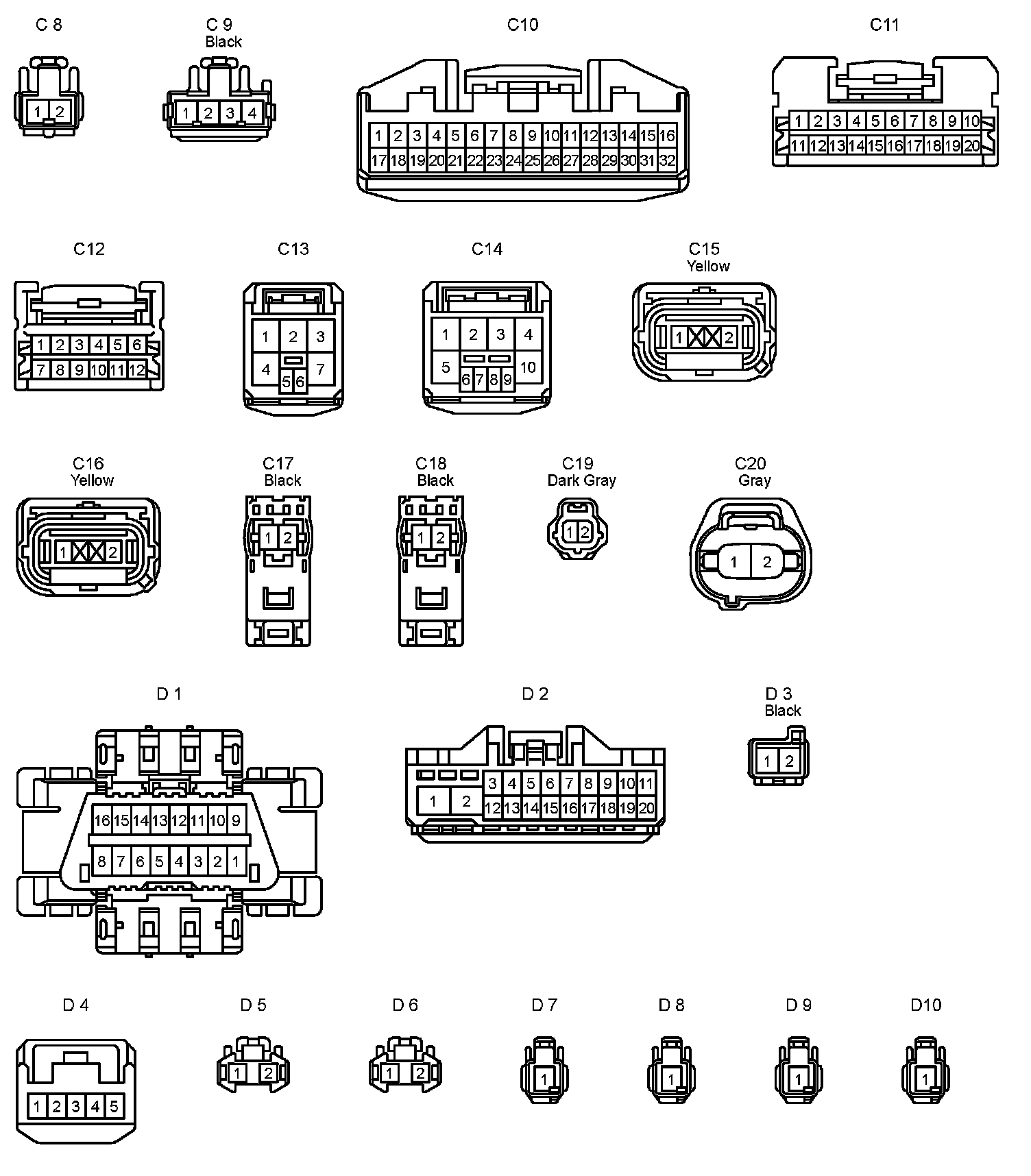

Connector Views
>>
Connector Views By Connector Number
>>
C8 - D10
C8 - D10
C8 - D10:
