Cruise Control Switch Circuit
Cruise Control Switch CircuitDESCRIPTION
This circuit sends signals to the ECU depending on the cruise control main switch condition. The battery supplies positive (+) battery voltage to the cruise control main switch. Then terminal CCS of the ECU receives the voltage according to the switch condition.
Wiring Diagram:
Step 1-2:

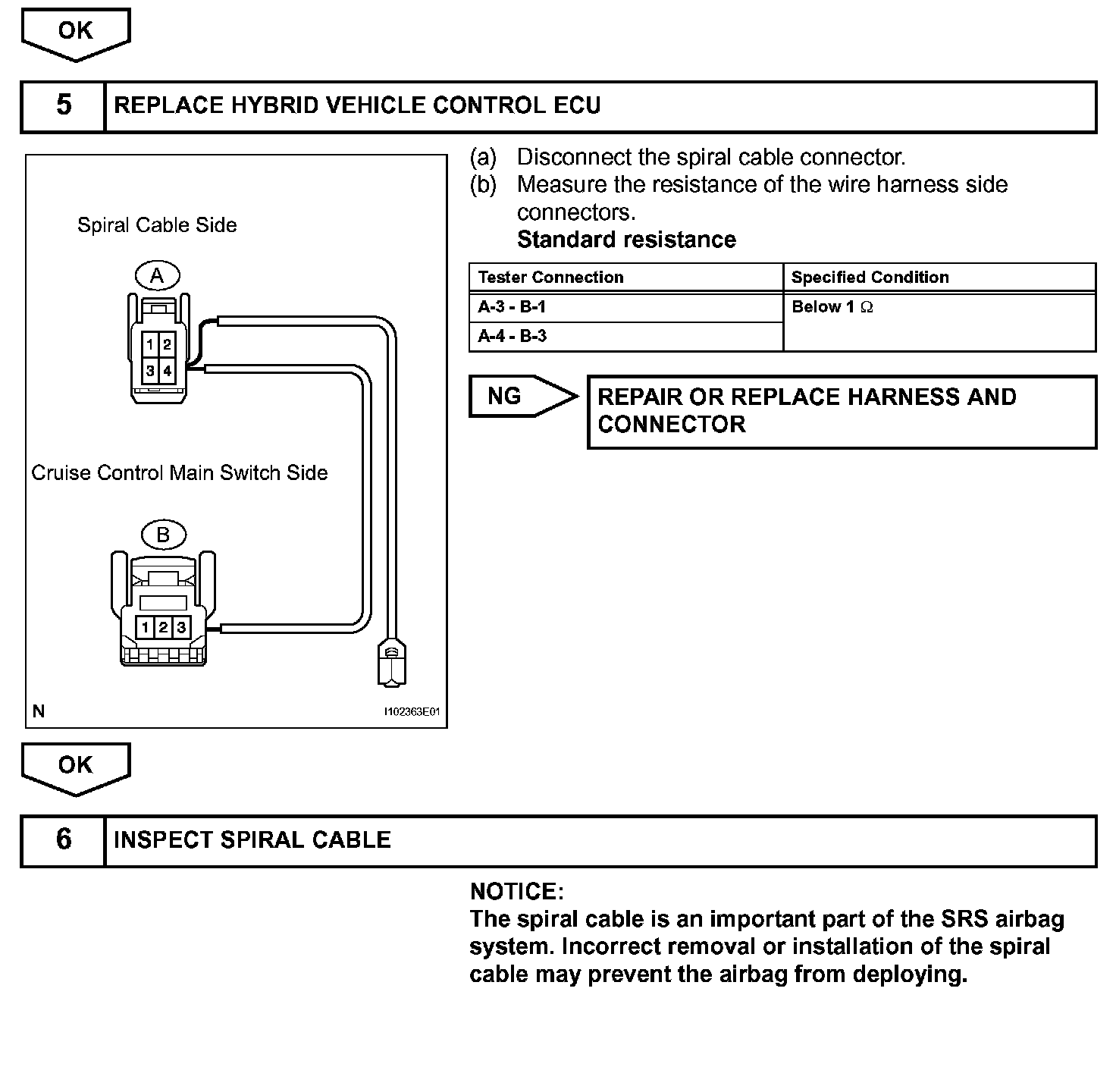

Step 2 (Continued)-4:

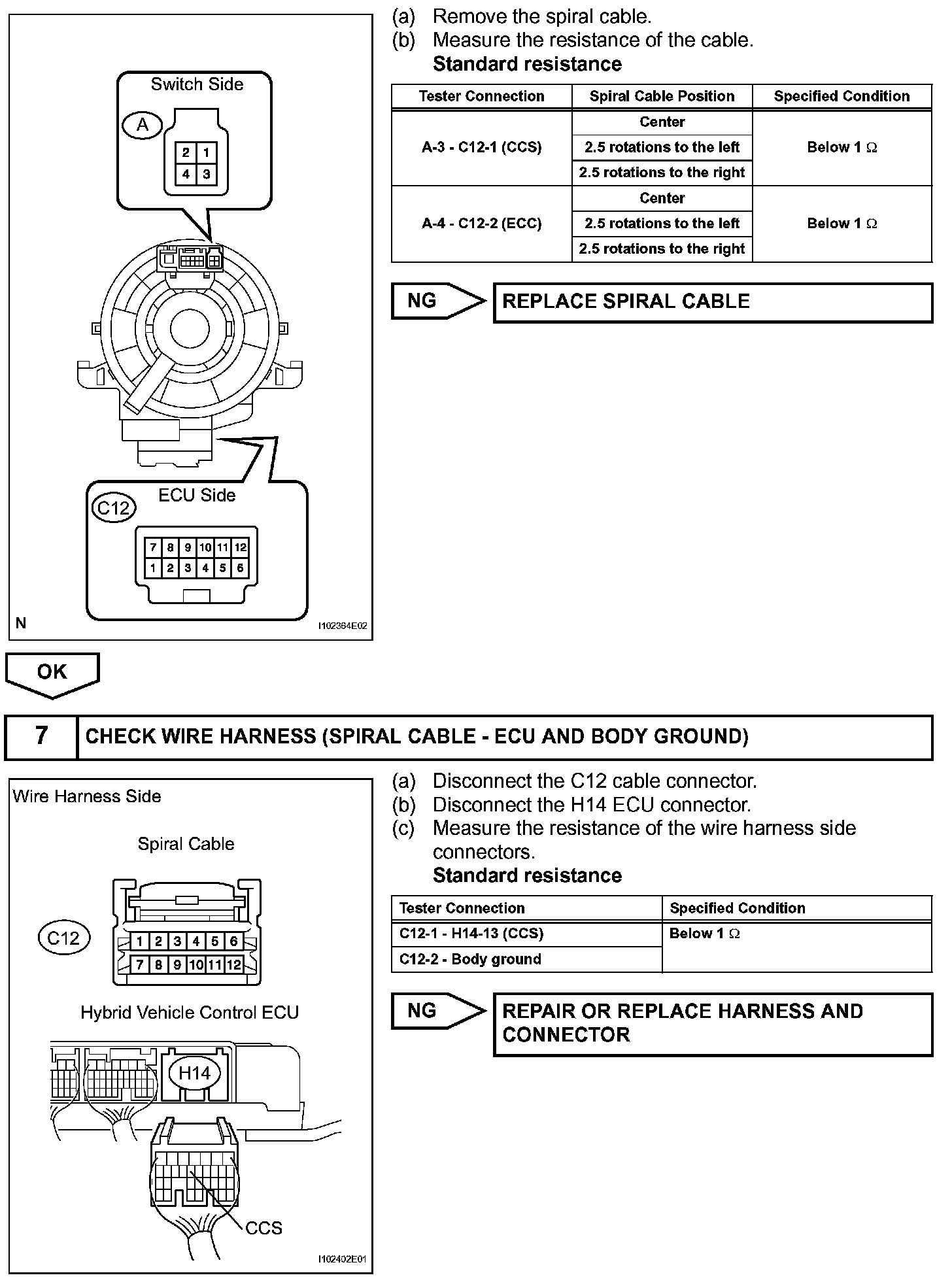

Step 4 (Continued)-6:
Step 6 (Continued)-7:

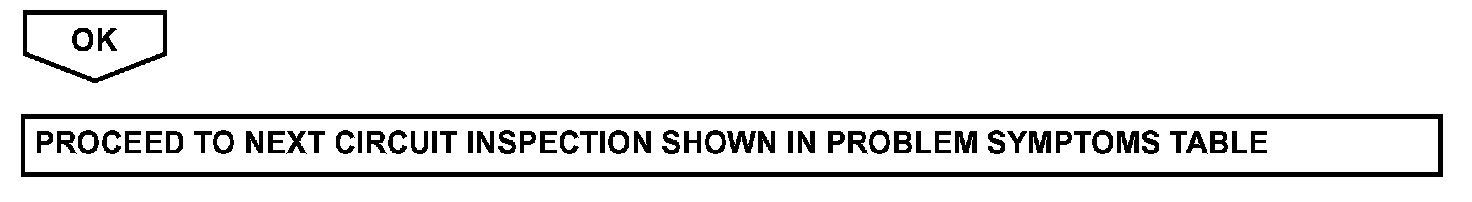

Step 7 (Continued):
INSPECTION PROCEDURE
