Symptom Index

PROBLEM SYMPTOMS TABLE

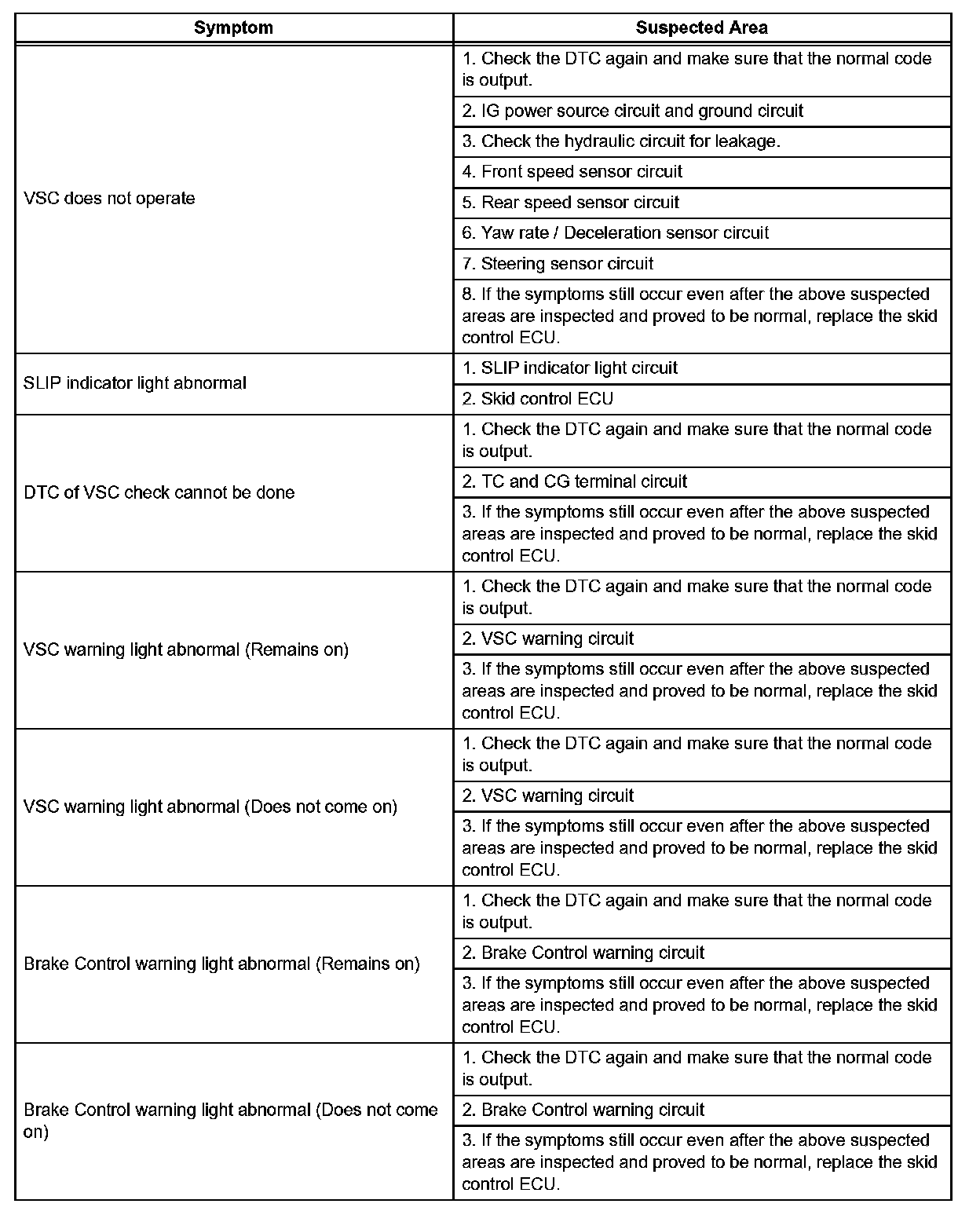

Problem Symptoms Table-Electronically Controlled Brake System (Part 1):

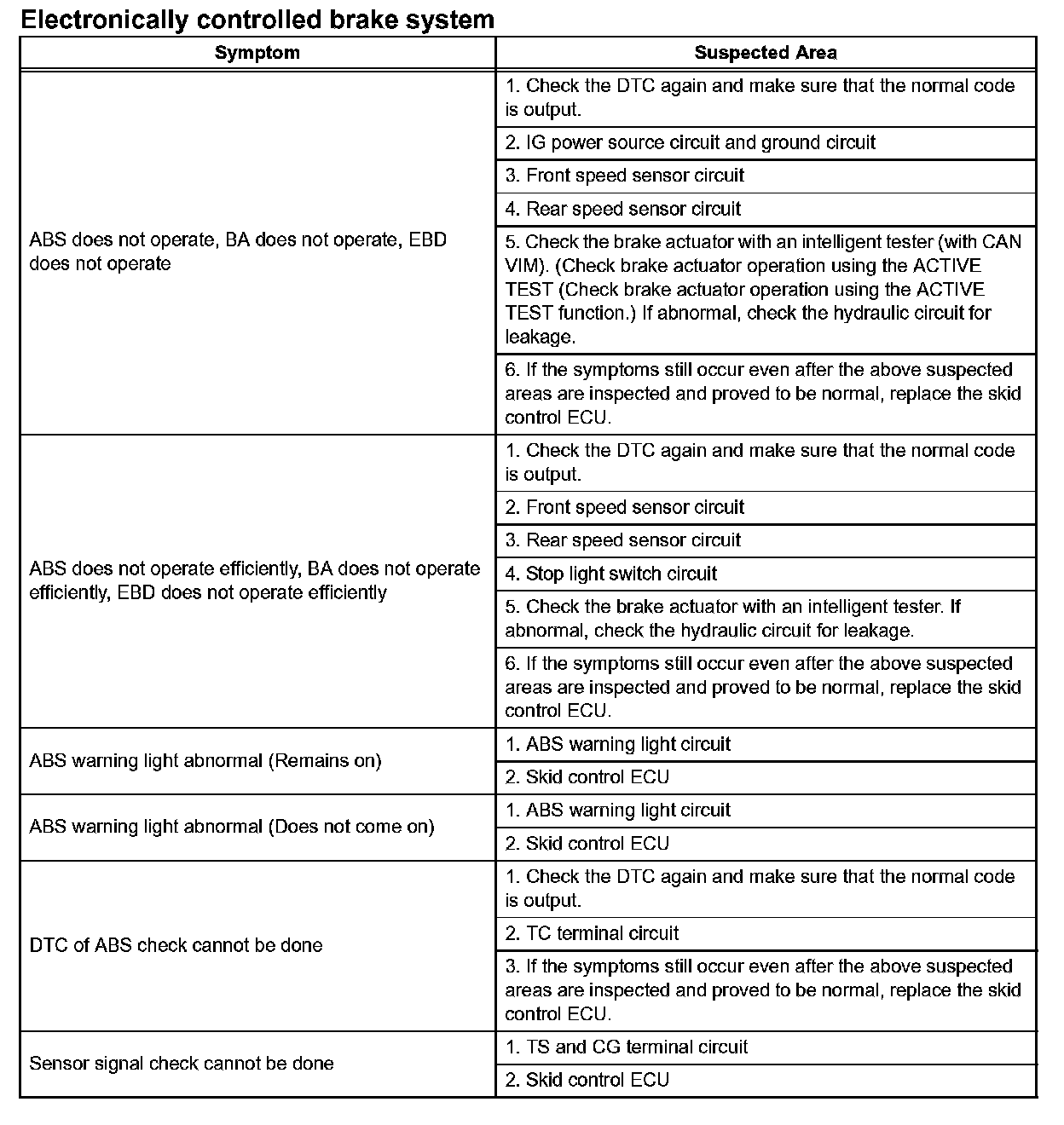

Problem Symptoms Table-Electronically Controlled Brake System (Part 2):

HINT: Use the given table to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
