TC and CG Terminal Circuit

TC and CG Terminal Circuit

DESCRIPTION
Connecting terminals TC and CG of the DLC3 causes the ECU to display DTCs by flashing the ABS warning light.

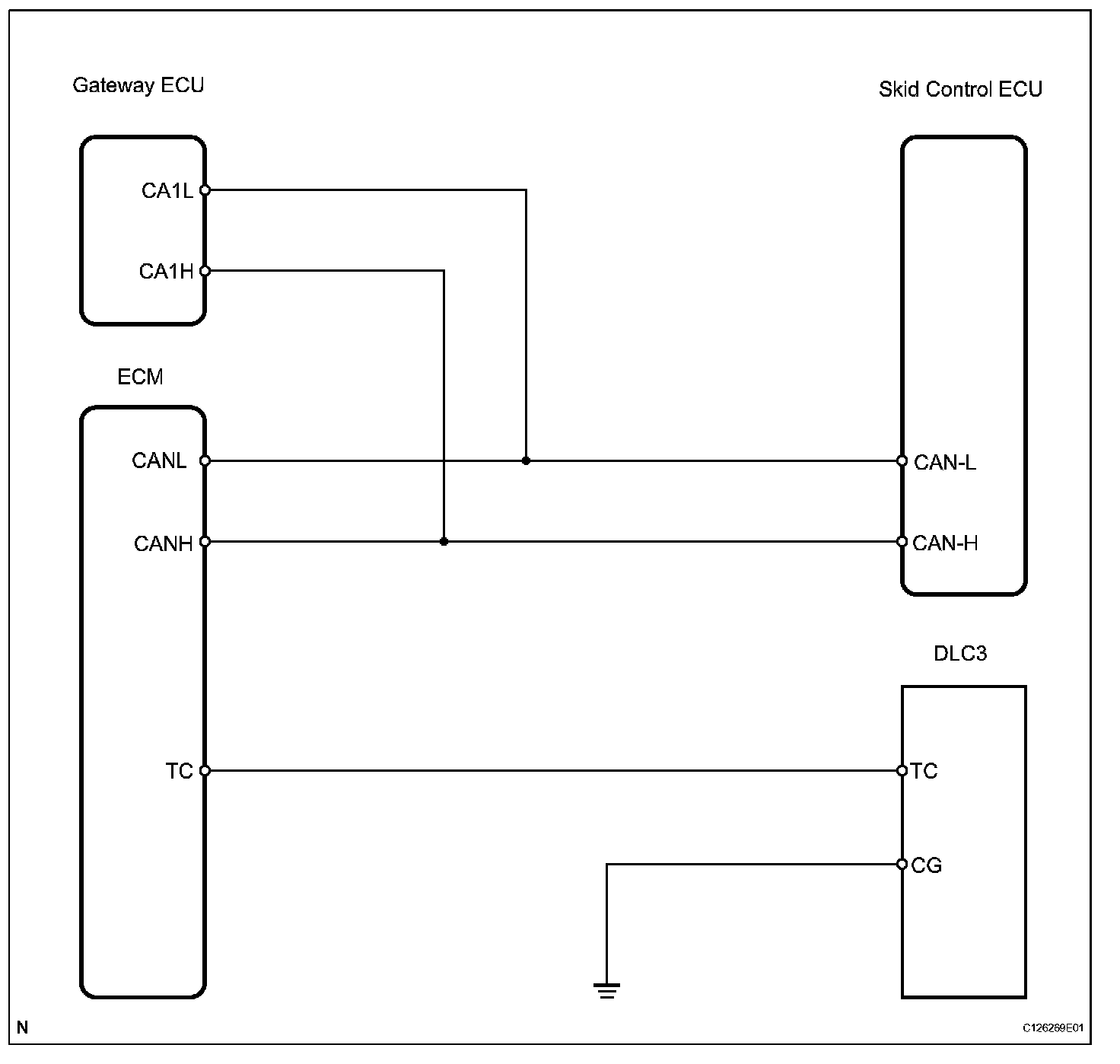

Wiring Diagram:





INSPECTION PROCEDURE

NOTE: When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration. Initialization

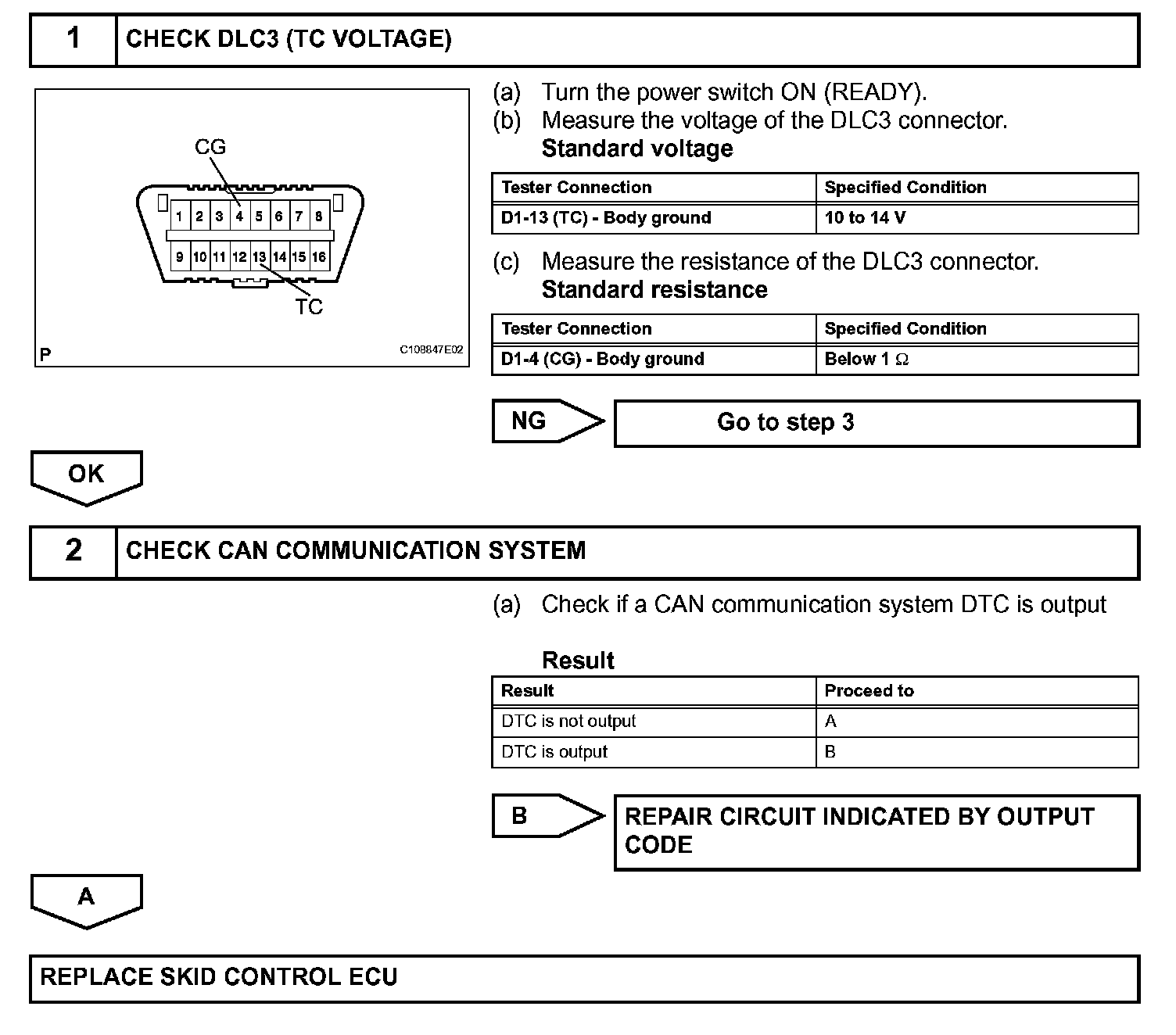

Step 1-2:

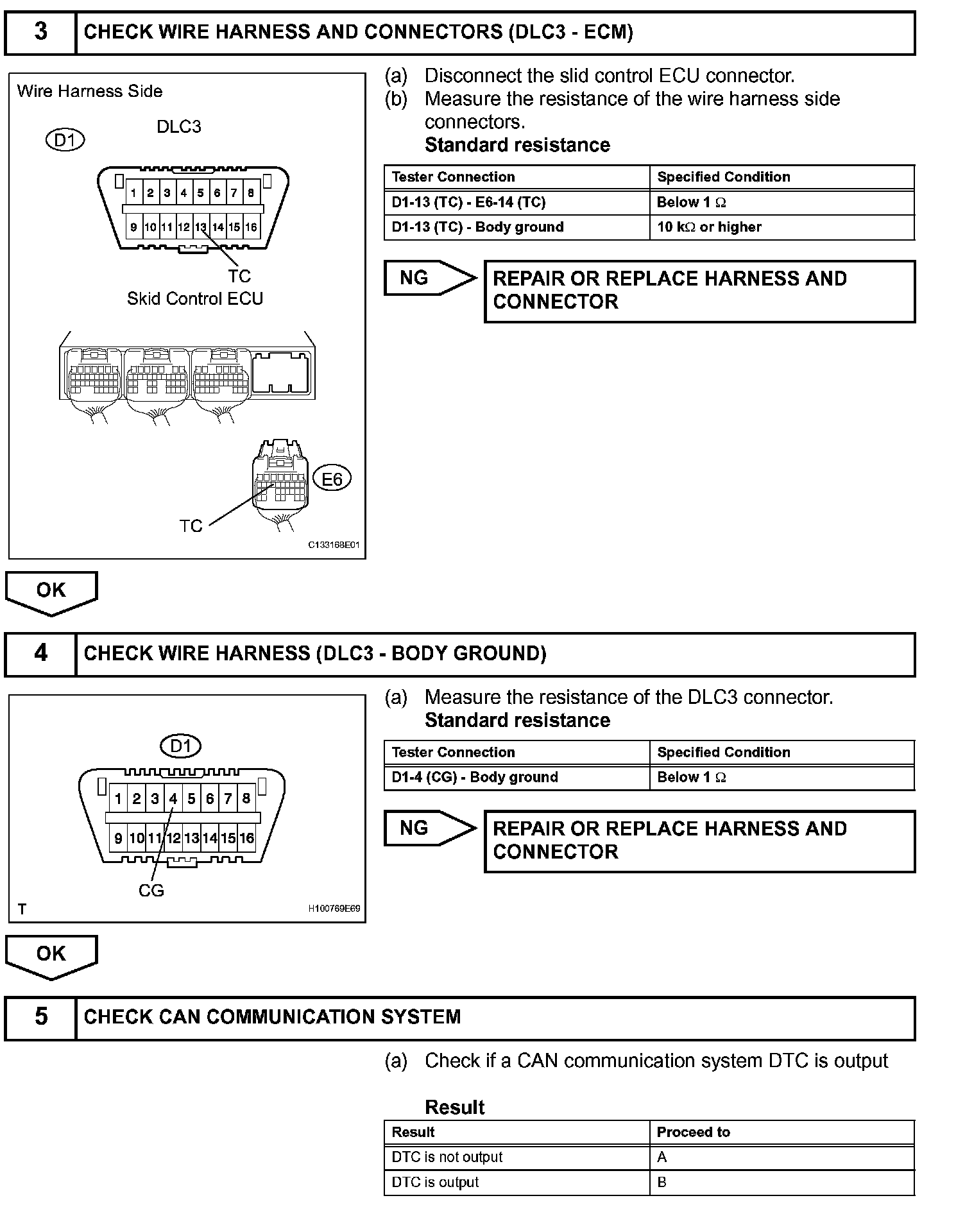

Step 3-5:




Step 5(Continued):
