Skid Control Buzzer Circuit

Skid Control Buzzer Circuit

DESCRIPTION
The skid control buzzer sounds and VSC warning light comes ON during Enhanced VSC operation.

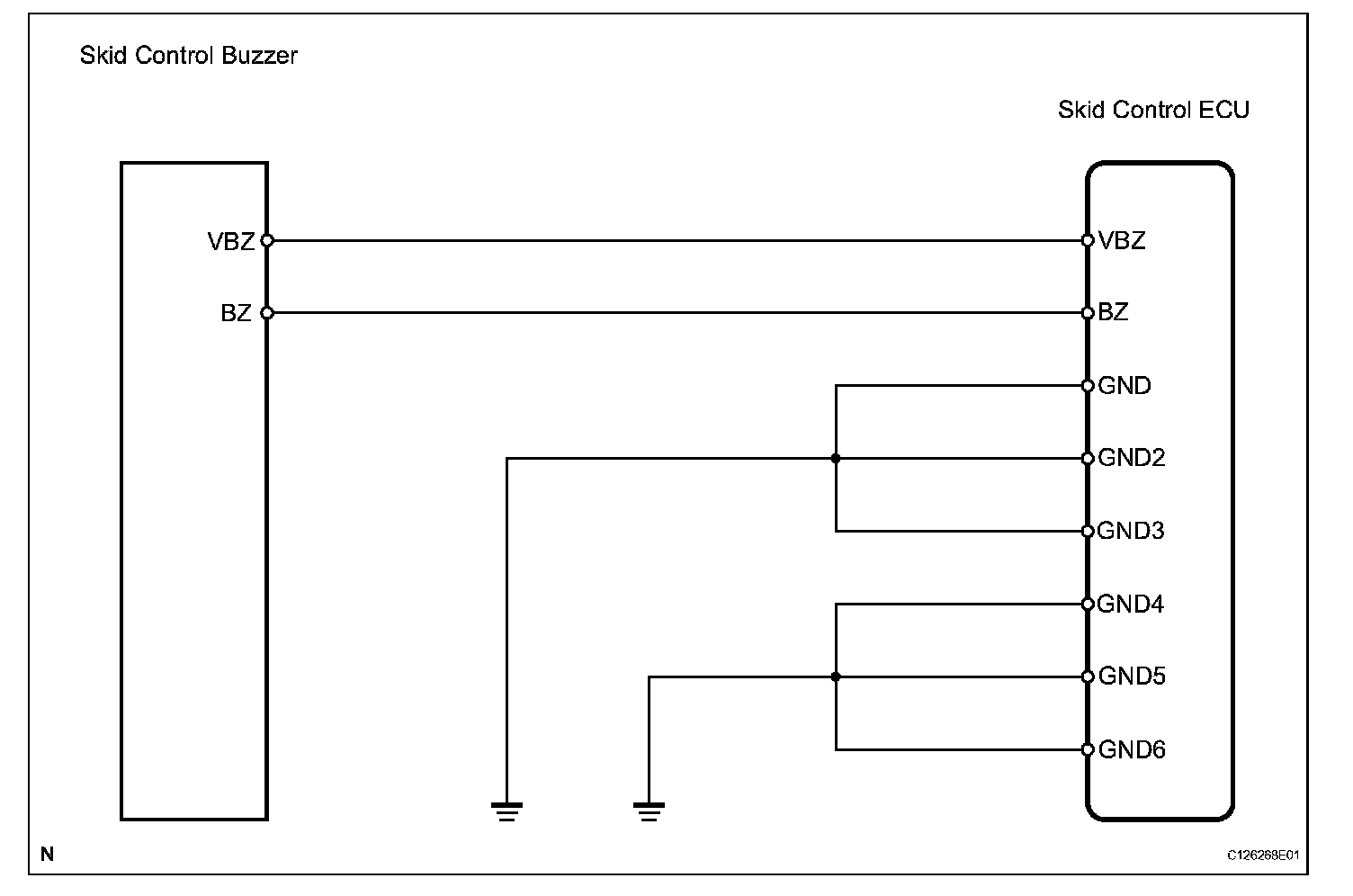

Wiring Diagram:

INSPECTION PROCEDURE

NOTE: When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration. Initialization

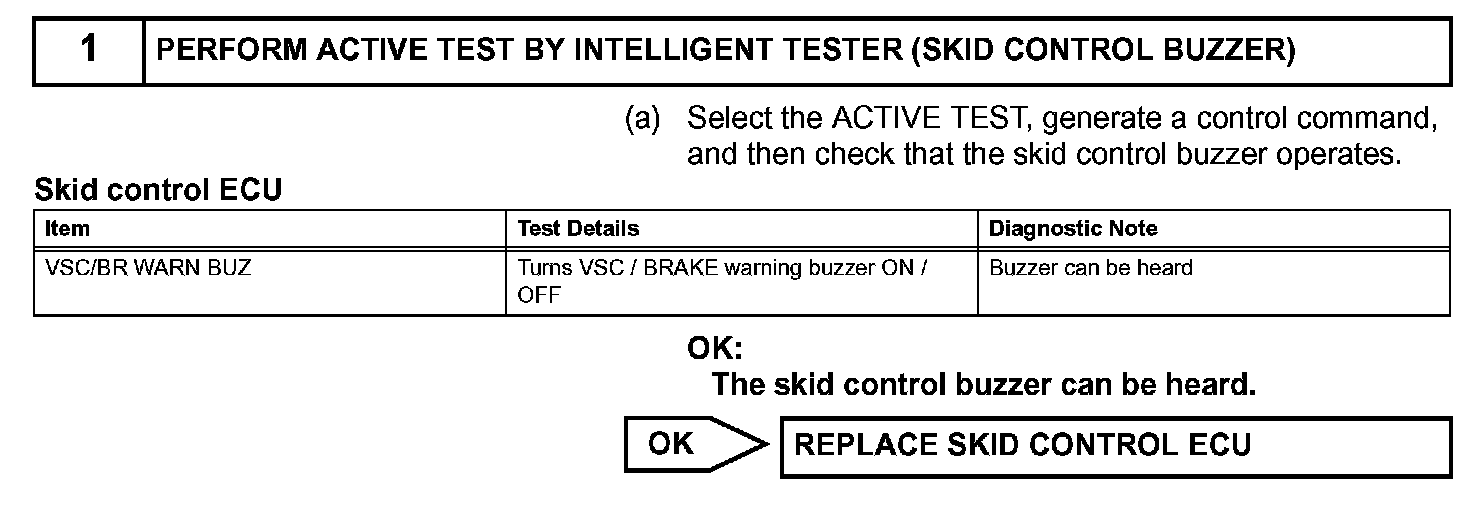

Step 1:

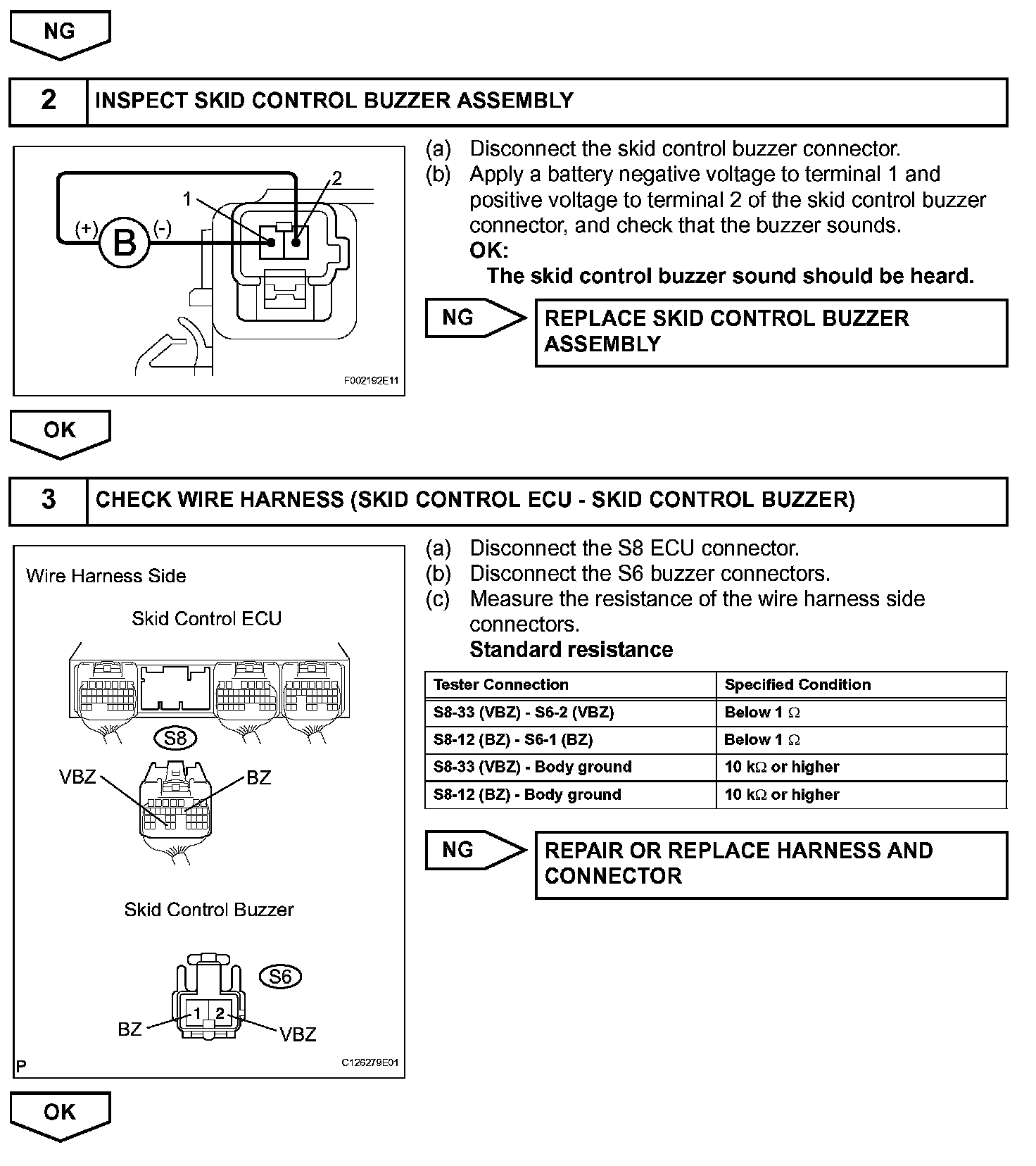

Step 1(Continued)-3:

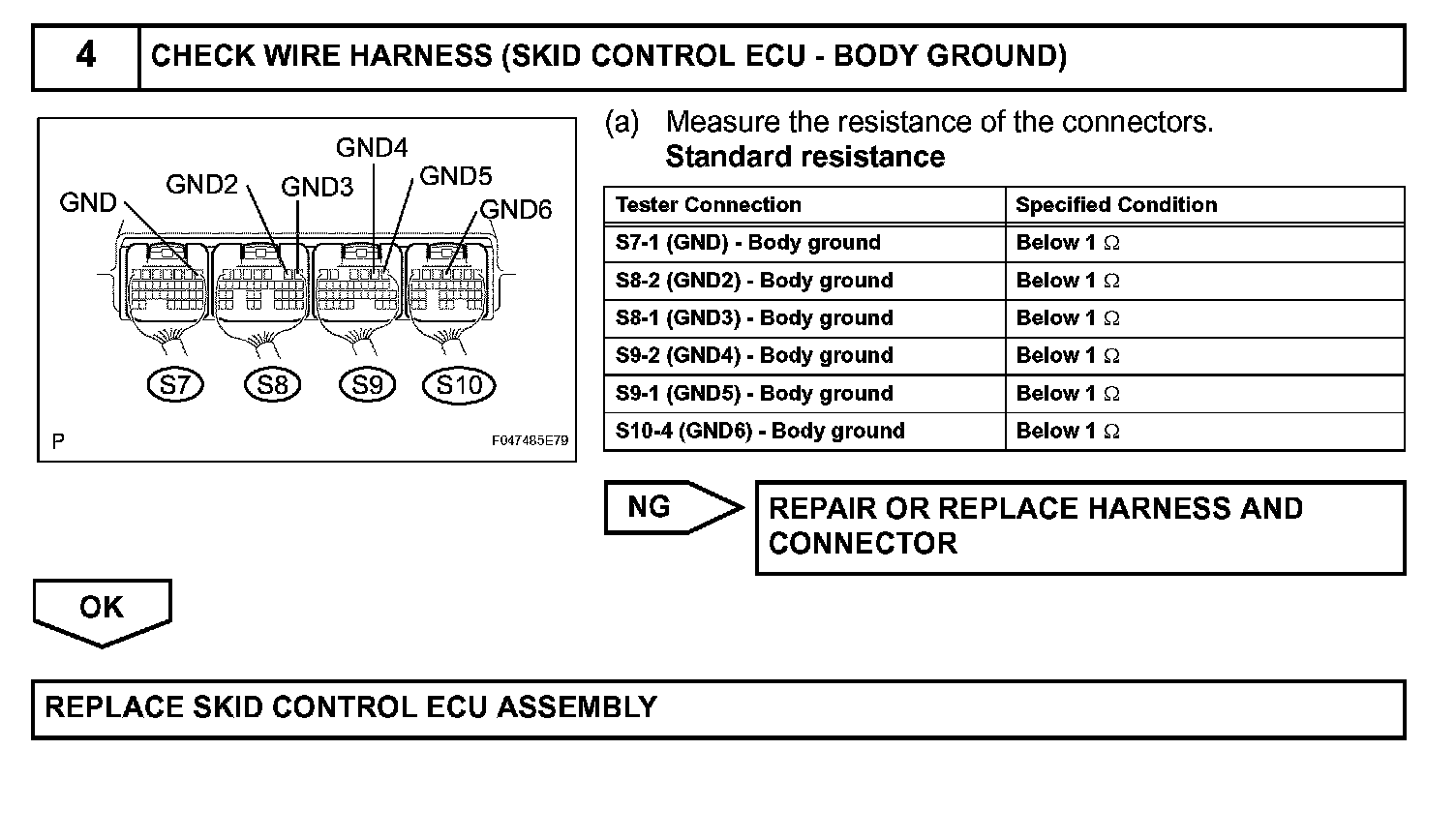

Step 4:
