SLIP Indicator Light Circuit

Slip Indicator Light Circuit

DESCRIPTION
The SLIP indicator blinks during Enhanced VSC operation.

The skid control ECU is connected to the combination meter via the CAN and multiplex communications.

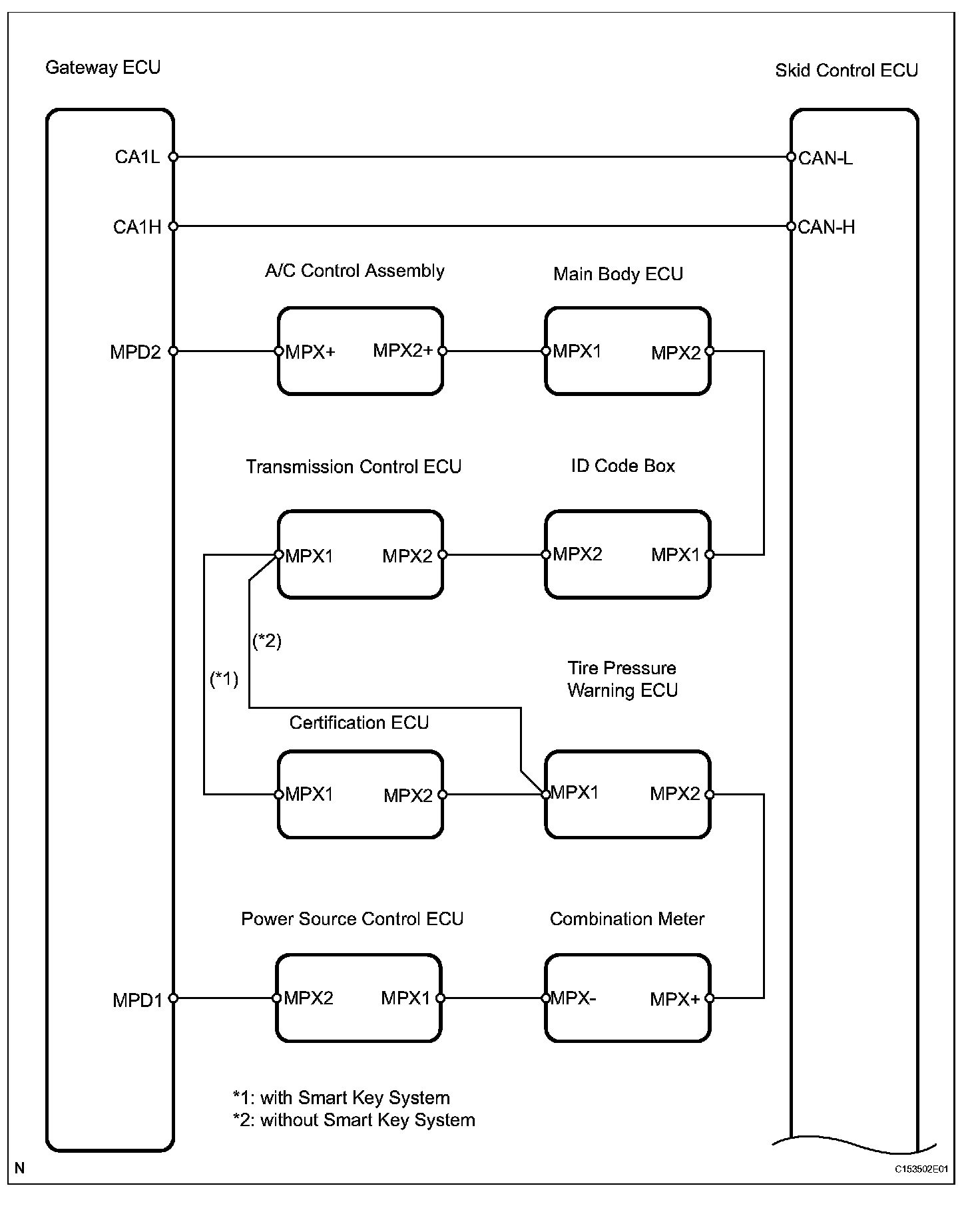

Wiring Diagram (Part 1):

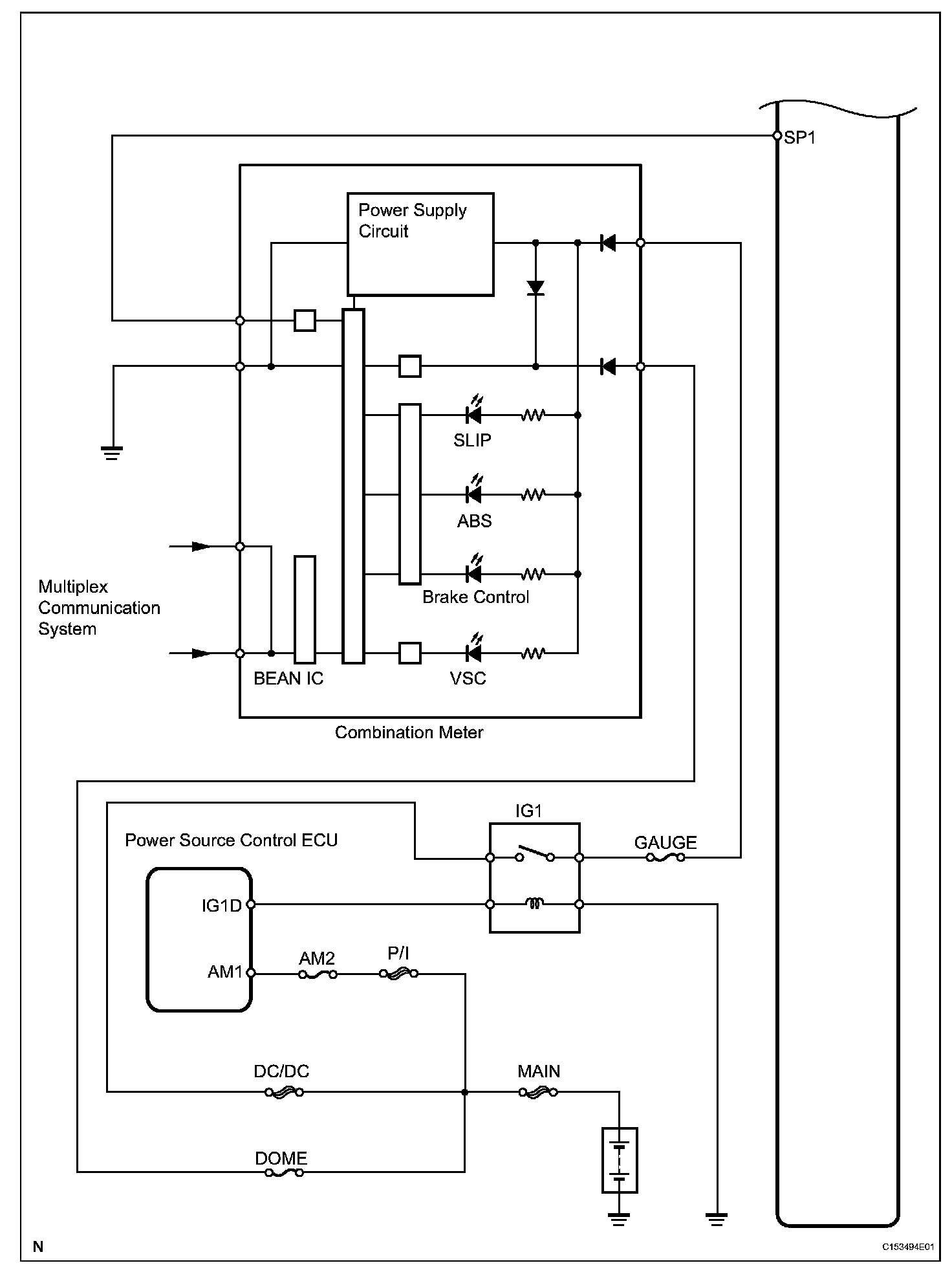

Wiring Diagram (Part 2):

INSPECTION PROCEDURE

NOTE: When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration. Initialization

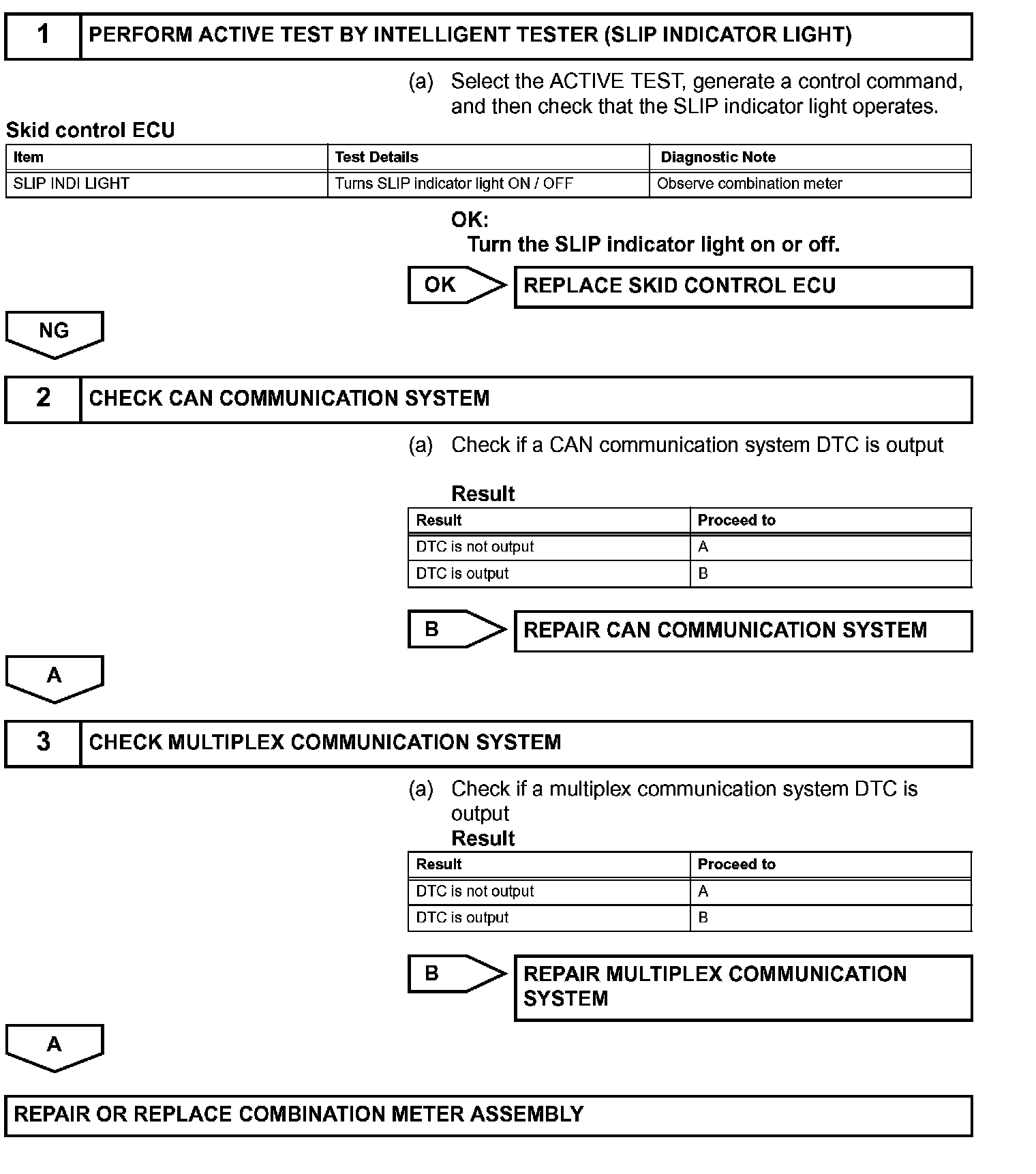

Step 1-3:
