Procedures

DISPOSAL

DISPOSE OF BRAKE ACTUATOR ASSEMBLY

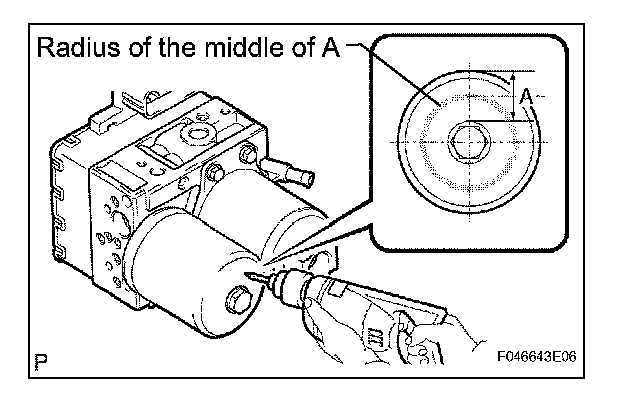

Using a drill, slowly make a hole at the radius indicated at the middle of A in the illustration and bleed the charged gas.

CAUTION: Be sure to wear protective glasses as fragments may fly out due to pressure.

HINT:
- The hole may be drilled up to approximately 5 to 10 mm (0.20 to 0.39 in.) away from the point indicated by A.
- The gas is nitrogen, which is colorless, odorless, and harmless.
