Front Seat

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

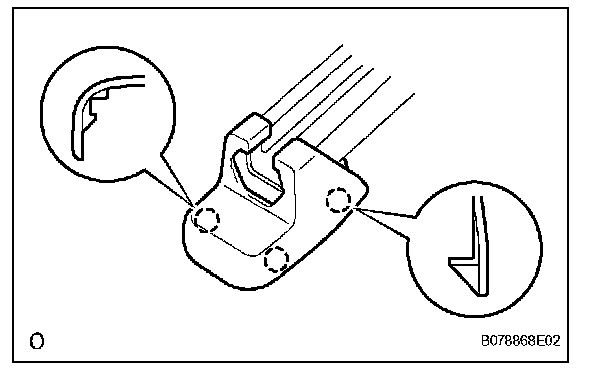

2. REMOVE SEAT TRACK OUTER COVER LH




a. Using a screwdriver, detach the 3 claws and remove the seat track outer cover.

HINT: Tape the screwdriver tip before use.

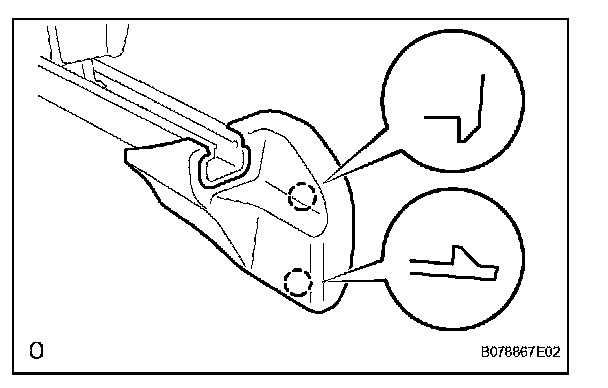

3. REMOVE SEAT TRACK INNER BRACKET COVER LH




a. Using a screwdriver, detach the 2 claws and remove the seat track inner bracket cover.

HINT: Tape the screwdriver tip before use.

4. REMOVE FRONT SEAT HEADREST ASSEMBLY
5. REMOVE FRONT SEAT ASSEMBLY
a. Lift up the seat track adjusting handle and move the seat to the rearmost position.

b. Remove the 2 bolts on the front side of the seat.
c. Lift up the seat track adjusting handle and move the seat to the foremost position.
d. Remove the 2 bolts on the rear side of the seat.
e. Disconnect the connectors under the seat. Then remove the front seat.

NOTE: Be careful not to damage the vehicle body.

INSTALLATION

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. INSTALL FRONT SEAT ASSEMBLY
a. Place the seat in the cabin.

NOTE: Be careful not to damage the vehicle body.

b. Connect the connectors under the seat.
c. Install the 2 bolts on the front side of the seat.

Torque: 37 N.m (377 kgf.cm, 27 ft.lbf)

d. Install the 2 bolts on the rear side of the seat.

Torque: 37 N.m (377 kgf.cm, 27 ft.lbf)

2. INSPECT AND ADJUST SEAT SLIDE ADJUSTER LOCKS
a. During sliding operation of the front seat, check that the left and right adjusters move together smoothly and lock simultaneously. If the seat adjusters do not lock simultaneously, loosen the seat fixation bolts to adjust the adjuster's position.

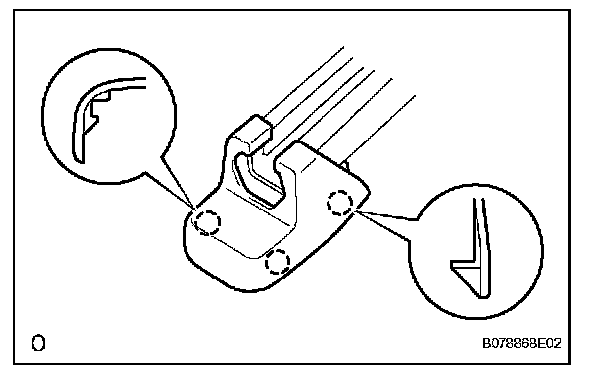

3. INSTALL SEAT TRACK OUTER COVER LH




a. Attach the 3 claws to install the seat track outer cover.

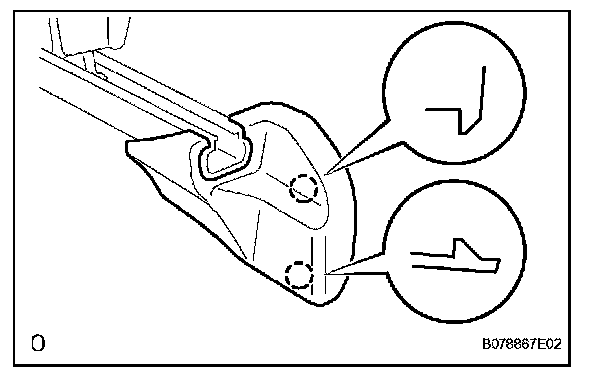

4. INSTALL SEAT TRACK INNER BRACKET COVER LH




a. Attach the 2 claws to install the seat track bracket cover.

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

6. INSPECT FRONT SEAT ASSEMBLY (for Front Passenger Side)
a. Perform the zero point calibration and sensitivity check.

7. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

8. CHECK SRS WARNING LIGHT
a. Check the SRS warning light.
