Rear Seat

DISASSEMBLY

CAUTION: Wear protective gloves. Sharp areas on the seatback frame may injure your hands.

1. REMOVE REAR SEAT CUSHION COVER

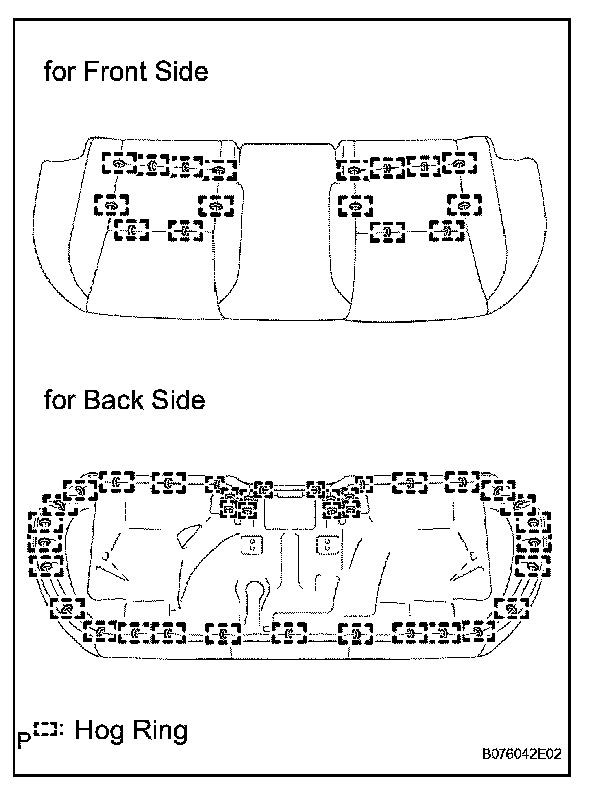

a. Remove the 51 hog rings and cushion cover from the cushion pad.

2. REMOVE REAR SEAT HEADREST ASSEMBLY LH
3. REMOVE REAR SEAT HEADREST ASSEMBLY RH
4. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY

5. REMOVE REAR SEAT CENTER ARMREST ASSEMBLY




a. Using a screwdriver, pry out the armrest hinge cover.

HINT: Tape the screwdriver tip before use.

6. REMOVE REAR SEATBACK COVER LH
a. Remove the rear seatback lock release button.
b. Remove the 2 screws and shoulder belt guide.

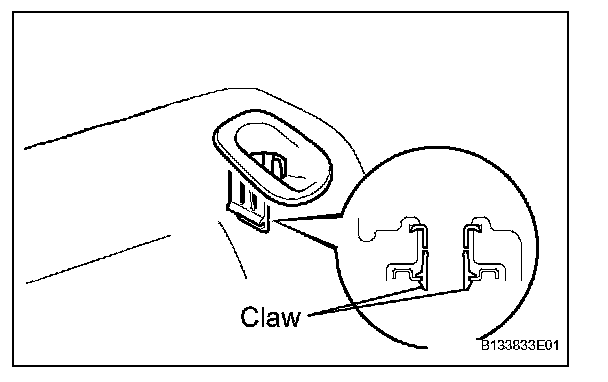

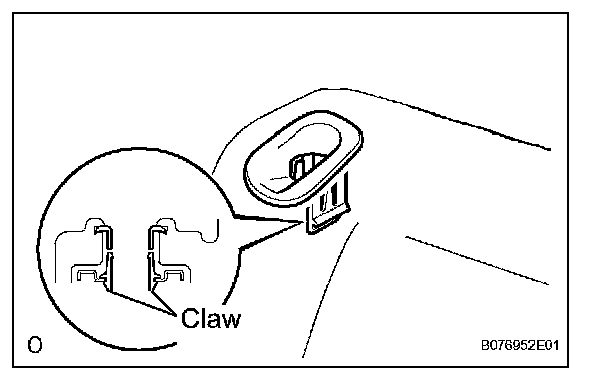

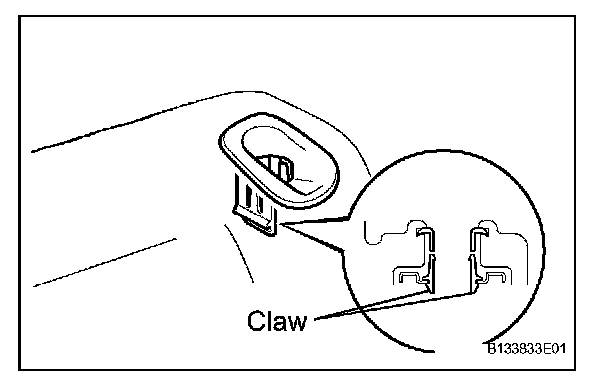

c. Using a screwdriver, detach the claws and remove the seatback stop button grommet.

HINT: In order to detach the claws of the seatback stop button grommet, insert your hand between the seatback frame and the seatback cover (with pad).

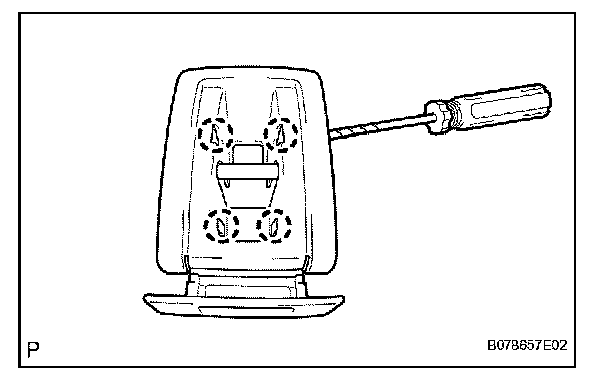

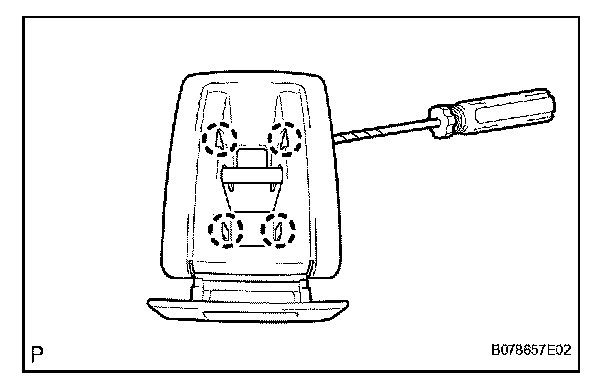

d. Using a screwdriver, detach the 4 claws and remove the rear seatback cover.

HINT: Tape the screwdriver tip before use.

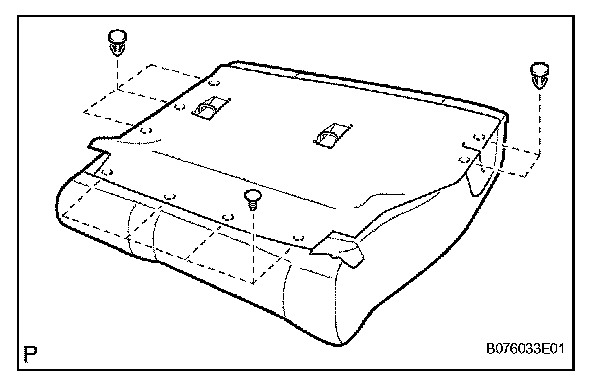

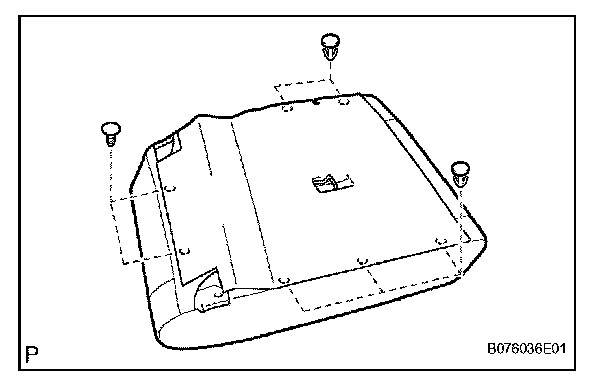

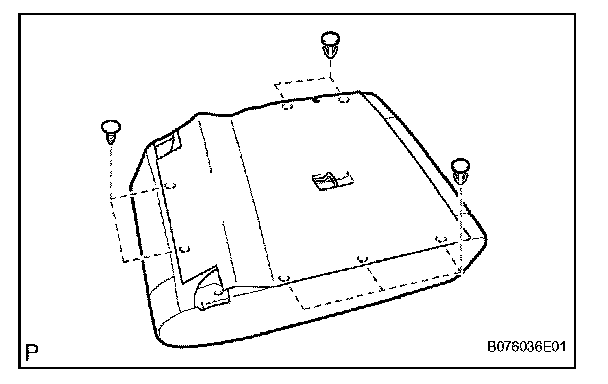

e. Using a clip remover, remove the 7 clips.






NOTE: If clips are damaged during removal, replace them.

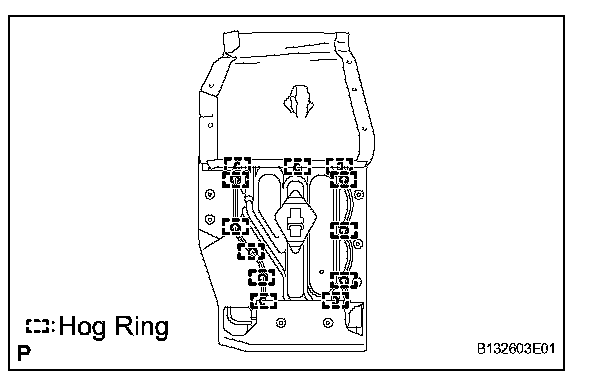

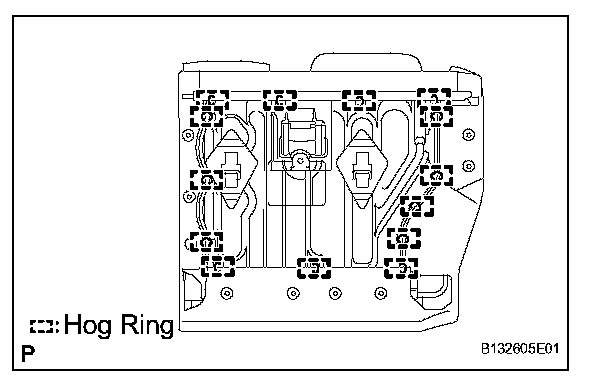

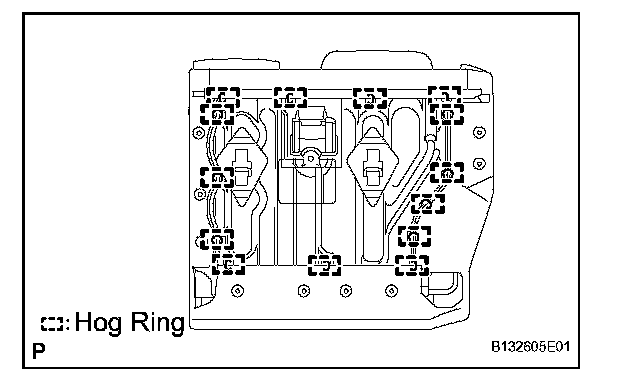

f. Lift up the seatback cover and remove the 12 hog rings.

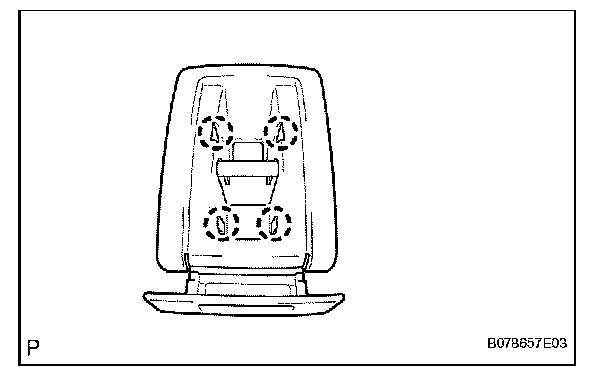

g. Detach the claws and remove the 2 headrest supports.
h. Remove the seatback cover (with pad) from the seatback frame.

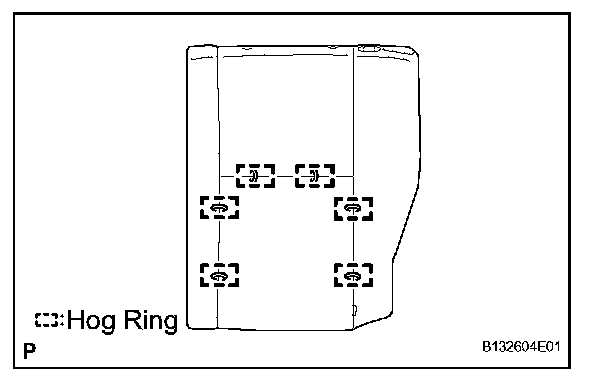

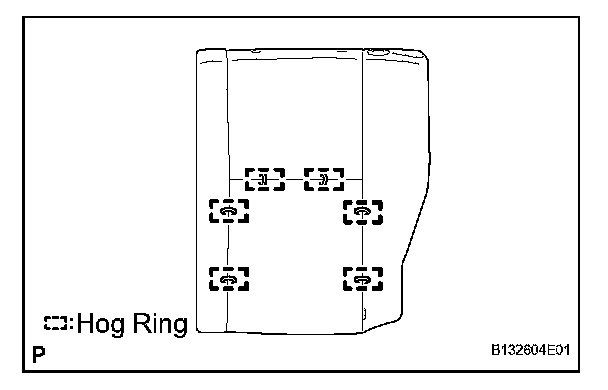

i. Remove the 6 hog rings and seatback cover from the seatback pad.

7. REMOVE REAR SEAT BACK COVER RH

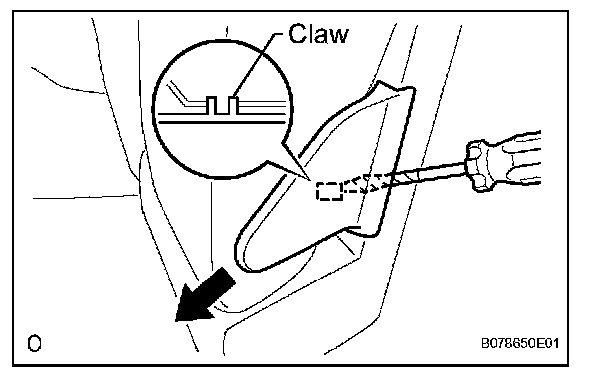

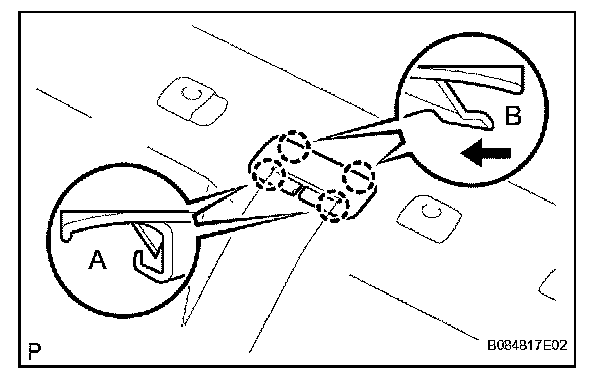

a. Using a screwdriver, detach the 2 claws labeled A.

HINT: Tape the screwdriver tip before use.

b. Pull the shoulder belt cover in the direction indicated by the arrow in the illustration to detach the 2 claws labeled B. Then remove the shoulder belt cover.

c. Remove the rear seatback lock release button.
d. Remove the 2 screws and shoulder belt guide.

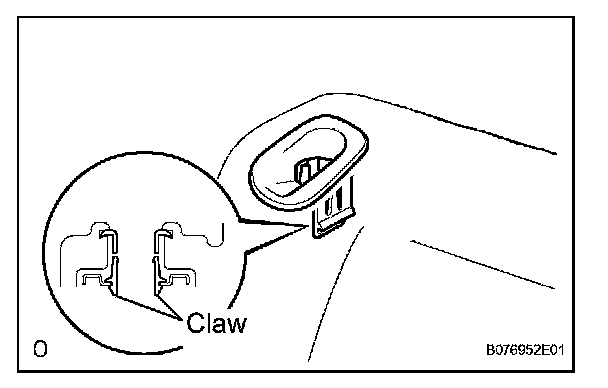

e. Using a screwdriver, detach the claws and remove the seatback stop button grommet.

HINT: In order to detach the claws of the seatback stop button grommet, insert your hand between the seatback frame and the seatback cover (with pad).




f. Using a screwdriver, detach the 4 claws and remove the rear seatback cover.

HINT: Tape the screwdriver tip before use.

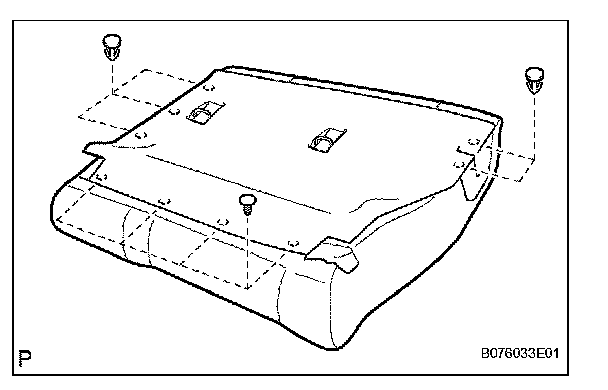

g. Using a clip remover, remove the 9 clips.

NOTE: If clips are damaged during removal, replace them.




h. Lift up the seatback cover and remove the 14 hog rings.
i. Detach the claws and remove the 2 headrest supports.
j. Remove the seatback cover (with pad) from the seatback frame.

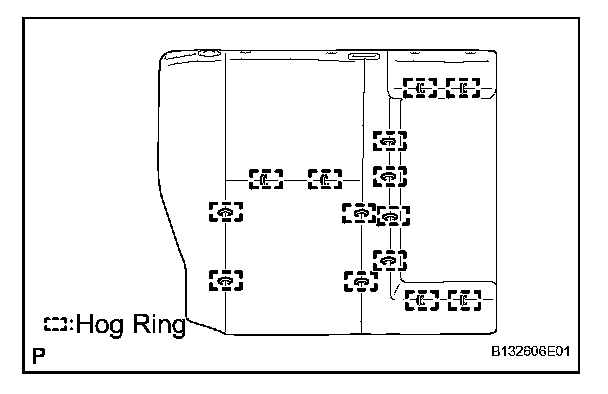

k. Remove the 14 hog rings and seatback cover from the seatback pad.

8. REMOVE REAR SEAT OUTER BELT ASSEMBLY CENTER

9. REMOVE REAR SEATBACK LOCK ASSEMBLY LH

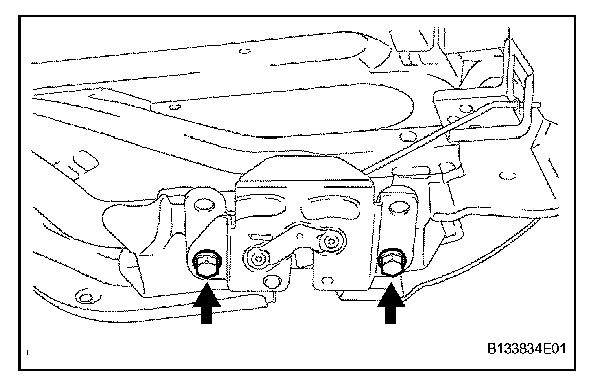

a. Remove the 2 bolts and lock.

10. REMOVE REAR SEATBACK LOCK ASSEMBLY RH
a. Remove the 2 bolts and lock.

REASSEMBLY

CAUTION: Wear protective gloves. Sharp areas on the seatback frame may injure your hands.

1. INSTALL REAR SEATBACK LOCK ASSEMBLY LH




a. Install the lock with the 2 bolts.

Torque: 18.1 N.m (185 kgf.cm, 13 ft.lbf)

2. INSTALL REAR SEATBACK LOCK ASSEMBLY RH
a. Install the lock with the 2 bolts.

Torque: 18.1 N.m (185 kgf.cm, 13 ft.lbf)

3. INSTALL REAR SEAT OUTER BELT ASSEMBLY CENTER

4. INSTALL REAR SEAT BACK COVER LH






NOTE:
- Be careful not to damage the cover.
- When installing the hog rings, avoid wrinkling the cover.

a. Install the seatback cover (with pad) to the seatback frame.

NOTE: Be careful not to damage the cover.

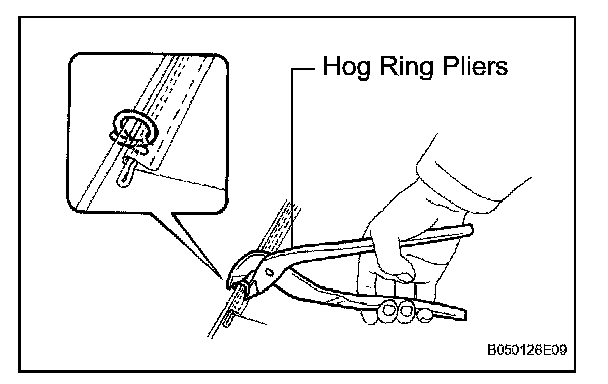

b. Using hog ring pliers, install the seatback cover to the seatback pad with 6 new hog rings.
c. Install the seatback cover (with pad) to the seatback frame.
d. Attach the claws to install the 2 headrest supports.

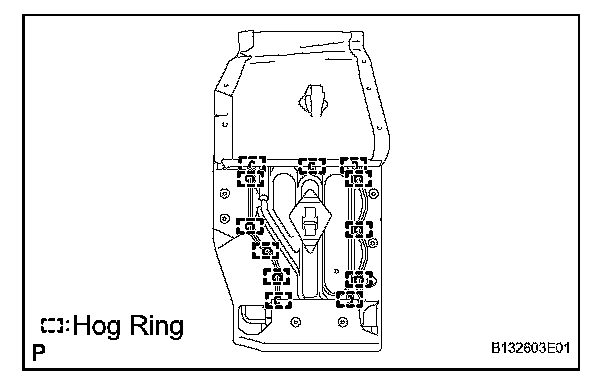

e. Using hog ring pliers, install 12 new hog rings.




f. Install the 7 clips.

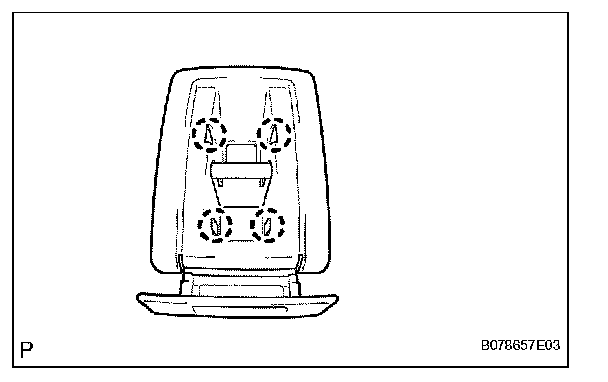

g. Attach the 4 claws to install the rear seatback cover.




h. Attach the claws to install the seatback stop button grommet.
i. Install the shoulder belt guide with the 2 screws.
j. Install the rear seatback lock release button.

5. INSTALL REAR SEATBACK COVER RH






NOTE:
- Be careful not to damage the cover.
- When installing the hog rings, avoid wrinkling the cover.

a. Install the seatback cover (with pad) to the seatback frame.

NOTE: Be careful not to damage the cover.

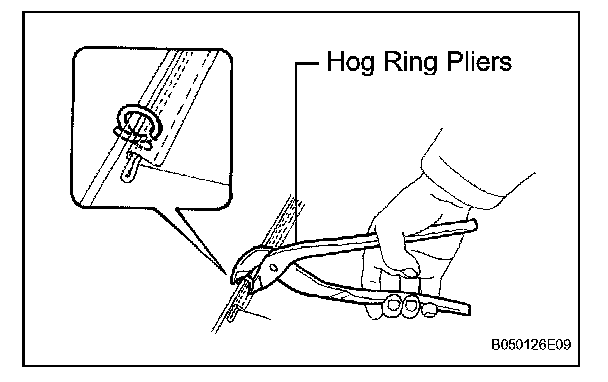

b. Using hog ring pliers, install the seatback cover to the seatback pad with 14 new hog rings.
c. Install the seatback cover (with pad) to the seatback frame.
d. Attach the claws to install the 2 headrest supports.




e. Using hog ring pliers, install 14 new hog rings.




f. Install the 9 clips.




g. Attach the 4 claws to install the rear seatback cover.




h. Attach the claws to install the seatback stop button grommet.
i. Install the shoulder belt guide with the 2 screws.
j. Install the rear seatback lock release button.




k. Attach the 4 claws to install the shoulder belt cover.

6. INSTALL REAR SEAT CENTER ARMREST ASSEMBLY
a. Install the armrest with the bolt.
b. Attach the claw to install the armrest hinge cover.

7. INSTALL REAR SEAT HEADREST ASSEMBLY LH
8. INSTALL REAR SEAT HEADREST ASSEMBLY RH
9. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY

10. INSTALL REAR SEAT CUSHION COVER

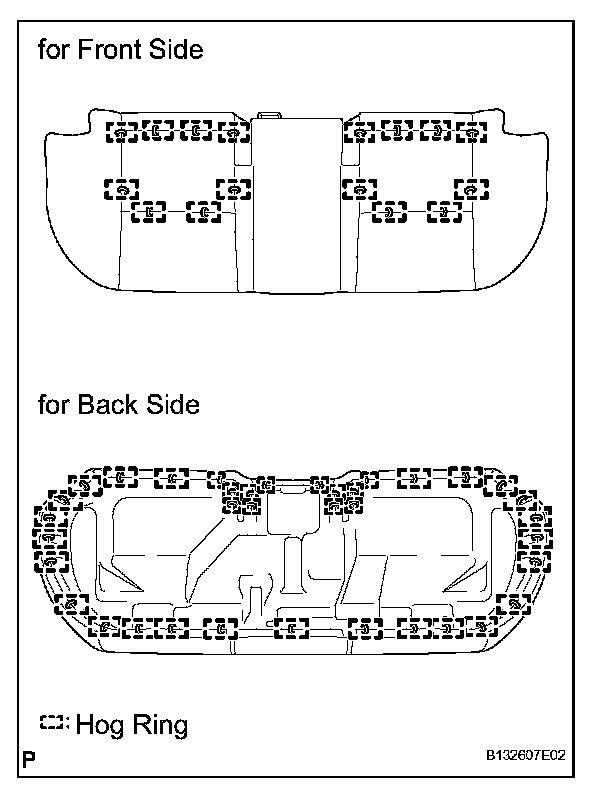

a. Using hog ring pliers, install the cushion cover to the cushion pad with 51 new hog rings.

NOTE:
- Be careful not to damage the cover.
- When installing the hog rings, minimize wrinkles as much as possible.
