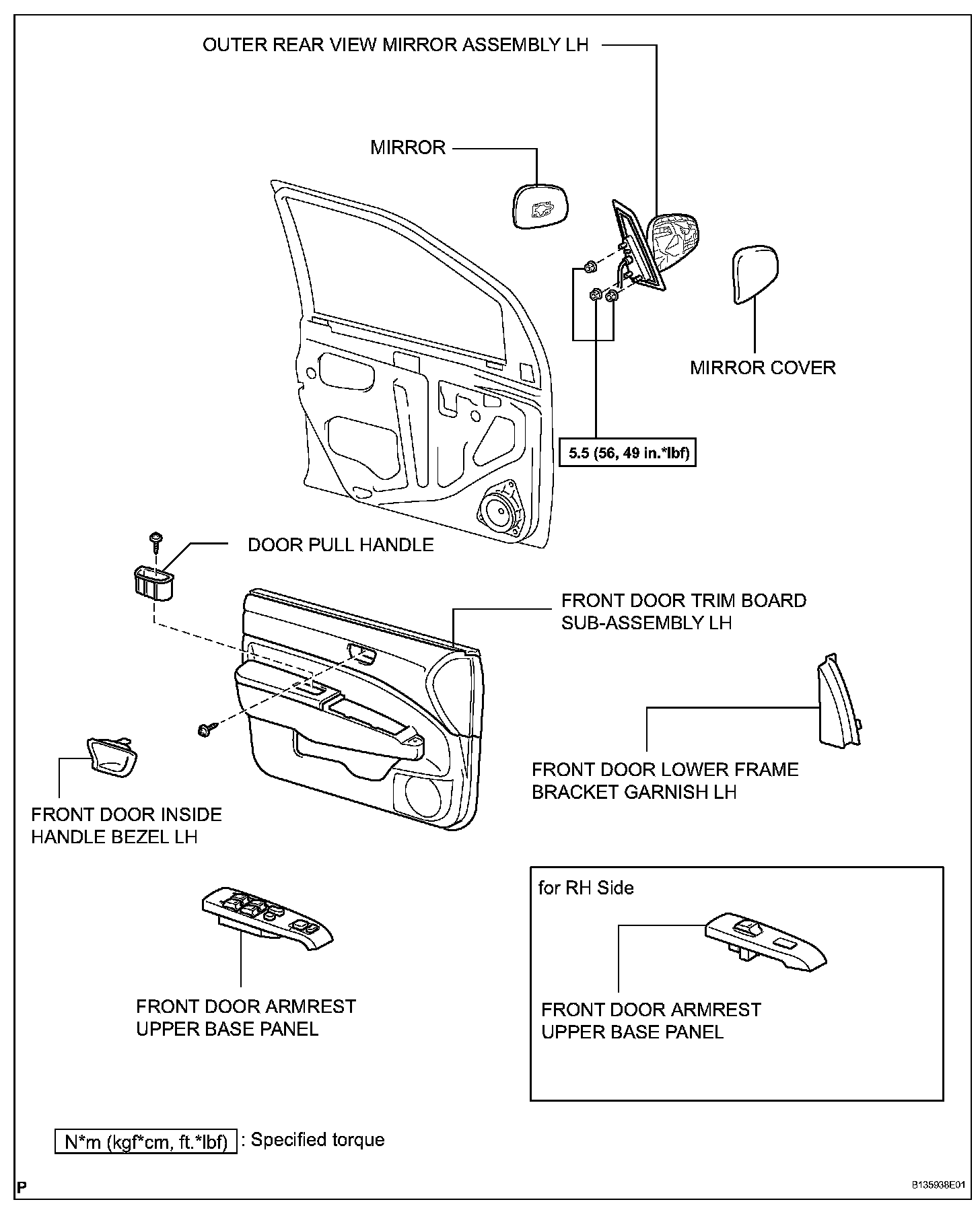

Outer Rear View Mirror

REMOVAL

Outer Rear View Mirror:

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL LH
3. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH
4. REMOVE DOOR PULL HANDLE
5. REMOVE FRONT DOOR ARMREST BASE PANEL UPPER
6. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

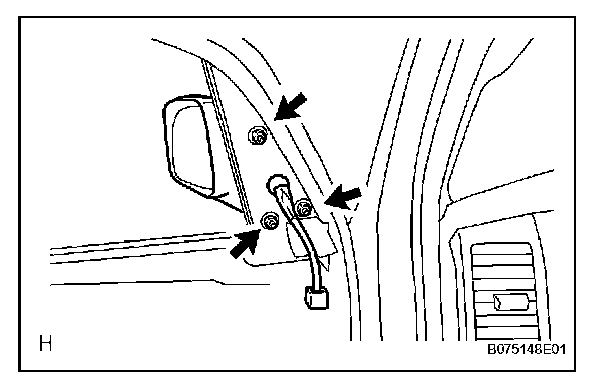

7. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH
a. Disconnect the mirror connector.
b. Remove the 3 nuts and mirror.






8. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH

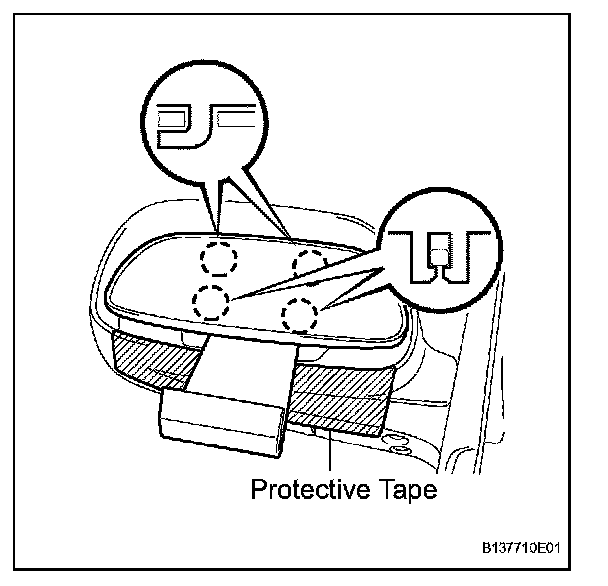

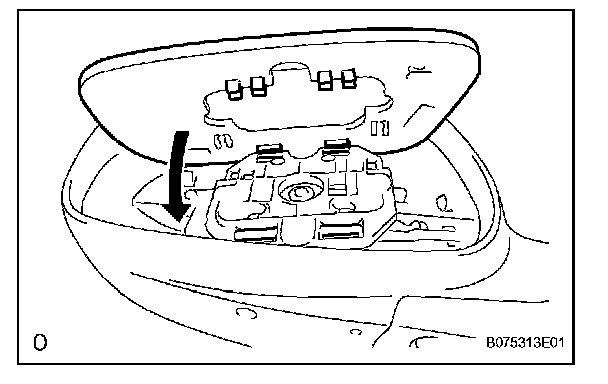

a. Using a moulding remover, detach the 4 claws and outer rear view mirror.

HINT: Apply protective tape to the mirror body.

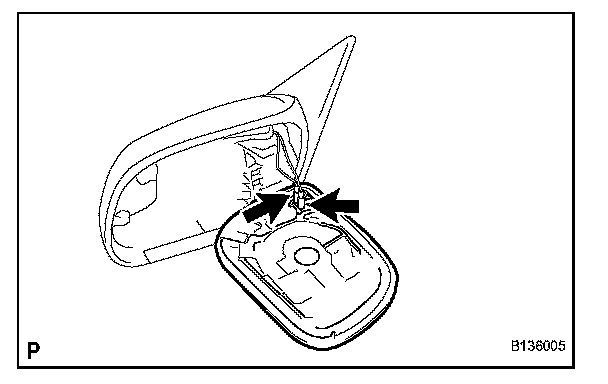

b. Disconnect the 2 connectors and remove the mirror.

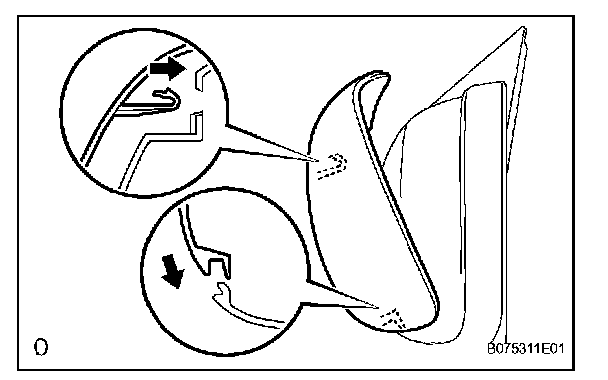

c. Using a screwdriver, detach the 6 claws and remove the mirror cover.

HINT: Tape the screwdriver tip before use.

INSTALLATION






1. INSTALL OUTER MIRROR COVER LH

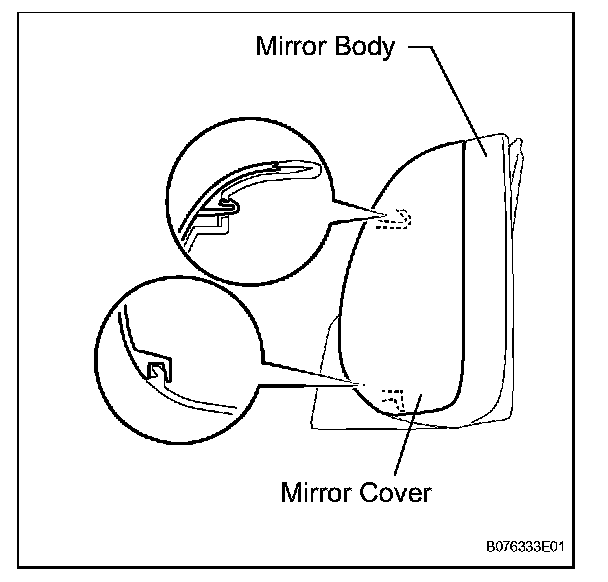

a. Install the mirror cover as shown in the illustration.






b. Check that there is no gap between the cover and mirror body.

HINT: If there is a gap between the cover and body, noise will occur during driving.

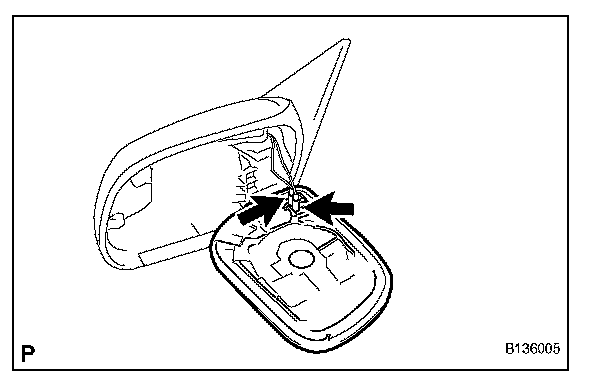

c. Connect the 2 connectors.






d. Attach the 4 claws to install the mirror.

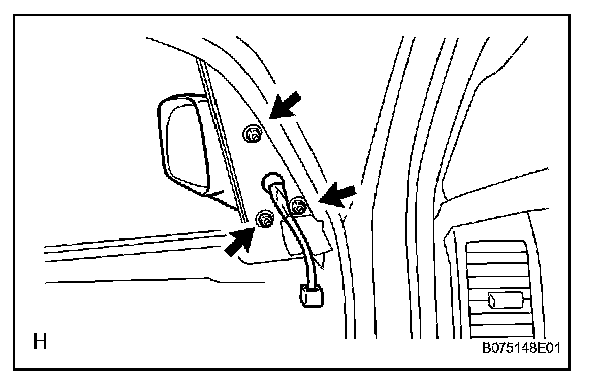

2. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH
a. Install the mirror with the 3 nuts.

Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

b. Connect the connector.

3. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
4. INSTALL FRONT DOOR ARMREST BASE PANEL UPPER LH
5. INSTALL DOOR PULL HANDLE
6. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH LH
7. INSTALL FRONT DOOR INSIDE HANDLE BEZEL LH

8. PERFORM INITIALIZATION
a. Perform initialization.

NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
