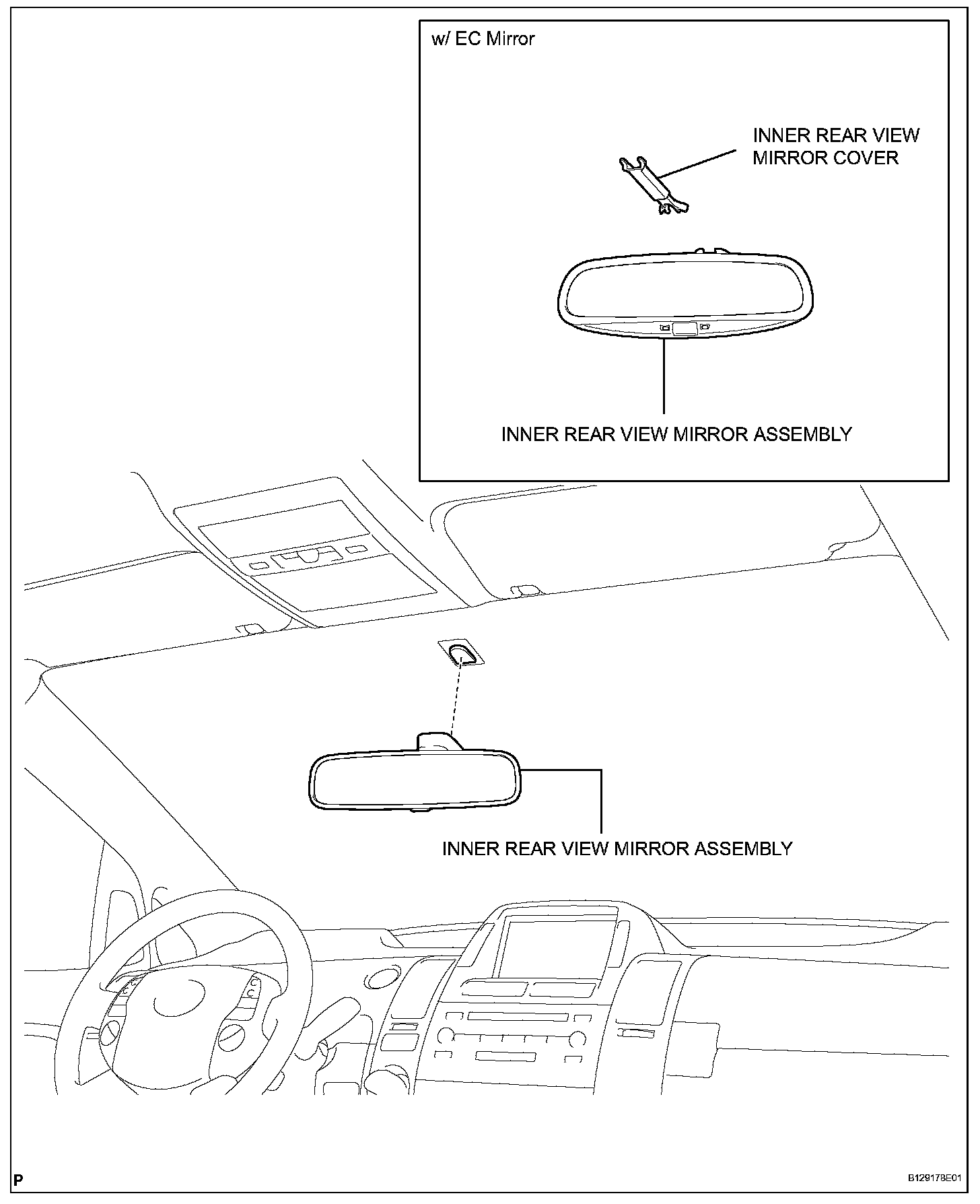

Inner Rear View Mirror

REMOVAL

Inner Rear View Mirror:

HINT: EC mirror stands for "electrochromic mirror".

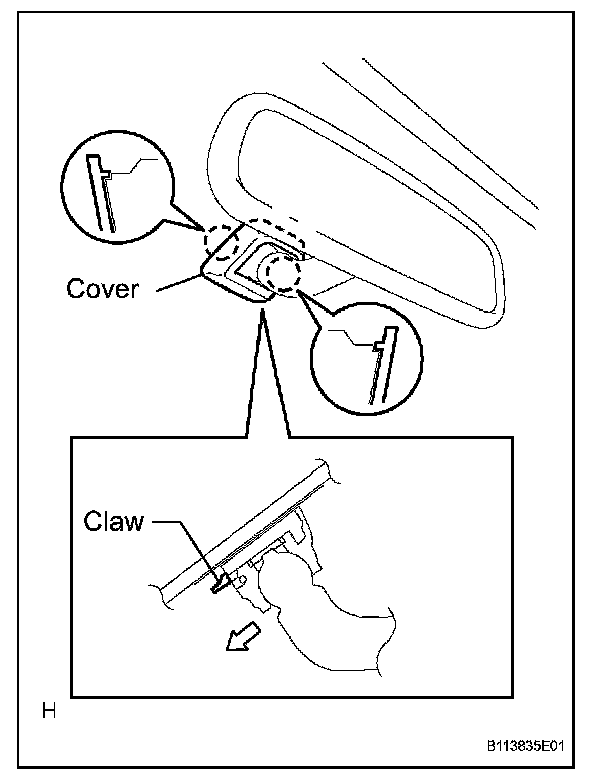

1. REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/o EC Mirror)
a. Push the cover in the direction indicated by the arrows labeled A and remove it.
b. While holding down the claw in the direction indicated by the black arrow labeled B, slide the mirror in the direction indicated by the white arrow and remove it.

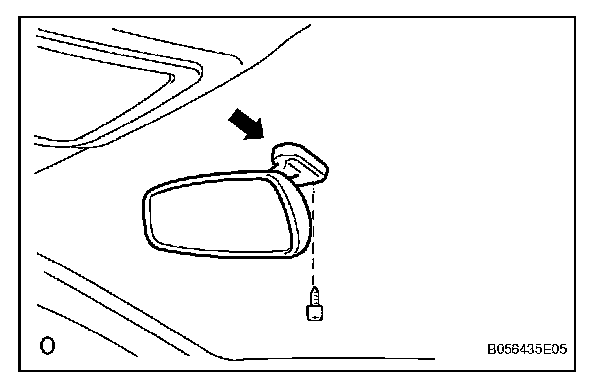

2. REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/ EC Mirror)
a. Remove the inner rear view mirror cover.
b. Remove the screw.
c. Slide the mirror in the direction indicated by the arrow in the illustration and remove the mirror.

INSTALLATION






1. INSTALL INNER REAR VIEW MIRROR ASSEMBLY (w/o EC Mirror)
a. Install the mirror in the direction of the white arrow.
b. Install the cover as shown in the illustration.

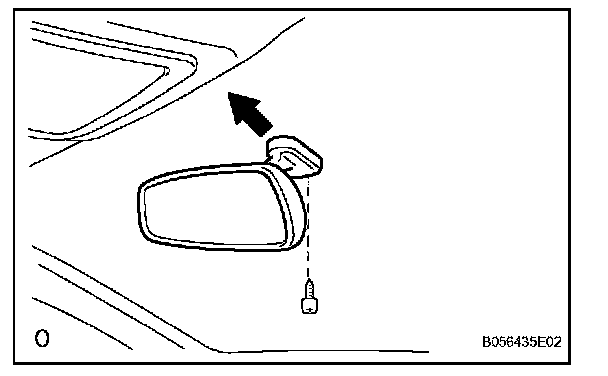

2. INSTALL INNER REAR VIEW MIRROR ASSEMBLY (w/ EC Mirror)
a. Install the mirror.
b. Install the screw.
c. Install the inner rear view mirror cover.
