Only Passenger Door Lock / Unlock Functions Do Not Operate

Only Passenger Door LOCK / UNLOCK Functions do not Operate

DESCRIPTION
The main body ECU in the driver side junction block receives lock / unlock switch signals and activates the door lock motor according to the signals.

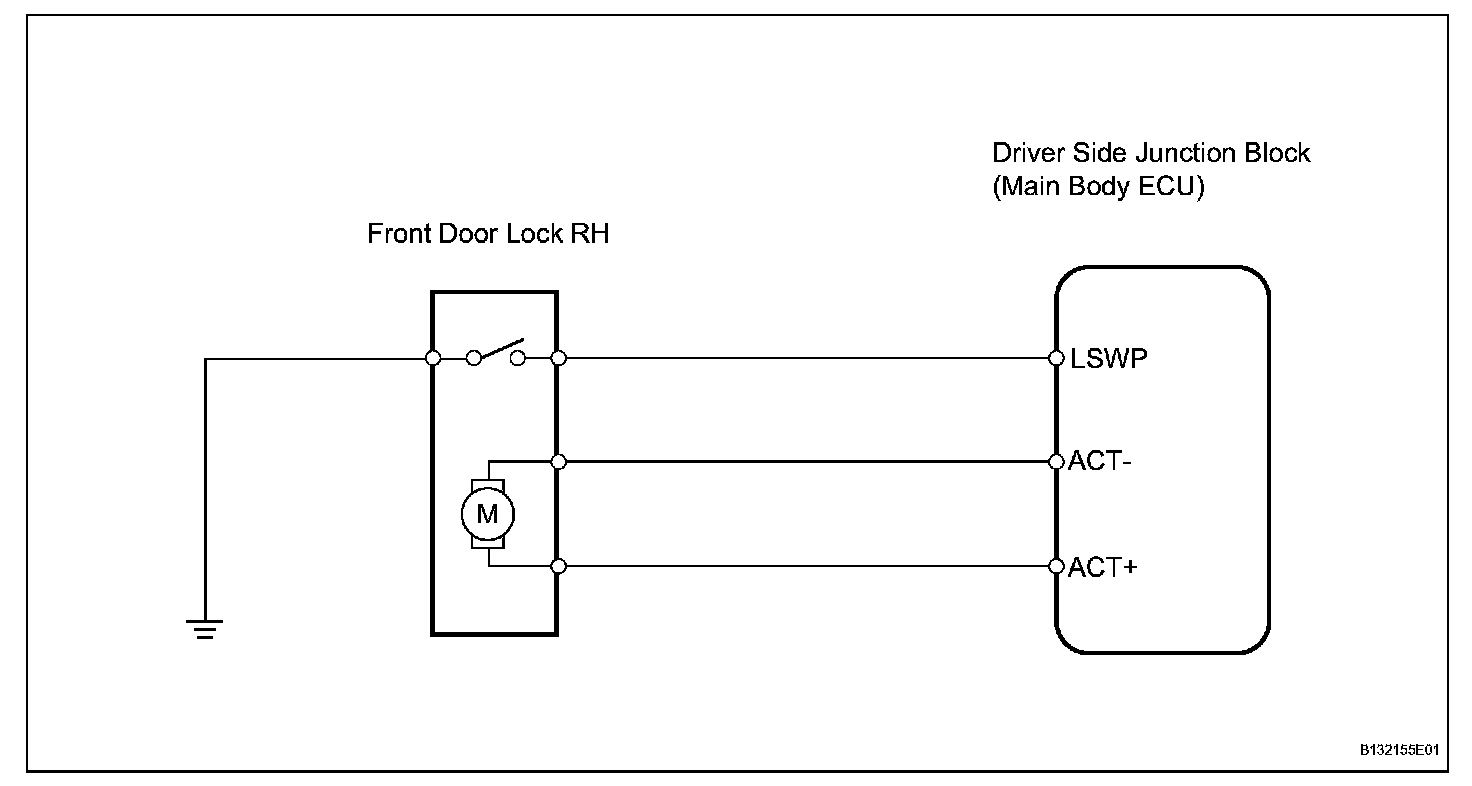

Wiring Diagram:

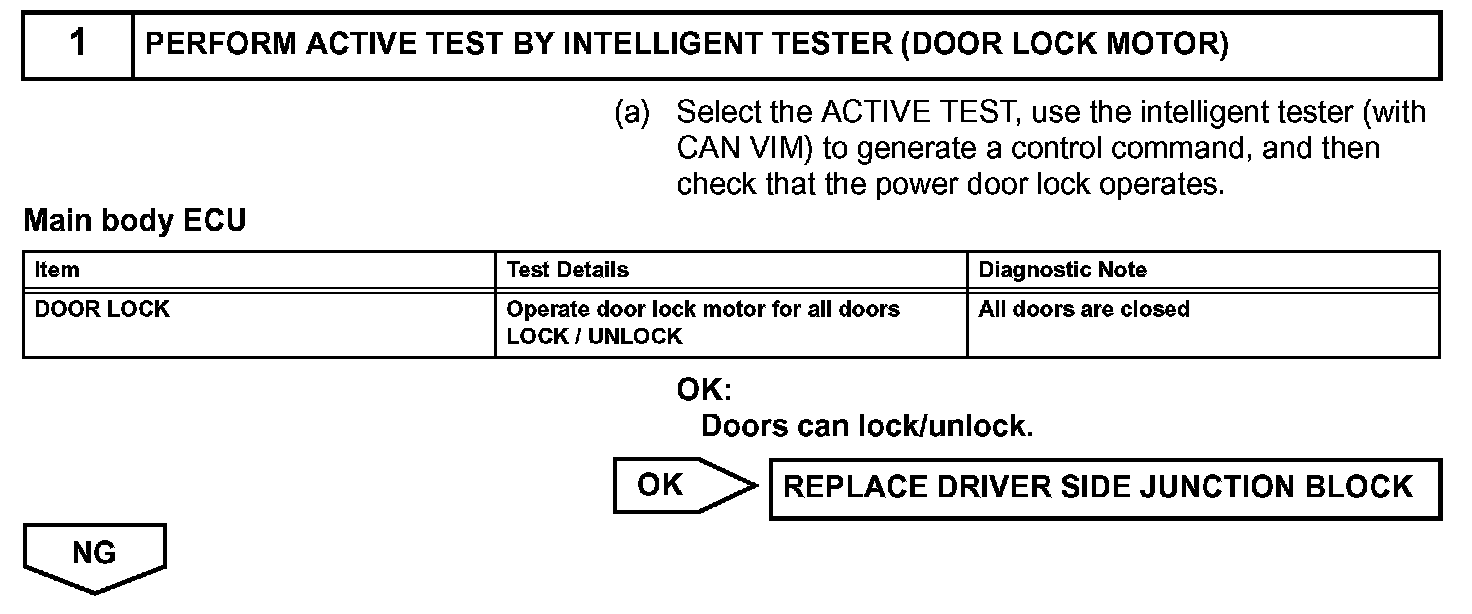

Step 1:

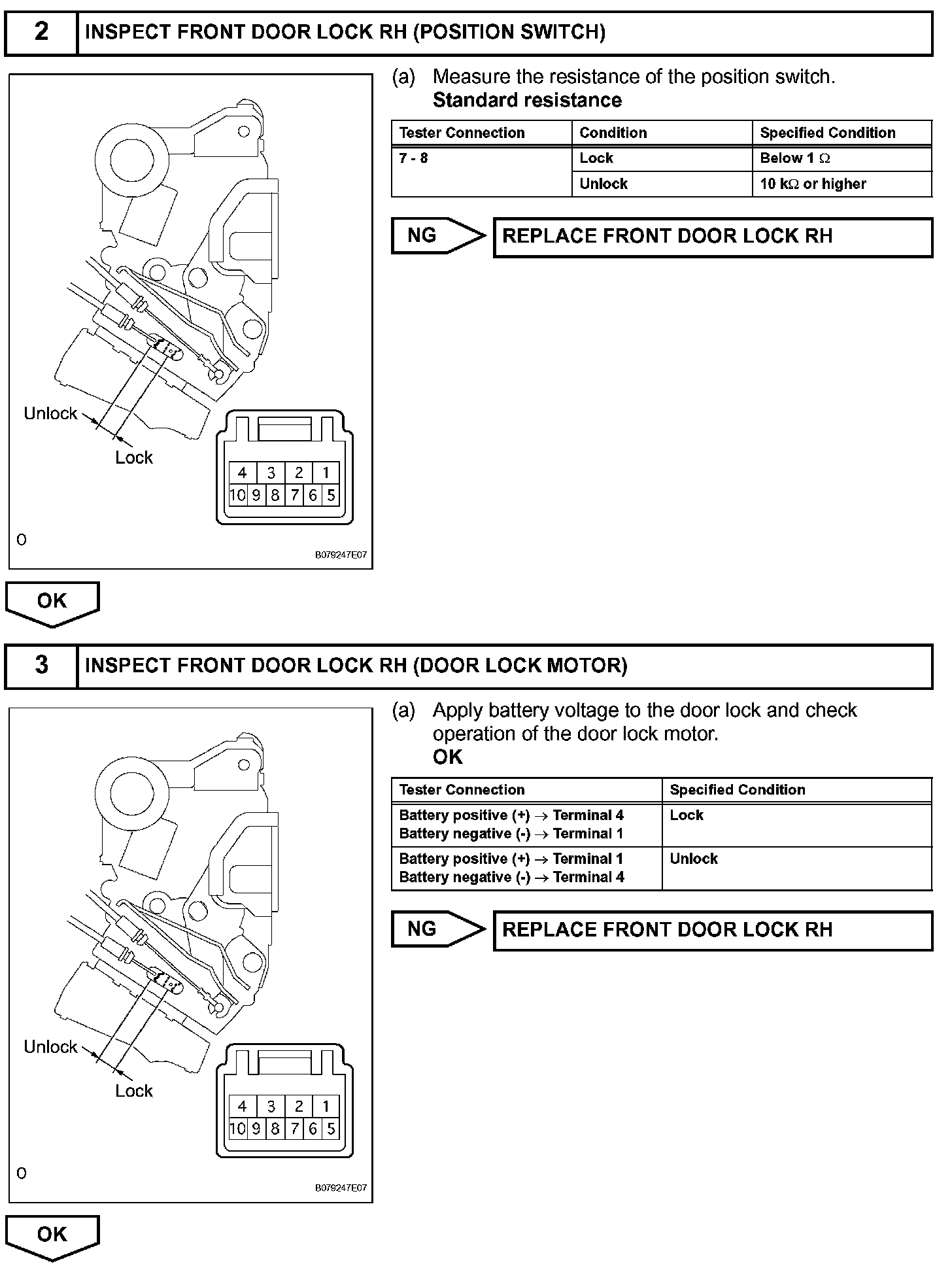

Step 2-3:

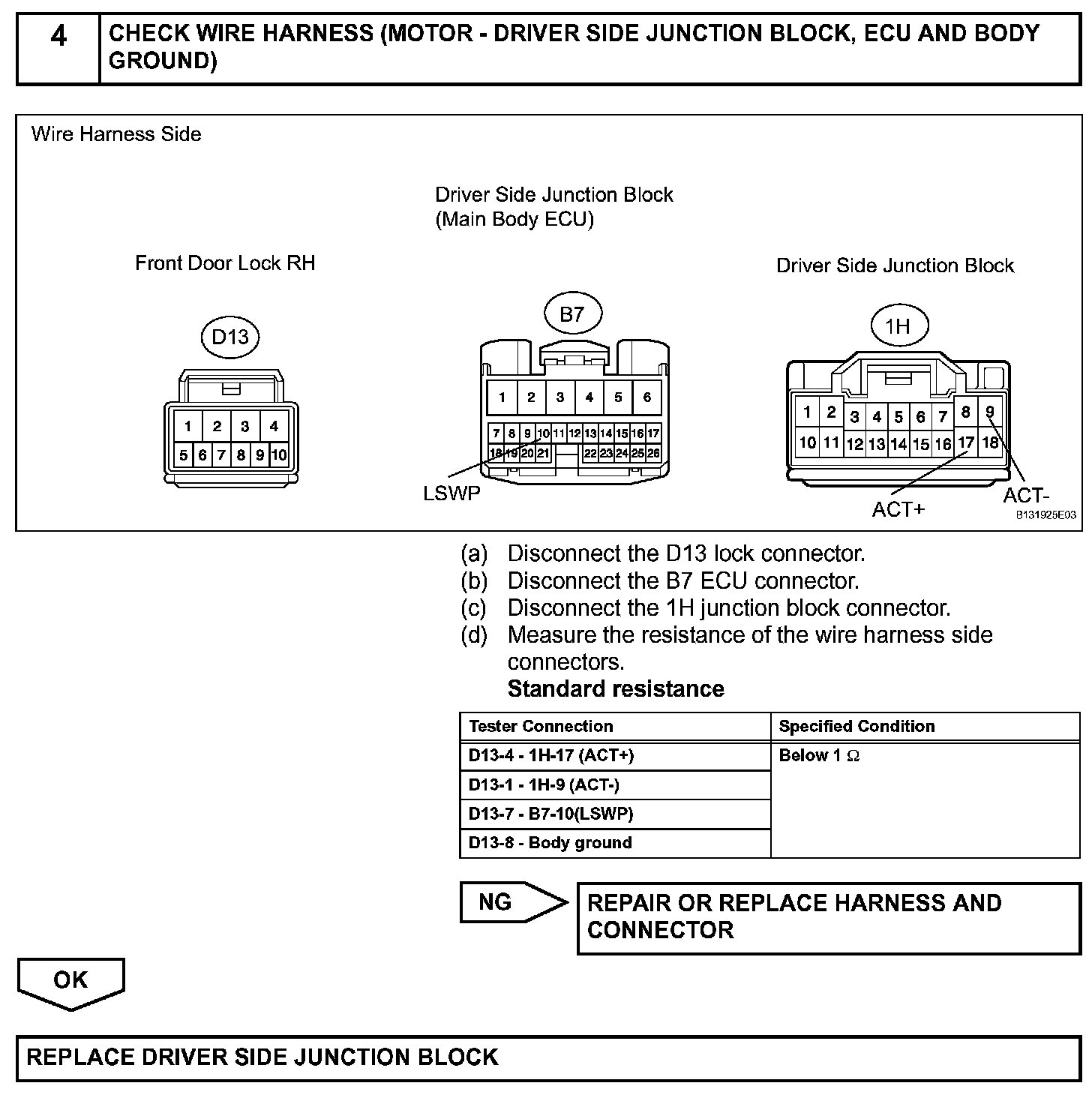

Step 4:

INSPECTION PROCEDURE
