Only Driver Door Lock / Unlock Functions Do Not Operate
Only Driver Door LOCK / UNLOCK Functions do not OperateDESCRIPTION
The main body ECU in the driver side junction block receives lock / unlock switch signals and activates the door lock motor according to the signals.
Wiring Diagram:

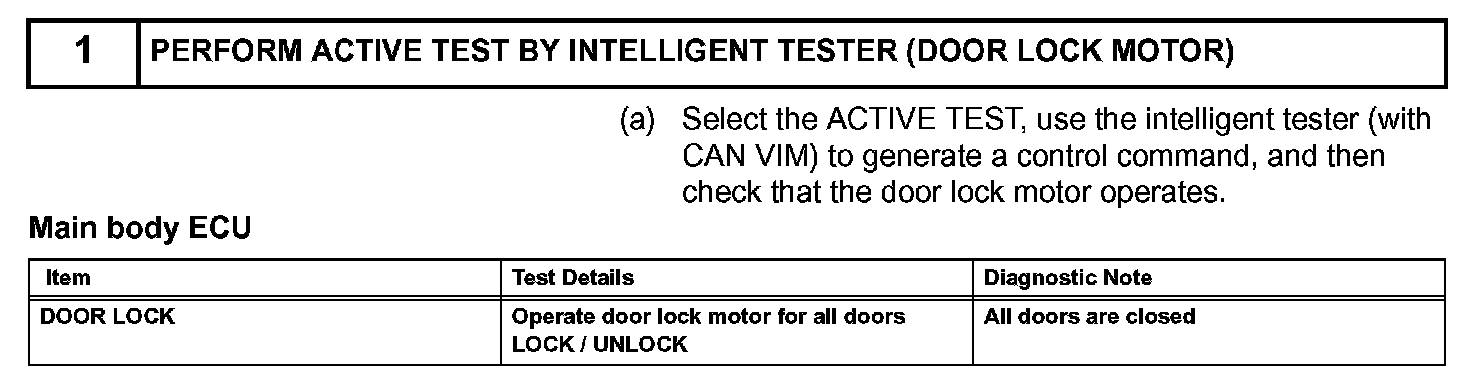

Step 1:

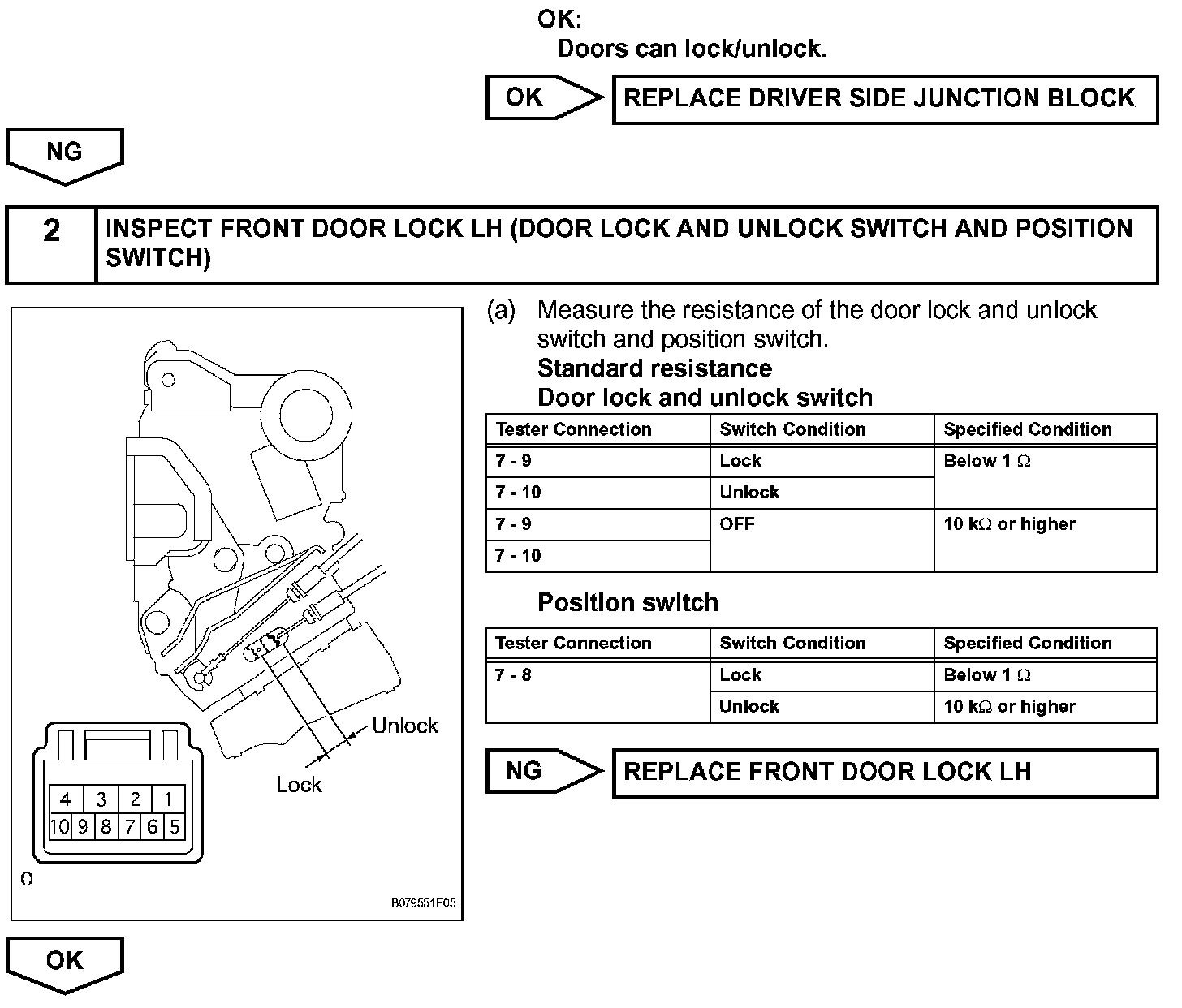

Step 1 (Continued)-2:

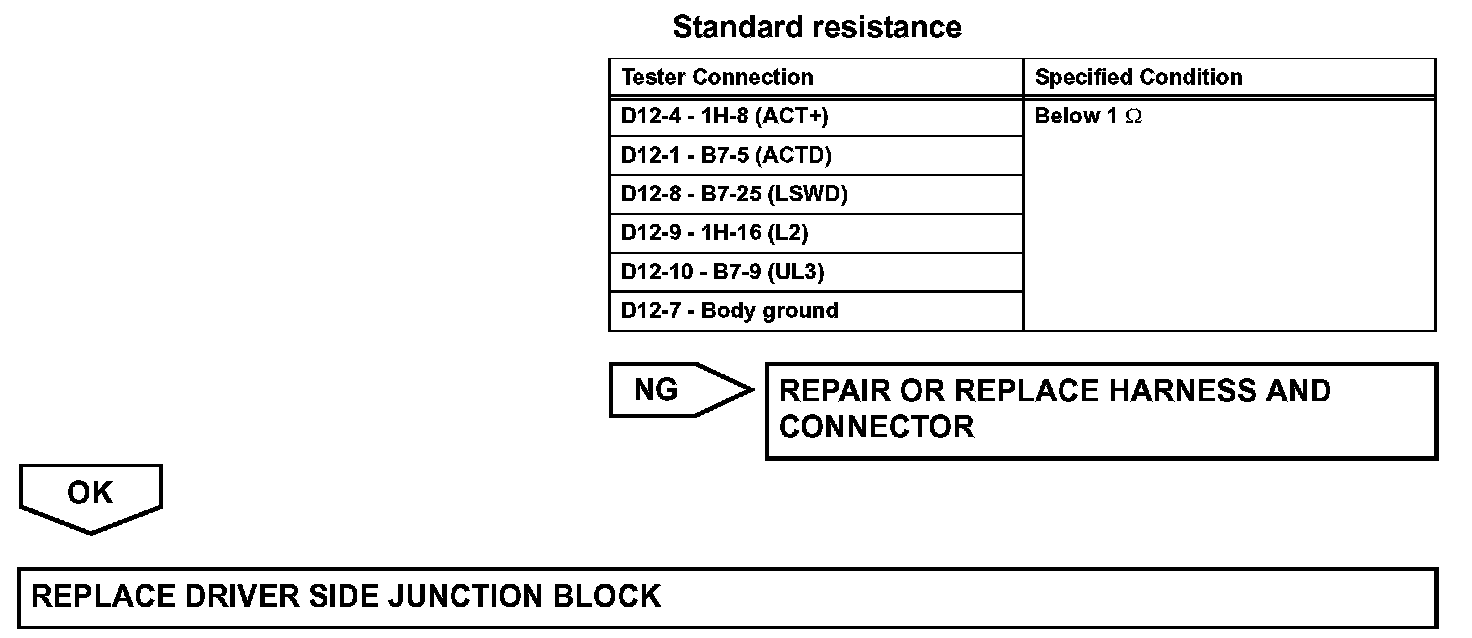

Step 3-4:
Step 4 (Continued):
INSPECTION PROCEDURE
