All Doors LOCK / UNLOCK Functions Do Not Operate Via Master Switch
All Doors LOCK / UNLOCK Functions do not Operate Via Master SwitchDESCRIPTION
The body ECU in the driver side junction block receives switch signals from the power window regulator master switch and activates the door lock motors on each door according to the signal.

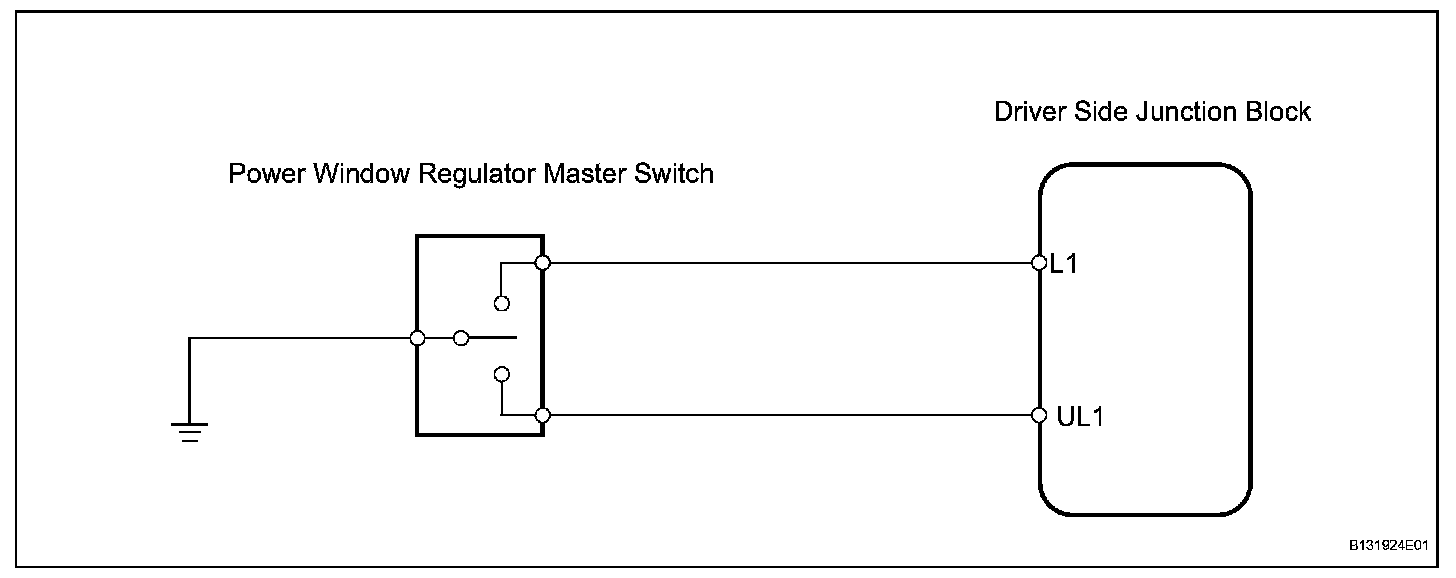

Wiring Diagram:

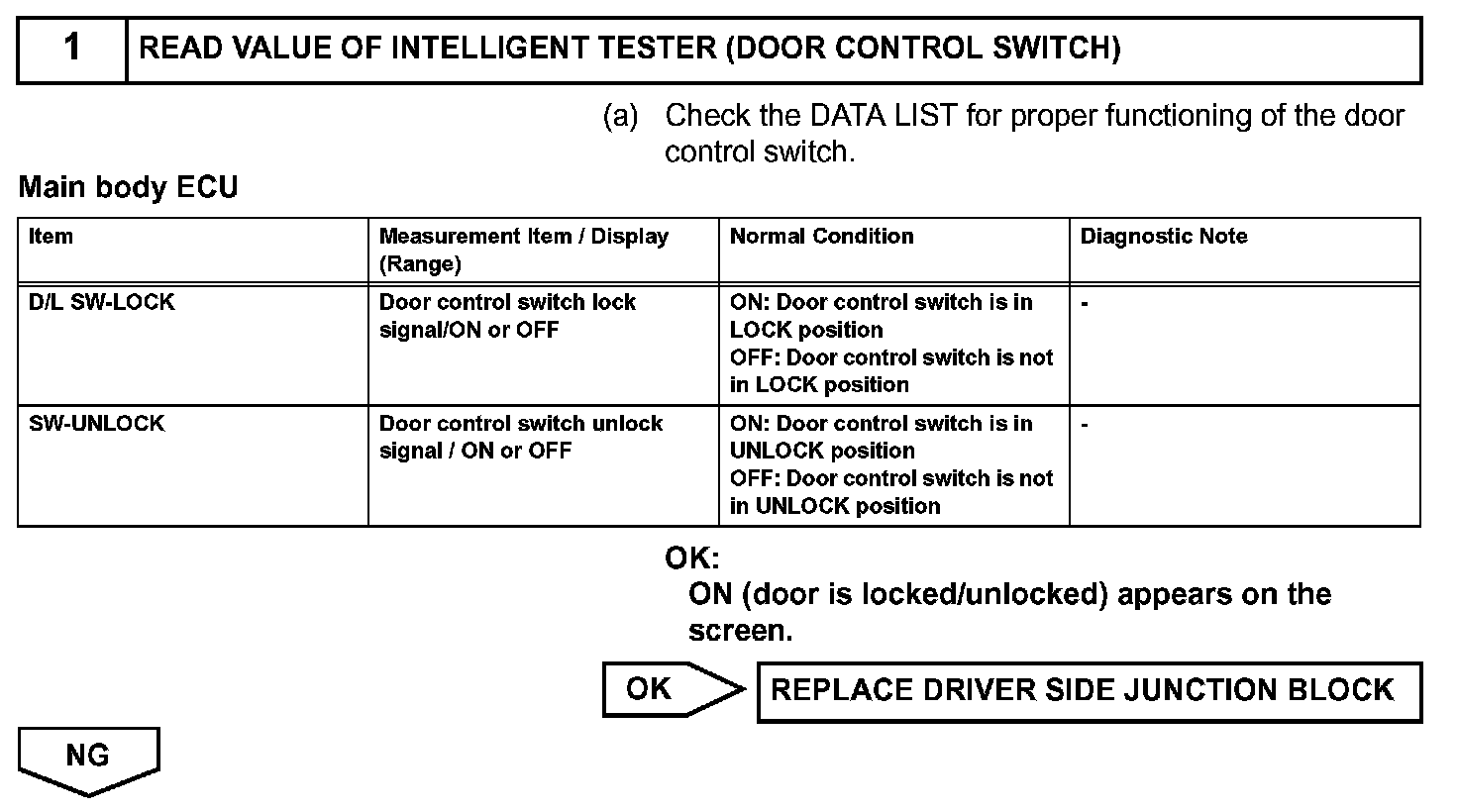

Step 1:

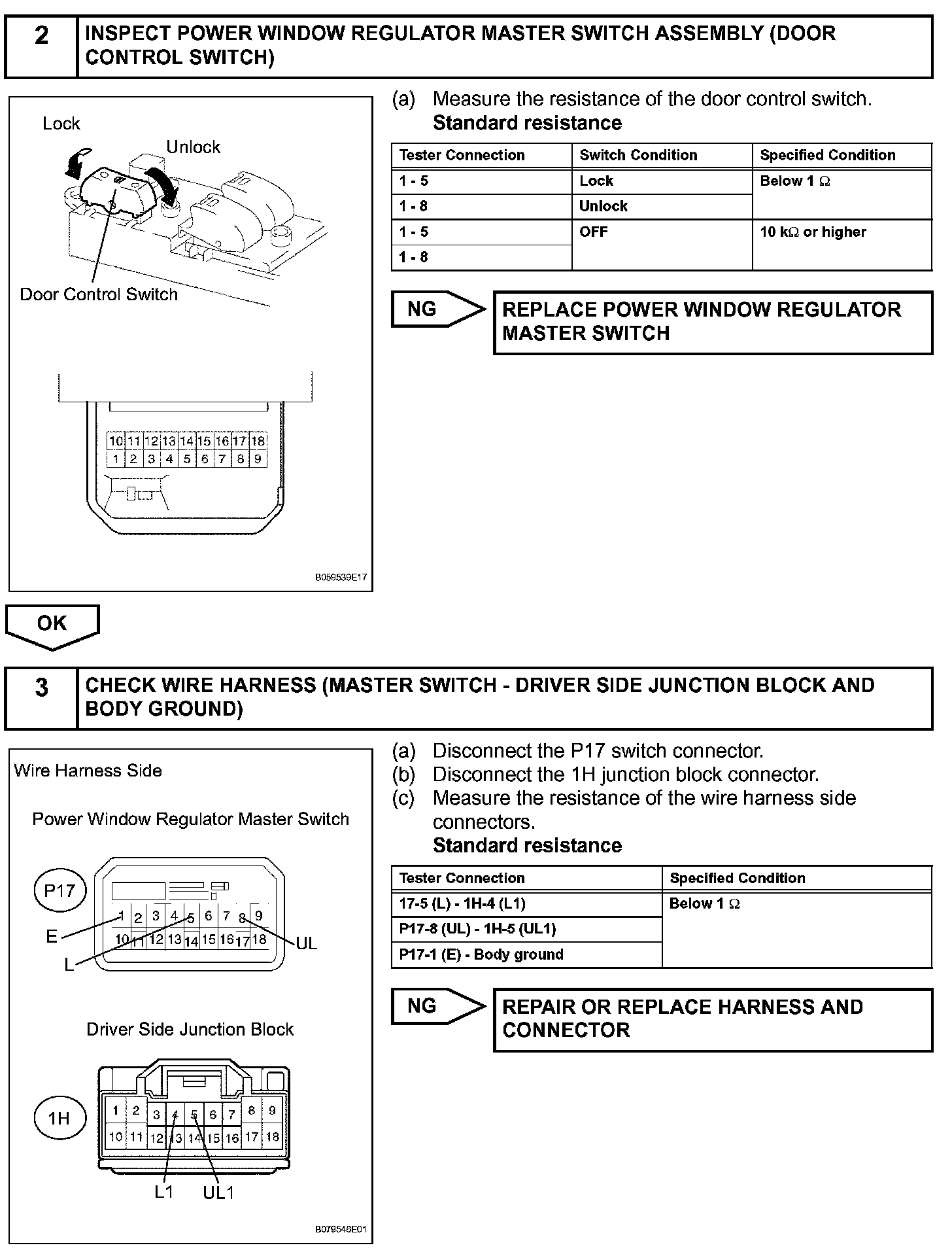

Step 2-3:

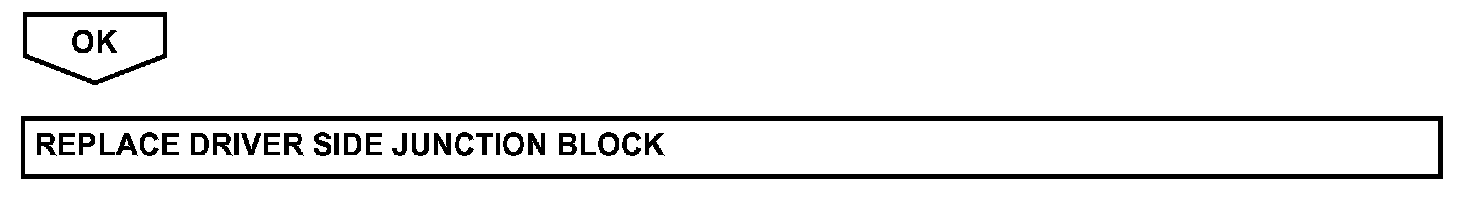

Step 3 (Continued):
INSPECTION PROCEDURE
