All Doors LOCK / UNLOCK Functions Do Not Operate Via Driver Side Door Key Cylinder
All Doors LOCK / UNLOCK Functions do not Operate Via Driver Side Door Key CylinderDESCRIPTION
The main body ECU in the driver side junction block receives switch signals from the door key-linked door lock / unlock switch and activates the door lock according to the signals.

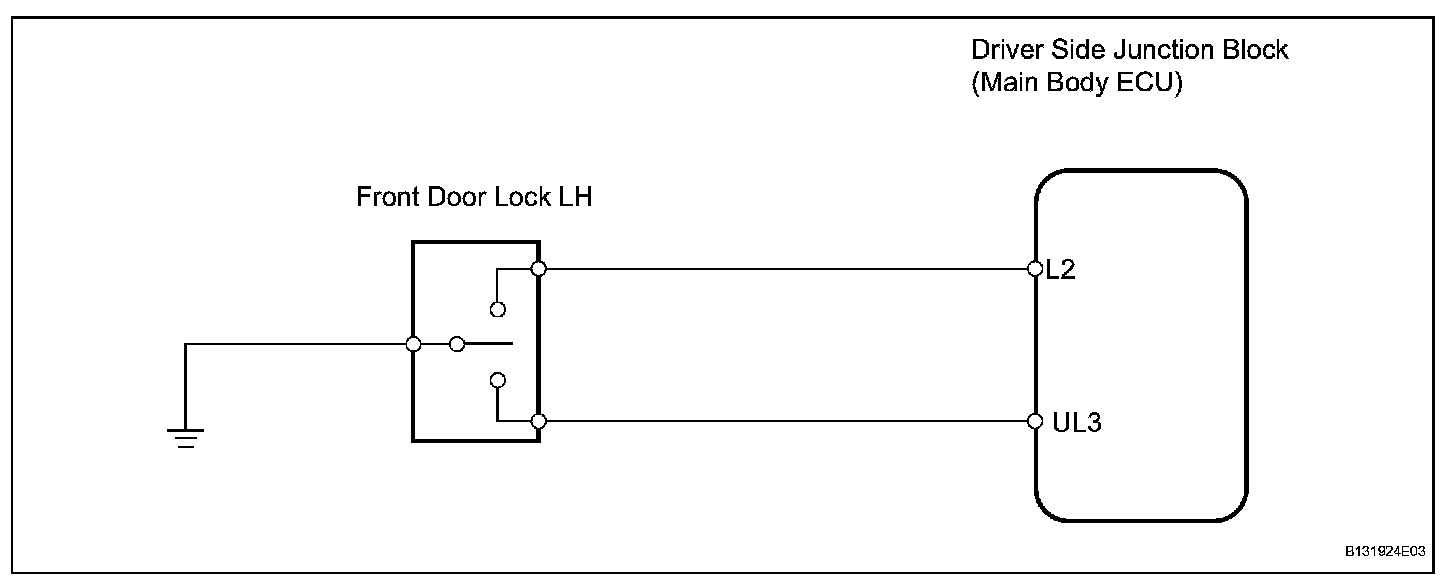

Wiring Diagram:

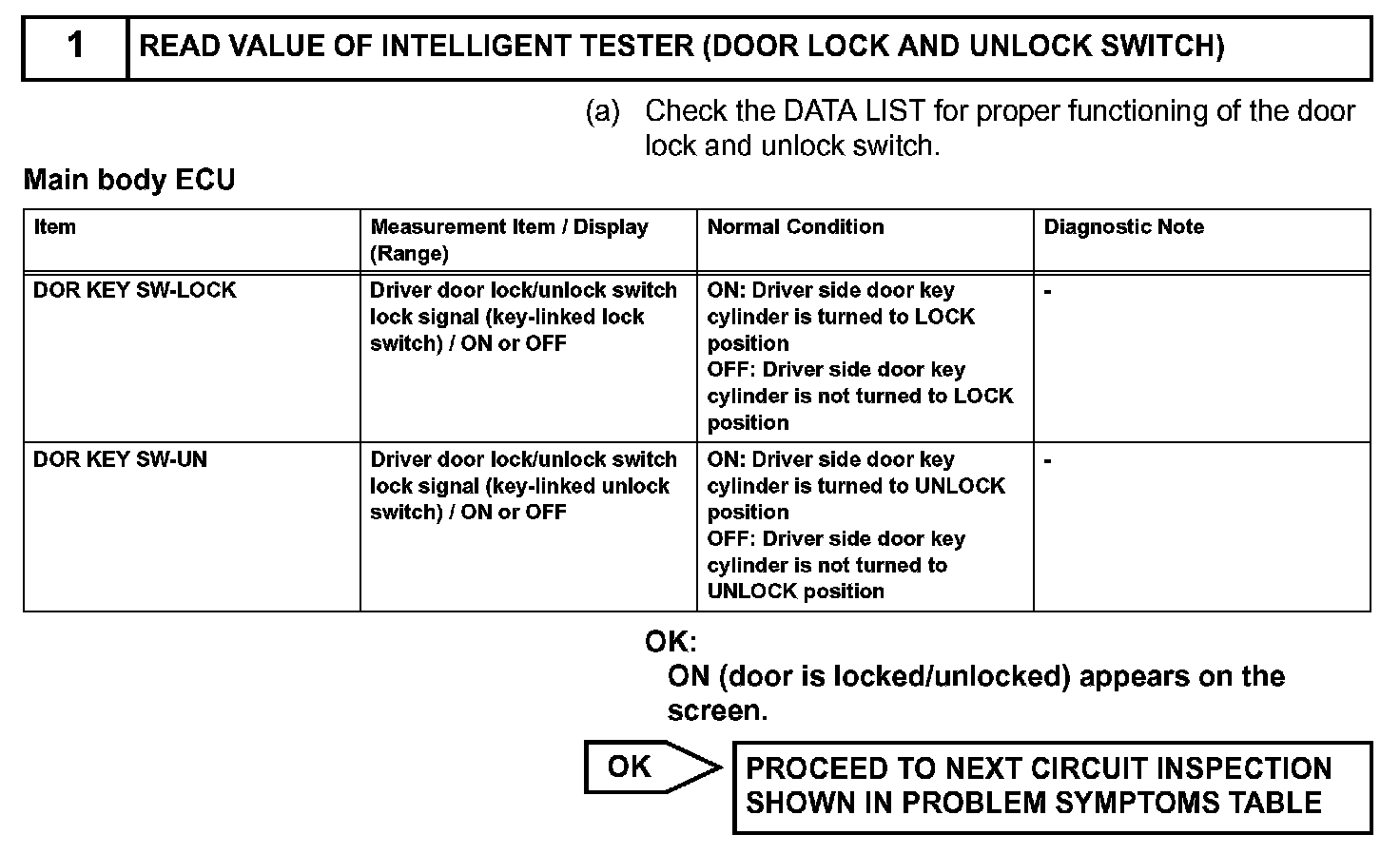

Step 1:

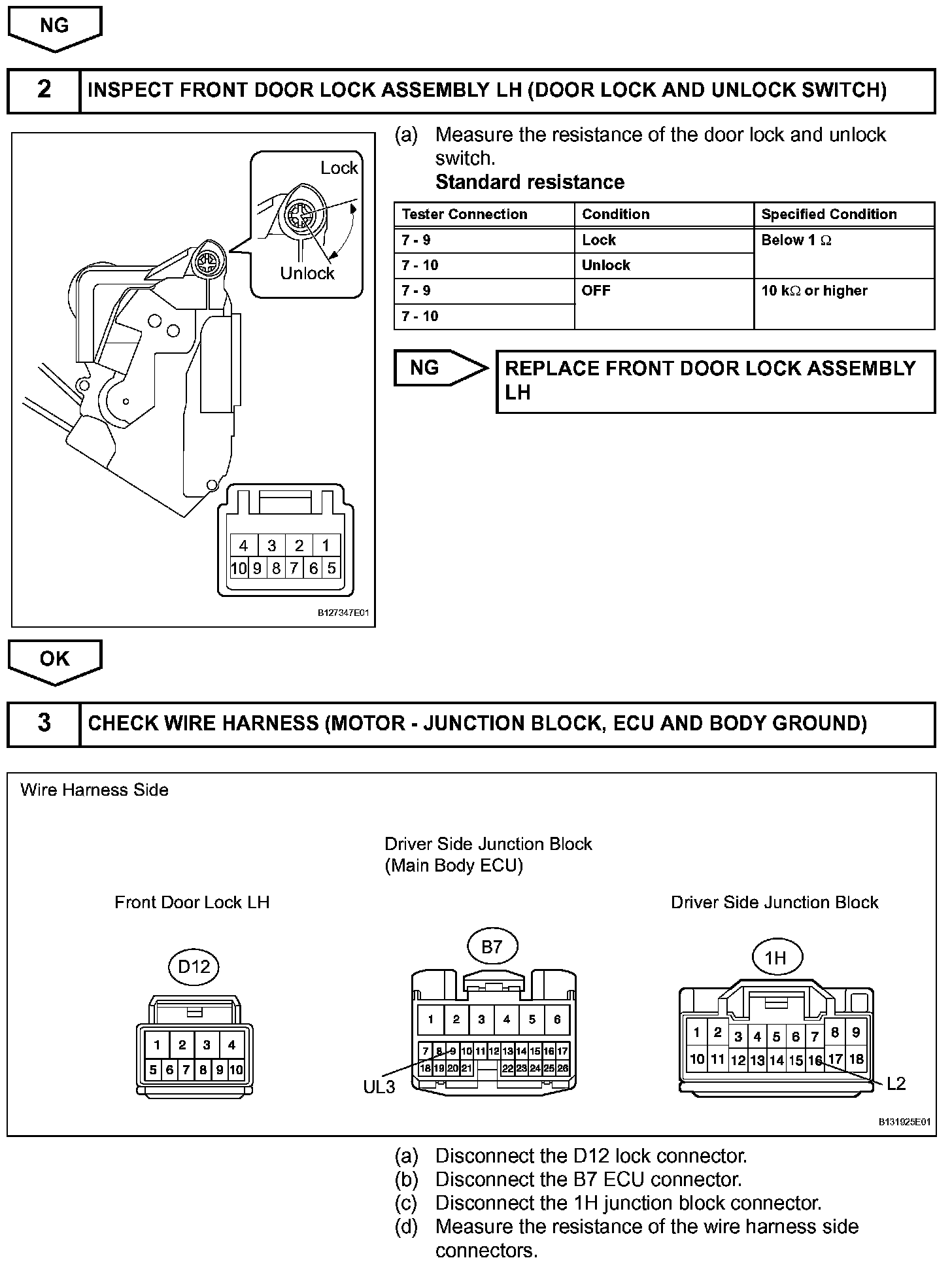

Step 1 (Continued)-3:

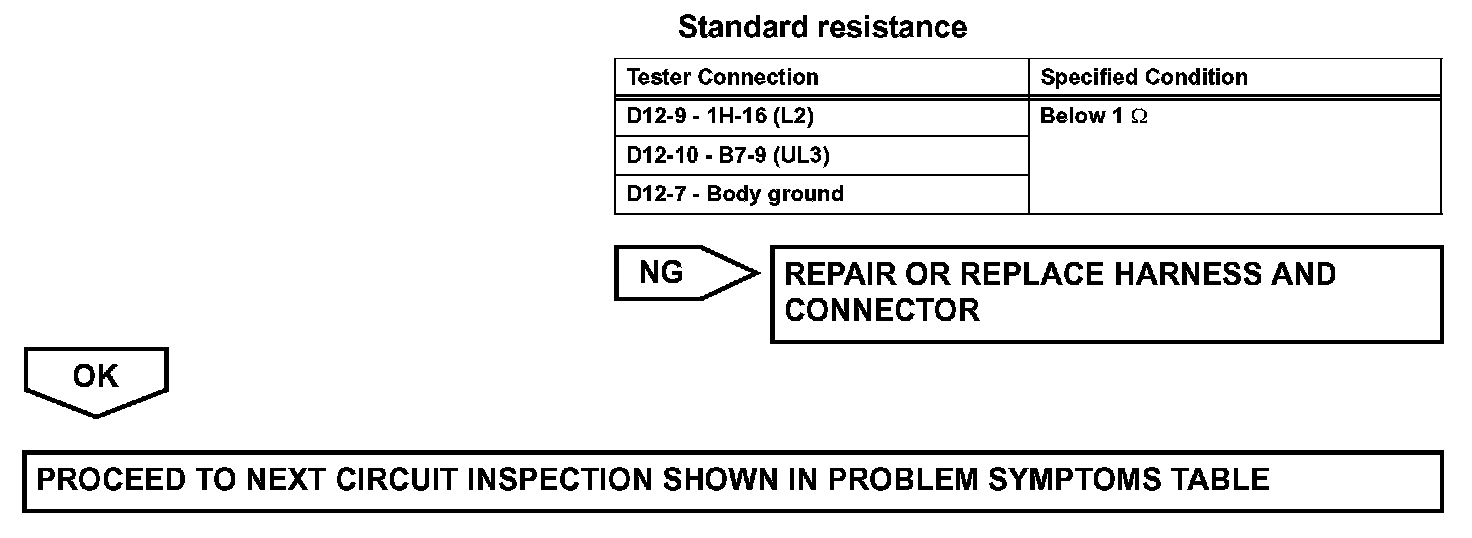

Step 3 (Continued):
INSPECTION PROCEDURE
