Pinout Values and Diagnostic Parameters

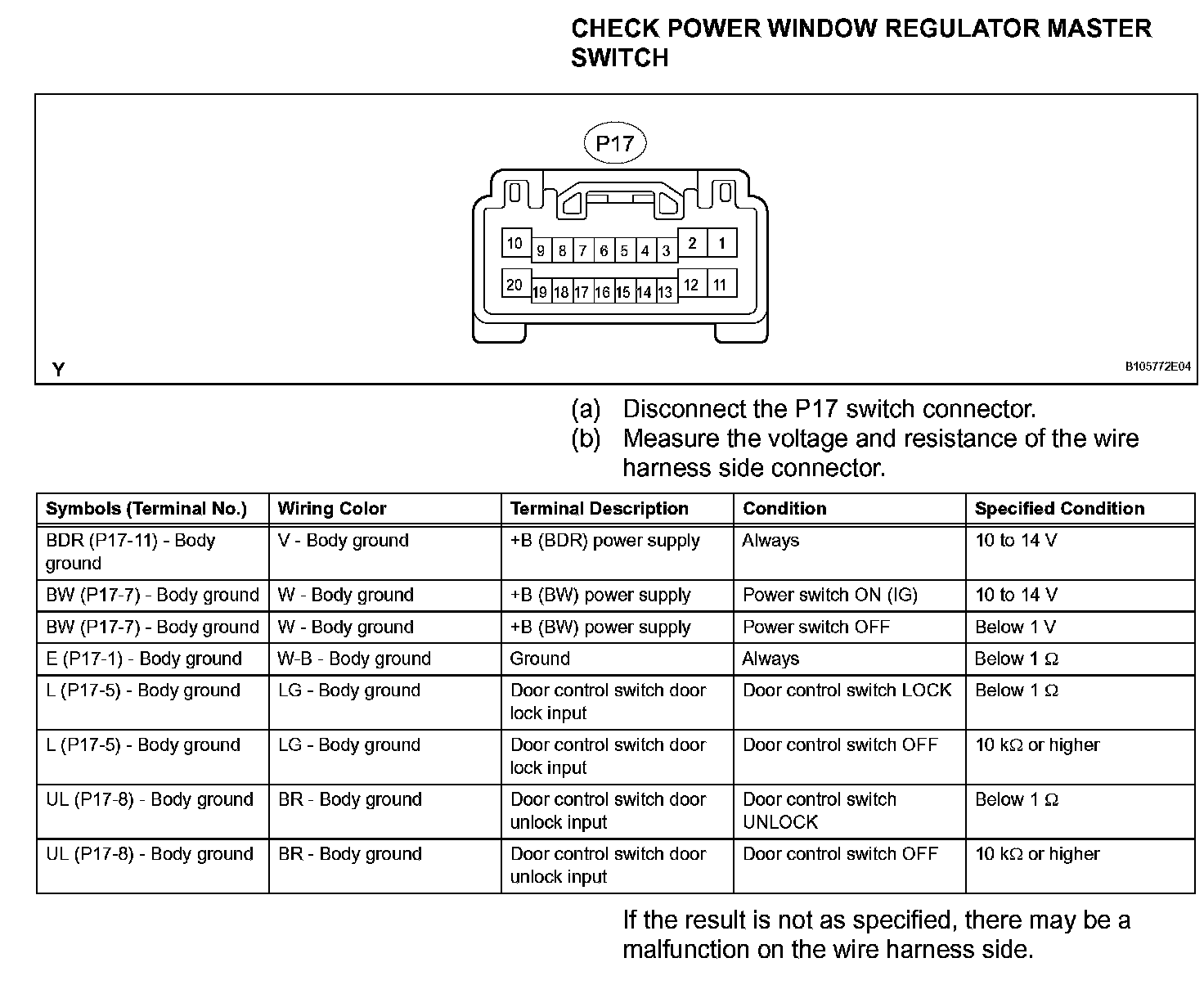

Terminals Of Control Module/Pinouts - Check Power Window Regulator Master Switch:

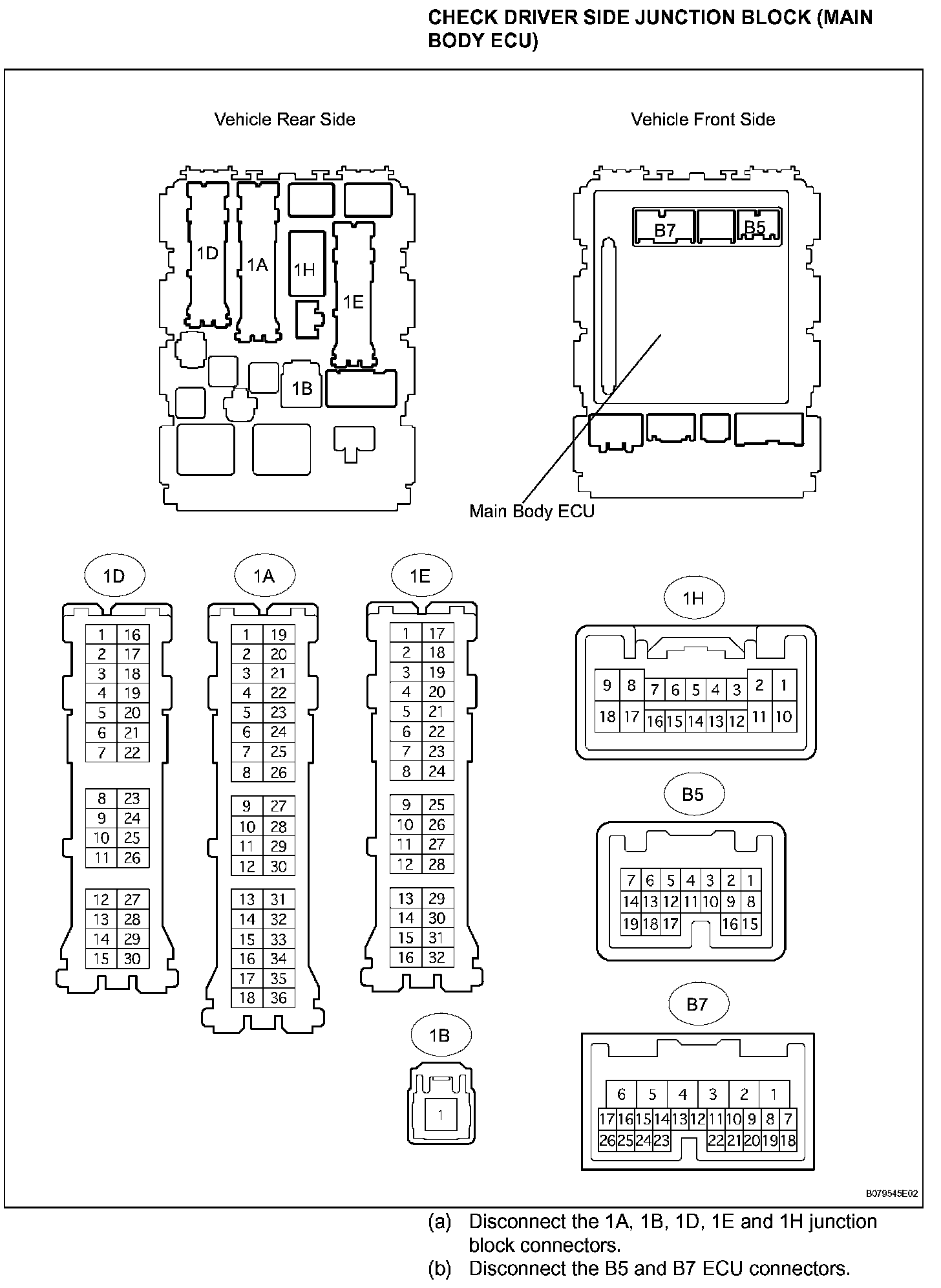

Terminals Of Control Module/Pinouts - Check Driver Side Junction Block (Main Switch) (Part 1):

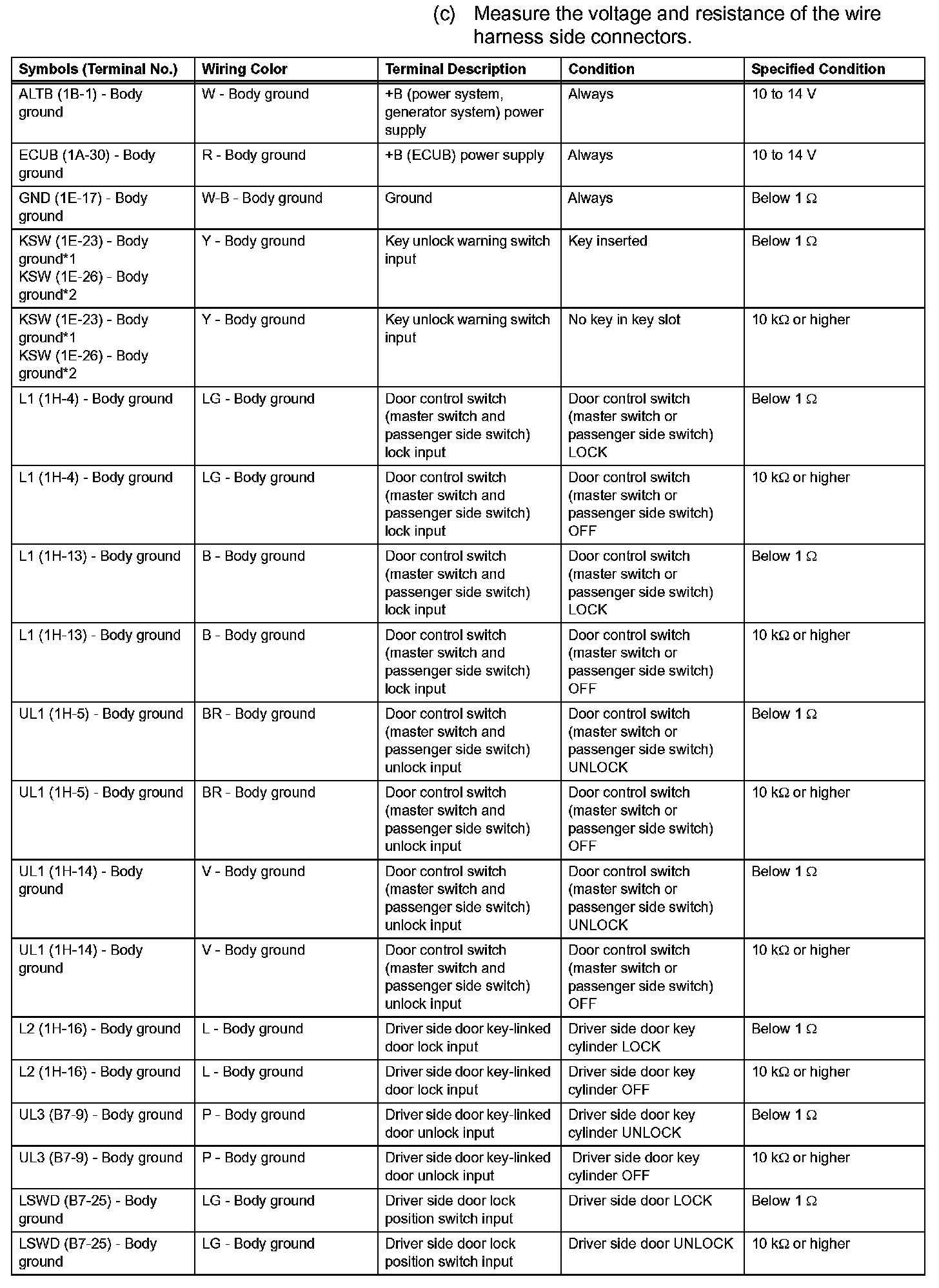

Terminals Of Control Module/Pinouts - Check Driver Side Junction Block (Main Switch) (Part 2):

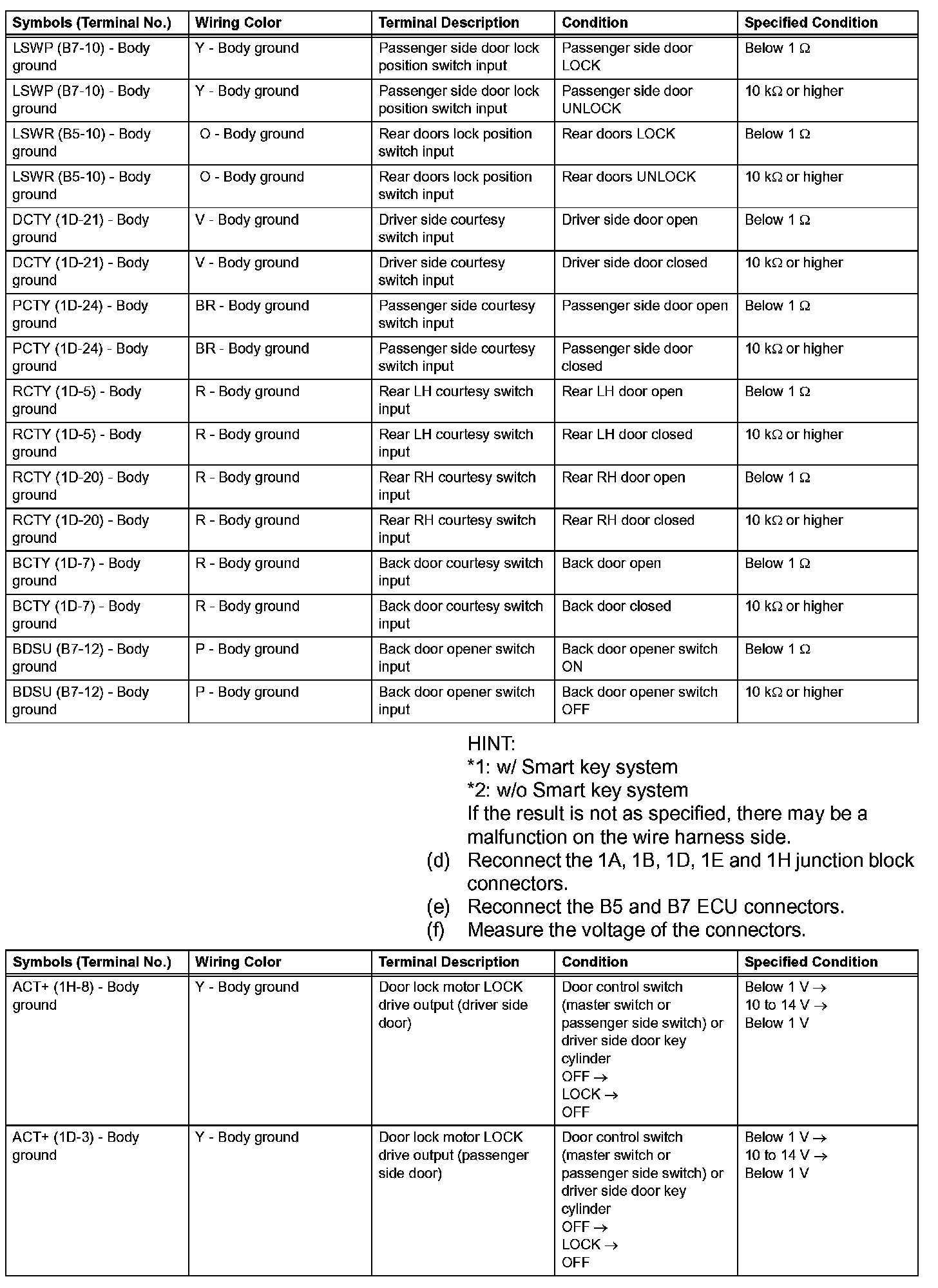

Terminals Of Control Module/Pinouts - Check Driver Side Junction Block (Main Switch) (Part 3):

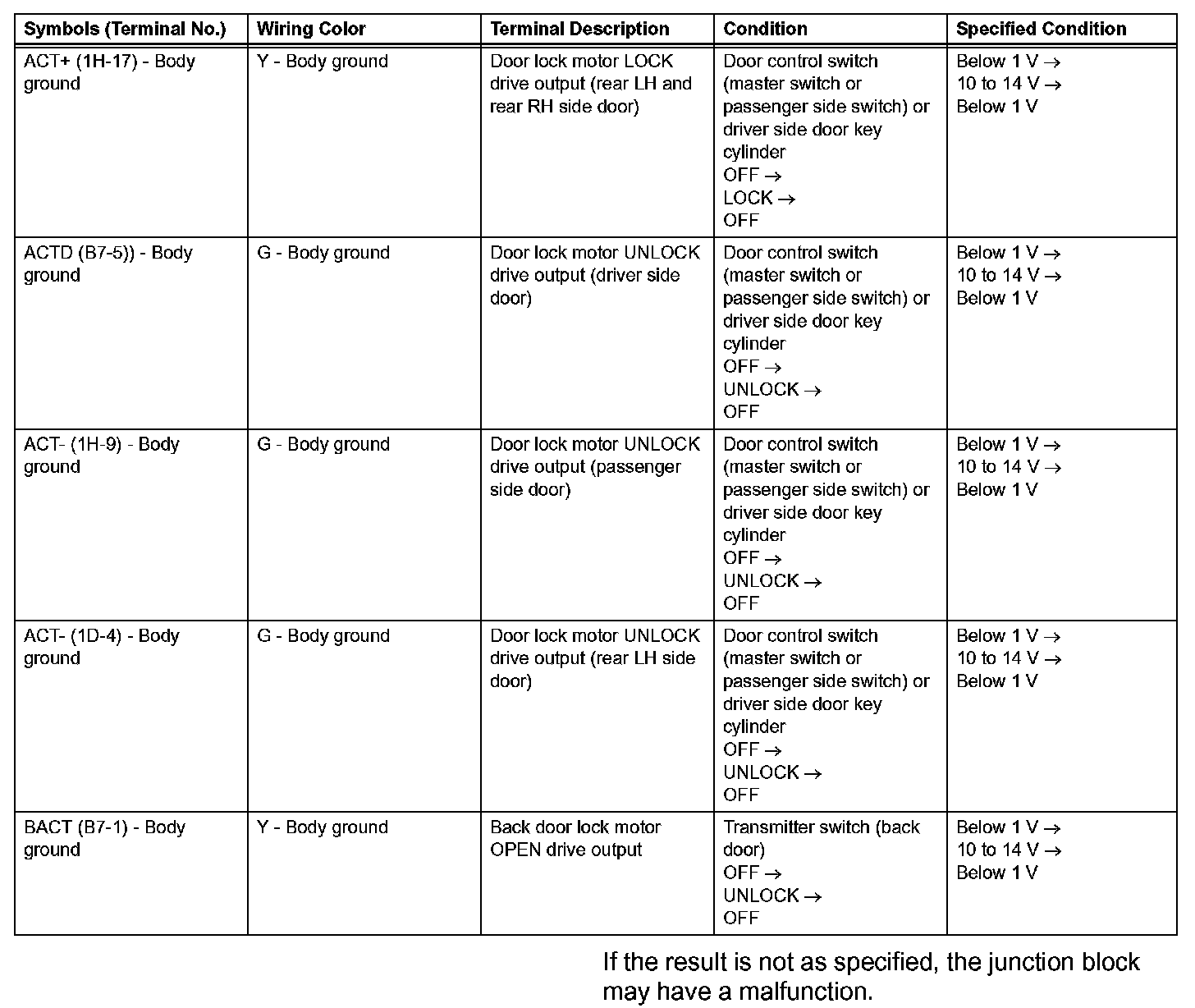

Terminals Of Control Module/Pinouts - Check Driver Side Junction Block (Main Switch) (Part 4):

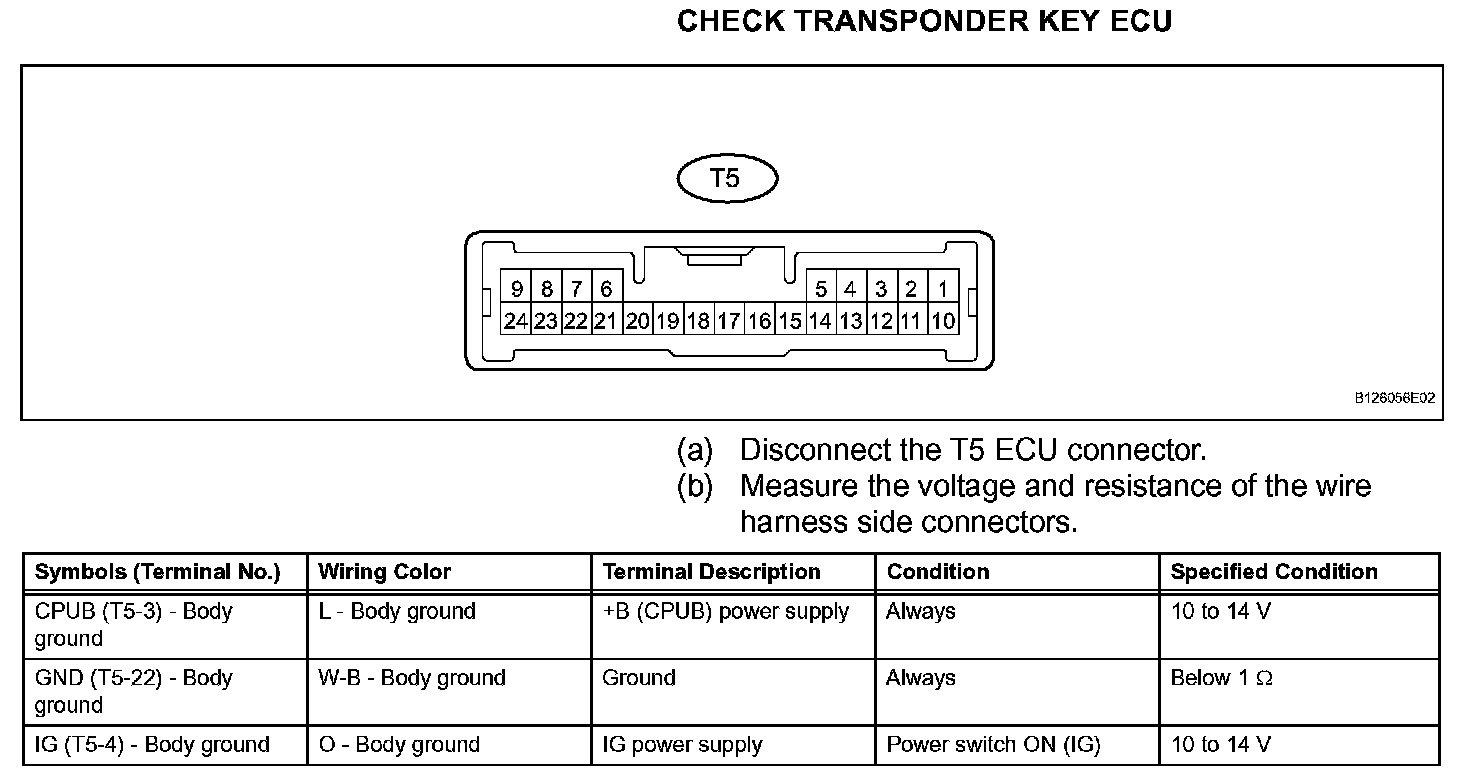

Terminals Of Control Module/Pinouts - Check Transponder Key ECU (Part 1):

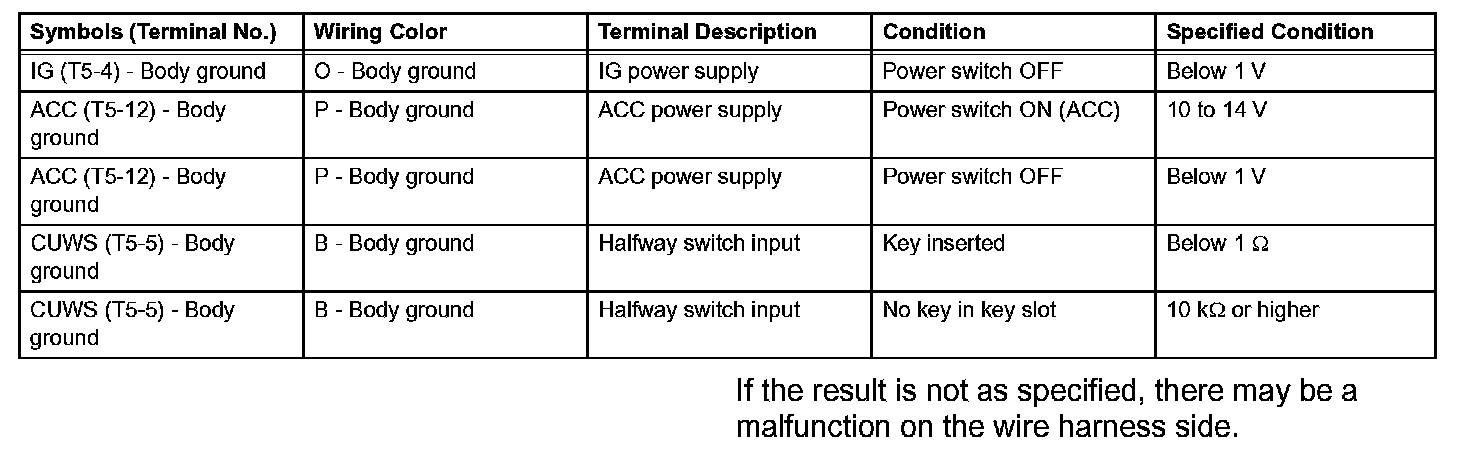

Terminals Of Control Module/Pinouts - Check Transponder Key ECU (Part 2):
