Only Wireless Control Function Is Inoperative
Only Wireless Control Function is InoperativeDESCRIPTION
The door control receiver receives signals from the transmitter and sends these signals to the main body ECU. The main body ECU then controls all doors by sending lock/unlock signals to each door lock.
Wiring Diagram:
Step 1:

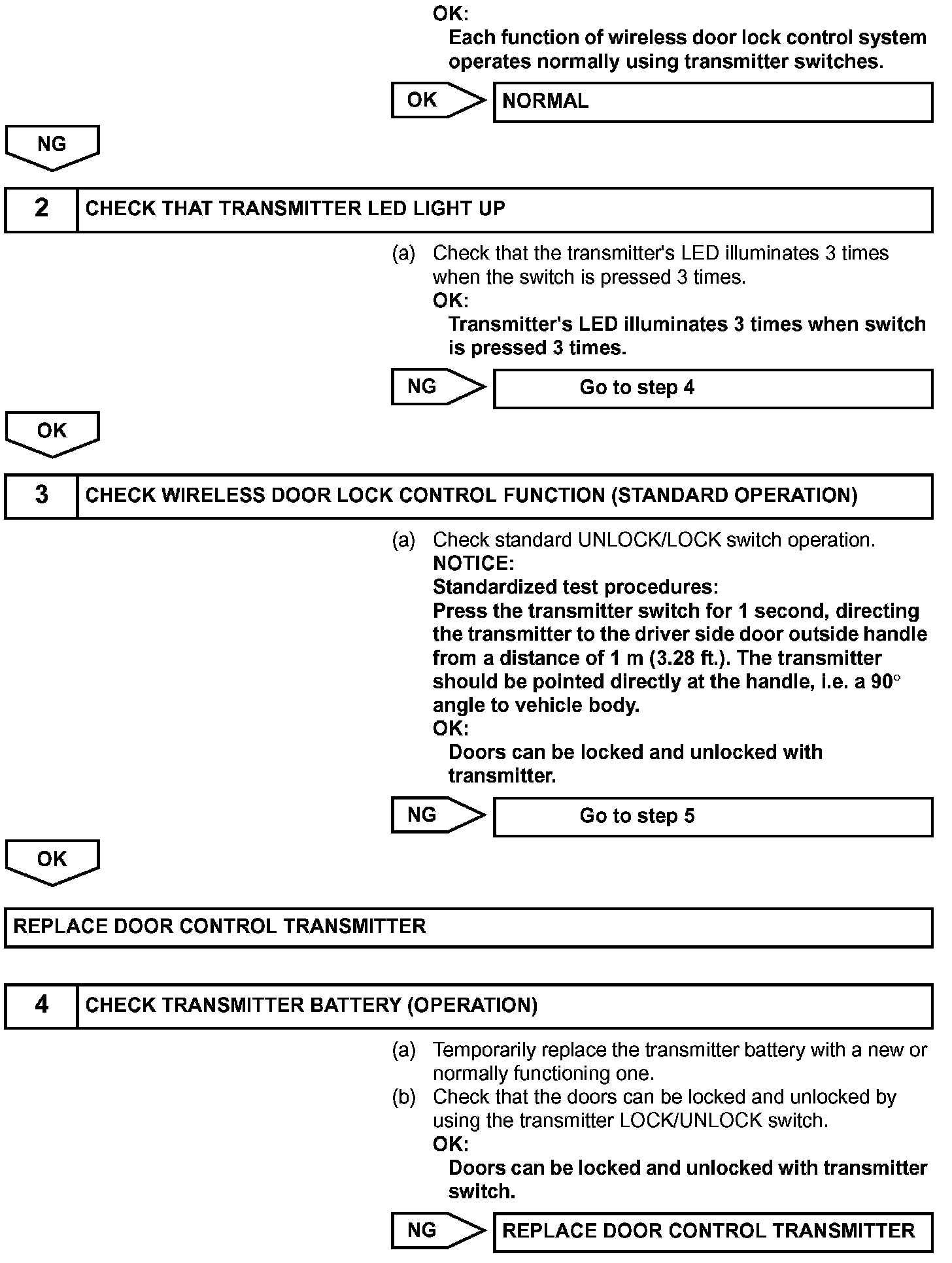

Step 1 (Continued)-4:
Step 4 (Continued)-6:
Step 6 (Continued):

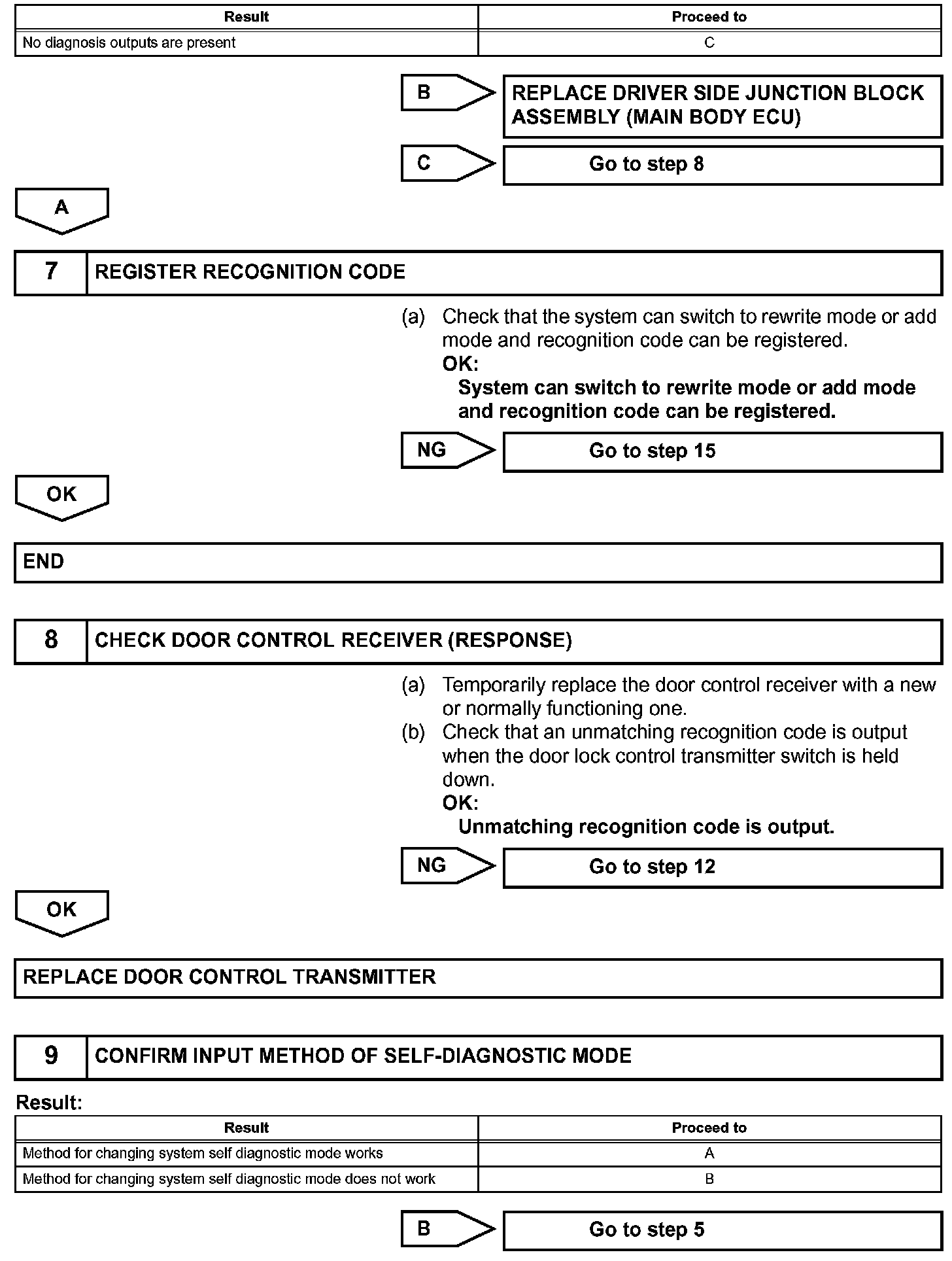

Step 6 (Continued)-9:
Step 9 (Continued)-11:
Step 12-13:
Step 14-15:
INSPECTION PROCEDURE
