Key Reminder Buzzer Does Not Sound

Key Reminder Buzzer does not Sound

DESCRIPTION
With the power switch OFF or ON (ACC), the combination meter sounds the buzzer when it receives a buzzer request signal from the transponder key ECU using the BEAN. The transponder key ECU outputs this signal when it receives: 1) a halfway switch signal (set when the key is in the key slot); and 2) a driver side door courtesy switch signal from the multiplex network body ECU (set when the driver side door is open).

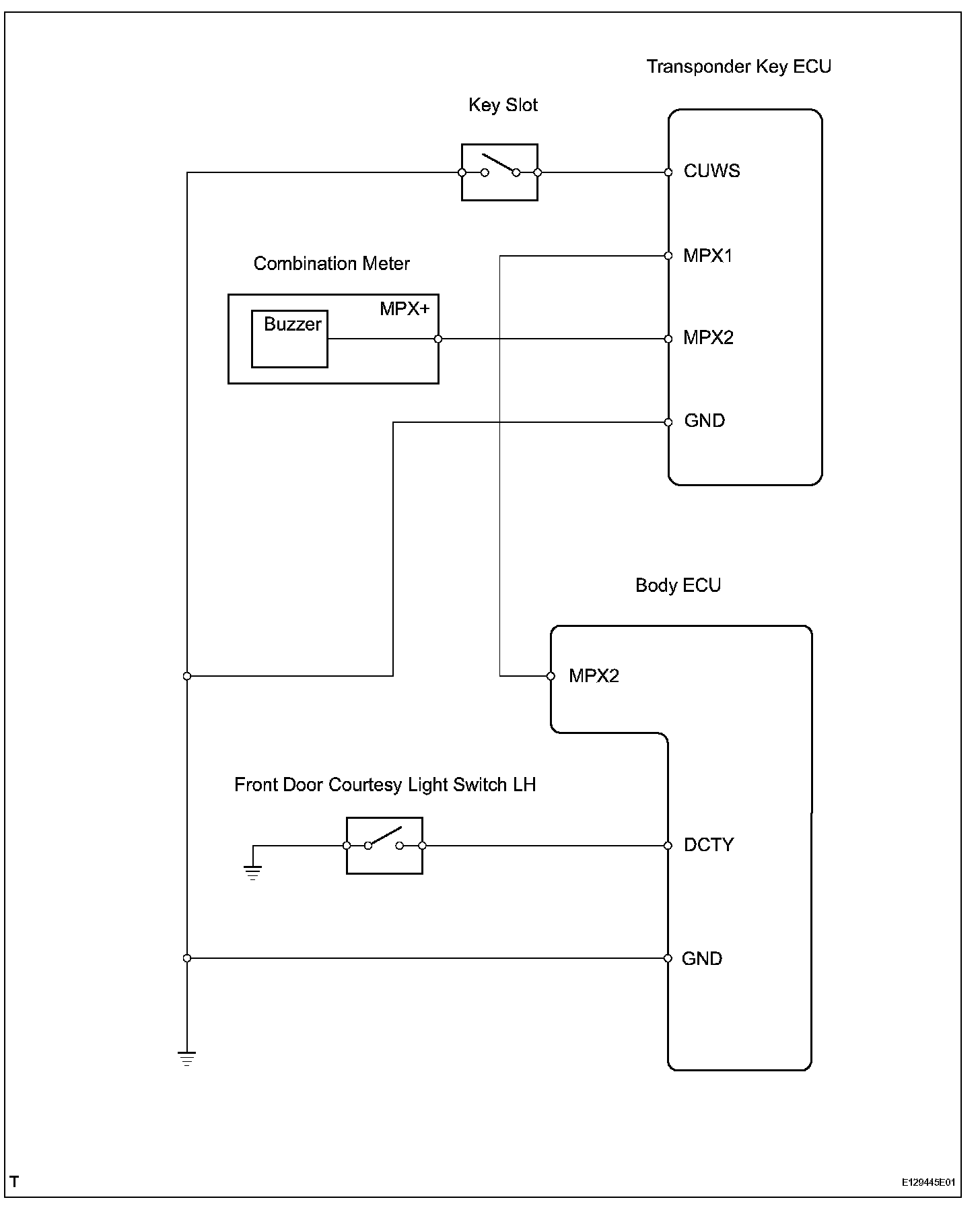

Wiring Diagram:

Step 1-3:

Step 4-5:

Step 5 (Continued)-7:

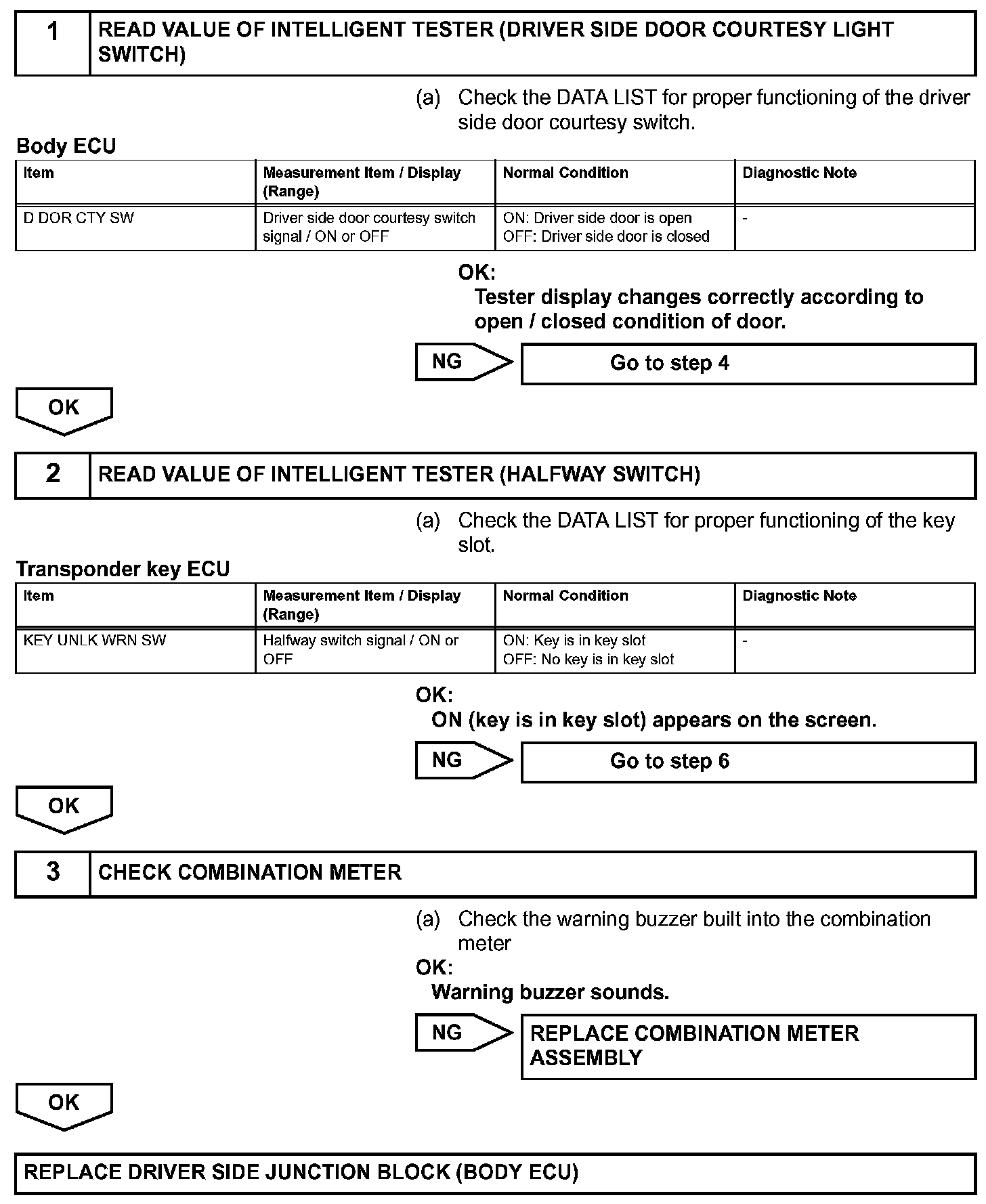

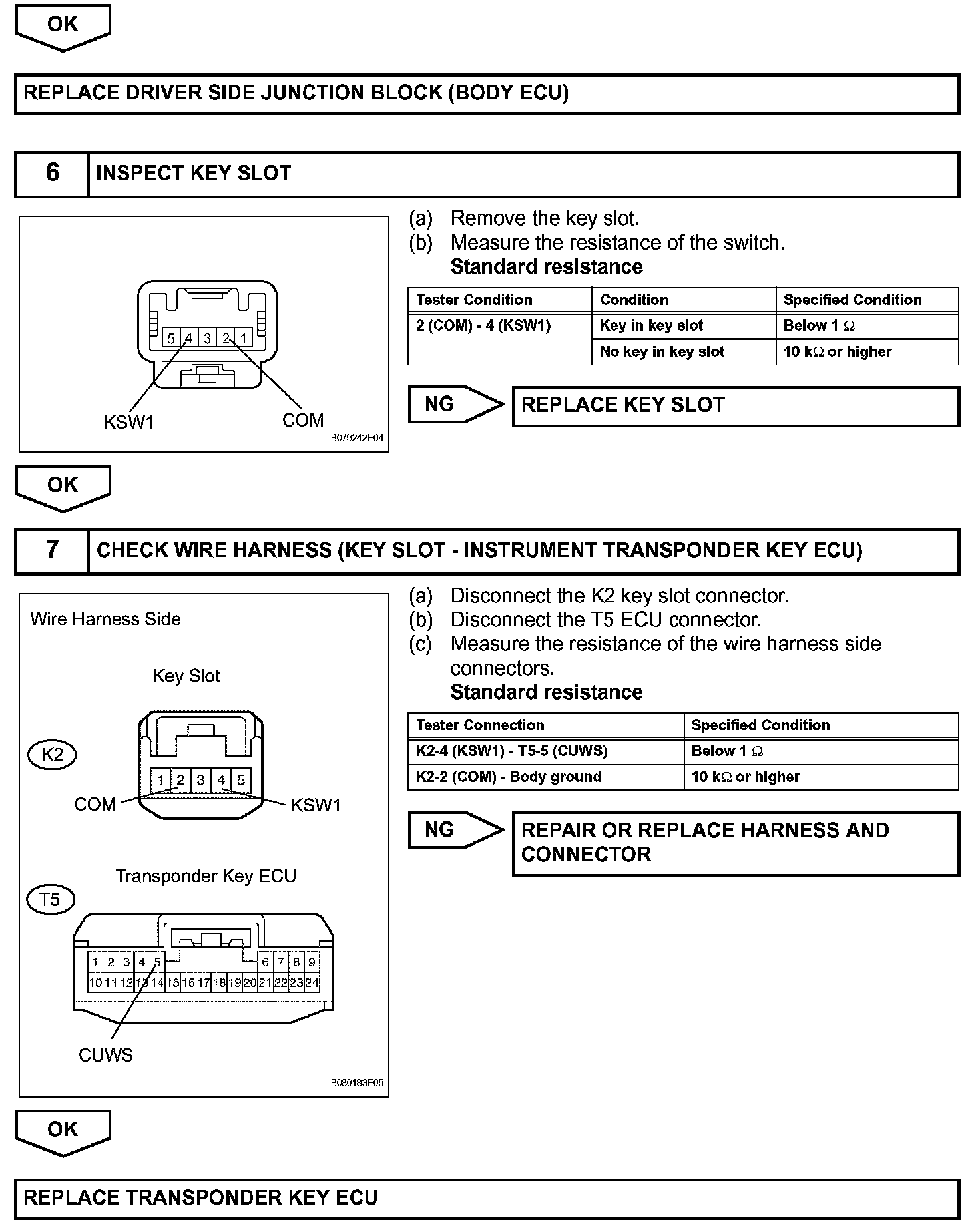

INSPECTION PROCEDURE
