Wireless Door Lock Control System (W/ Smart Key System)
>>
Reading Diagnostic Trouble Codes
>>
With Manufacturer's Scan Tool
With Manufacturer's Scan Tool
CHECK DTC
a.

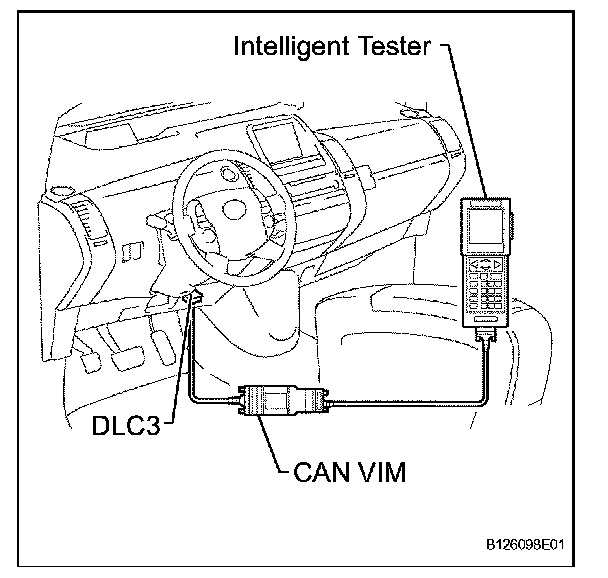

Connect the intelligent tester to the CAN VIM. Then connect the CAN VIM to the DLC3.
b.
Turn the power switch ON (IG).
c.
Read the DTCs by following the directions on the tester screen.
