Wireless Door Lock Control System (W/O Smart Entry System)

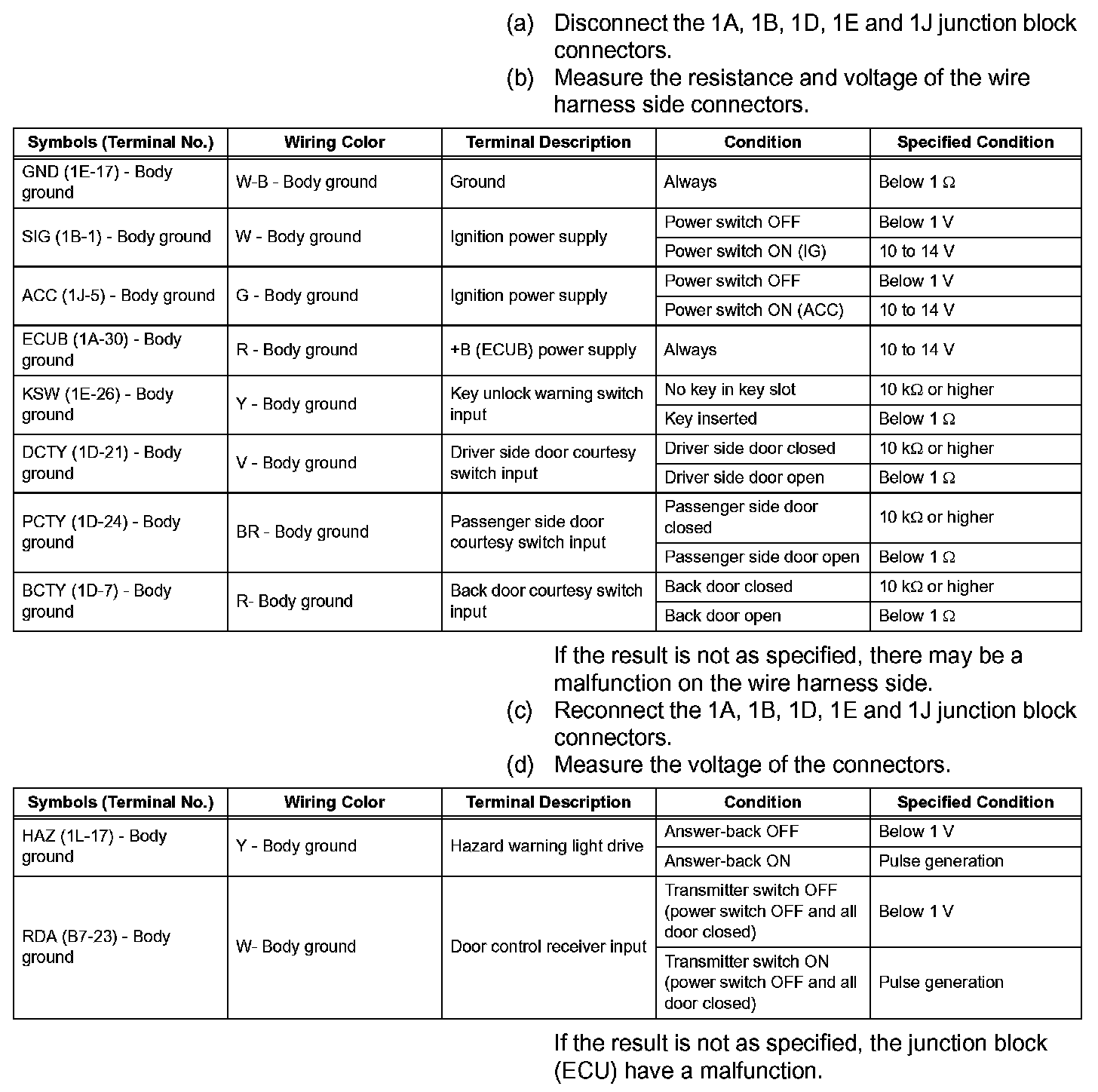

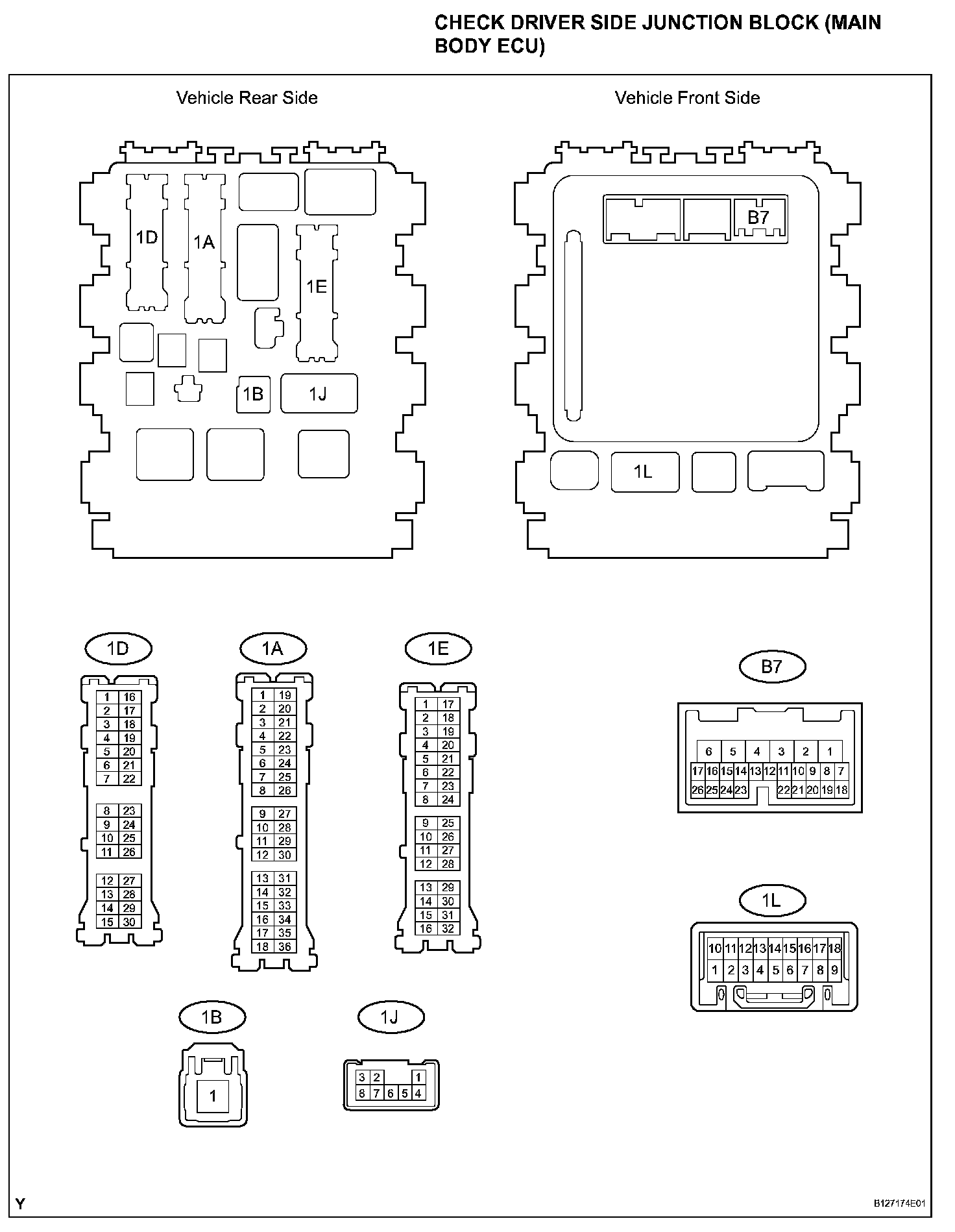

Terminals Of Control Module/Pinouts - Check Driver Side Junction Block (Main Body ECU) (Part 1):

Terminals Of Control Module/Pinouts - Check Driver Side Junction Block (Main Body ECU) (Part 2):
