Front Door Lock

INSPECTION

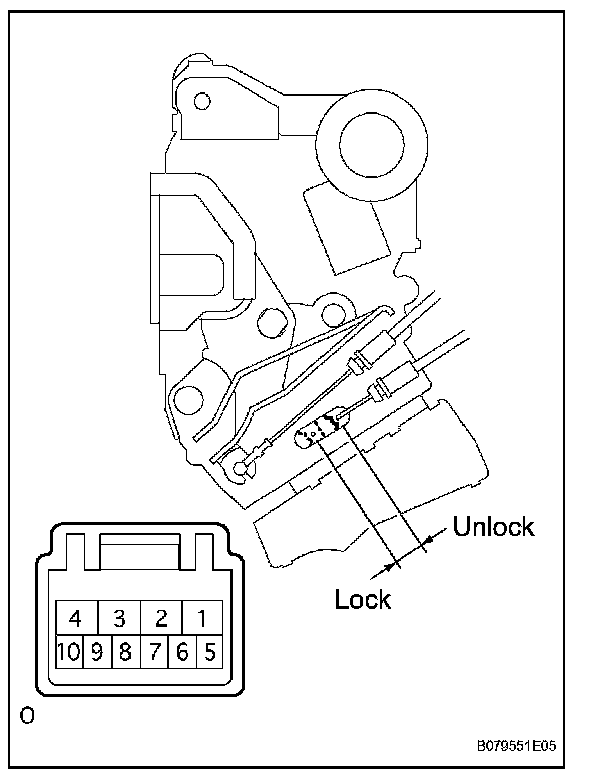

1. INSPECT FRONT DOOR LOCK LH

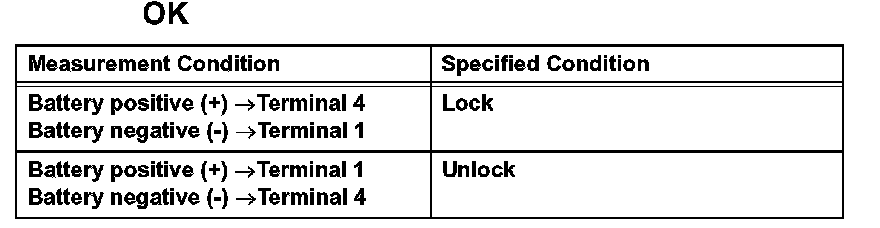

a. Apply battery voltage to the door lock and check operation of the door lock motor.




If the result is not as specified, replace the door lock assembly.

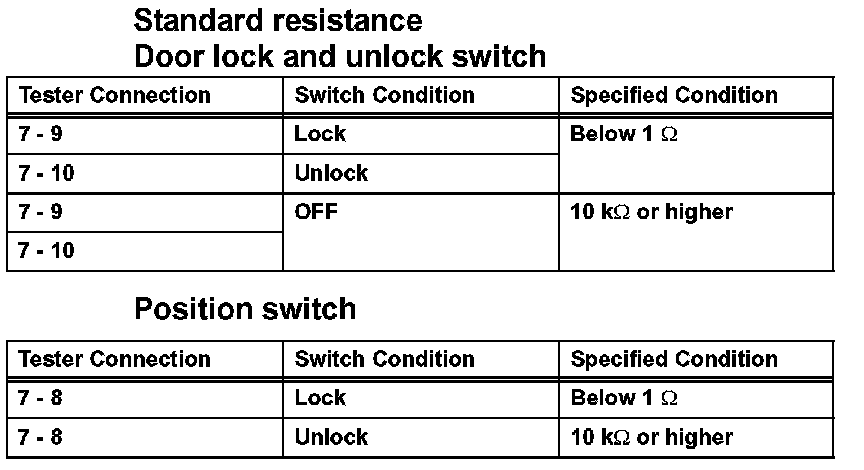

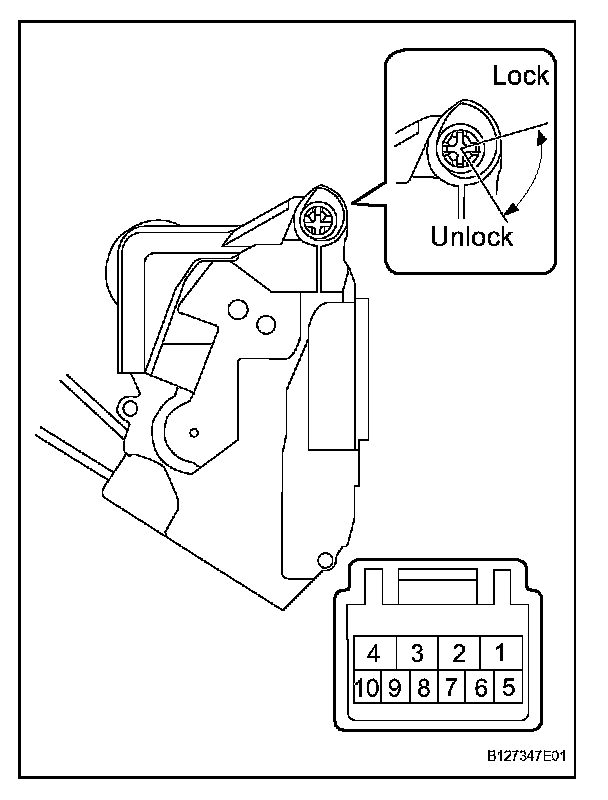

b. Measure the resistance of the door lock and unlock switch and position switch.




If the result is not as specified, replace the door lock assembly.

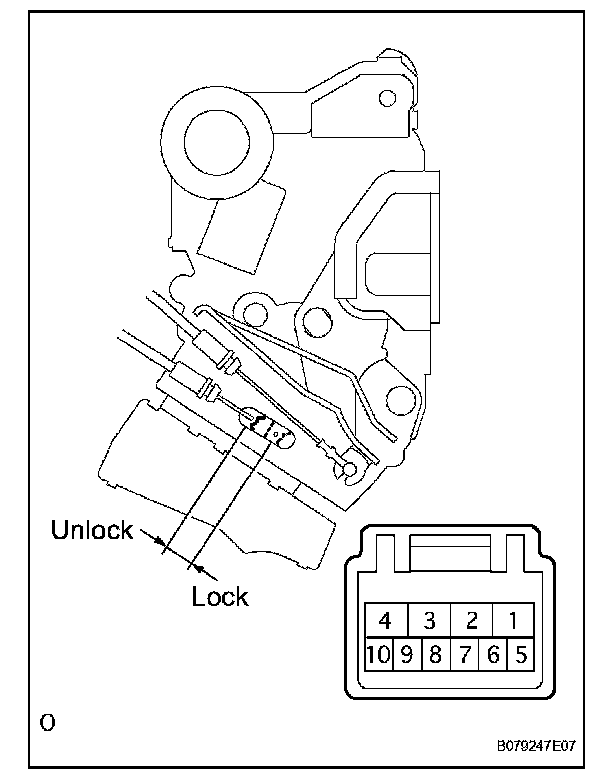

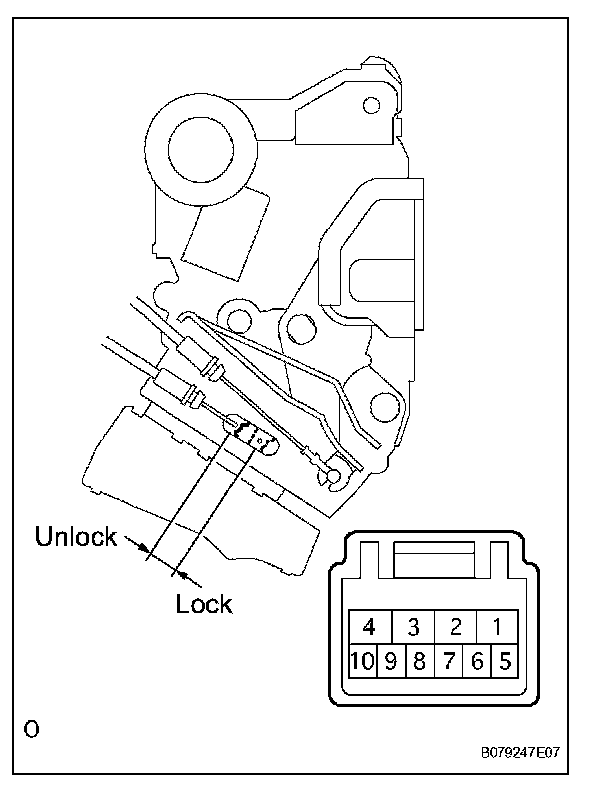

2. INSPECT FRONT DOOR LOCK RH

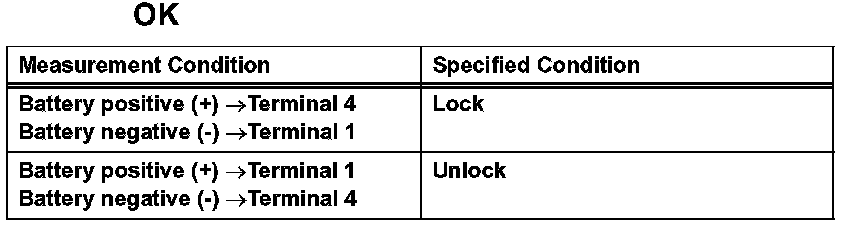

a. Apply battery voltage to the door lock and check operation of the door lock motor.




If the result is not as specified, replace the door lock assembly.

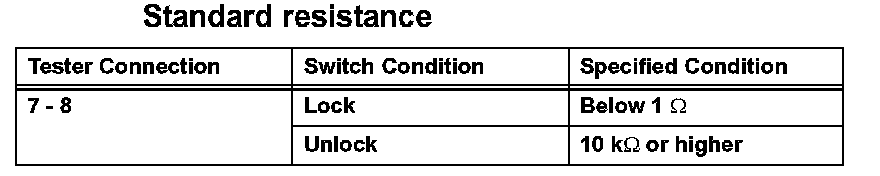

b. Measure the resistance of the position switch.




If the result is not as specified, replace the door lock assembly.
